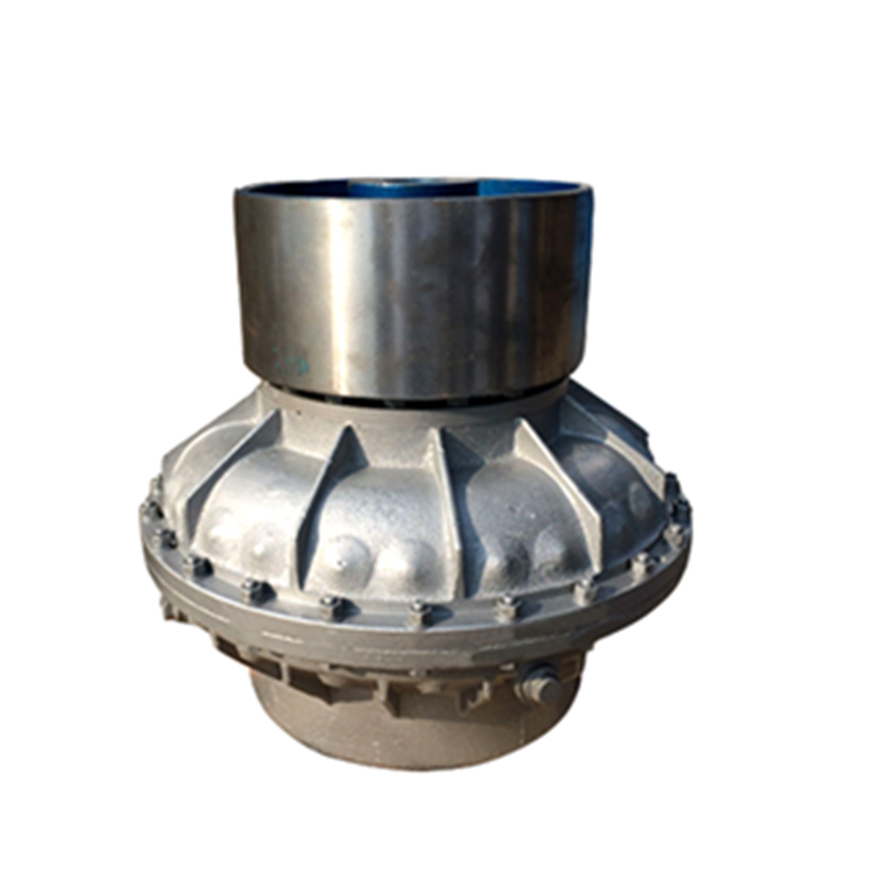

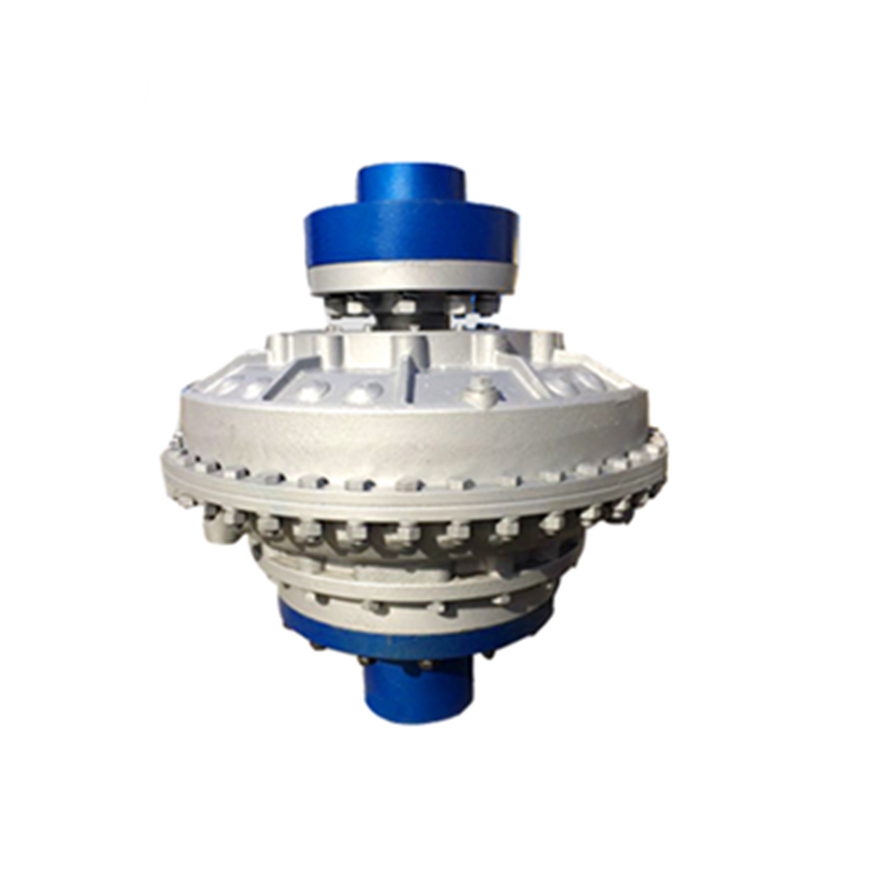

YOX Series Oil Filling Fluid Coupler Hydraulic Quick Coupling

YOX series oil filling Fluid Coupler Hydraulic Quick Coupling 1.external drive, cavity for turbine impeller, the impeller is connected with the casing of pump wheel, elastic coupling on the motor side, coupling weight is mainly composed of reducer be

Send Inquiry

Product Description

YOX series oil filling Fluid Coupler Hydraulic Quick Coupling

1.external drive, cavity for turbine impeller, the impeller is connected with the casing of pump wheel, elastic coupling on the motor side, coupling weight is mainly composed of reducer bearing.

2. auxiliary chamber, which belongs to the dynamic pressure discharge type, instantaneous overload protection ability, fast reaction speed, overload coefficient is low, can effectively limit the starting torque. 3. The YOX series is a TD type belt conveyor special accessory products.

4. when the reducer shaft than the motor shaft is much thinner, best not to choose this type, also can take input, output inverted measures, to prevent the broken shaft of reducer. When inverted performance changes, but does not affect the use.

5. double speed or speed motor drive coupling according to the parameter selection at low level.

Specification:

TYPE	Input	Range of transmitted	Dimen-		Max.	Max	Volume		Weight
	Speed	Power	sions		input	output	Of		(kg)
	(r/min)	(kw)			Bore	Bore	Filling
					diameter	diameter	Oil(L)
					/length	/length
			D	A	(d1/L1)	(d2/L2)
YOX	1000	0.05-0.2	195	175	25/40	20/40	0.2	0.4	6
150	1500	0.2-0.55
YOX	1000	0.1-0.3	232	207	30/50	25/50	0.3	0.5	7
180	1500	0.5-1.1
YOX	1000	0.2-0.55	254	194	35/60	30/60	0.6	1.2	8
200	1500	0.8-2.2
YOX	1000	0.4-1.1	278	225	40/80	35/80	0.7	1.52	13
220	1500	1.5-3
YOX	1000	0.8-1.5	305	240	45/80	40/80	1.1	2.1	16
250	1500	2.5-5.5
YOX	1000	1.5-3	345	252	50/80	45/110	1.4	2.8	21
280	1500	4.5-8
YOX	1000	2.5-5.5	380	278	55/110	45/110	2.2	4.4	28
320	1500	9-18.5
340	1500
