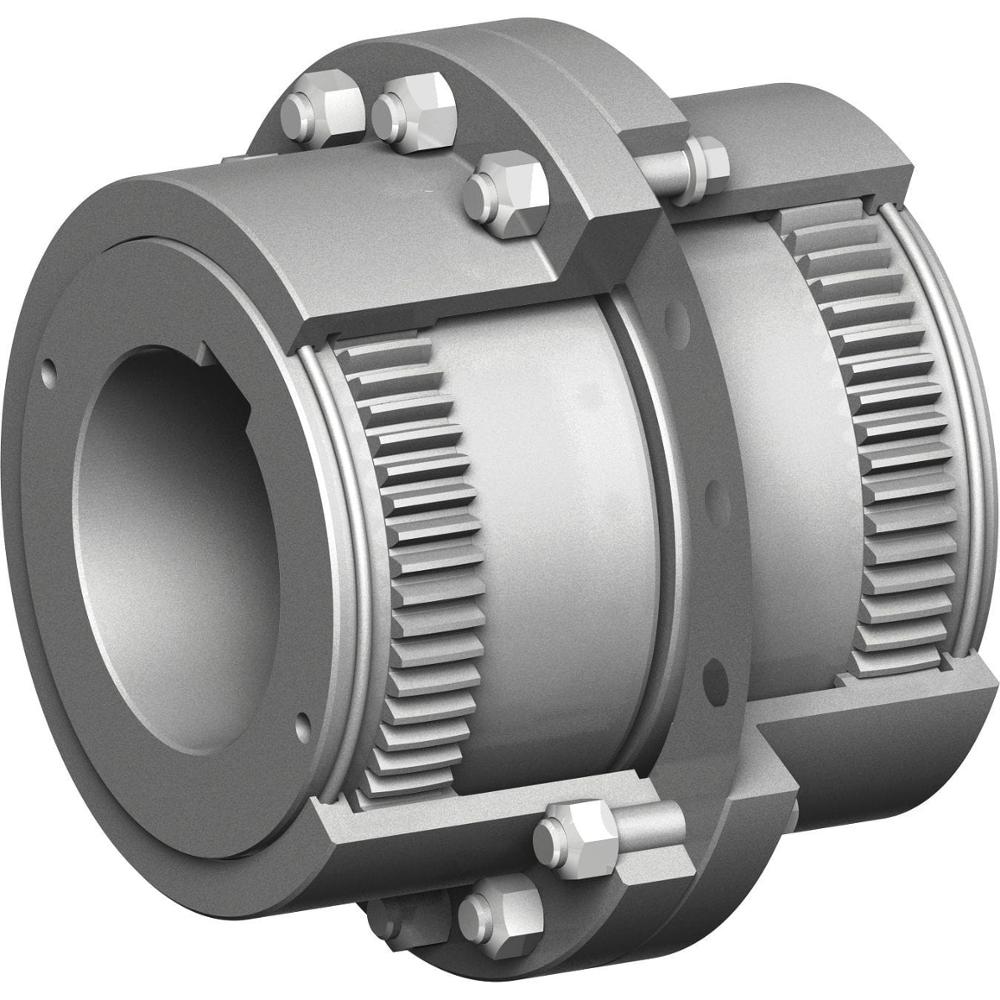

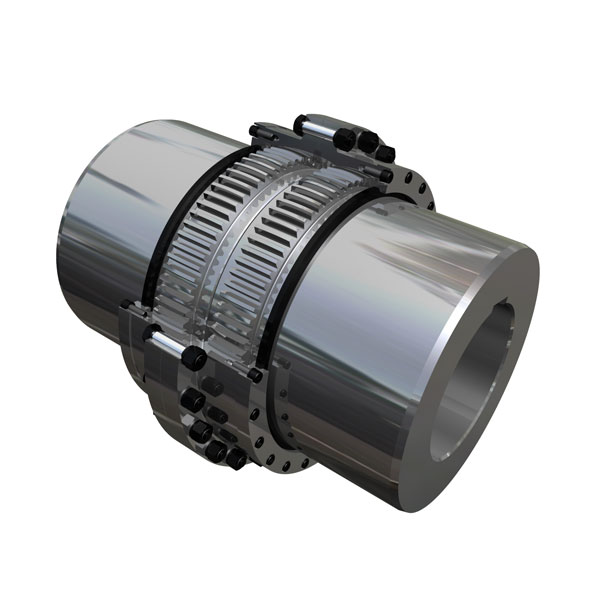

GIICL Type Flex Rigid and Floating Drum Gear Shaft Coupling

GIICL type drum gear coupling

machined with precision comprise two flanged
sleeves with internal spur gear teeth.
They are linkd by a set of heat treated alloy
steel fasteners and mesh with two accurately
machined crowned teeths hubs, with a carefully
studied profile and minimum float to obtain
the best alignmants.

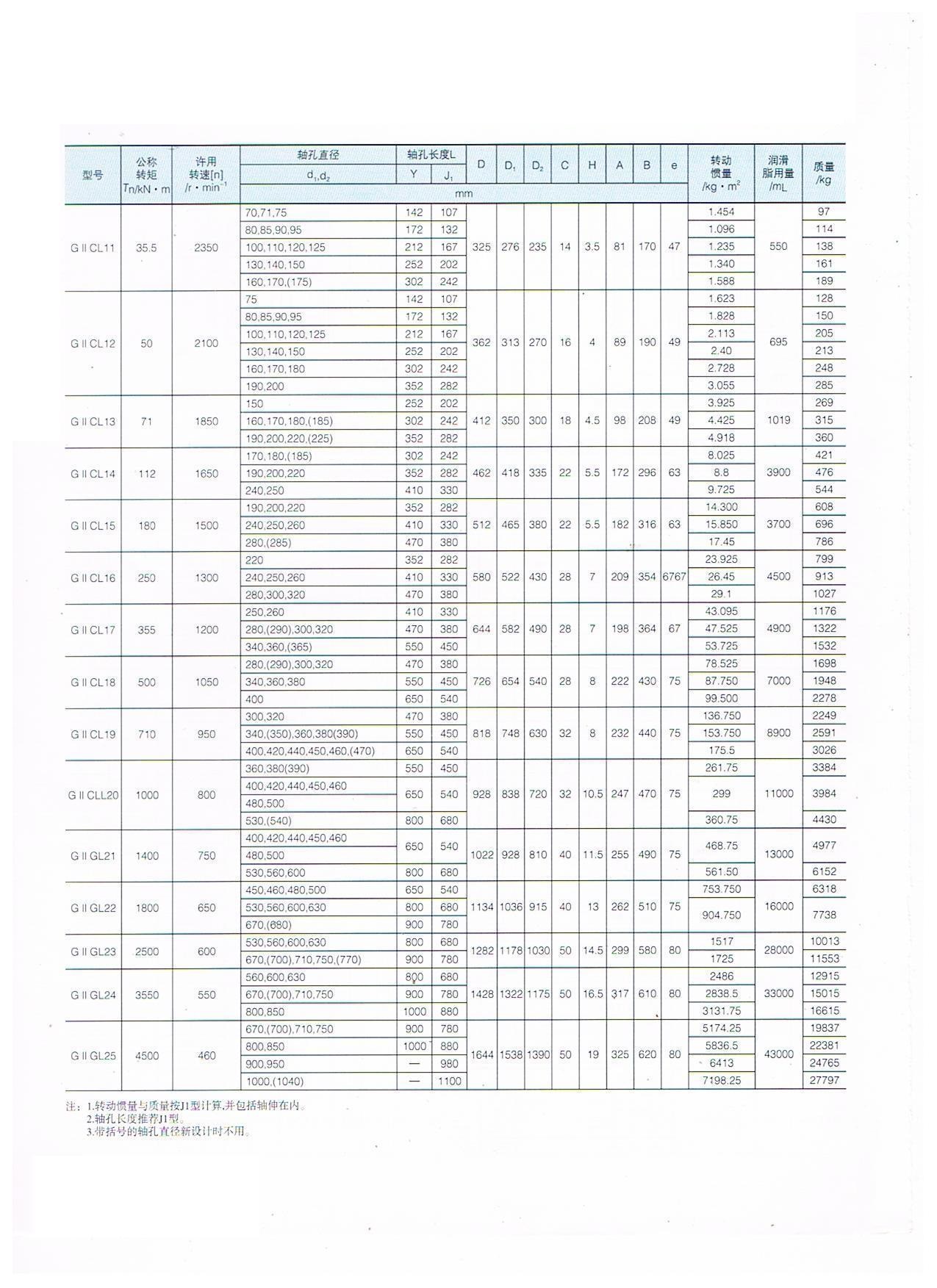

26 sizes fron 1200 to 7 780 000 Nm.
Bore capacity up to 800 mm.
Ambient temperature between -20°C and + 100°C.
Rotating speed up to 14 000 rpm.
High misalignments = 1°30' per gear.
