Product Description What is FHP3K open cone sleeve? FHP3K open cone sleeve is a mechanical component that installs pulleys, sprockets, and other rotating equipment on a shaft. It is a split conical bushing designed to provide a safe and precise fit b

Send Inquiry

Product Description

Product Description

What is FHP3K open cone sleeve?

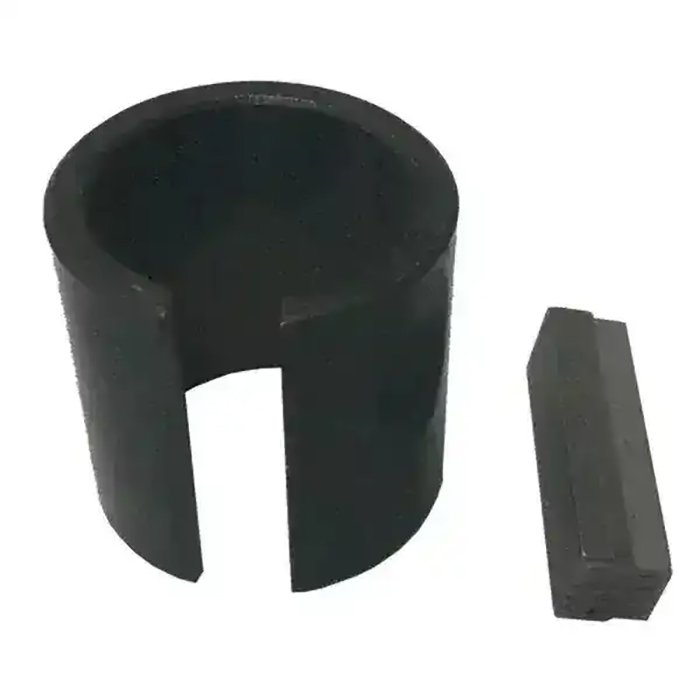

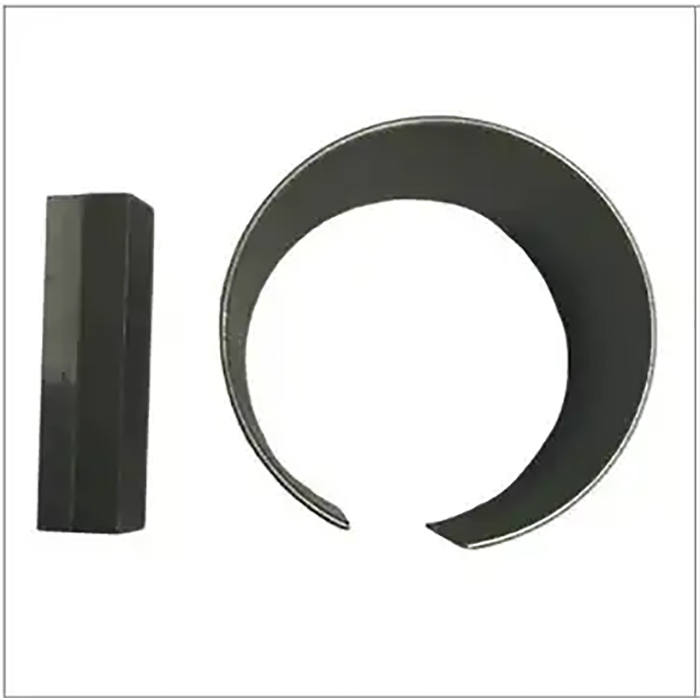

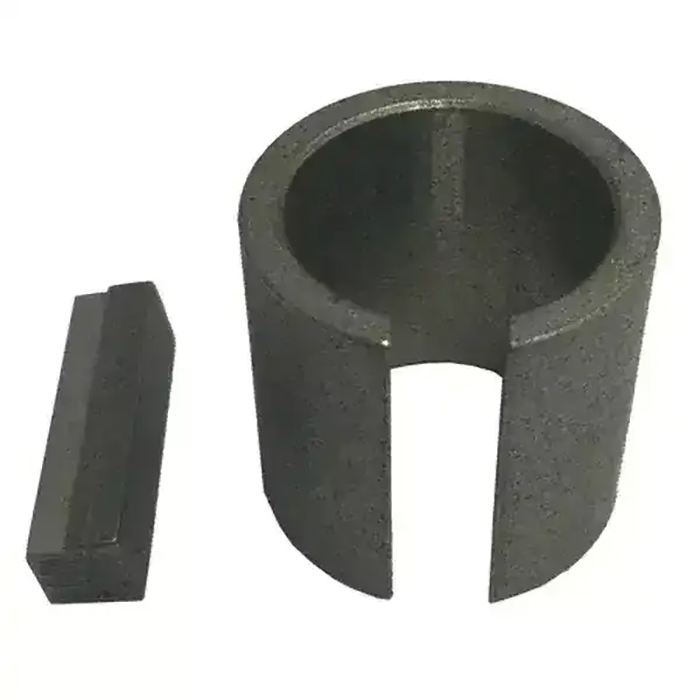

FHP3K open cone sleeve is a mechanical component that installs pulleys, sprockets, and other rotating equipment on a shaft. It is a split conical bushing designed to provide a safe and precise fit between the kit and the column, while also facilitating installation and disassembly. The FHP3K open conical sleeve has a conical sleeve that opens along its length and can be slightly compressed when tightened onto the shaft. This compression forms a tight clamp between the liner and the column, helping to prevent slipping and ensuring smooth and accurate rotation of the equipment. The FHP3K open tapered sleeve also has a flange with threaded holes for fixing rotating equipment to the sleeve. The flange is connected to the conical sleeve through screws or bolts, and its aperture matches the diameter of the equipment installation hub. The hole is designed to fit tightly against the device core, ensuring that the device is correctly centered and balanced on the shaft. The FHP3K open cone sleeve is famous for its load-bearing capacity, as its design can withstand higher loads than other types of open cone sleeves. This makes it very suitable for a range of industrial applications with medium to high loads. A key feature of the FHP3K split conical sleeve is that it is easy to install and disassemble due to the split design of the conical sleeve. This makes it easy to place on the shaft without the need for a press or other specialized tools. It can also be easily removed from the pillar without damaging the bushing or equipment. Overall, the FHP3K open cone sleeve is a reliable and durable component widely used in many industrial applications that require precise and safe installation of rotating equipment. It is suitable for various industries, including agriculture, material processing, mining, packaging, and printing.

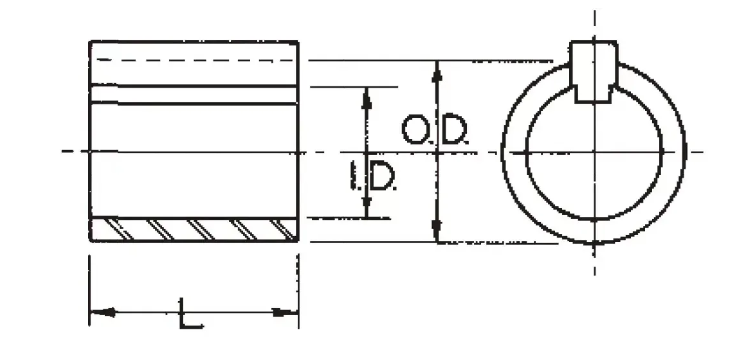

FHP3K Split Taper Bushing Dimensions:

Bushing Part No.	FHP3K Split Taper Bushing
Outside Diameter (O.D.)	1''
Inside Diameter (I.D.)	5/8''
Length	1 1/8''
Keyway Size	1/4'' X 5/16'' — 3/16'' X 3/32''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

Bushing Part No.	FHP5K Split Taper Bushing
Outside Diameter (O.D.)	1"
Inside Diameter (I.D.)	7/8"
Length	1 1/8"
Keyway Size	1/4" X 5/32" — 3/16" X 3/32"
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

Bushing Part No.	FHP9K Split Taper Bushing
Outside Diameter (O.D.)	1''
Inside Diameter (I.D.)	11/16''
Length	1 1/8''
Keyway Size	1/4'' X 9/32'' — 3/16'' X 3/32''
Bore Type	Finished with Keyway
Material	Steel
Application	Mounting of various FHP drive components, including sheaves, pulleys, and sprockets.

How to select FHP3K open cone sleeve?

When selecting FHP3K open cone sleeves for specific applications, there are several factors that need to be considered to ensure that the sleeves are compatible with the equipment and meet the load requirements of the application. The following are some key factors to consider:

1. Shaft size: The FHP3K open cone sleeve should be selected based on the diameter of the installed shaft. Ensure accurate measurement of shaft diameter to ensure proper fit.

2. Bearing capacity: The bearing capacity of the FHP3K open cone sleeve should be sufficient to meet the application requirements. The bearing capacity is usually specified by the manufacturer and is based on factors such as casing size, material, and design. Ensure the selection of a sleeve with suitable equipment and its load-bearing capacity.

3. Equipment hub size: The aperture of the FHP3K open cone sleeve flange should match the diameter of the equipment hub to be installed. This ensures that the equipment is correctly centered and balanced on the shaft.

4. Material: FHP3K open tapered bushing is usually made of steel or other durable materials. Choose a material that is suitable for the environment and the type of equipment to be used for the casing.

5. Installation and disassembly: Consider the convenience of installing and disassembling the FHP3K open cone sleeve. The split design of conical sleeves is easier to install and disassemble than other types of sleeves. Considering these factors, you can choose the appropriate FHP3K open cone sleeve for your specific application, ensuring a firm and precise fit between the equipment and shaft, and facilitating installation and disassembly.

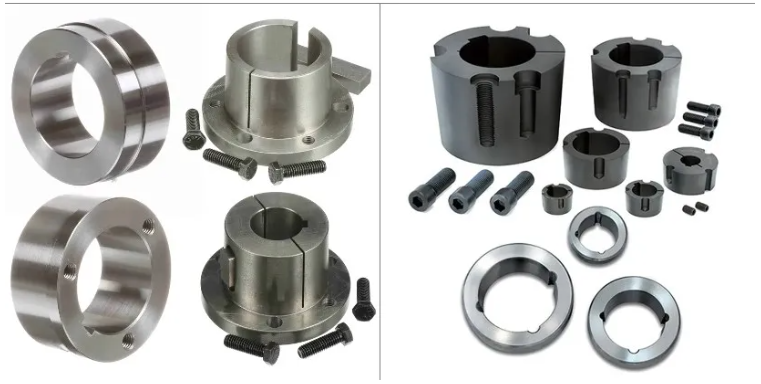

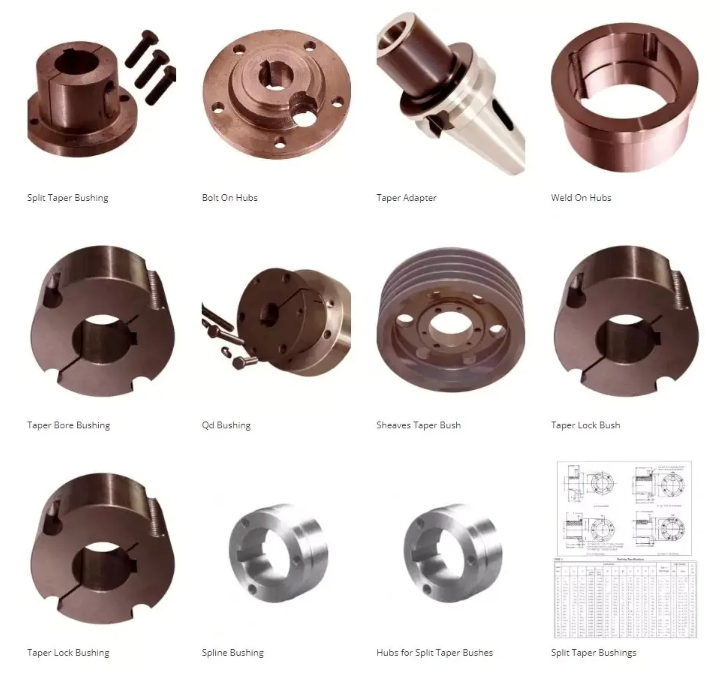

Our company can provide our customers with the taper bush in the following table.

Professional High Quality Durable Using Proper Price Split Taper Bushing FHP3K FHP2K FHP9K FHP10K FHP5K FHP16K FHP4K

Packaging & Shipping

Professional High Quality Durable Using Proper Price Split Taper Bushing FHP3K FHP2K FHP9K FHP10K FHP5K FHP16K FHP4K

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
