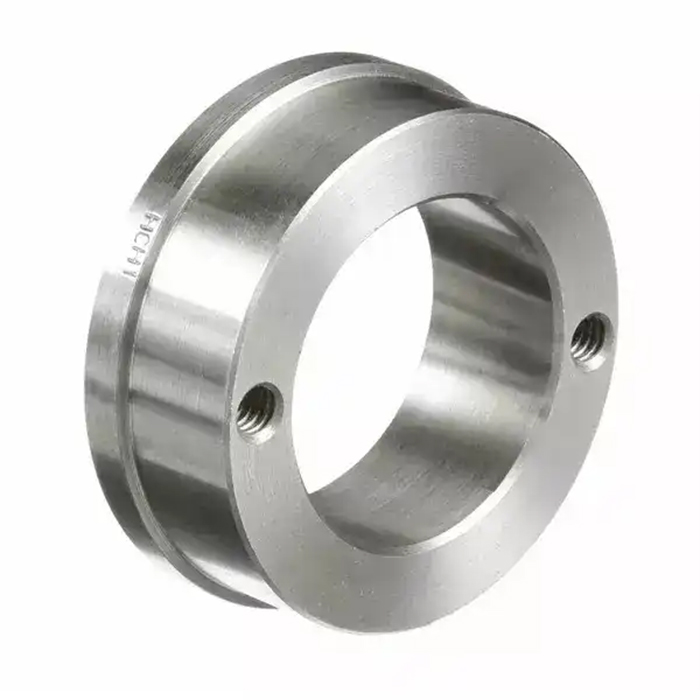

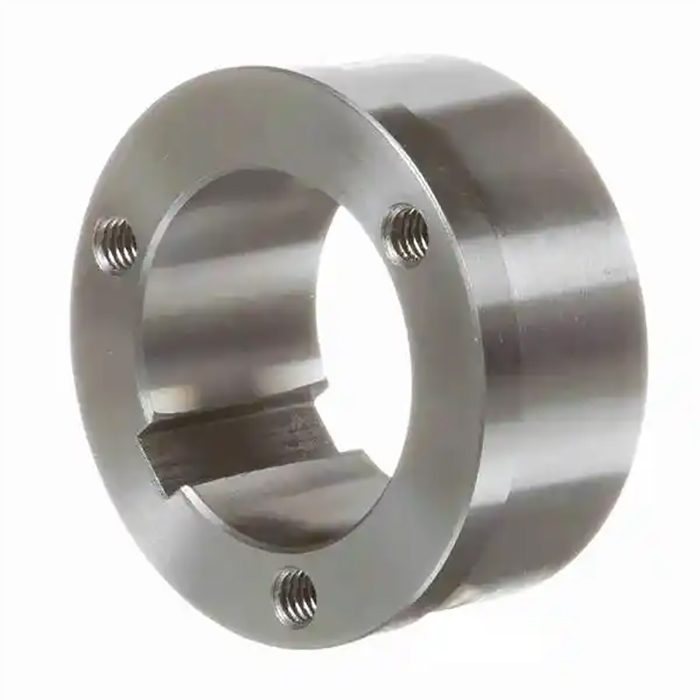

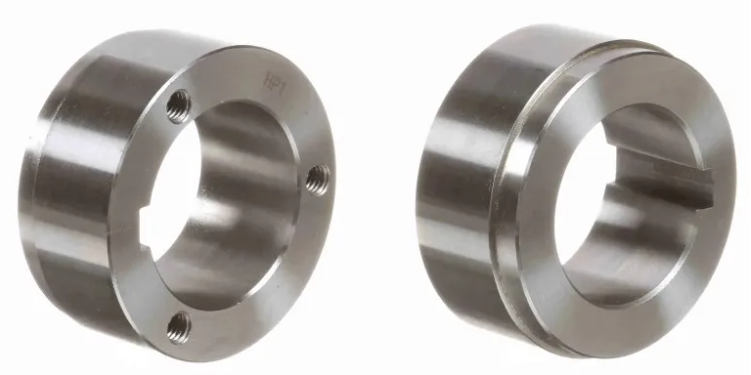

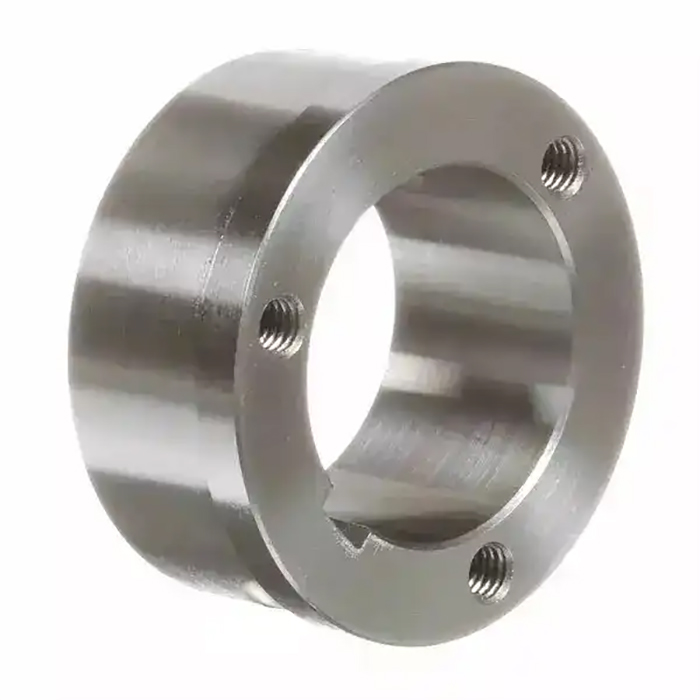

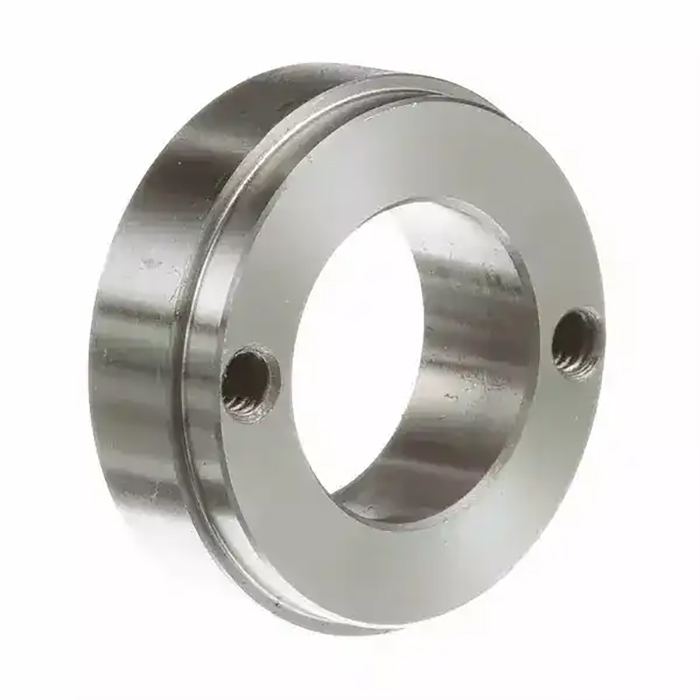

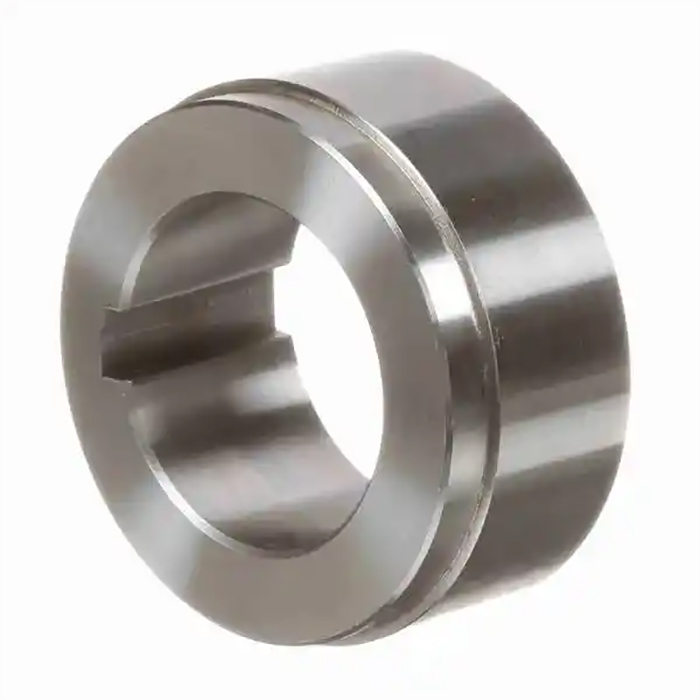

Sell Well New Type HP1 Steel Hubs for Split Taper Bushings

Product Description HP1 steel hub for P1 open tapered sleeveThe HP1 steel hub used for split tapered bushings is a hub used for installing pulleys, sprockets, gears, and pulleys. They are made of steel and have an open conical sleeve that can be tigh

Send Inquiry

Product Description

Product Description

HP1 steel hub for P1 open tapered sleeveThe HP1 steel hub used for split tapered bushings is a hub used for installing pulleys, sprockets, gears, and pulleys. They are made of steel and have an open conical sleeve that can be tightly installed on the drive shaft. The outer diameter of the HP1 hub is 3 inches, and the hub aperture is 1-15/16 inches. They have three types of materials: sintered steel, malleable iron, and ductile iron. An open tapered bushing is a type of bushing with a tapered hole that is tightly installed on the drive shaft. This type of bushing is typically used in applications that require high torque. The split conical design makes the bushing easy to install and disassemble, and provides good vibration reduction effect. The HP1 steel hub used for split tapered bushings is a universal and reliable hub type that can be used in various applications. They are very suitable for high torque applications and are relatively easy to install and disassemble.

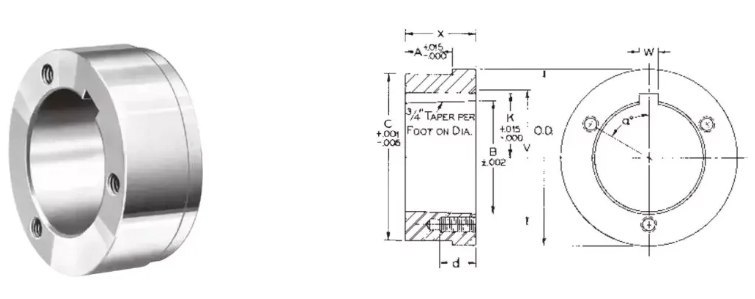

HP1 Steel Hubs Dimensions:

Part No.		HP1 Steel Hubs
For Bushing		P1 Split Taper Bushings
Dimensions	O.D.	3"
	A	0.292"
	B	1.9375"
	C	2.875"
	K	1 3/32"
	V	2 7/16"
	W	3/8”
	X	1 5/16"
	a	60°
Tapped Holes	d	5/8"
	No.	3
	Size	5/16-18
Wt. Lbs.		1.4

Characteristics of HP1 steel wheel hub:

The HP1 steel hub used for split tapered bushings is designed to securely and accurately install components onto the shaft. These hubs are typically used for transmission applications such as belt, chain, and gear transmission, where precise alignment and torque transmission are crucial. Some key functions of the HP1 steel hub used for split tapered bushings include:

1. Open conical sleeve design: The existing conical sleeve design makes the installation and disassembly of the wheel hub simple, without the need for any special tools or equipment. This makes it easy to replace worn or damaged components without the need to disassemble the entire assembly.

2. High quality steel structure: The HP1 steel wheel hub is made of high-quality steel, with excellent strength and durability. This ensures that the hub can withstand the stress and strain of heavy-duty applications.

3. Precision machining: HP1 steel wheels undergo precision machining to ensure accurate dimensions and tight tolerances. This helps to ensure that the hub is firmly installed on the shaft, providing maximum torque transmission, and reducing the risk of slipping or misalignment.

4. Corrosion resistance: HP1 steel wheels are usually coated with a protective layer to provide corrosion resistance. This helps to extend the service life of the wheel hub and reduce maintenance requirements.

5. Wide size range: HP1 steel wheels have multiple sizes to choose from to adapt to different shaft sizes and torque requirements. This makes them suitable for various applications in various industries.

Company Information

Are you seeking high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushes, QD bushes, open conical bushes, FHPK bushes, steel wheels for usable conical bushes, XH wheels, QD welded wheels, and welded wheels for conical bushes will meet all your typical application needs, including sprocket, pulley, and pulley applications. The main purpose of the bushing is to connect the components to the shaft. Regardless of space, time, or size limitations, our bushings can meet your needs. Due to these reasons, we usually use bushings based on size instead of drilling wheels. In addition, with our extensive aperture inventory, including many standard inch and metric aperture sleeves, you can trust that we will provide suitable sleeves for your application.

Various materials, such as stainless steel, aluminum, and copper, can be used for steel wheels with split conical bushings. If you want a range of competitive high-quality products, Raydafon's steel wheels are the perfect choice. The steel wheels used in the Raydafon split conical liner have been carefully crafted to meet or exceed industry standards. We can provide alternatives such as Dodge wheels, Browning wheels, Martin wheels, etc. The steel hub of the split conical sleeve is made of C45 steel and is suitable for various industrial applications.

Our company can provide our customers with the taper bush in the following table.
