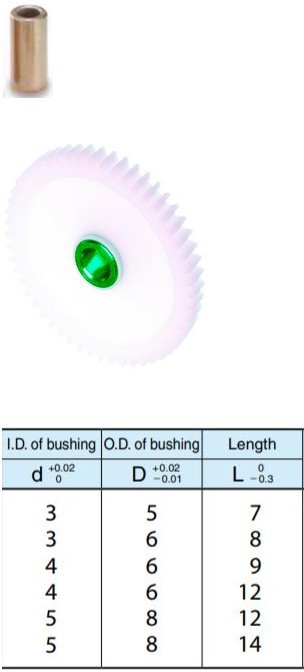

Plastic Spur Gears With Sintered Metal Bushings
Pressure angle 20° Material C45E
UNI EN 10083-1
| Tooth Profile | Left Hand,Involute |
| Pressure Angle | 20° |
| Type |
Mn=2,Z=56, a=20°,Left Hand |
| Material | 40Cr |
| Process |
Carburizing and Quenching+ Assembling+External Grinding +Teeth Grinding |
| Application | Textile Machinery |
| Brand | Raydafon or Customized |
| Product Name | Custom Nonstandard Metal Plastic Spur Gear |

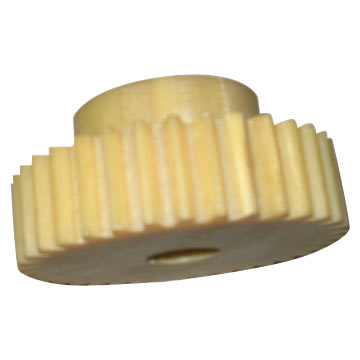

Plastic Gears,mould of plastic gears,precise gears:
We make Plastic Gears,mould of plastic gears,precise gears with good quality.
pls feel free to contact with us if you have any problem.
We'll try our best to satisfy you.
You're welcome every time, all the time.
| Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples. | |
