Unique Design Hot Sale HCP1 Steel Hubs for Split Taper Bushings

Product Description HCP1 steel hub is a mechanical hub used for installing components such as pulleys, sprockets, and gears. They are designed for use with open tapered bushings to secure the shaft hub. The HCP1 steel wheel hub is made of high-streng

Send Inquiry

Product Description

Product Description

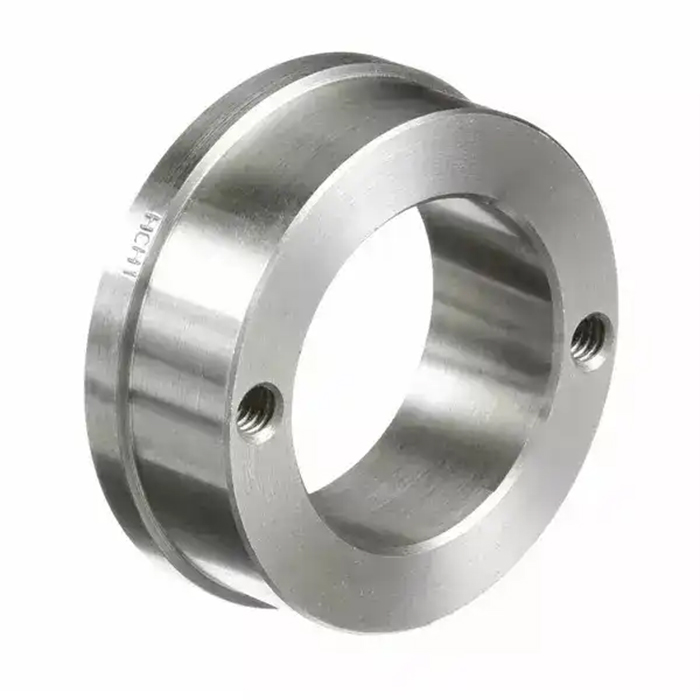

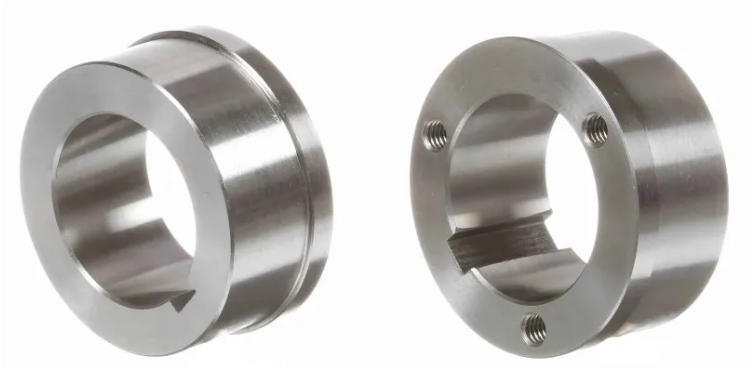

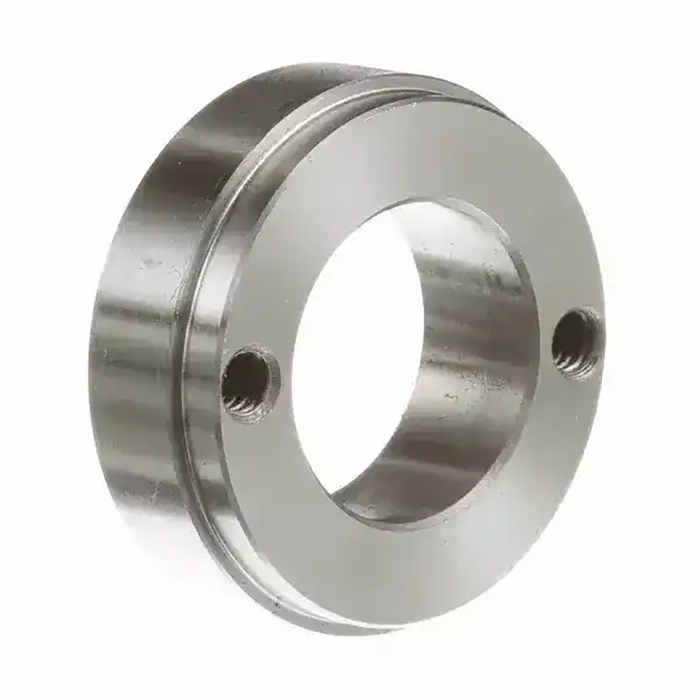

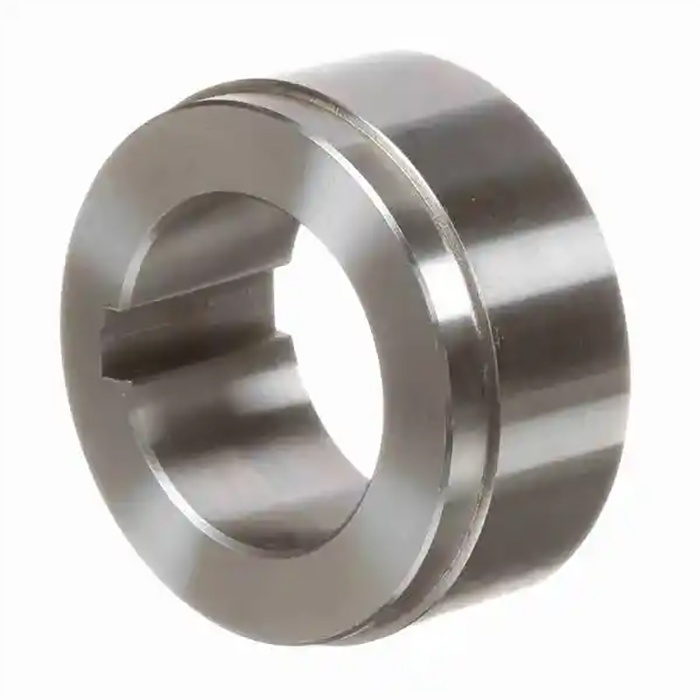

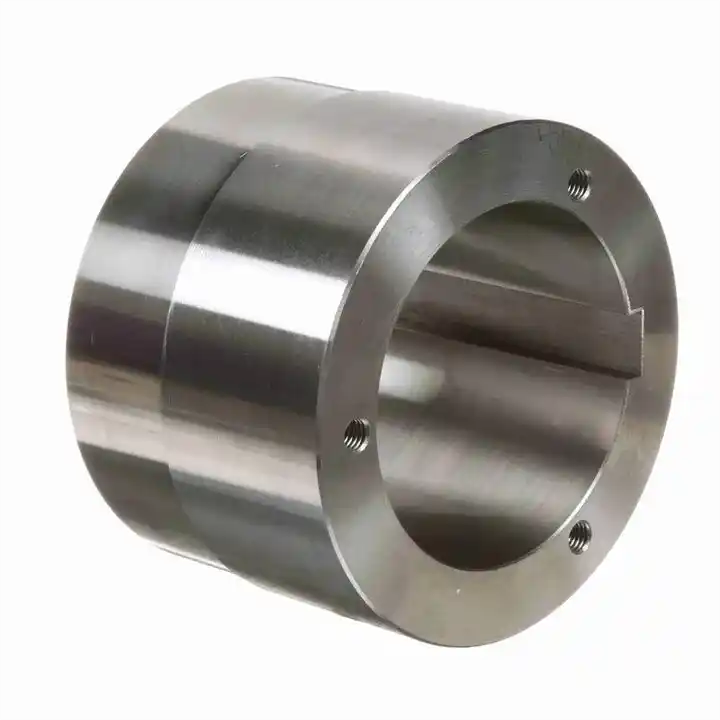

HCP1 steel hub is a mechanical hub used for installing components such as pulleys, sprockets, and gears. They are designed for use with open tapered bushings to secure the shaft hub. The HCP1 steel wheel hub is made of high-strength steel and is precision machined to ensure a tight fit with the open tapered bushing. The split conical design of the bushing makes the installation and disassembly of the wheel hub simple, without the need for special tools. HCP1 wheels are typically used in applications that require high torque. The HCP1 steel wheel is used for split conical bushings and can be provided in various sizes and configurations to adapt to different shaft sizes and operating conditions. They are typically used in industrial applications such as conveying systems, pumps, and compressors.

HCP1 Steel Hubs Dimensions:

Part No.		HCP1 Steel Hubs
For Bushing		P1 Split Taper Bushings
Dimensions	O.D.	3"
	A	1.000"
	B	1.9375"
	C	2.875"
	K	1 3/32"
	V	2 7/16"
	W	3/8"
	X	1 5/16"
	a	60°
Tapped Holes	d	5/8"
	No.	3
	Size	5/16-18
Wt. Lbs.		1.1

The advantages of using HCP1 steel wheels for split conical bushings:

The use of HCP1 steel wheels as open tapered bushings in mechanical applications has several advantages. Here are some key benefits:

High strength: The HCP1 steel wheel hub is made of durable high-strength steel, which can withstand high torque and heavy loads.
Easy to install and disassemble: The open conical design of the bushing makes the installation and disassembly of the wheel hub simple, without the need for special tools. This makes the maintenance and repair of the machine faster and more efficient.
Precise fit: The HCP1 steel wheel hub is precision machined to ensure a tight fit with the open tapered bushing. This helps to minimize vibration and ensure smooth operation of the machine.
Universality: HCP1 steel wheels come in various sizes and configurations to adapt to different shaft sizes and operating conditions. This makes them suitable for a wide range of mechanical applications.
Cost effectiveness: Compared to other installation options, the HCP1 steel wheel used for split tapered bushings is relatively inexpensive. This makes them cost-effective solutions for mechanical designers and manufacturers.

Company Information

Are you seeking high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushes, QD bushes, open conical bushes, FHPK bushes, steel wheels for usable conical bushes, XH wheels, QD welded wheels, and welded wheels for conical bushes will meet all your typical application needs, including sprocket, pulley, and pulley applications. The main purpose of the bushing is to connect the components to the shaft. Regardless of space, time, or size limitations, our bushings can meet your needs. Due to these reasons, we usually use bushings based on size instead of drilling wheels. In addition, with our extensive aperture inventory, including many standard inch and metric aperture sleeves, you can trust that we will provide suitable sleeves for your application. Various materials, such as stainless steel, aluminum, and copper, can be used for steel wheels with split conical bushings. If you want a range of competitive high-quality products, Raydafon's steel wheels are the perfect choice. The steel wheels used in the Raydafon split conical liner have been carefully crafted to meet or exceed industry standards. We can provide alternatives such as Dodge wheels, Browning wheels, Martin wheels, etc. The steel hub of the split conical sleeve is made of C45 steel and is suitable for various industrial applications.

Our company can provide our customers with the taper bush in the following table.

Unique Design Hot Sale HCP1 Steel Hubs for Split Taper Bushings

Packaging & Shipping

Unique Design Hot Sale HCP1 Steel Hubs for Split Taper Bushings

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
