Gear Rack: The Ultimate Solution for Precision Motion Control

Gear racks are essential components in various industries, providing linear motion through engagement with pinion gears. Our high-quality Gear Rack products deliver exceptional performance, durability, and precision for all your industrial applications.

Key Features of Our Gear Racks

Manufactured from premium-grade materials for extended service life
Precision-cut teeth for smooth operation and minimal backlash
Available in various module sizes and lengths to suit diverse applications
Heat-treated options available for enhanced strength and wear resistance
Custom configurations possible to meet specific project requirements

Product Specifications

Model	Module	Material	Standard Length	Load Capacity
GR-M1	1.0	C45 Steel	1000mm	500N
GR-M1.5	1.5	4140 Steel	1500mm	800N
GR-M2	2.0	Stainless Steel	2000mm	1200N
GR-M3	3.0	Case Hardened Steel	2500mm	2000N

Gear Rack FAQ Section

What are the main applications of Gear Racks?

Gear Racks are widely used in CNC machinery, automation systems, robotics, linear actuators, and various industrial equipment requiring precise linear motion. They are particularly valuable in applications where long travel distances are needed with high positioning accuracy.

How do I choose the right Gear Rack for my application?

Consider these key factors: 1) Required load capacity, 2) Operational speed, 3) Accuracy requirements, 4) Environmental conditions (temperature, exposure to chemicals), 5) Space constraints, and 6) Compatibility with existing pinion gears. Our technical team can assist in selecting the optimal Gear Rack configuration for your specific needs.

Additional Product Details

Our Gear Racks undergo rigorous quality control measures, including dimensional inspections, hardness testing, and surface finish evaluations. We offer various mounting options, including standard straight racks and custom curved configurations for specialized applications.

What maintenance do Gear Racks require?

Proper maintenance includes regular lubrication with appropriate gear oil or grease, periodic cleaning to remove debris, inspection for wear patterns, and timely replacement when tooth wear exceeds recommended limits. Maintenance frequency depends on operating conditions but typically ranges from monthly to quarterly inspections for continuous operation systems.

Technical Advantages

Precision ground tooth profile for smooth operation
Multiple mounting hole patterns available
Corrosion-resistant options for harsh environments
Backlash adjustment capabilities
Compatible with standard pinion gears

Performance Data

Parameter	Standard Grade	Precision Grade	High-Performance Grade
Positioning Accuracy	±0.1mm/m	±0.05mm/m	±0.02mm/m
Maximum Speed	2 m/s	3 m/s	5 m/s
Service Life	5,000 km	7,500 km	10,000+ km

For specialized requirements, we offer custom Gear Rack solutions including different pressure angles, helical teeth configurations, and material combinations. Contact our engineering team to discuss your project specifications.

View as

Elevator Automatic Sliding Gate Helical Straight Pinion M3 M5 M8 Wheel and Gear Rack

Gear Wheel and Gear Rack Gray Iron Worm Gear WheelsBronze Worm Gear WheelsNylon Plastic Worm Gear WheelsDuplex Worm Gear WheelsDuplex Worm for Worm GearsSteel Bevel GearsSteel Bevel Gears Pinion ShaftsSpiral Bevel GearsGround Spiral Bevel GearsGround

View More >> Send Inquiry >>

M1-M6 Pinions Factory Machined Selflubricating Nylon PA66 Wear Resistance Gear Rack Plastic Pinion Cylindrical Gears

Spur Gear / Helical Gear / Pinion Spur Gear:M1, M1.5, M2, M2.5, M3, M4, M5, M6 Sample or drawing is also acceptable. High quality and low price Pls feel free to contact with us if you have any problem Material Alloy steel,Carbon steel,Carburizing ste

View More >> Send Inquiry >>

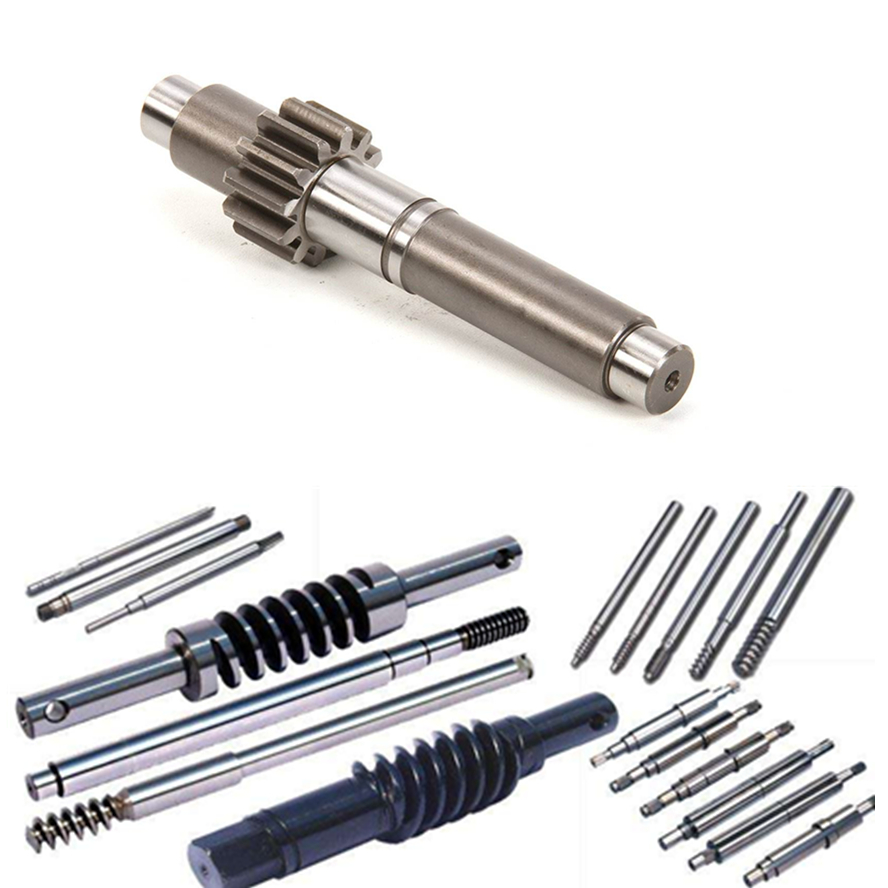

Customized Tooth Transmission Gear Spur Helical Worm Gear Cycle Assembly Propeller Shafts Splined Hollow Spline Worm and Shaft

customized tooth transmission Gear Assembly Worm Gearand shaft:Module: 0.5~12 Teeth number: less than 100The teeth of machining process: hobbing teeth, shaving teeth, grinding teeth. Shaping teeth. Quality Class: DIN 6~10 Material: C45, 42CrMo, 20CrM

View More >> Send Inquiry >>
