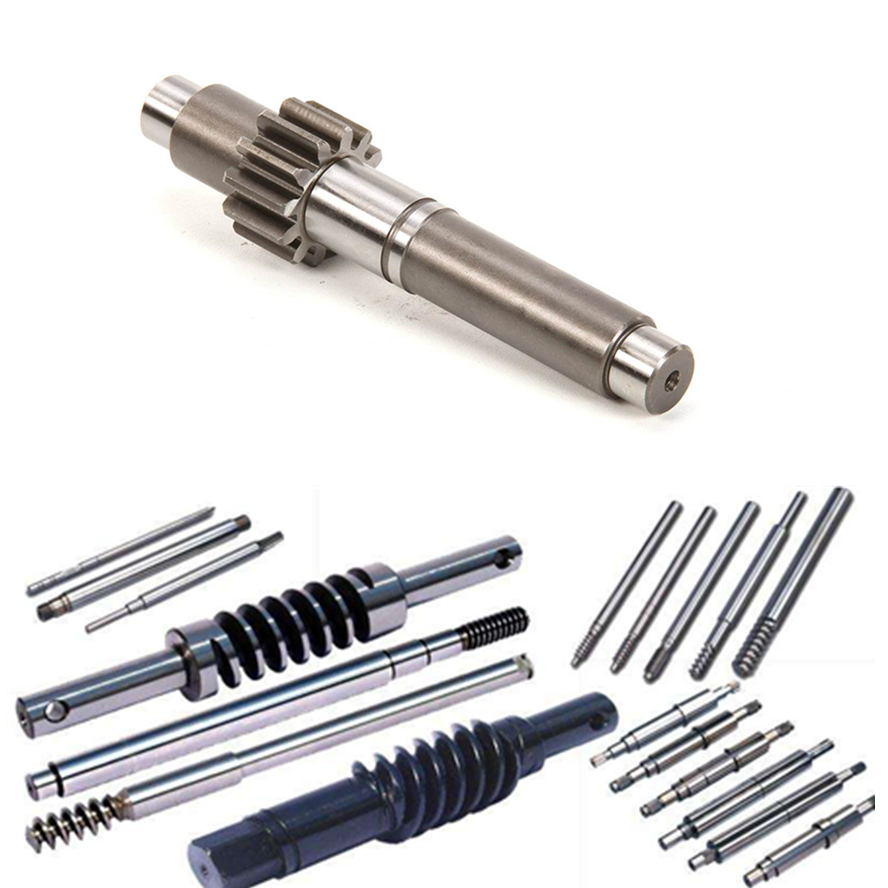

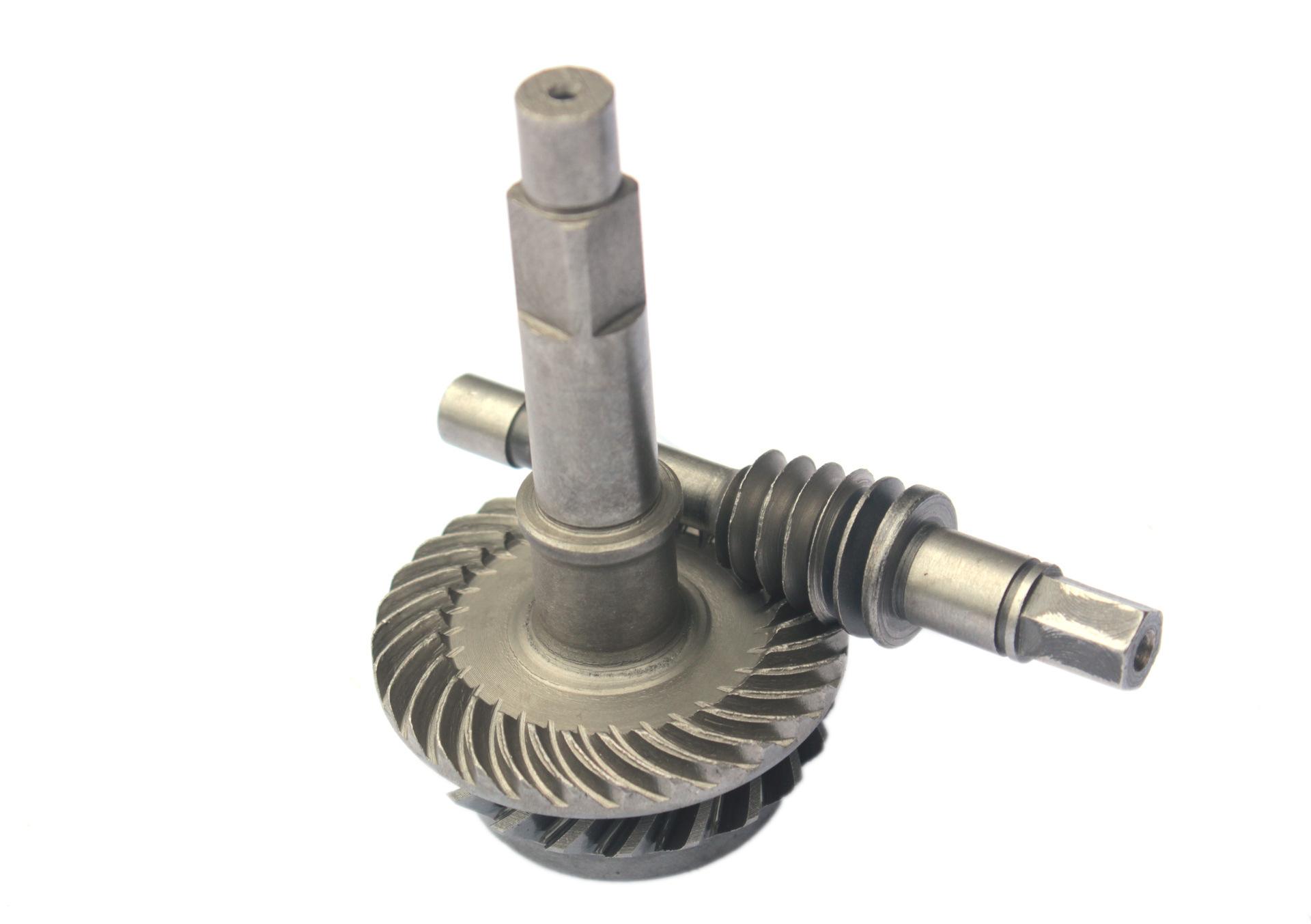

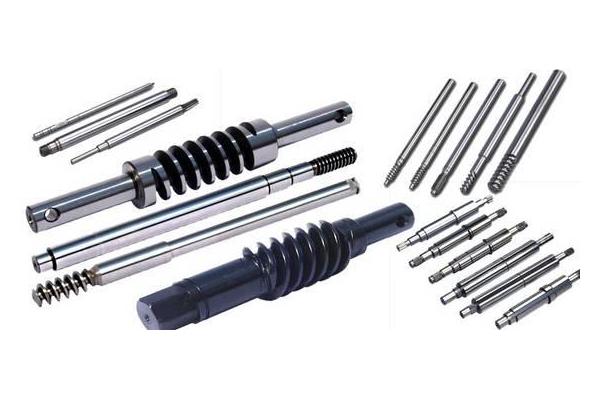

customized tooth transmission Gear Assembly Worm
Gearand shaft:Module: 0.5~12 Teeth number: less than 100The teeth of machining process: hobbing teeth, shaving teeth, grinding teeth. Shaping teeth.
Quality Class: DIN 6~10
Material: C45, 42CrMo, 20CrMnTi, 40Cr, stainless steel 304/316.
Custom Precision splined gear wheel shaft specifications
| Diameter (External Hobbed) |
Min: 50 mm Max: 300 mm |
| Diameter(External shaped ) |
Min:50mm Max:500mm |
| Diameter(Internal Shaped) |
Min:50nn Max:500mm |
| Diametrical Pitch(External Hobbed) |
Min: 25 DP Max: 3 DP |
| Diametrical Pitch(External Shaped) |
Min:25DP Max:3DP |
| Diametrical Pitch(Internal Shaped) |
Min:25DP Max:4DP |
| Length (External Hobbed) |
Max: 300mm |
| Length (Internal Shaped) |
Max:150mm |
| Length (External Shaped) |
Max:300mm |
| Materials used |
Alloy Steel, Carbon Steel, Ductile Iron, Gray Cast Iron, Stainless Steel, etc |
| Helical Gear Cutting & Methods | Hobbing, Milling, Shaping, Shaving, Grinding |
| Heat Treatment Methods | Carburizing, Induction, Flame, Nitriding |
| Production Volume | Prototype, Low Volume, High Volume, Large Run,etc |
| Leading Time | 60~90 days |
