Gear Wheel Chain Wheel Double Simplex Roller Chain Sprockets

Stainless Steel Sprockets simplex sprocket in stainless steelAISI SUS 304L 06B-1 08B-1 10B-1 12B-1 16B-1 R6.35 R8.51 R10.16 R12.07 R15.88 european standard sprockets DIN stock bore sprockets plateheels 03B-1 04B-1 05B-1-2 06B-1-2-3 081B-1 083B-1/084B

Send Inquiry

Product Description

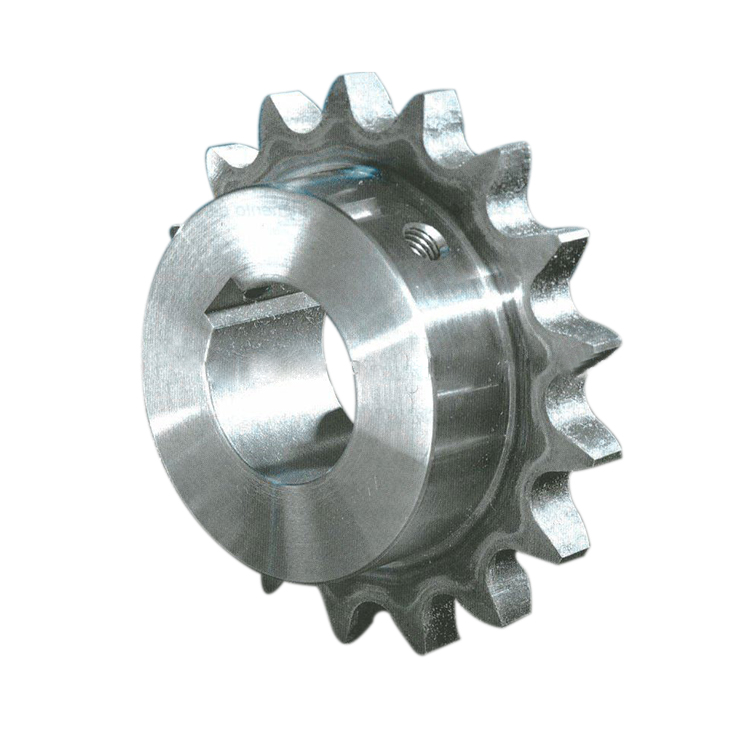

Stainless Steel Sprockets

simplex sprocket in stainless steel AISI SUS 304L

06B-1	08B-1	10B-1	12B-1	16B-1
R6.35	R8.51	R10.16	R12.07	R15.88

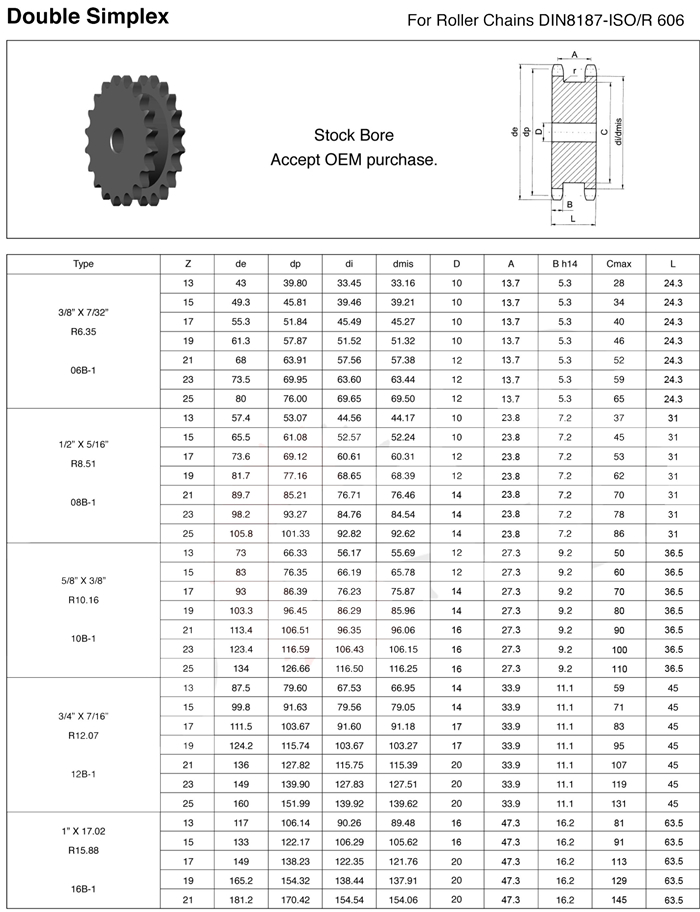

Gear Wheel Chain Wheel Double Simplex Roller Chain Sprockets

european standard sprockets	DIN stock bore sprockets & plateheels	03B-1 04B-1 05B-1-2 06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3
	DIN stock bore sprockets & plateheels	03A-1 04A-1 05A-1-2 06A-1-2-3 081A-1 083A-1/084A-1 085A-1 086A-1 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3
	DIN finished bore sprockets	06B-1 08B-1 10B-1 12B-1 16B-1 20B-1
	stainless steel sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
	taper bore sprockets	3/8"×7/32" 1/2"×5/16" 5/8"×3/8" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
	cast iron sprockets	06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3
	platewheels for conveyor chain	20×16mm 30×17.02mm P50 P75 P100
	table top wheels	P38.1
	idler sprockets with ball bearing	8×1/8" 3/8"×7/32" 1/2"×1/8" 1/2"×3/16" 1/2"×5/16" 5/8"×3/8" 5/8"×3/8" 5/8"×3/8" 3/4"×7/16" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
	double simplex sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
american standard sprockets	ASA stock bore sprockets	25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80-80-2 80-3 100 100-2 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200 200-2 240
	finished bore sprockets	35 41 40 50 60 80 100
	stainless steel sprockets	25 35 40 50 60
	double single sprockets&single type Csprockets	40 50 60 80
	taper bore sprockets	35 35-2 41 40 40-2 50 50-2 60 60-2 80 80-2 100 120 140 160
	double pitch sprockets	2040/2042 2050/2052 2060/2062 2080/2082
	sprockets with split taper bushings	35 41 40 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 120 120-2 140 160 200
	sprockets with QD bushings	35 35-1 35-2 41 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 140 160 200
japan standard sprockets	JIS stock sprockets	25 35 40 50 60 80 100 120 140 160
	finished bore sprockets	FB25B FB35B FB40B FB50B FB60B FB80B FB100B FB120B
	double single sprockets	40SD 50SD 60SD 80SD 100SD
	double pitch sprockets	2042 2052 2062 2082 2040 2050 2060 2080
	speed-ratio sprockets	C3B9N C3B10N C4B10N C4B11 C4B12 C5B10N C5B11 C5B12N C6B10N C6B11 C6B12
	idler sprockets	35BB20H 40BB17H 40BB18H 50BB15H 50BB17H 60BB13H 60BB15H 80BB12H
	table top sprockets	P38.1

Sprockets

We specialist in: European Series Sprockets, American Series Sprockets, Japan Series Sprockets.

We have the capability to custom design and manufacture specialized sprockets.

1.European Series Sprockets

DIN & ASA Stock sprockets & Platewheels

Stainless Steel Sprockets

Taper Bore Sprockets

Cast Iron Sprockets

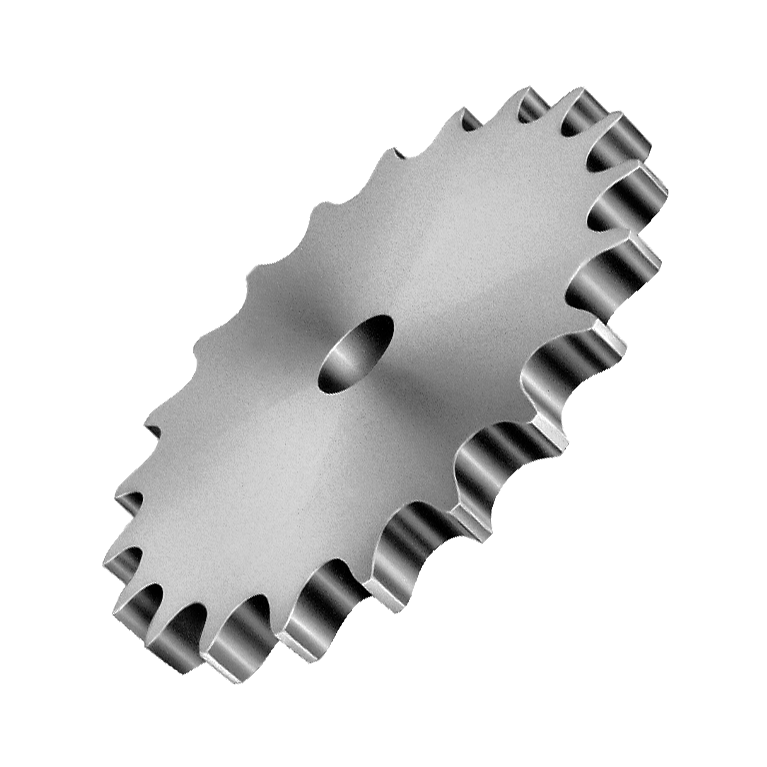

Platewheels For Conveyor Chain

Table Top Wheels

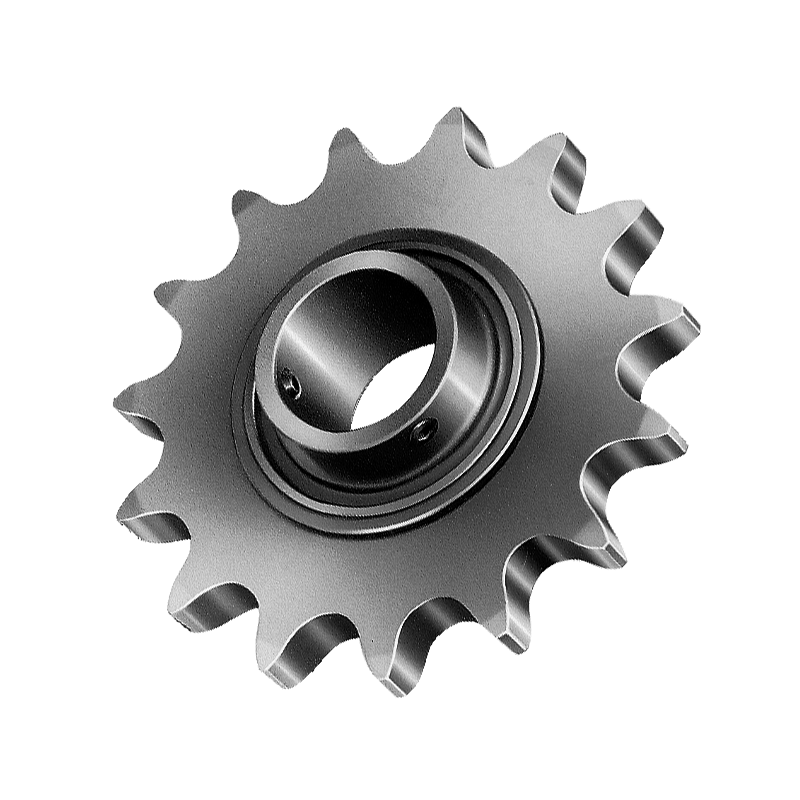

Idler Sprockets

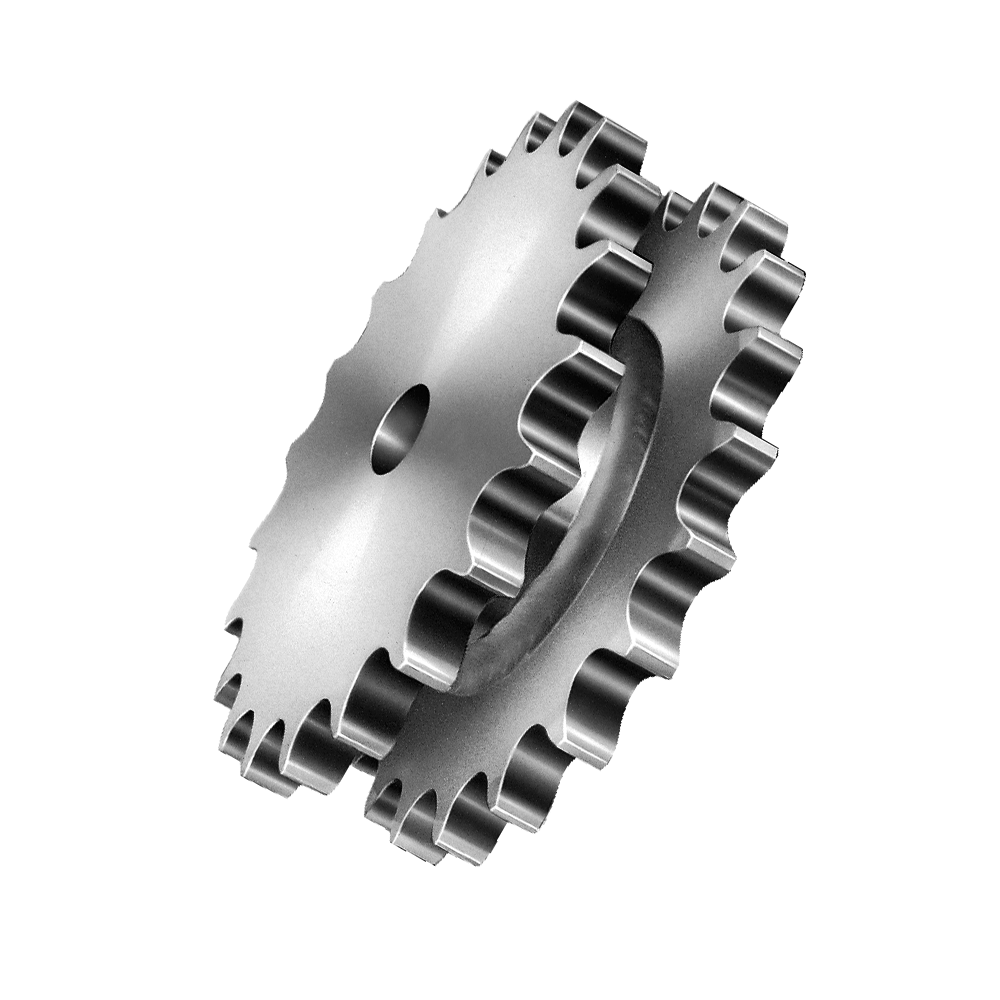

Double Single Sprockets

2. American Series Sprockets

Stock Sprockets

Finished Bore Sprockets

Stainless Steel Sprockets

Double Single Sprockets &Single Type C Sprockets

Taper Bore Sprockets

Double Pitch Sprockets

Sprockets With Split Taper Bushing

Sprockets with QD Bushings

3.Japan Series Sprockets

K Standard Sprockets A Type

NK Standard Sprockets B Type

NK Standard Sprockets C Type

Product Name	sprocket
Model Number	08B,16B,ETC
Chemical Compostions	35CrMo,steel,etc
Hardness	HRC33-56/ HB 300-550
MOQ	1000pcs
Origin	Zhejiang (Mainland China)
Package	Wooden case or iron case.
Delivery Time	Within 20-30 days
