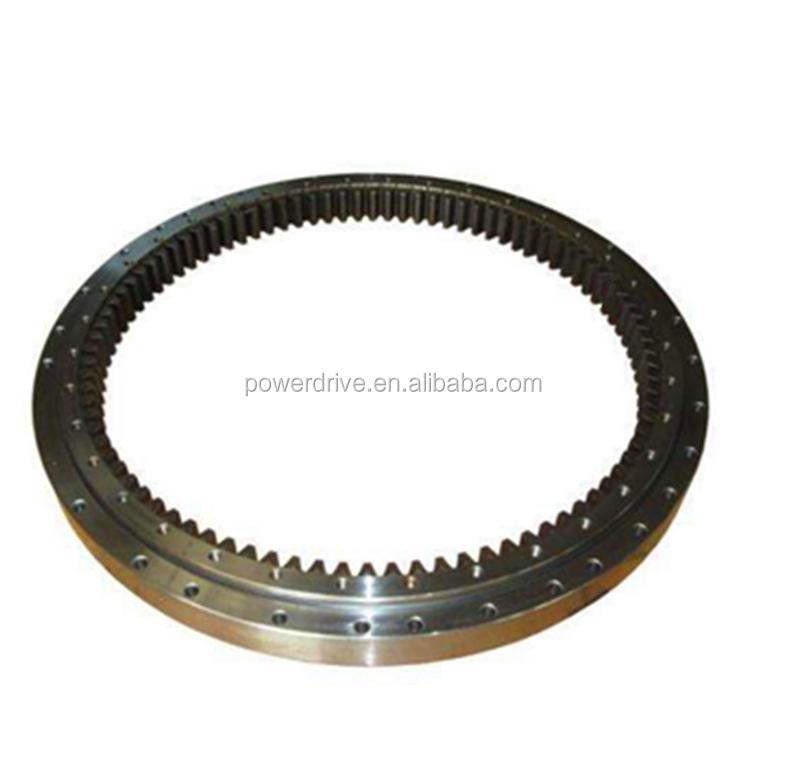

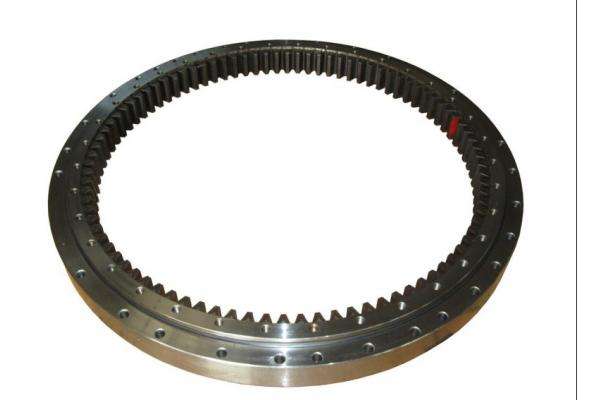

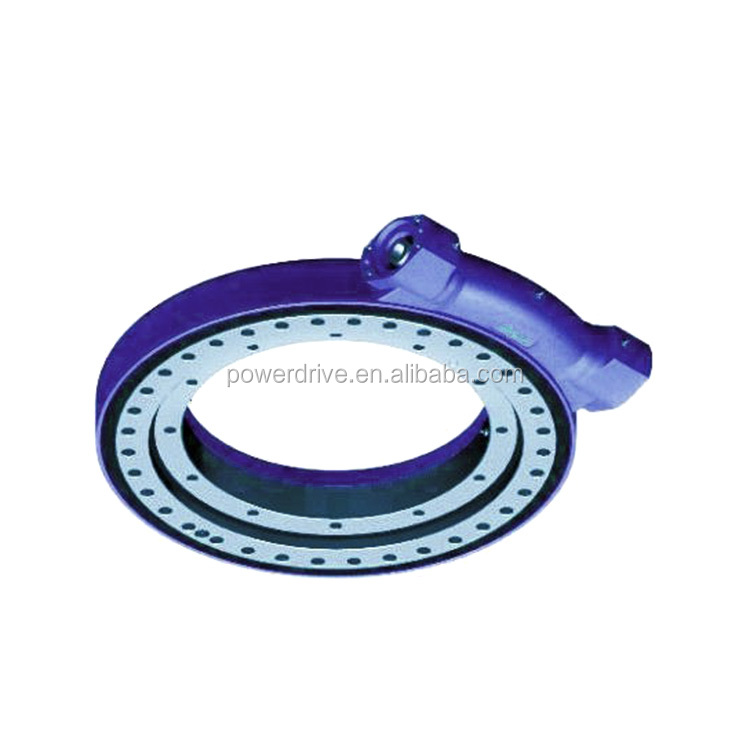

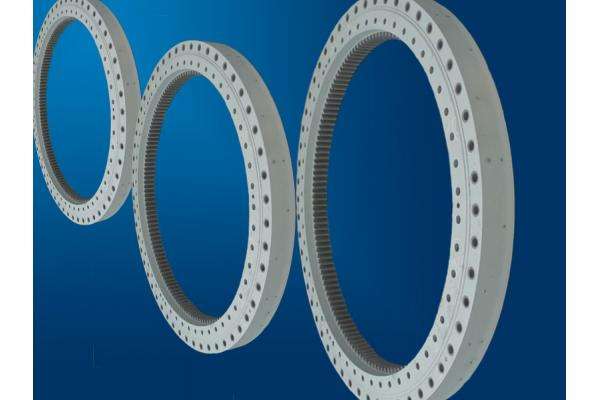

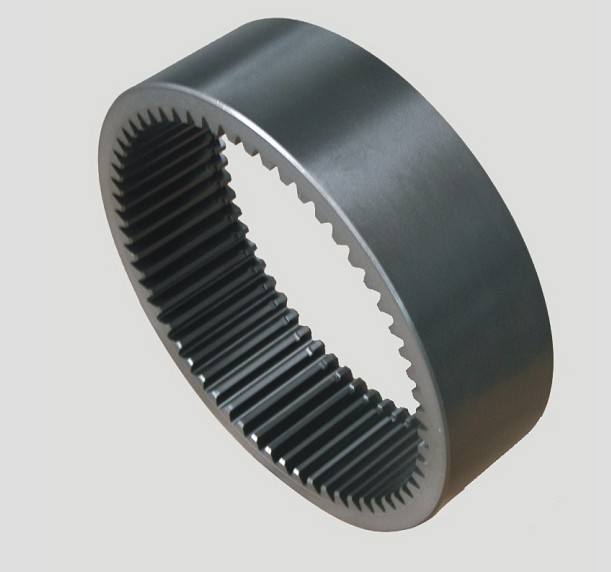

customized Size Internal Ring Gear,Inner Gear Ring

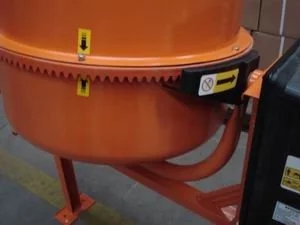

Big size internal ring gear,inner ring gear,Excavator ring gear,excavator gear, excavator planetary gear, excavator sun gear, excavator swing gears, automotive ring gears, industrial ring gear, external ring gears, large ring gear, bull ring gears, large diameter ring gears, special gear,transmission gear,gear wheel,worm gear, helical gears,spur gears, bevel gears, ring gear, internal ring gear,ring gear for cement mixer and so on. Welcome to visit our website. We are glad to produce the gear as per your drawing

Manufacturing Process for ring gear

Ring Gear Production Cycle

Preparing Raw Ring Gear Material

The raw steel material is rolled from a straight bar into a coiled form. The coiled steel material is then split or cut on a center-line point to separate the coil into individual ring blanks.
Next, the split point is welded together to form a completed ring, with the major diameter larger than the finished size.

Ring Gear Turning & Precision Machining

The ring gear blanks are precision machined through a two step process. The first machining process, the inner diameter is manufactured to the required drawing dimension and finish. The second machining process creates the required dimensions for the outer face and diameter.

Ring Gear Tooth Hobbing

The next step of the manufacturing process is the tooth hobbing cycle. The hobbing tool cuts the ring gear tooth profile and shape into the outer diameter zone. All customer projects require a hobbing tool specific to their part number. This tooling is maintained for the life of the project.


Teeth Chamfering

After the teeth are formed, the product is ready for the chamfering phase. During this manufacturing phase, the chamfer tool cuts a sharp edge into the side of the ring that meshes with the mating shaft. Chamfering creates an easy mating engagement in this zone, which results in less mating friction for improved functionality.
De-burring

After the ring gear machining, hobbing and chamfer manufacturing phases, the machined parts tend to have small burs and sometimes sharp edges. The deburring machine uses a two step process to remove the burrs – deburring wheel and nylon brush.
Cleaning

After these machining steps, the work pieces are covered in loose material chips, dust and other particles. During the cleaning phase, all foreign substances are removed from the material surface by using a high pressure operation with anti-corrosion oil.
Induction Hardening Treatment

During the induction hardening phase, the parts are heat treated to increase the tooth surface strength.

Cleaning

The last cleaning phase prepares the parts for a final tempering process.
Tempering

At this point of the manufacturing cycle, the material surface has a highly structure – with a high level of internal stresses. Tempering improves the surface toughness and ductility by relieving internal stresses.

We manufactuere also components for planet gearboxes system
Please send us inquire with drawings !

planet carrier ring gear involute spline Spur gears Worm gears Worm gear shaft

Standard:  European or American  standard

Service:OEM or as per your drawing or sample

Material: 20CrMnTi, 42CrMo

Adopts optimal designs and shot treatment to decrease noise
and increase load capacity

Processing: precision hot and cold forging, precision machining
and roll forming

Durable, good wear asistance

Heat treatment:annealing,  normalizing, carbonitriding,
carburizing, tempering

Precision shot peening sun gears and planet gear face and root to increase load
capacity

Good quality with reasonable price

We are professional supplier of ring gear, excavator planetary gear, excavator sun gears, excavator ring gear, excavator swing gear, automotive ring gear, industrial ring gear, external ring gears, large ring gears, bull ring gear, large diameter ring gear, special gear,transmission gear,gear wheel,worm gear, helical gear,spur gear, bevel gear, ring gear, internal ring gear, ring gear for cement mixer and so on. Welcome to visit our website. We are glad to produce the gear as per your drawing

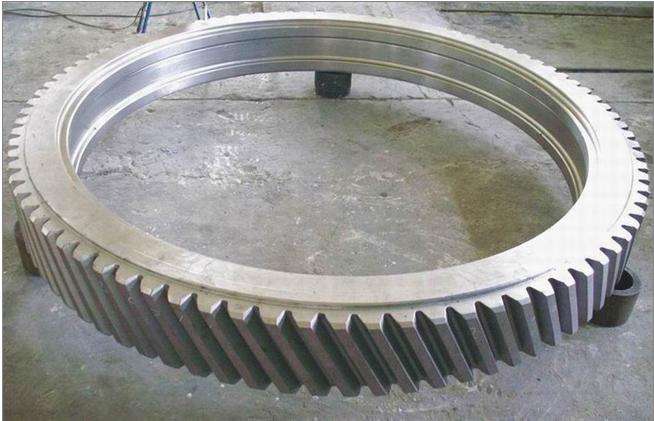

Ring gears

1.More than 10 years' OEM experience;

2.Good quality with reasonable price;

3.Timely delivery and great customer service.

Please feel free to contact with us if you have any problem.

You're welcome every time, all the time.
