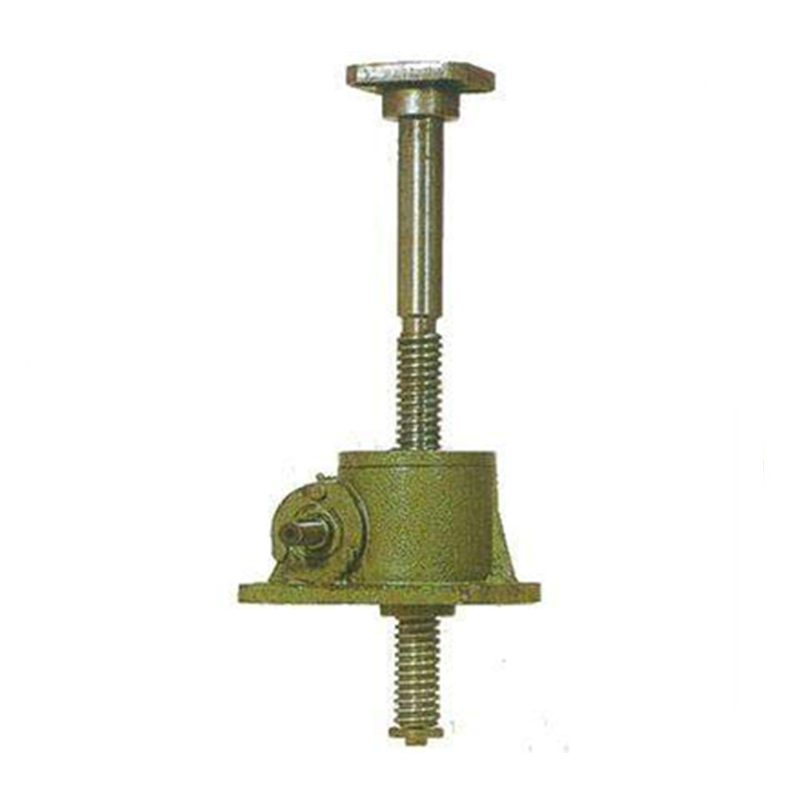

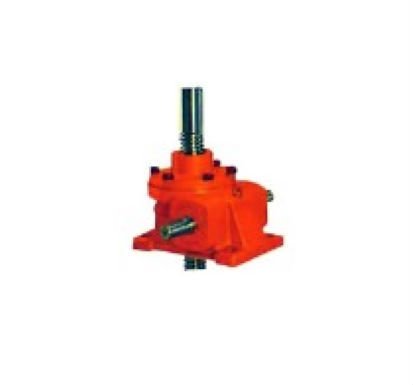

SWL series worm screw jack
Worm Screw Jack
Screw-Worm Jack or screw lift lifts widely used in machine building, metallurgy, construction, irrigation equipment and other industries, is starting up, and dropped through accessories advance, overturned and position adjustment and other functions at various altitudes. SWL is a worm screw-lift crane components foundation with compact structure, small size and light weight. Sources extensive, no noise, easy installation, the use of flexible, multi-function, supporting forms, high reliability, long life and many other advantages. Can be single or in combination, can be controlled accurately in accordance with certain procedures to enhance or promote the adjustment of height Motor power can be used directly or can also be manually operated. It's a form of structure and assembly, and the height can be customized user requirements
Product Description
Technical data:
1. Lift speed: 150mm/min~1800mm/min
2. Input power:0.5 -21.8KW
3. Screw rang: 5-16 mm
4. Bearing range: 2T-100T
5. Structure: motor direct connection, single & double shaft
Characteristic:
Standardize & series design
Reverse operation
Detailed Product Description
|
Model |
SWL2.5 |
SWL5 |
SWL10 |
SWL15 |
SWL20 |
SWL25 |
SWL35 |
|
Max Capacity (KN) |
25 |
20 |
100 |
150 |
200 |
250 |
350 |
|
Lifting screw |
Tr30*6 |
Tr40*7 |
Tr58*12 |
Tr58*12 |
Tr65*12 |
Tr90*16 |
Tr100*20 |
|
Ratio (P) |
6:1 |
8:1 |
23:3 |
23:3 |
8:1 |
32:3 |
32:3 |
|
Ratio (M) |
24:1 |
24:1 |
24:1 |
24:1 |
24:1 |
32:1 |
32:1 |
|
Raise per revolution (mm) (P) |
1.0 |
0.875 |
1.565 |
1.565 |
1.56 |
1.5 |
1.875 |
|
Raise per revolution (mm) (M) |
0.250 |
0.292 |
0.5 |
0.5 |
0.5 |
0.5 |
0.625 |
|
Start torque on lifting screw at max load |
250 |
385 |
500 |
400 |
490 |
850 |
820 |
|
400 |
770 |
1000 |
800 |
980 |
1700 |
1640 |
|
|
Starting torque/Handwind torque at max load (Nm) (P) |
18 |
39.5 |
119 |
179 |
240 |
368 |
464 |
|
Starting torque/Handwind torque at max load (Nm)(M) |
8.86 |
19.8 |
60 |
90 |
122 |
217 |
253 |
|
Running efficiency (%)(P) |
33 |
23 |
20.5 |
20.5 |
19.5 |
16 |
18 |
|
Running efficiency (%) (M) |
11 |
11.5 |
13 |
13 |
12.8 |
9 |
11 |
|
Weight without spindle or protection tube (Kg) |
7.3 |
16.2 |
25 |
25 |
36 |
70.5 |
87 |
|
Weight of lifting screw 100 mm (kg) |
0.45 |
0.82 |
1.67 |
1.67 |
2.15 |
4.15 |
5.20 |
|
Lubrication |
ZGN-1 or ZGN-2 (-20-+100) |
||||||
|
Grease quantity |
0.1 |
0.3 |
0.5 |
0.5 |
0.75 |
1.1 |
1.9 |

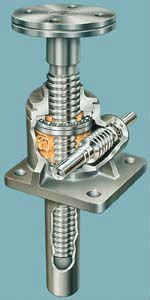

1.SWLM (Trapezoid screw)
SWLM (trapezoidal screw) is suitable for low speed and low frequency.
Main components: Precision trapezoid screw pair and high precision worm-gears pair.
Economical: Compact design ,easy operation, convenient maintenance.
Low speed, low frequency:Be suitable for heavy load, low speed, low service frequency.
Self-lock: Trapezoid screw has self-lock function, it can hold up load without braking device when screw stops traveling.
Note:Braking device equipped for self-lock will be of malfunction accidentally when large jolt & impact load occur.

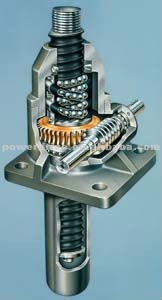

2. SWLB (General ball screw)
SWLB (General ball screw) is suitable for high speed, high frequency and excellent performance.
Main components: Precision ball screw pair and high precision worm-gears pair.
High efficiency: Rolling friction improve efficiency greatly, only a little drive power can generate great thrust force.
High speed:Rolling friction speed up travel of screw easily.
Lifetime longer: High precision ball screw can make SWLB's lifetime longer by 3 times comparing with SWLM.
Note ;Braking devices or motor with braking devices are necessary when choosing SWLB
