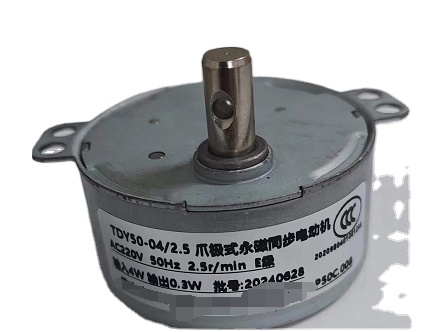

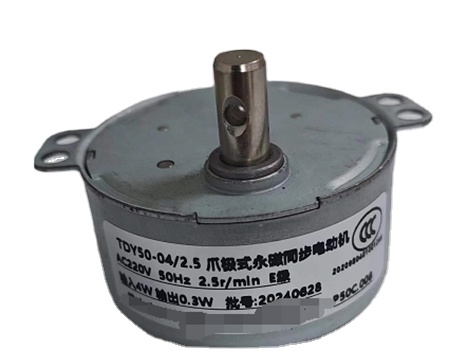

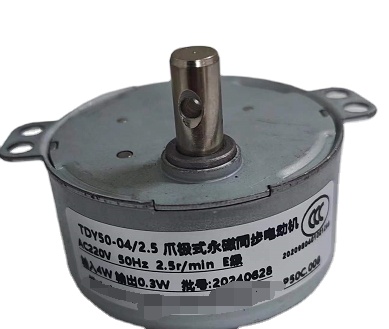

TDY50 Fan Motor

TDY50 gearbox Main performance parameters of the productModel: TDY50Power: 4WVoltage: 12V, 220V/50HzRated speed: 1.5-1.8,2.5r/minOutput torque: 10kg.cmWeight: 0.25Note: The voltage is 220V 110V 12V and the speed is 2.5RPM 1.6RPM Product name Table/st

Send Inquiry

Product Description

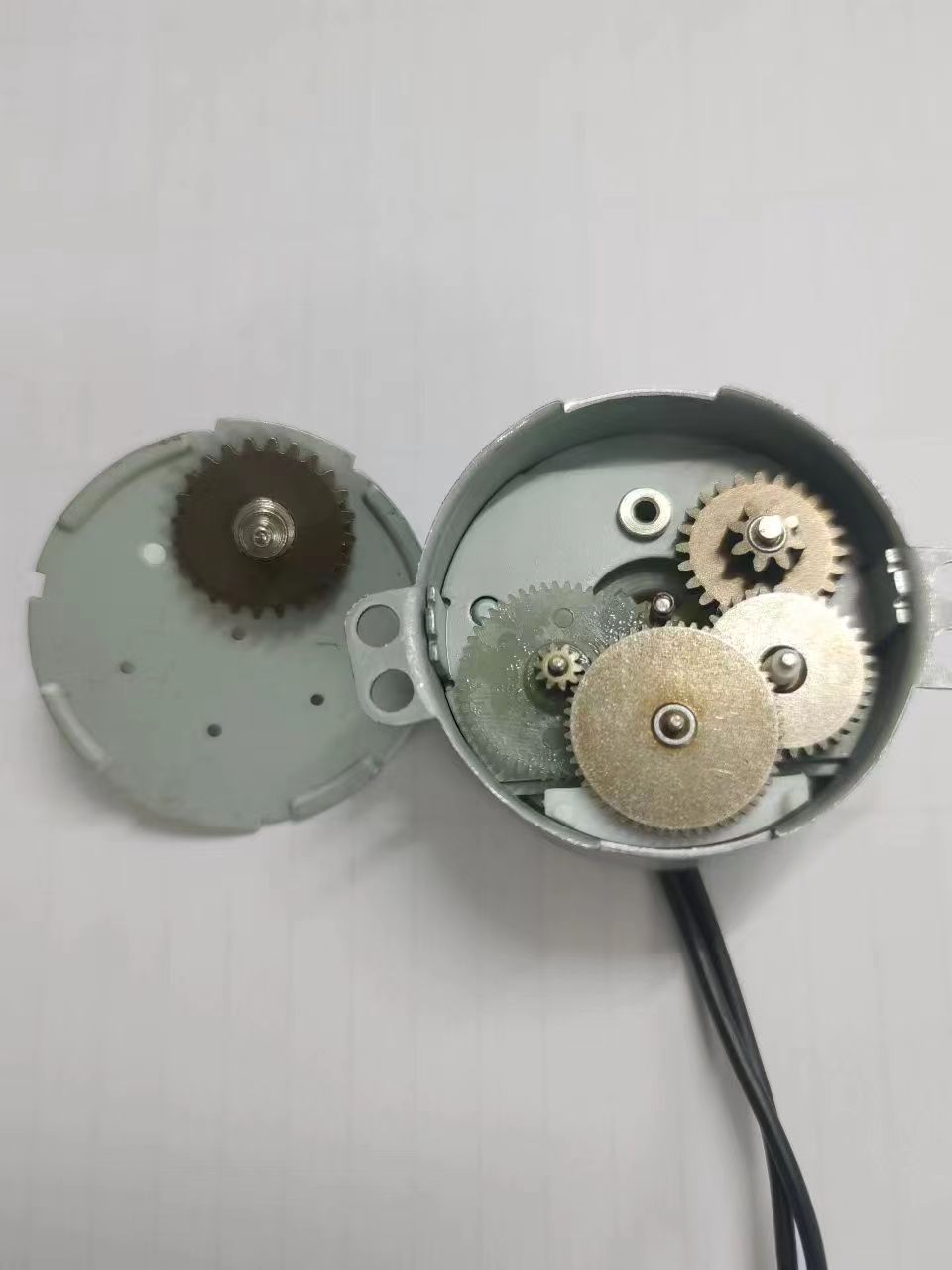

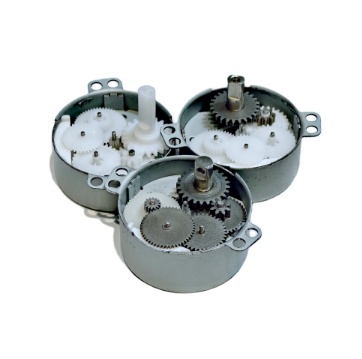

TDY50 gearbox

Main performance parameters of the product
Model: TDY50
Power: 4W
Voltage: 12V, 220V/50Hz
Rated speed: 1.5-1.8,2.5r/min
Output torque: 10kg.cm
Weight: 0.25
Note: The voltage is 220V 110V 12V and the speed is 2.5RPM 1.6RPM

Product name	Table/stand fan motor
Type	Fan part/fan motor
Power source	Electric
Power	50-100W
Voltage	100-240V
Frequency	50/60Hz
Phase	Single-phase
Pole	2 or 4
Speed	1-3 Speeds
Stator size	Width:66mm,71mm,74mm;Thickness:10mm~35mm
RPM	2000-2800/1200-1300r/min
Coil	Copper/CCA/Aluminum
Bearing	Oil bearing/ball bearing
Rotation	C.W
Warranty	1+ Year
