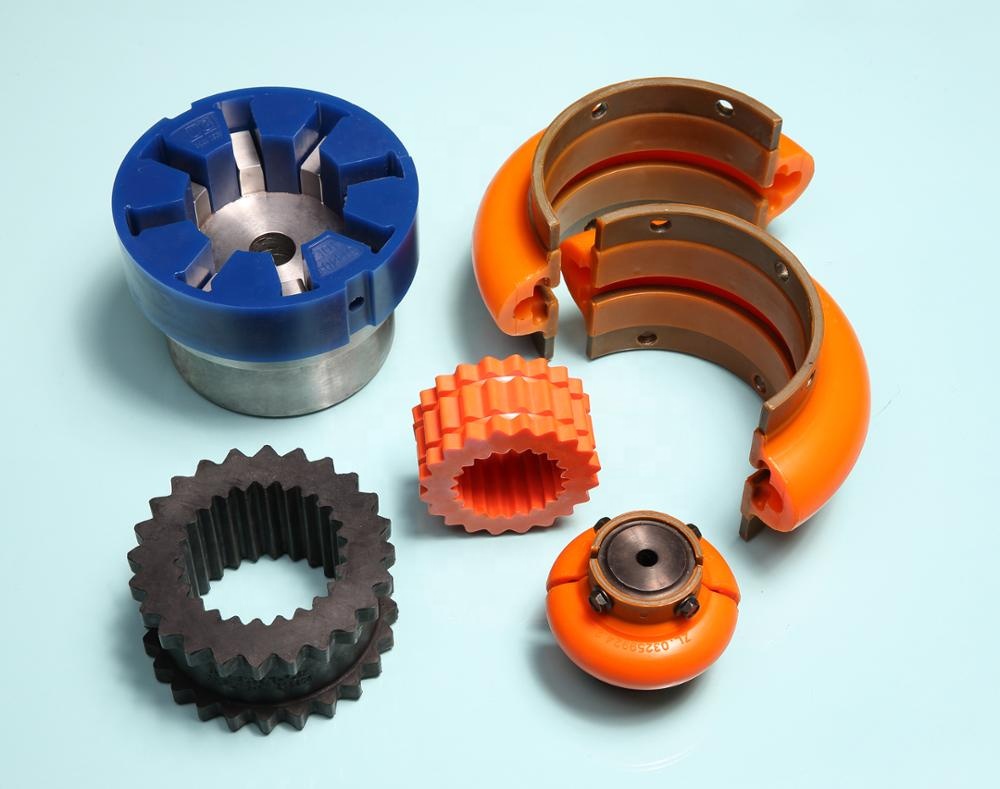

Elastomeric coupling for rotating shafts
Feature
1,Split in half design for simple installation, maintain free
2,High misalignment capacity
3,Facility protection for twirl, twist, impact and abrasion
4,No lubrication for polyurethane flex element
5,Available for bore to size hubs and taper lock bushes
6,Very low noice
Selection
1,Determining the theory torque according to input power and turning speed
2,Determining the operating torque by multiplying service factors, such as operating factor, safety factor, engine factor, temperture factor...
3,Selecting the proper type of coupling which has the valued torque little more than
the operating torque
Installation
1,Mounting one hub to shaft, putting another loose for adjustment of space
2,Putting one half around hubs and securing with cap screws
3,Mouting another half to match the first half element, tighten all cap screws
