Product Description

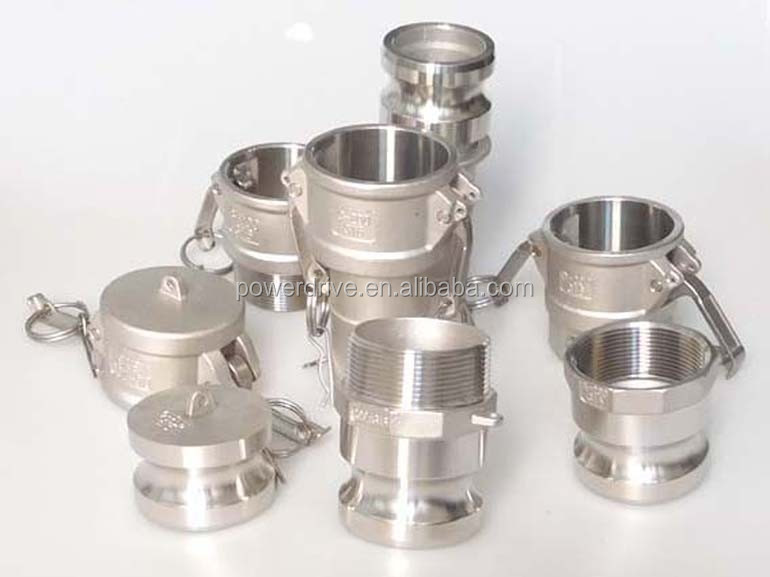

Stainless steel flexible hose coupler Camlock type quick connect Coupling

Stainless Steel Quick Coupling,Quick Coupling,quick coupler,coupling: We make Stainless Steel Quick Coupling,Quick Coupling,quick coupler,coupling with good quality

Standard	Our camlock coupling are made to standard of A-A-59326 (superseding MIL-C-27487) or DIN 2828 ,ETC
Material	Stainless Steel
Sizes	From 1/2″ to 6″
Types	A, B, C, D, DC, DP, E, F
Cam levers	We use stainless steel cam levers or brass cam levers.
Pins, Rings and Safety clips	We use steel plated or stainless steel Pins, Rings and Safety clips.
Sealings	NBR, EPDM, Viton, PTFE envelop gasket, Other materials are available on request.
Threads	NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)

Our Services

1. Many years experience in manufacturing and exporting fittings

2. Experienced technical staff

3. Marking the customer's brand on the product surface directly

4. All fittings are approved by CE and ISO

5. Supply OEM service

6. Small orders accepted

7. Competitive prices, top quality, professional service and prompt delivery

8. Quality checking and controlling strictly

Type: F – type

Size:1/2” – 6”

Material: AISI304 , AISI316

Design & Manufacture Standard:DIN2828

Test Standard:API598

Thread Standard: NPT ,BSPT ,BSP ,DIN2999

SIZE	inch	1/2	3/4	1	11/4	11/2	2	21/2	3	4	6
SIZE	mm	15	20	25	32	40	50	65	80	100	150
A		14	21	24	28.8	36	45	56.5	75.8	98	150
B		32	32	36.6	45.5	53.4	63	75.7	91.5	119.5	176
C		40	40	48	56	58	62	70	77	79	86
D		32.5	32.5	39	48	56	67	83	99.6	124	182
L		57	57	72	80	82	88	100	100.5	115	130
