Shaft-hub Locking Device for Connecting Hubs and Shafts with High Torque Transmission Locking Assembly

shaft-hub locking device for connecting hubs and shafts with high torque transmission(locking assembly) Locking Assembly / Power Lock / Clamping Element / Locking Device 1. Easy to install and disassemble; 2. Good exchangeability; 3. Heavy load born

Send Inquiry

Product Description

shaft-hub locking device for connecting hubs and shafts with high torque transmission(locking assembly)

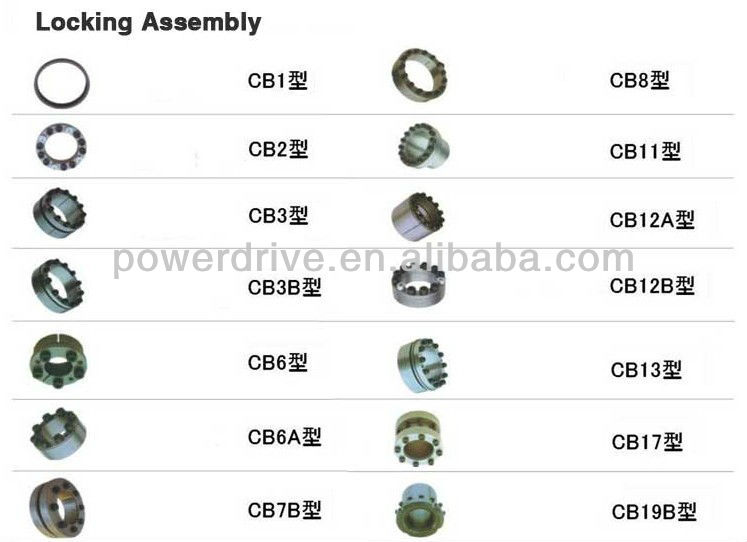

Locking Assembly / Power Lock / Clamping Element / Locking Device

1. Easy to install and disassemble;

2. Good exchangeability;

3. Heavy load born by joint with Keyless Locking Devices;

4. Long lifetime and high efficient transmitting;

5. While running under overload, Keyless Locking Devices can protect the equipment from breakdown.

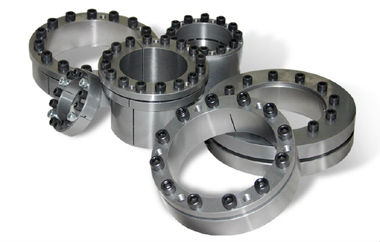

The power lock is a keyless shaft-hub locking device for connecting hubs and shafts with high torque transmission.

It is unaffected by vibration or torsion load reversal.

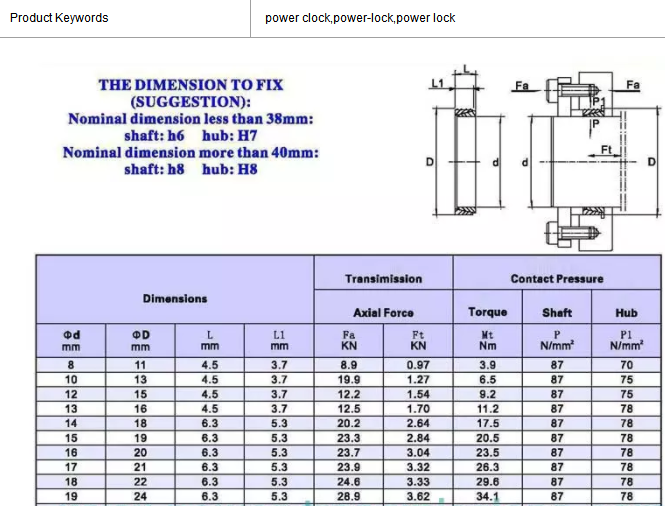

Material	65,65Mn,55Cr2,60Cr2,etc
Inner diameter	20mm~150mm
Outer diameter	47mm~200mm
Torque range	0.3kN.m~28.5kN.m
Type	Locking Assembles
Weight	0.29kg-6.7kg
Application	Printing machinery,
Useage	replace single keywey and spline
Product Keywords	power clock,power-lock,power lock

Shaft-hub Locking Device for Connecting Hubs and Shafts with High Torque Transmission Locking Assembly

The power lock is a keyless shaft-hub locking device for connecting hubs and shafts with high torque transmission. It is unaffected by vibration or torsion load reversal.

Please contact us for details of specification.Our products can be alternative of Tollok, Ringblock, KTR, Bonfix, Compomec and MAV products.
