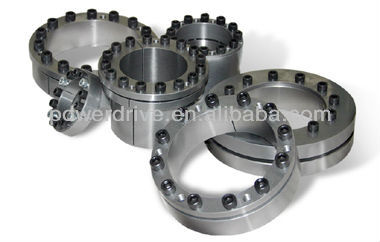

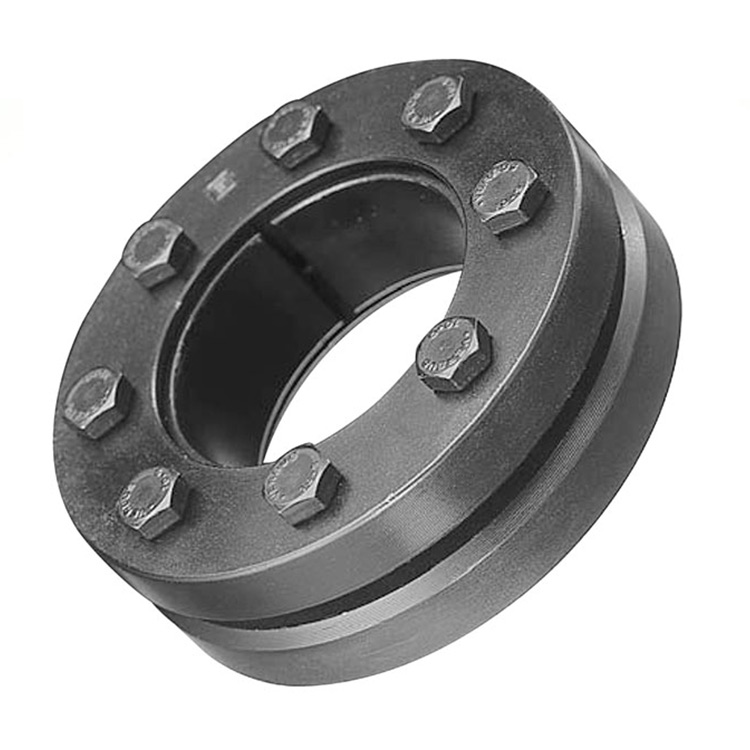

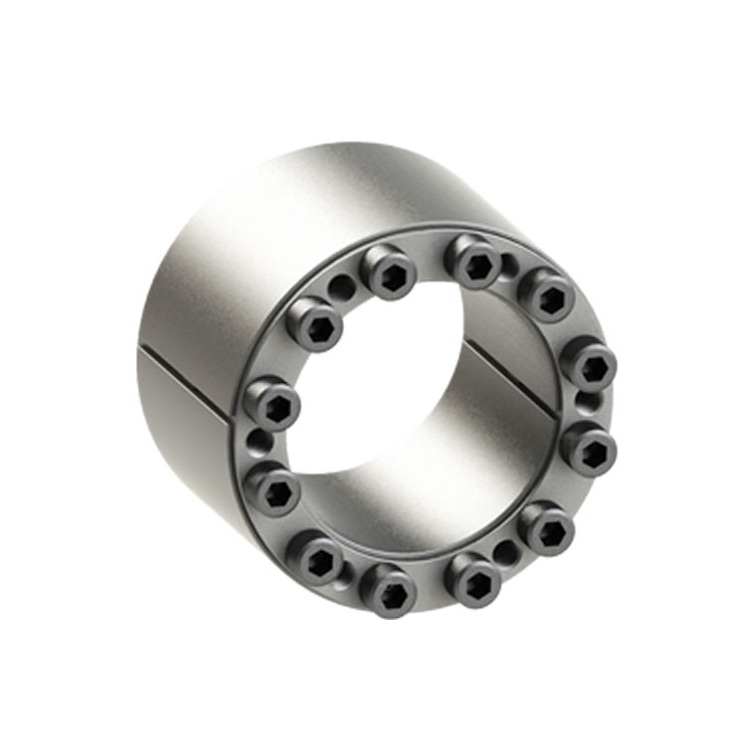

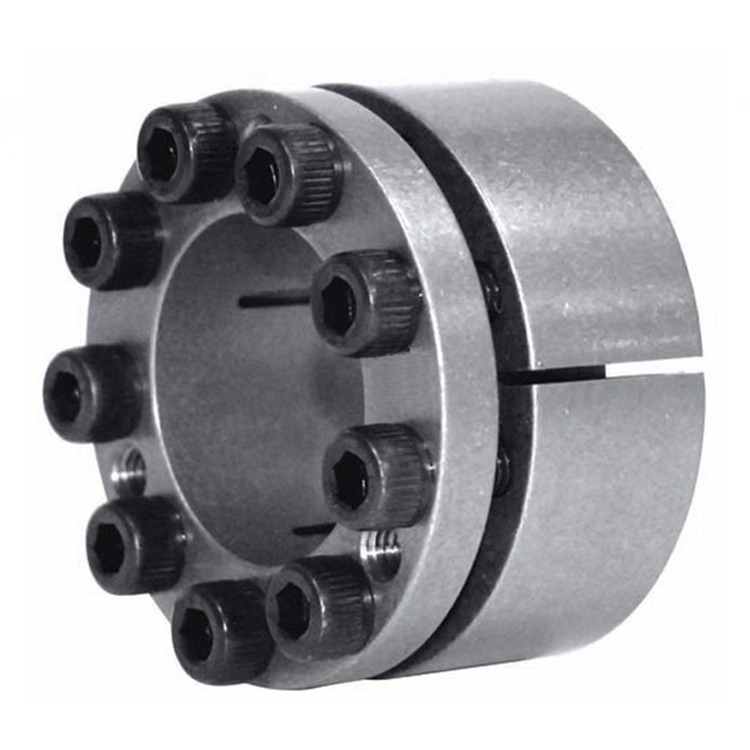

Locking Assembly / Power Lock / Clamping Element / Locking Device
1. Easy to install and disassemble;
2. Good exchangeability;
3. Heavy load born by joint with Keyless Locking Devices;
4. Long lifetime and high efficient transmitting;
5. While running under overload, Keyless Locking Devices can protect the equipment from breakdown.
The power lock is a keyless shaft-hub locking device for connecting hubs and shafts with high torque transmission.
It is unaffected by vibration or torsion load reversal.
| Material | 65,65Mn,55Cr2,60Cr2,etc |
| Inner diameter | 20mm~150mm |
| Outer diameter | 47mm~200mm |
| Torque range | 0.3kN.m~28.5kN.m |
| Type | Locking Assembles |
| Weight | 0.29kg-6.7kg |
| Application | Printing machinery, |
| Useage | replace single keywey and spline |
| Product Keywords | power clock,power-lock,power lock |
