Description:

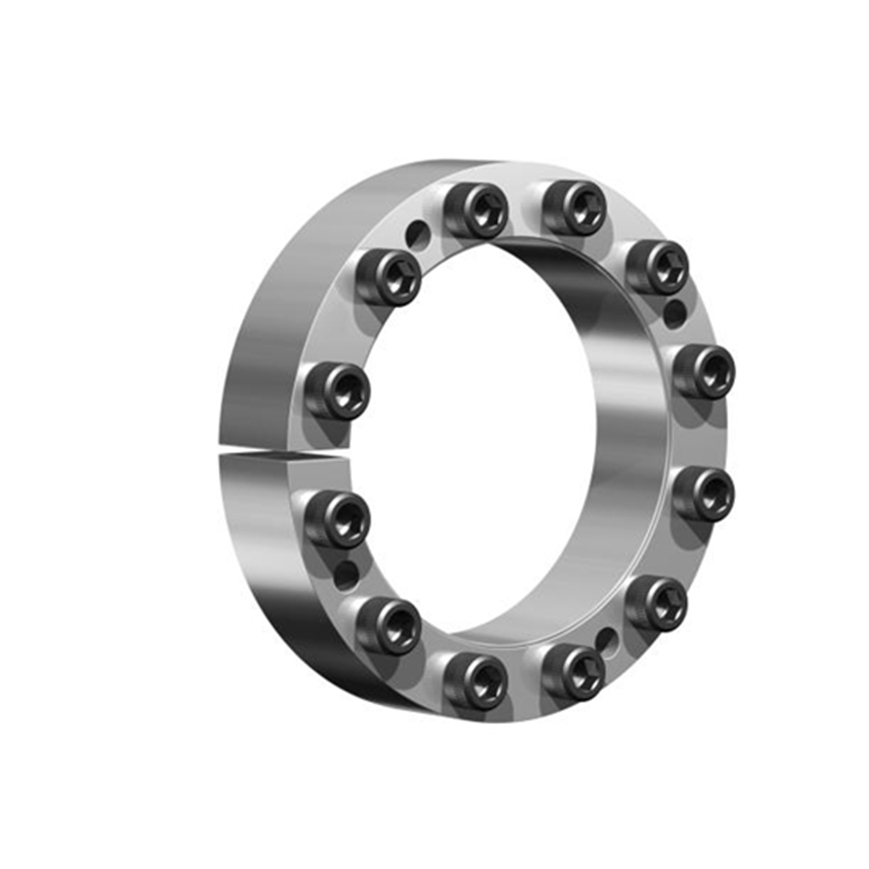

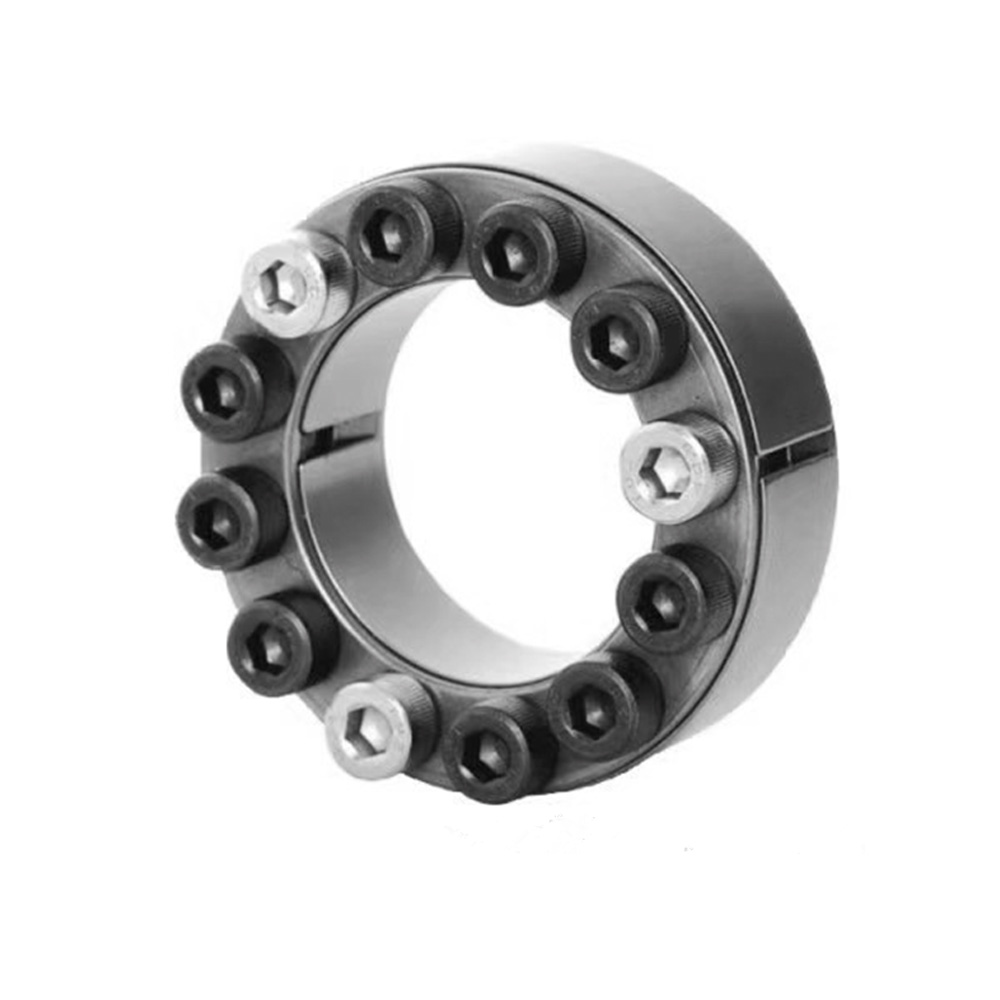

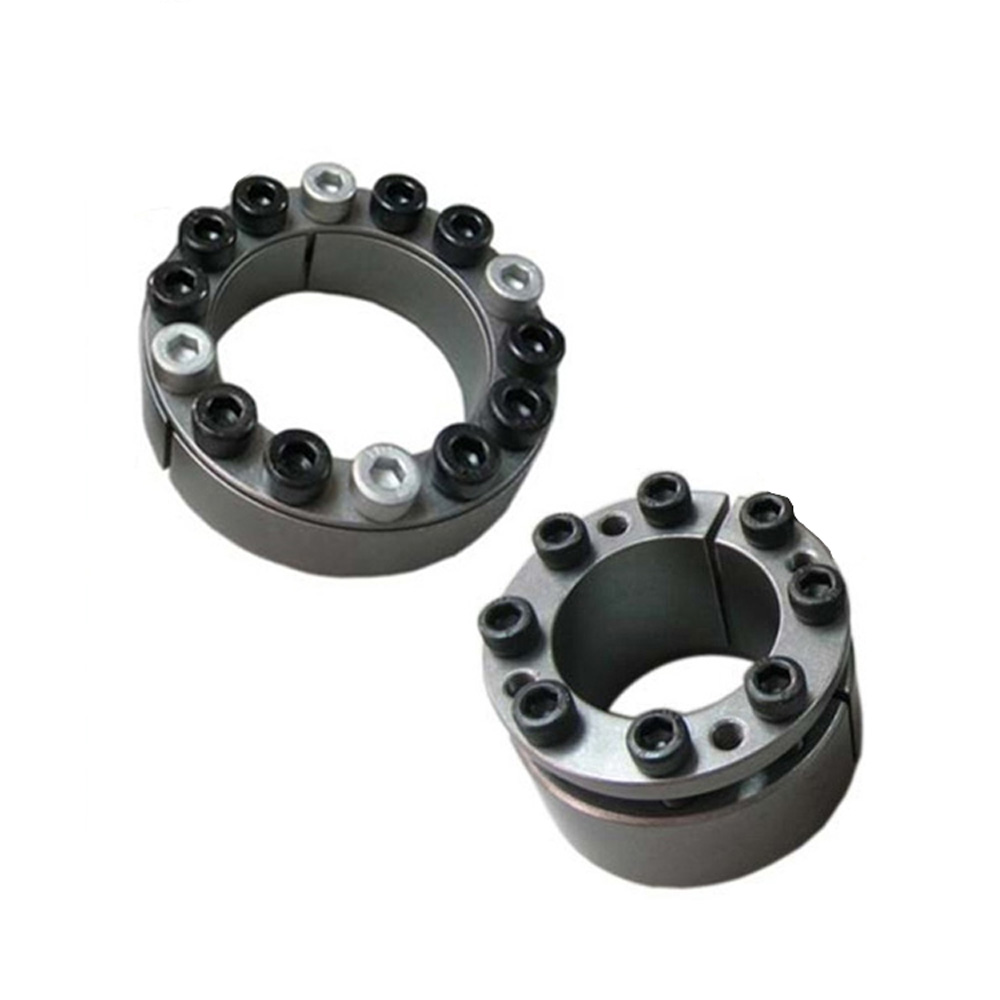

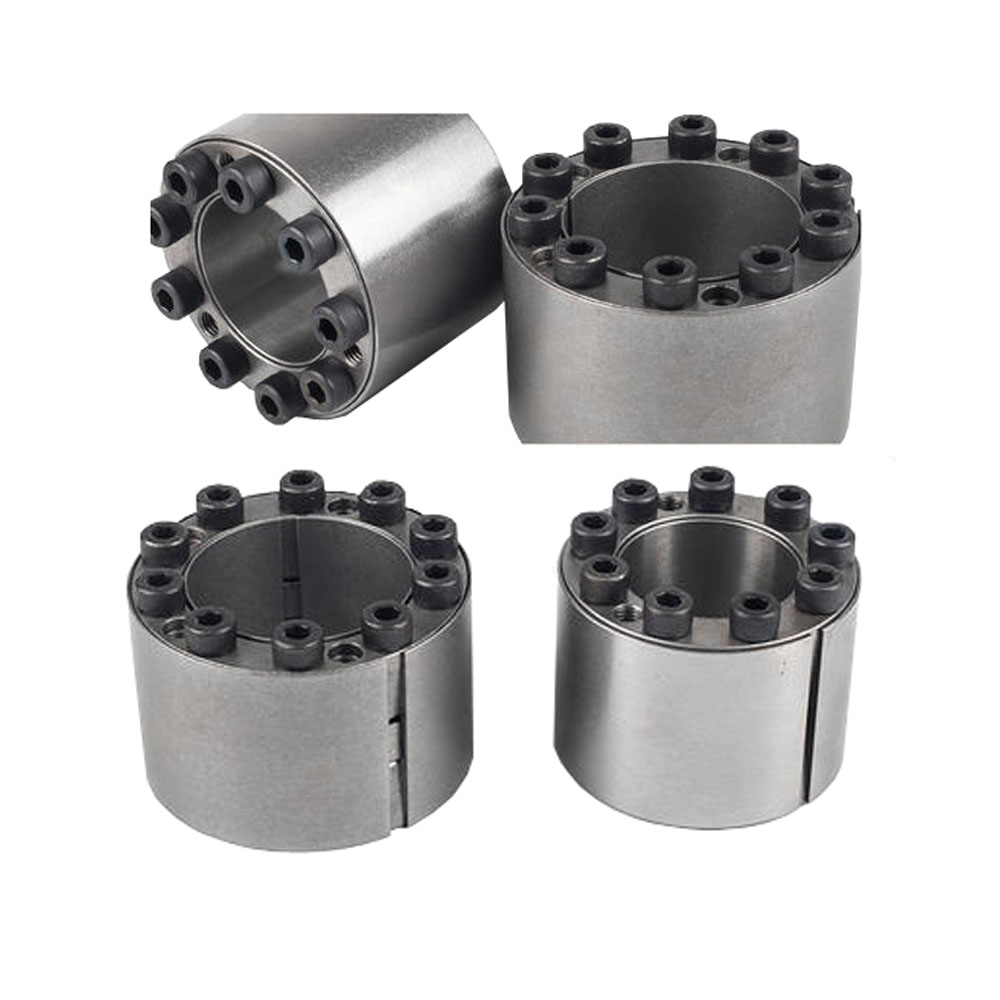

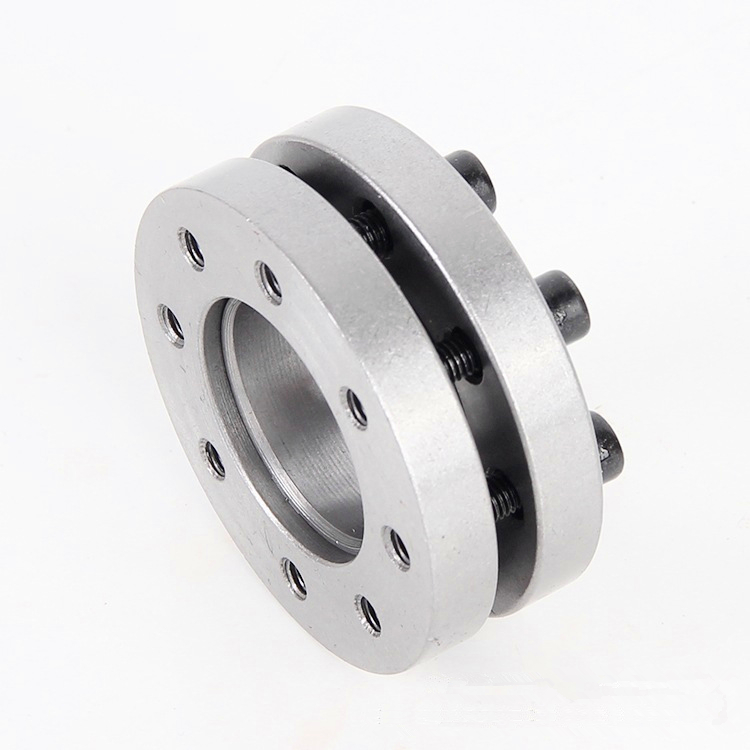

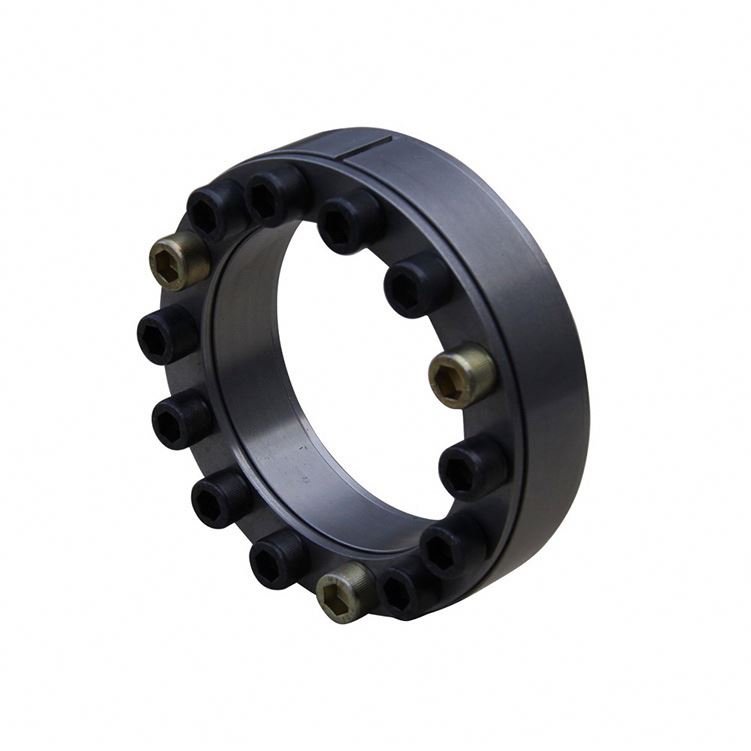

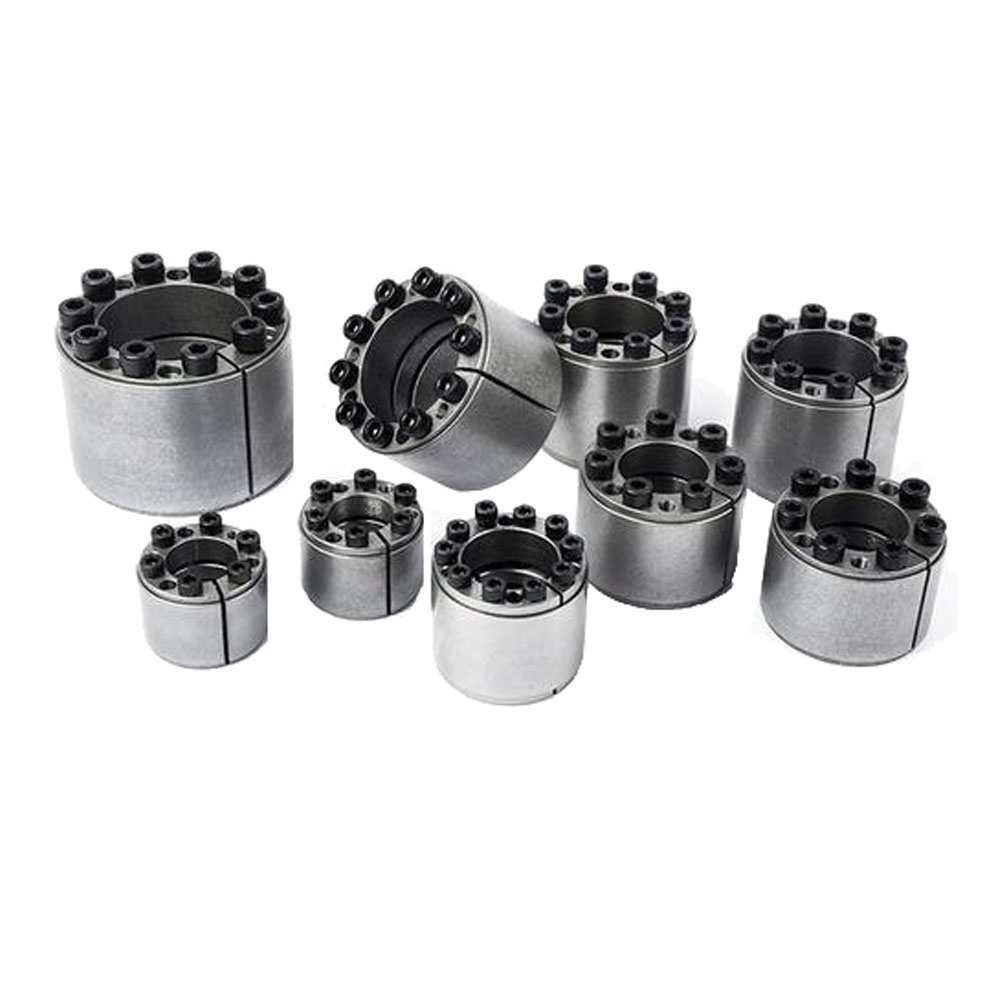

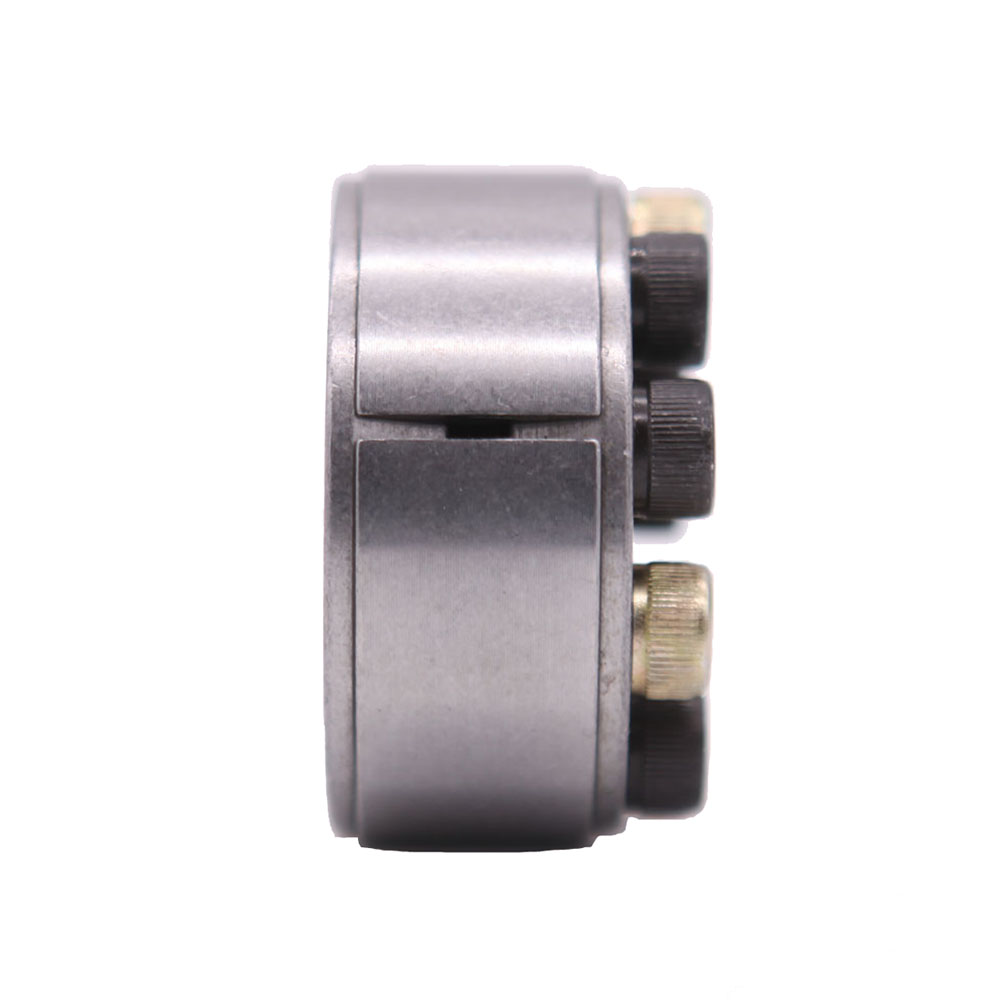

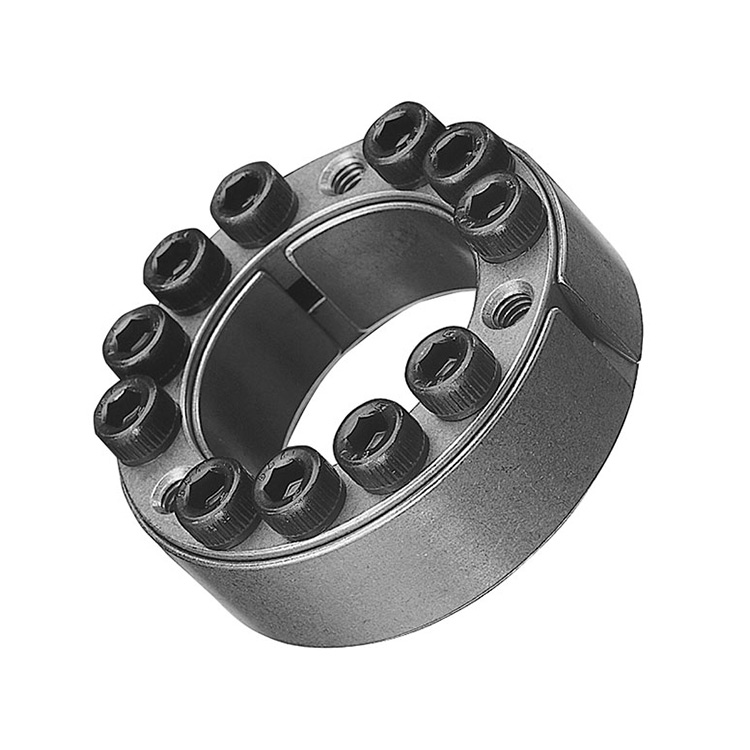

Type Z2 is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.

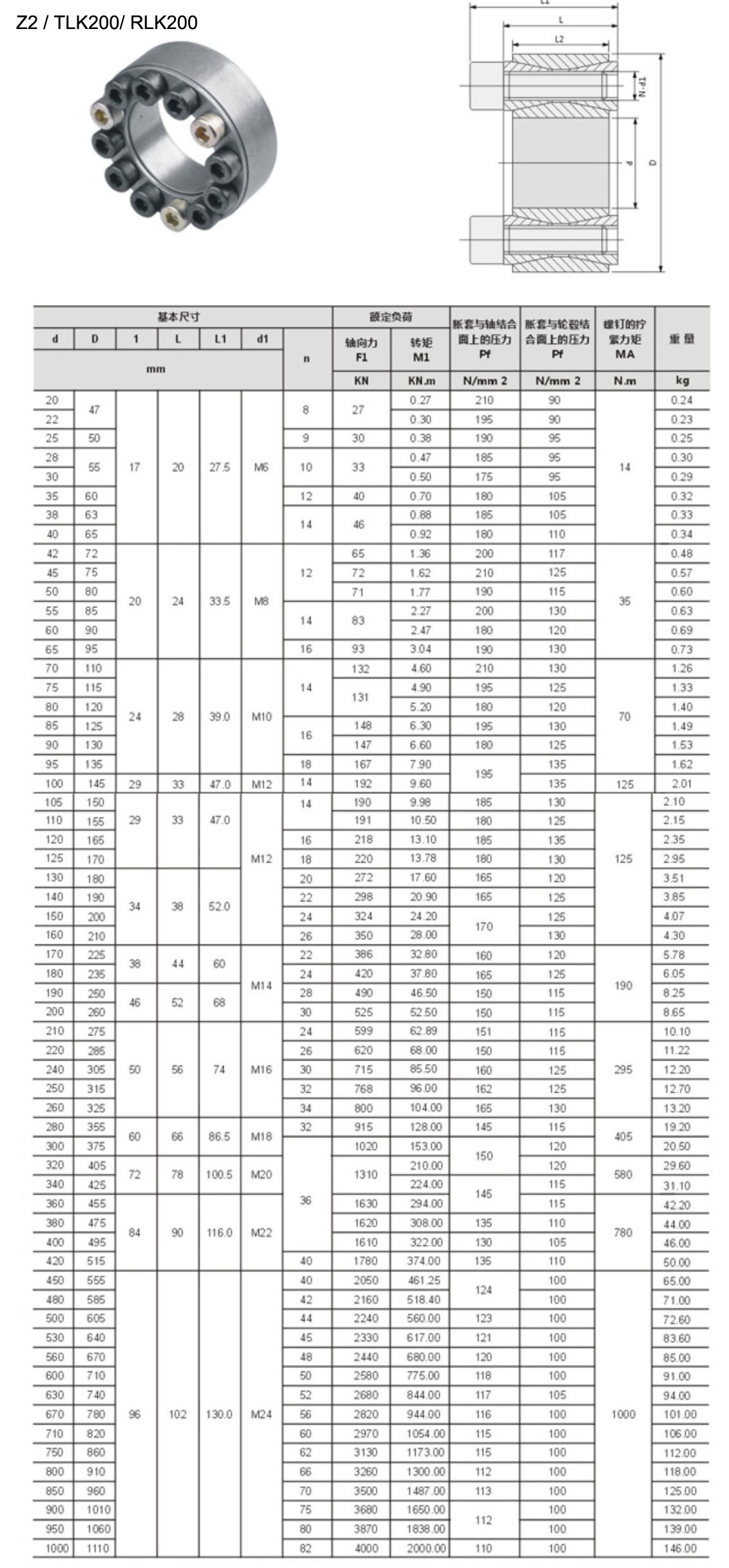

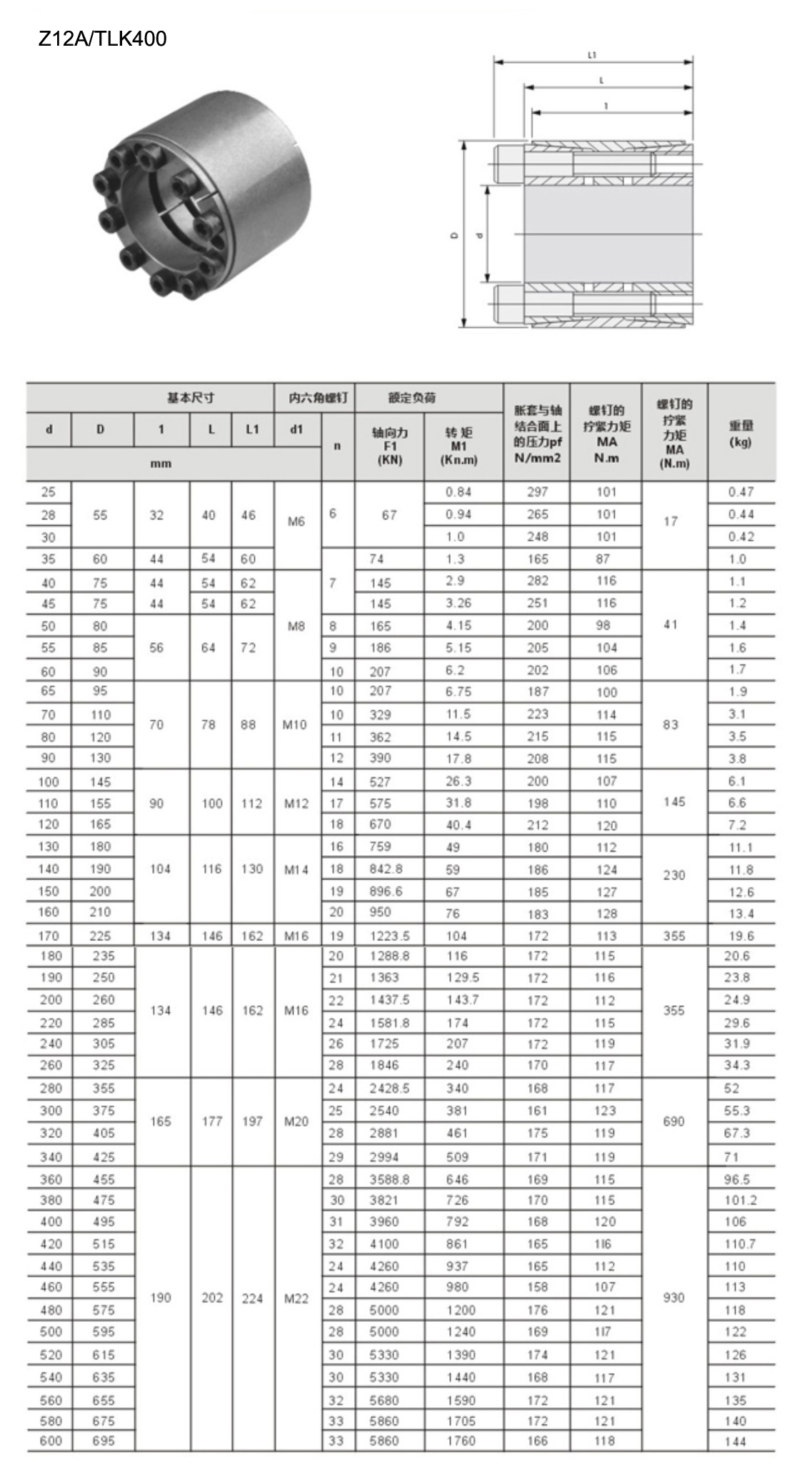

| Model | Z Type /TLK/ RLK | |
| Pressure on Shaft (N/mm2) | 210-110 | |
| Pressure on Hub (N/mm2) | 90-135 | |
| Rated Load (kN.m) | Force | 27-4000 |
| Torque | 0.27-2000 | |
| Inner Race Size (mm) | 20-1000 | |
| Outer Race Size (mm) | 47-1110 | |
| Thickness (mm) | 50-77 | |
| Weight (Kg) | 0.24-146 | |
| Quantity(Pieces) | 1-10 | 11-100 | >100 |
| LEAD Time(days) | 15 | 25 | To be negotiated |
Briefly introduce our company, We are one of the leading manufactures ( Hangzhou Raydafon Technology Group Co.,Limited CO., ltd.) in China
We have started the power-transmission business since 1992, we've been expanding every year with volumes, sales and product ranges. We can supply a full-range of power transmission products, such as chains, sprockets and plate wheels, pulleys, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. Our products are used in many different industry sector, like in automation engineering, drive engineering, conveyor technology, assembly and handling technology, packaging industries, the beverage, food and medical engineering, pharmaceutical production, and laboratory equipment. We also help our customers to make customized different new types of products, according to provided drawings.
Please feel free to visit our website (www.power-transmissions.com) for more product ranges, if you find something catch your interest, just tell us the item numbers and specifications, I will quote you the best prices.
Lastly, I wish you and your company good luck on this year, hope we can start cooperating in the future.
