Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.
They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material:
Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Type:

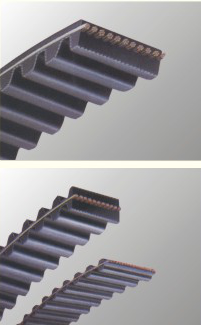

There are two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt and double-sided tooth industrial rubber synchronous belt.
There are two kinds of single-sided tooth industrial rubber synchronous belt: T tooth industrial rubber synchronous belt and Arc tooth industrial rubber synchronous belt.
There are two kinds of double sided tooth timing belt DA and DB.
The Dimension and Profile:
T tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT20 | 20 | 5.00 | 8.00 | 50 |
Arc tooth industrial rubber synchronous belt
H ARC TOOTH S ARC TOOTH R ARC TOOTH
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
|
HTD |
2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
|
STPD/STS |
S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
|
RPP/HPPD |
2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |
DA-duplex synchronous belt
DB-duplex synchronous belt
|
Type |
W |
T |
Size |
Pitch Length(mm) |
Teeth No. |
|
D-XL |
0.508 |
3.05 |
196XL-1970XL |
497.84-5003.8 |
98-985 |
|
D-L |
0.762 |
4.58 |
203L-1988L |
514.35-5048.25 |
54-530 |
|
D-H |
1.372 |
5.95 |
670H-2500H |
1701.8-6350 |
124-500 |
|
D-XH |
2.794 |
15.49 |
700XH-2275XH |
1778.00-5778.5 |
80-260 |
|
D-XXH |
3.048 |
22.11 |
700XXH-2625XXH |
1778.00-6667.5 |
56-210 |
|
D-T2.5 |
0.60 |
2.00 |
T2.5x500-T2.5x5000 |
500.00-5000.00 |
200-2000 |
|
D-T5 |
1.00 |
3.40 |
T5x500-T5x7000 |
500.00-7000.00 |
100-1400 |
|
D-T10 |
2.00 |
7.00 |
T10x500-T10x7050 |
500.00-7050.00 |
50-705 |
|
D-T20 |
3.00 |
13.00 |
T20x1700-T20x7000 |
1700.00-7000.00 |
85-350 |
|
D-AT10 |
2.00 |
7.00 |
AT10x500-AT10x7000 |
500.00-7000.00 |
50-700 |
|
DA-HTD-3M |
0.760 |
3.10 |
501-3M-5010-3M |
501.00-5010.00 |
167-1670 |
|
DA-HTD-5M
|
1.143 |
5.26 |
500-5M-7000-5M |
500.00-7000.00 |
50-1400 |
|
DA-HTD-8M
|
1.372 |
8.17 |
512-8M-6880-8M |
512-6880 |
64-860 |
|
DA-HTD-14M
|
2.80 |
14.84 |
1750-14M-6860-14M |
1750-6860 |
125-490 |
|
DA-STS-8M |
1.372 |
7.48 |
S8M-512-S8M-6880 |
512-6880 |
64-860 |
The representation of above types
2.Non-standard,OEM.

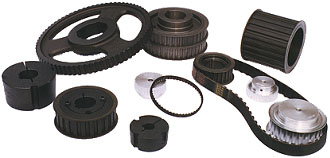

We could supply timing belt and timing pulley following series:
MXL,XL,L;H,XH,H;T2.5,T5,T10,T20;AT5,AT10,AT20;3M,S3M;5M,S4.5,S5;8M,S8M;14M,S14M;20M timing pulley :Black finished or zinc plated.
timing belt :Pu or Rubber material
Our company would provide you the most satisfactory pulley and belt according to the customer's drawing and requirements. At present, we have over 30 timing pulley and belt model and more than two thousand specification.
Please send us(Raydafon) your inquire with detailed drawing, specification, quality required, and actual sample if available and we will provide you not only the most satisfactory processing service but also very competitive price.
