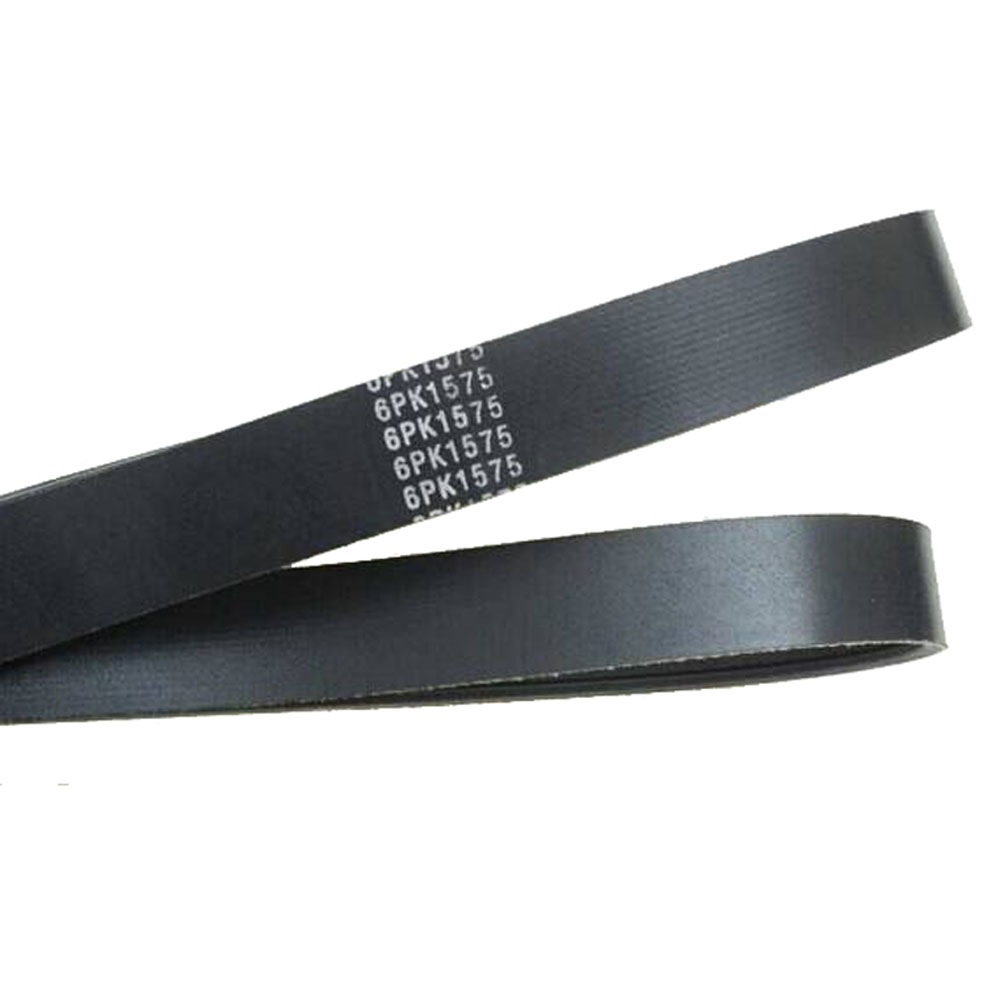

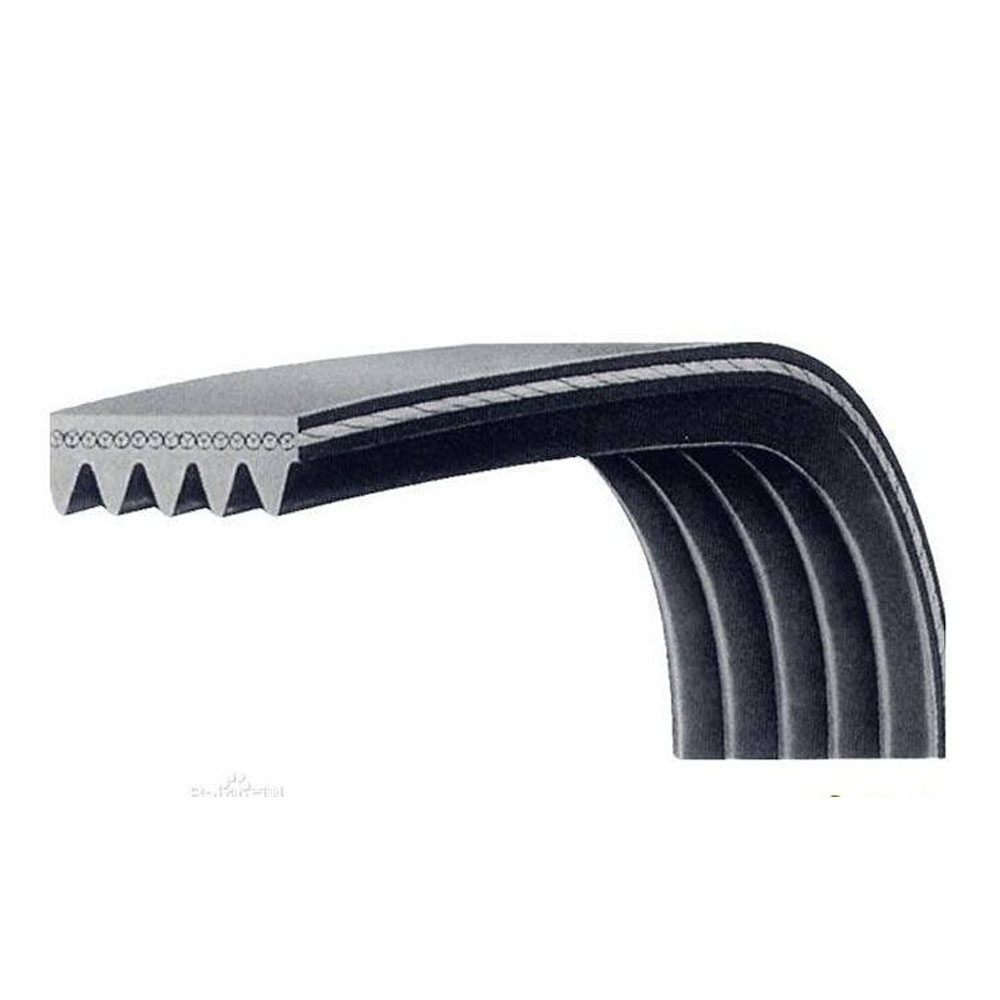

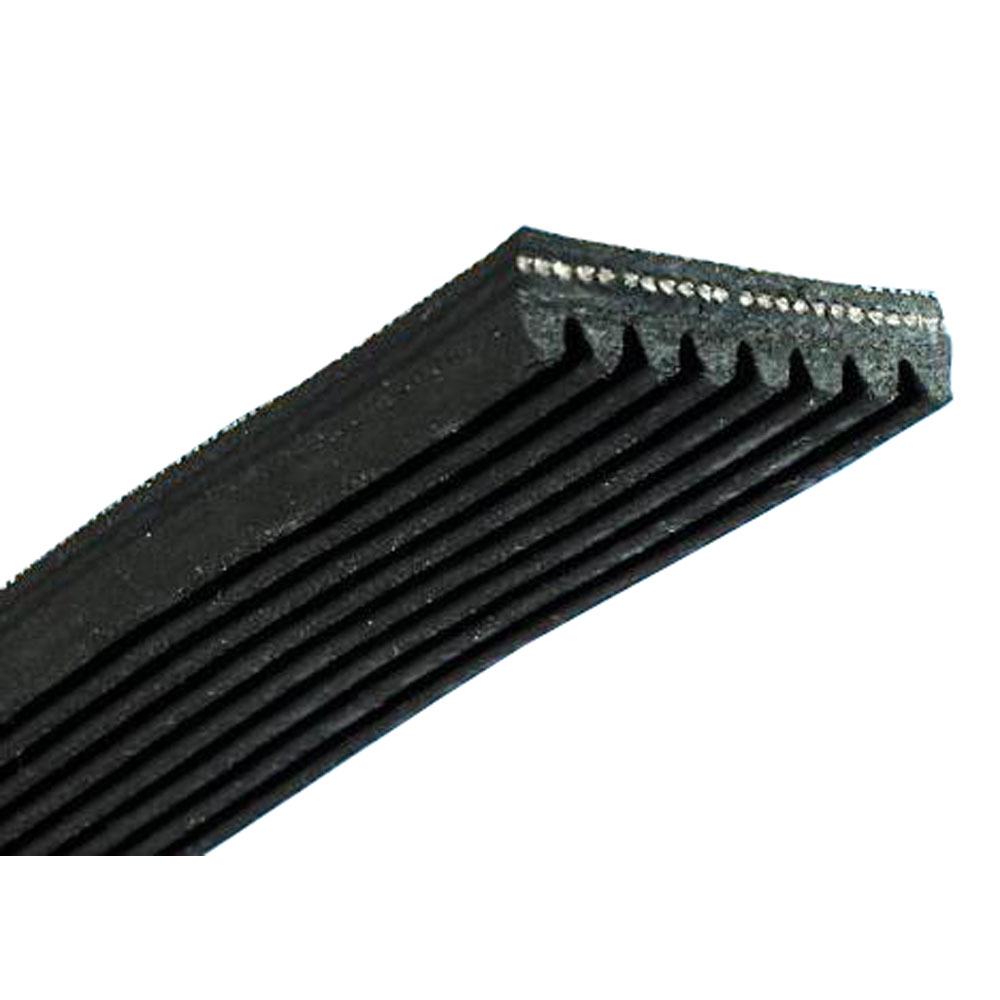

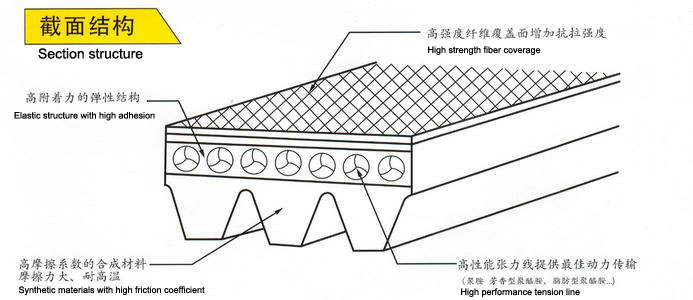

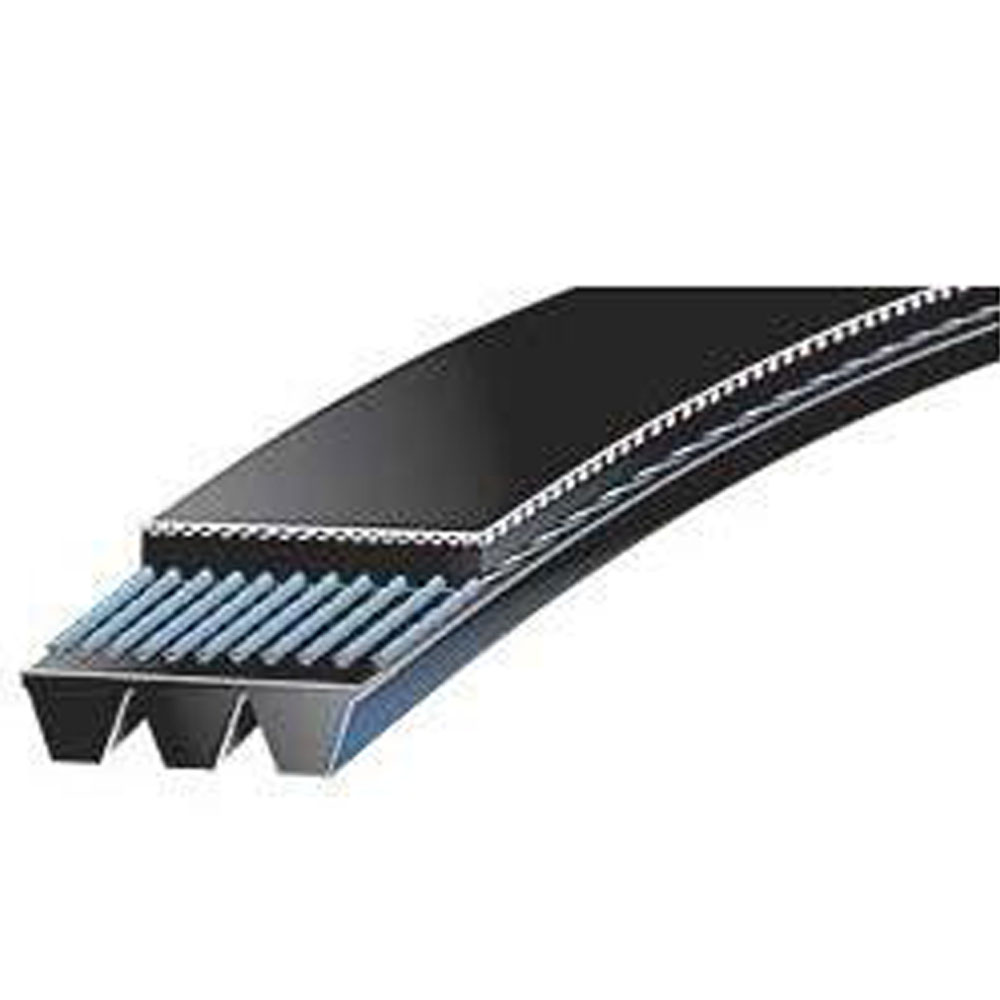

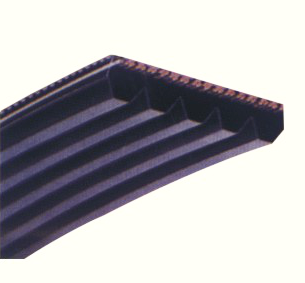

V Ribbed Belts Elastic core type poly v belt

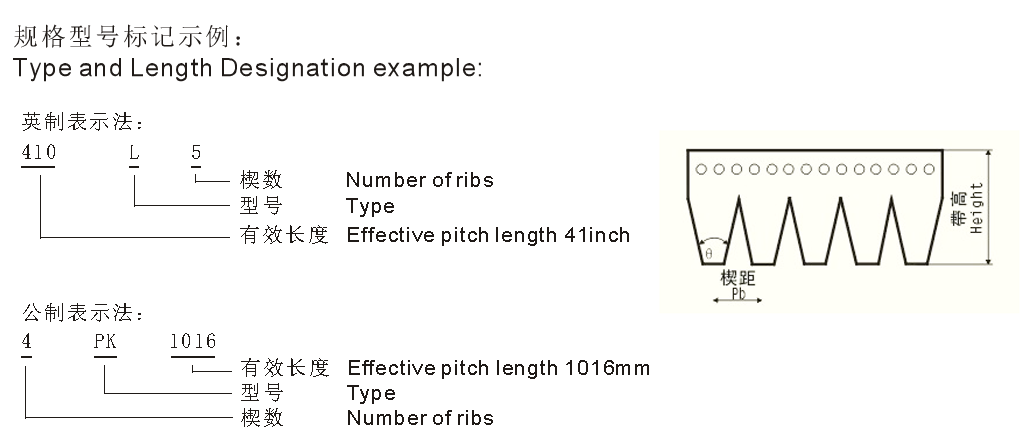

Type and dimension:
| Type | Pb | Height | Angle |
| mm | mm | ||
| PH | 1.6 | 3 | 40° |
| PJ | 2.34 | 3.9 | 40° |
| PK | 3.56 | 5 | 40° |
| PL | 4.7 | 9 | 40° |
| PM | 9.4 | 16 | 40° |
Features:
-High horsepower rating.
V Ribbed Belts have a 30-50% horsepower rating higher than Classical V-Belts.
-Spacing saving.
Pulleys with outsides diameters as small as 0.8 inch can be used.
-Low vibration.
-Oil and heat resistant, Less stretch, Long life.
- Widely used in Power Transmission, Auto parts, Fans water pumps, Driving alternators,Super Market, and so on.
Size Information :
If you can not find the same type from we showed here, please contact with us directly.

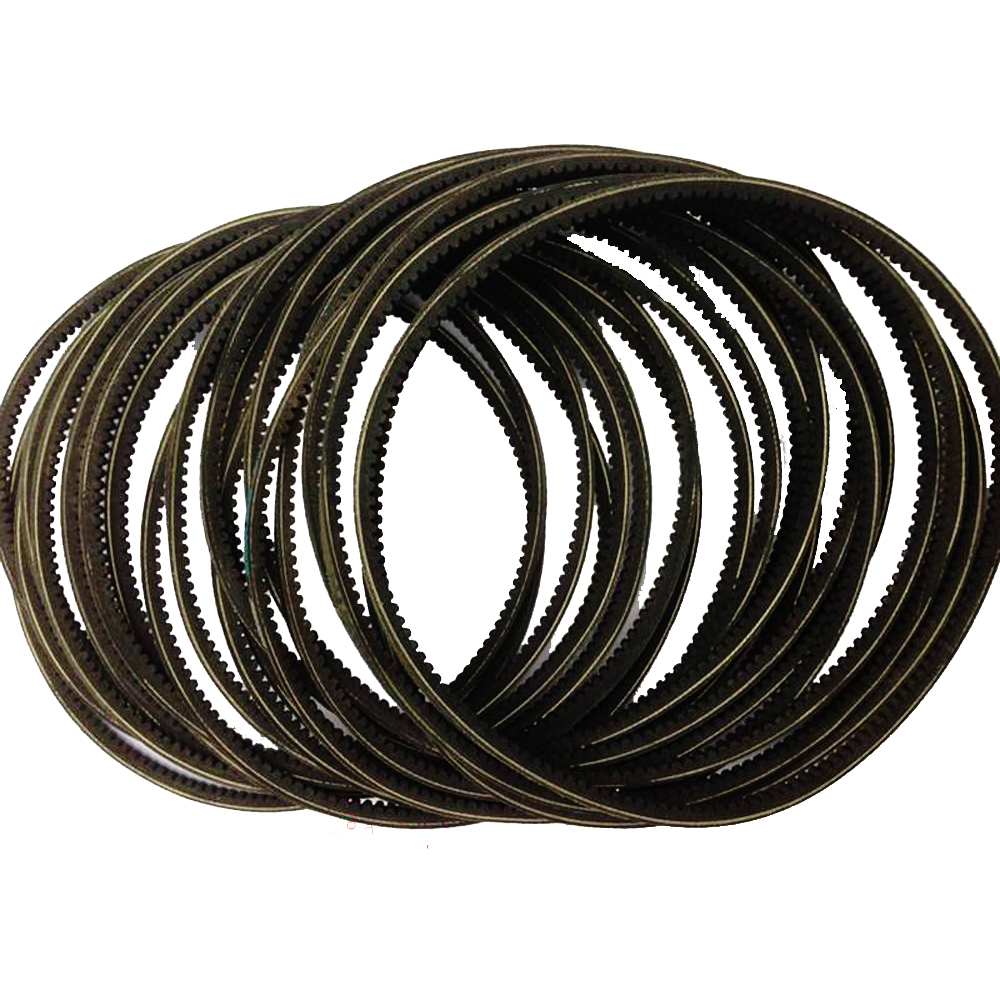

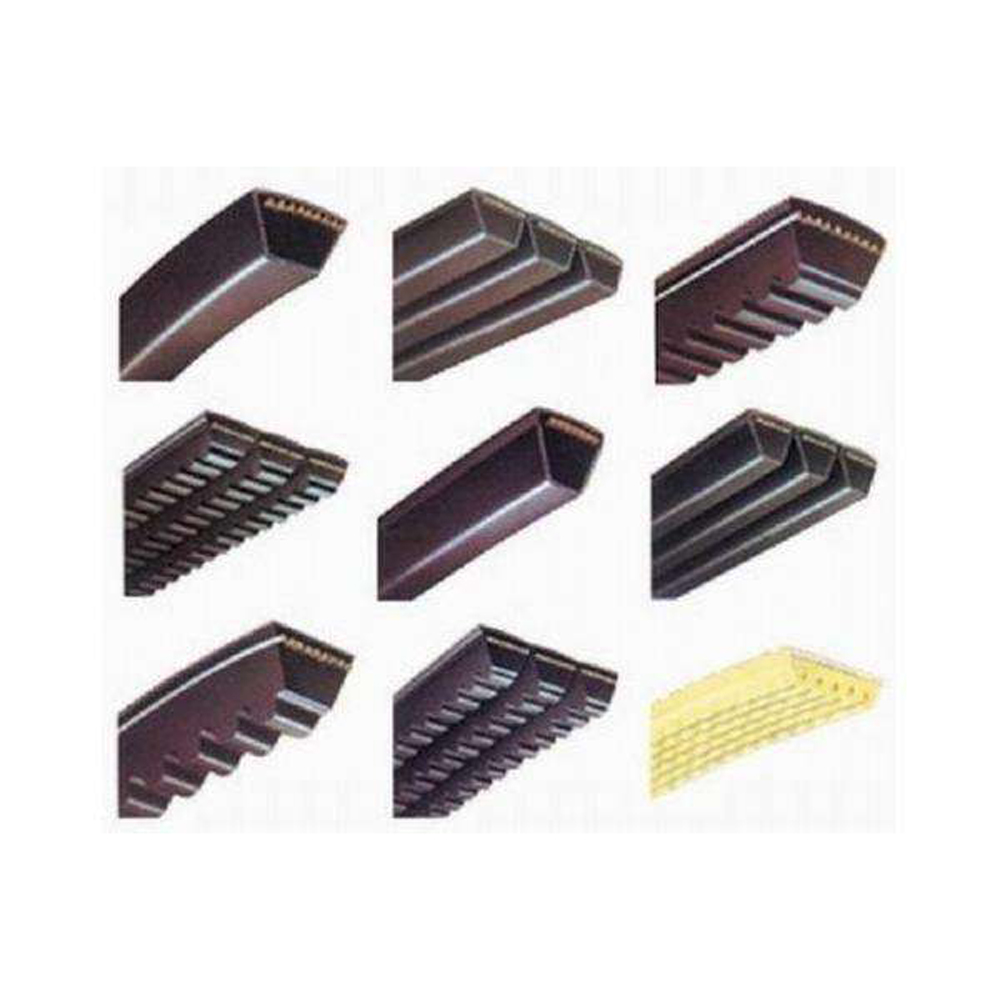

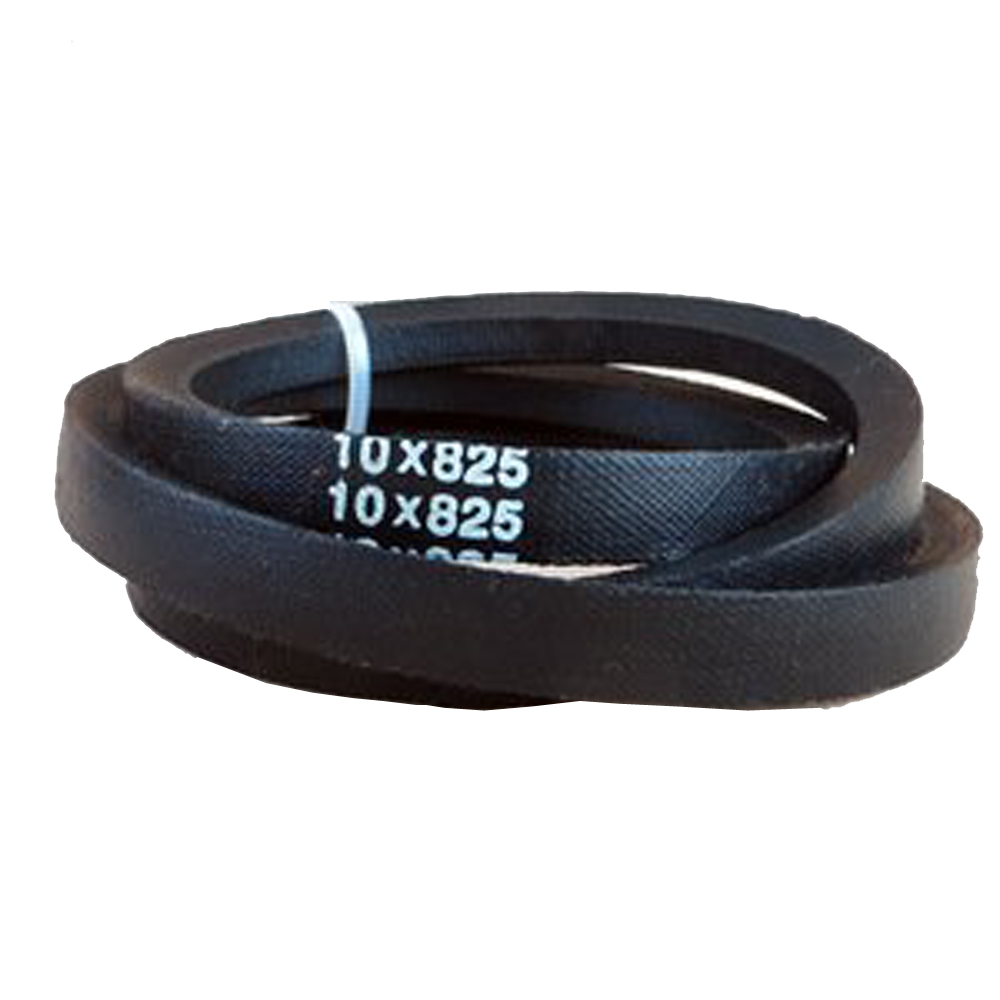

| Classical V-belt | Y, K, M(Z), A, B, C, D, E |
| Narrow V-Belts | SPZ, SPA, SPB, SPC, 3V, 5V, 8V |
| Raw edge Narrow V-Belts | XPZ, XPA, XPB, XPC, 3VR, 5VR |

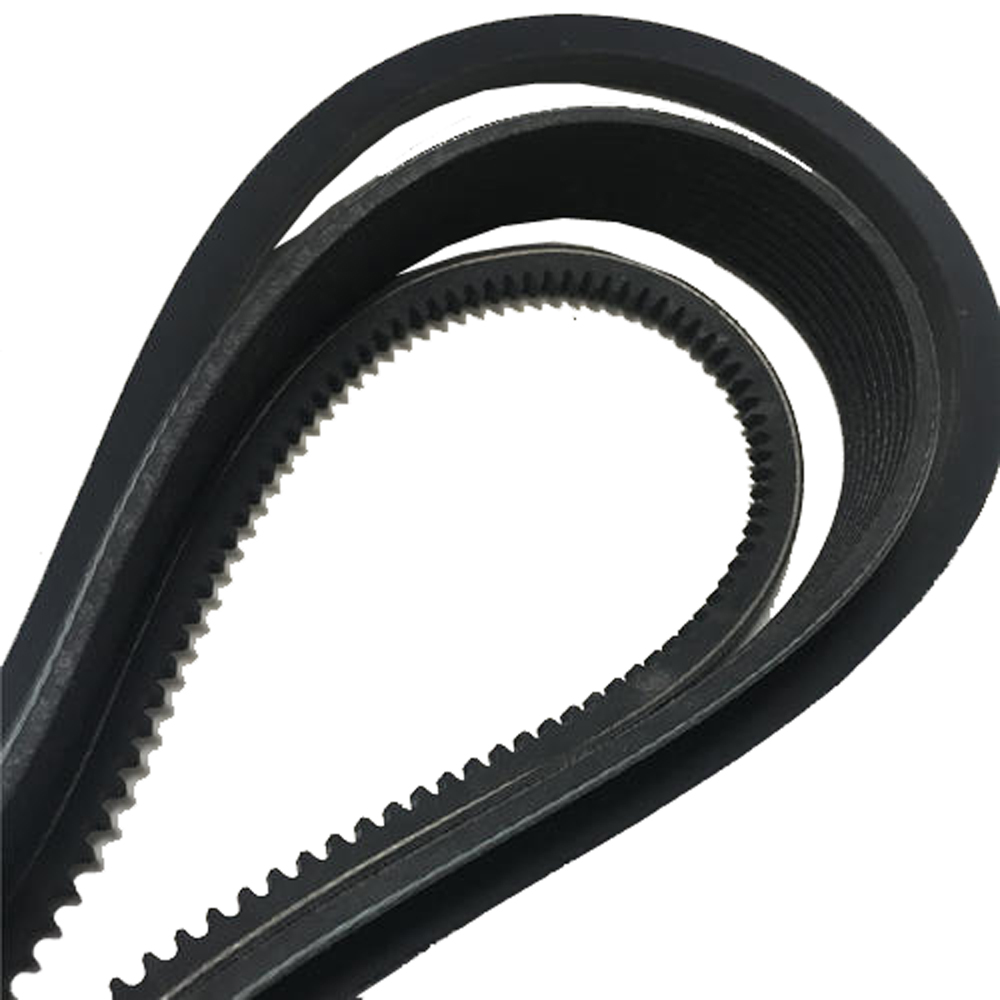

| Narrow Cogged V-Belts | XPZ, XPA, XPB, XPC, 3VX, 5VX |
| Raw edge Cogged V-Belts | AV10/FM, AV13/AX., AV22/CX |
| Banded V-Belts | A, B, C, D, 3V, 5V, 8V |
| Banded Cogged V-Belts | AX, BX, CX, 3VX, 5VX |
| Agricultural V-Belt | HI, HJ, HK, HL, HM |
| Variable Speed Belts | v |
| Double V-Belts | AA, BB, CC |
| V Ribbed Belts | PH, PJ, PK, PL, PM |

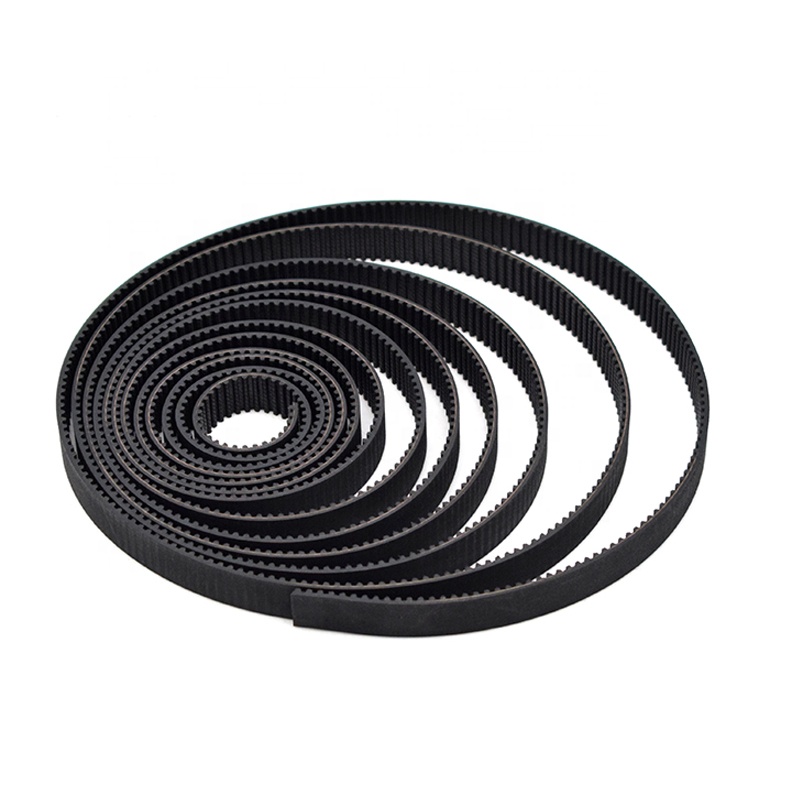

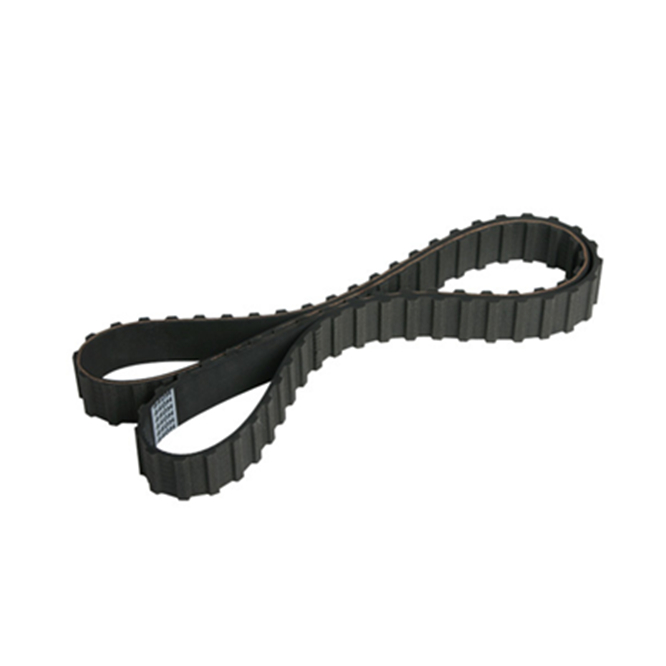

| Synchronous Belts/Timing Belts | MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD, STPD/STS, RPP/HPPD |
1, All specification and types of timing belt can be produced; so do other specification and types of timing belt not listed in this table
2, For particular specification belt, we can make according to the clients' supplying drawing or sample after negotiation.
3, Timing belts' width can be adjusted as clients' request.
4, Offer desigh for choosing timing belt specification & types or drip in to provide technrvices as per customers' technical requirements.
Briefly introduce our company, We are one of the leading manufactures ( Hangzhou Raydafon Technology Group Co.,Limited CO., ltd.) in China
We have started the power-transmission business since 1992, we've been expanding every year with volumes, sales and product ranges. We can supply a full-range of power transmission products, such as chains, sprockets and plate wheels, pulleys, belts, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. Our products are used in many different industry sector, like in automation engineering, drive engineering, conveyor technology, assembly and handling technology, packaging industries, the beverage, food and medical engineering, pharmaceutical production, and laboratory equipment. We also help our customers to make customized different new types of products, according to provided drawings.
Please feel free to visit our website (www.power-transmissions.com) for more product ranges, if you find something catch your interest, just tell us the item numbers and specifications, I will quote you the best prices.
Lastly, I wish you and your company good luck on this year, hope we can start cooperating in the future.
