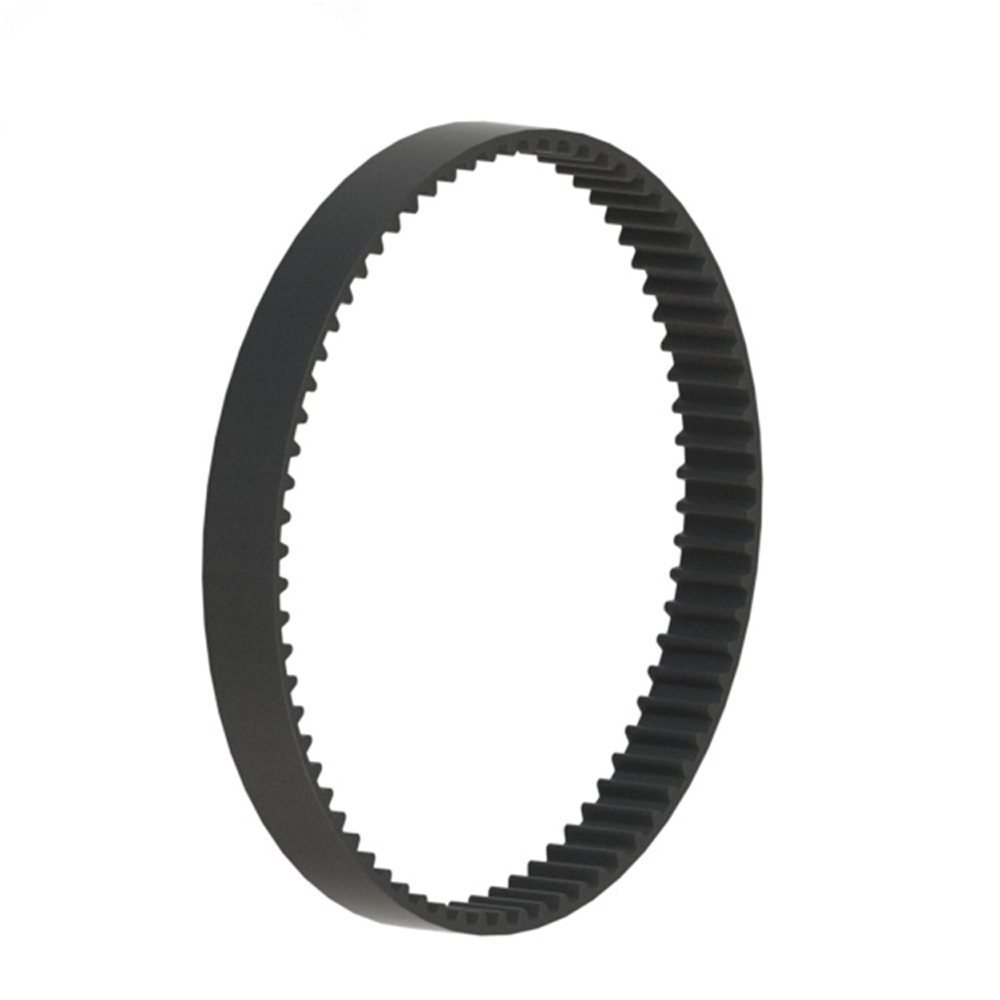

A.T type industrial rubber synchronous belt
| TYPE | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT20 | 20 | 5.00 | 8.00 | 50 |

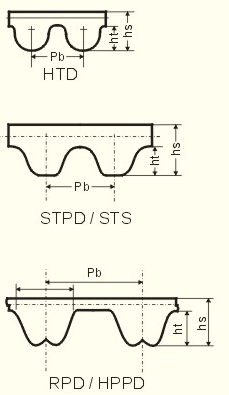

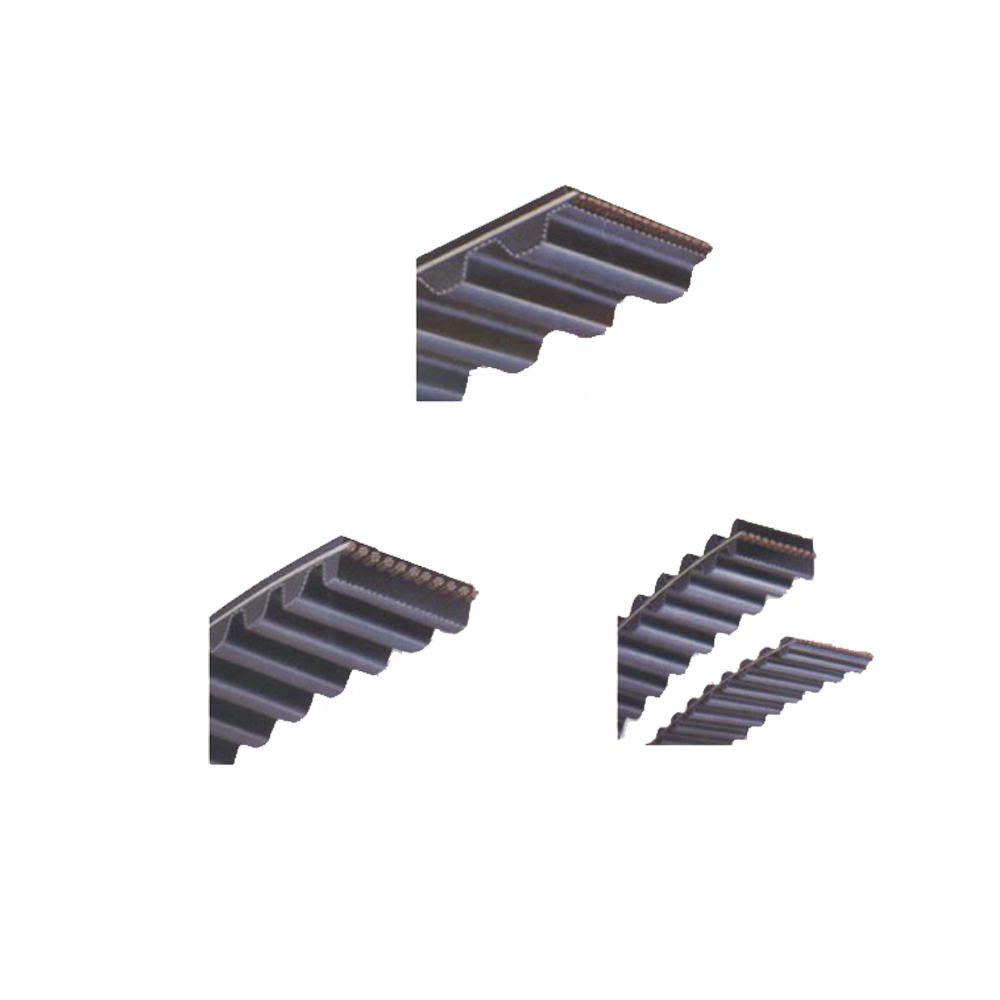

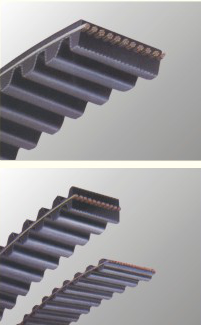

B.Arc tooth industrial rubber synchronous belt
| Gear Code | TYPE | Pitch | Tooth height | Belt thickness |
| HTD | 3M | 3 | 1.17 | 2.4 |
| 5M | 5 | 1.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
| STPD/STS | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 1.9 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP/HPPD | RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 | |
| RP5M | 5 | 1.95 | 3.5 | |
| RP8M | 8 | 3.2 | 5.5 | |
| RP14M | 14 | 6.00 | 10 |
Size Information
If you can not find the same type from we showed here, please contact with us directly.

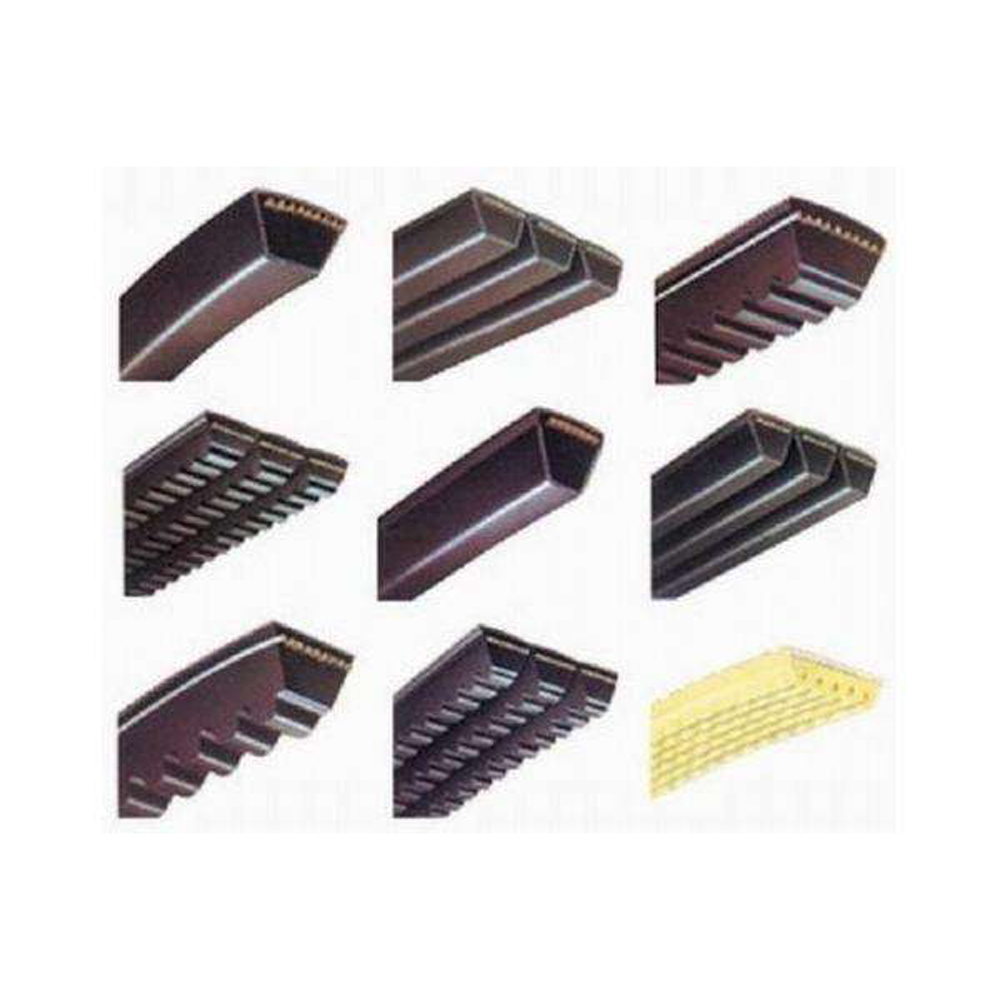

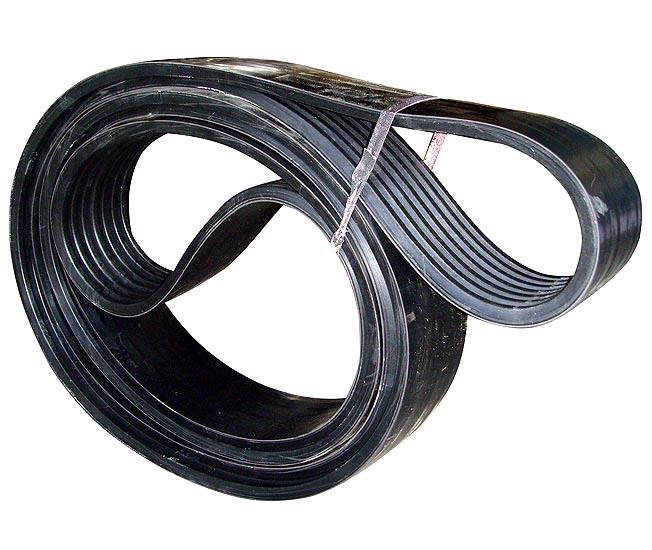

| Classical V-belt | Y, K, M(Z), A, B, C, D, E |
| Narrow V-Belts | SPZ, SPA, SPB, SPC, 3V, 5V, 8V |
| Raw edge Narrow V-Belts | XPZ, XPA, XPB, XPC, 3VR, 5VR |
| Narrow Cogged V-Belts | XPZ, XPA, XPB, XPC, 3VX, 5VX |
| Raw edge Cogged V-Belts | AV10/FM, AV13/AX., AV22/CX |
| Banded V-Belts | A, B, C, D, 3V, 5V, 8V |
| Banded Cogged V-Belts | AX, BX, CX, 3VX, 5VX |
| Agricultural V-Belt | HI, HJ, HK, HL, HM |
| Variable Speed Belts | v |
| Double V-Belts | AA, BB, CC |
| V Ribbed Belts | PH, PJ, PK, PL, PM |
| Synchronous Belts/Timing Belts | MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD, STPD/STS, RPP/HPPD |
1, All specification and types of timing belt can be produced; so do other specification and types of timing belt not listed in this table
2, For particular specification belt, we can make according to the clients' supplying drawing or sample after negotiation.
3, Timing belts' width can be adjusted as clients' request.
4, Offer desigh for choosing timing belt specification & types or drip in to provide technrvices as per customers' technical requirements.
