Raydafon Roller Chain Coupling & Chain Couplers

Chain coupling: 3012, 4012, 4014, 4018, 5014, 5016, 5018, 6018, 6020, 6022, 8018,
8020, 8022, 10020, 12018, 12022

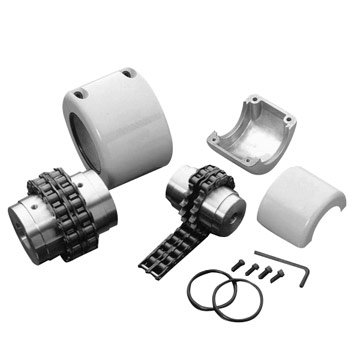

chain coupling KC20022 , with chain, shell and two sprockets

Product Specifications:

1. Material: Steel C45
2. KC standard
3. Protective cover and O-rings included
4. High flexibility and power transmission capacity

5. Good quality with harden teeth sprocket.

 We can supply 10018 roller chain coupling with high quality and competitive price

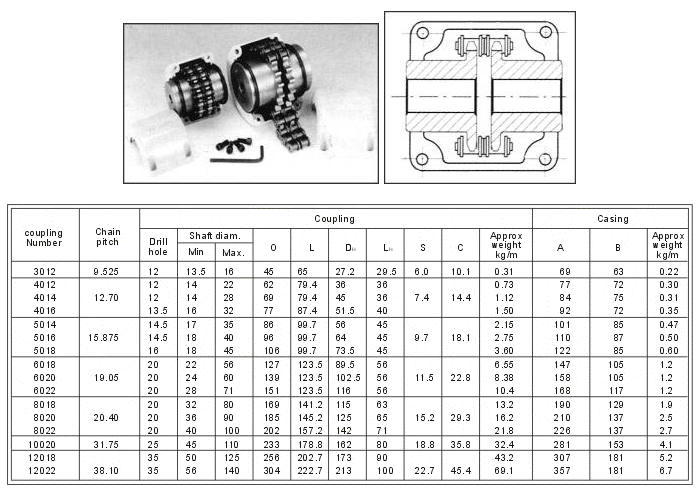

Our Roller Chain Coupling details:
Size: 3012, 4012, 4014, 4016, 5014, 5016, 5018, 6018, 6020, 6022, 8018, 8020, 8022, 10018, 10022, 12018, 12022
Our Roller Chain Coupling Specification:
1. Material: C45 steel, Alloy steel, Aluminum, Rubber and plastic etc.
2. OEM and ODM are available
3. High efficient in transmission
4. Finishing: Painted.
5. High quality with competitive price
6. Different models suitable for your different demands
7. Stock for different bore size on both sides available.
8. Application in wide range of environment.
9. Quick and easy mounting and disassembly.
10. Resistant to oil and electrical insulation.
11. Identical clockwise and anticlockwise rotational characteristics.
12. Small dimension, low weight, high transmitted torque.
13. It has good performance on compensating the misalignment.
Chain Coupling Application:
Chain couplings are offered in the industry's largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.
