Raydafon Falk Steelflex Grid Couplings GIICLD Motor Shaft Extension Type Drum Gear Coupling

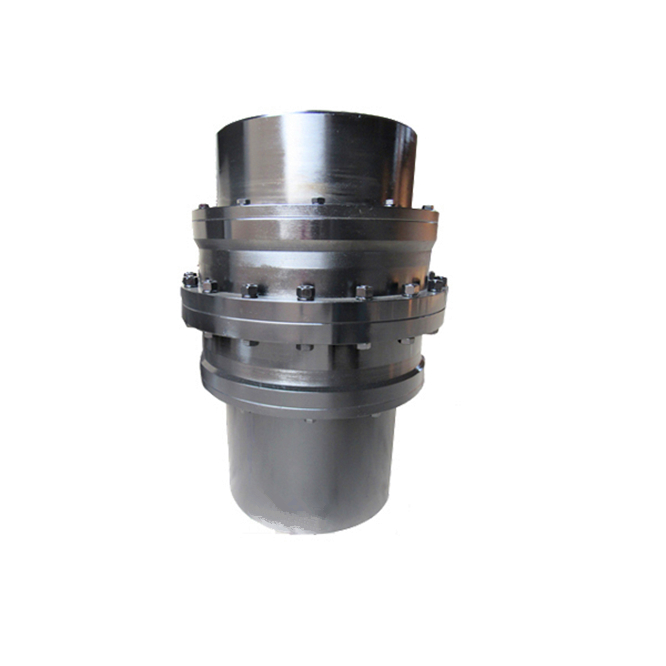

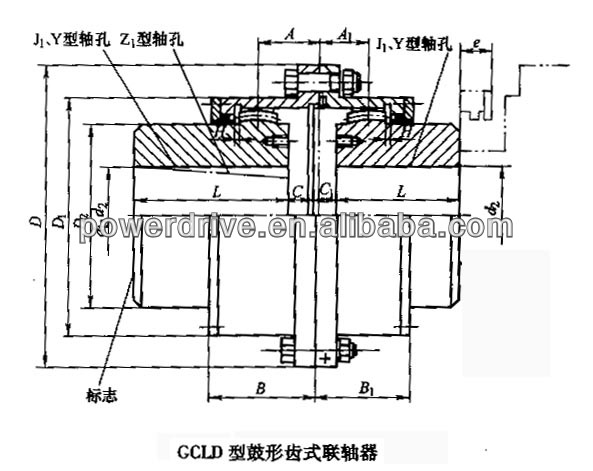

GIICLD motor shaft extension type drum gear coupling

Description
Drum coupling is made up of external gear shaft sleeve with crowned teeth, carrying ring, end cup and sealing ring. It is mainly used for connecting cable drum and reducer output shaft of hoisting equipment. Operating temperature of this shaft coupling is -25 to 80℃. Nominal torque is 16 to 560 KN.m and limited radial load is 18 to355 KN.

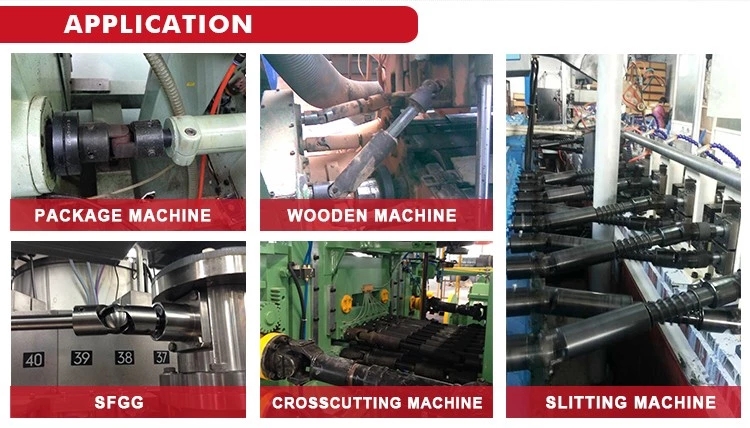

Application
Drum coupling is suitable for machines that both transmit torque and bear radial load.

Features
1. The production process of this drum coupling is stable and reliable. It is able to bear big radial direction load and also transfer big torque.
2. Shaft coupling has compact and firm structure. It adopts series design thus helps to simplify machine structure and reduce weight of equipment.
3. It is equipped with positioning wear indicator thus it is safe and reliable.
4. Drum coupling has good aligning performance. It is convenient for installation, adjustment and maintenance.
