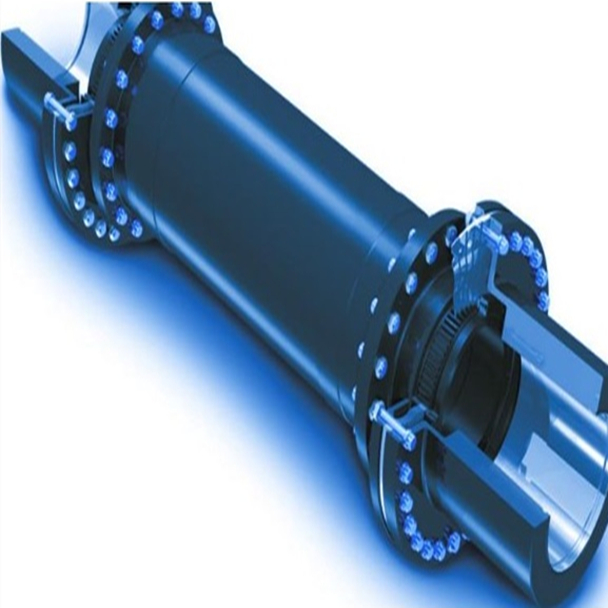

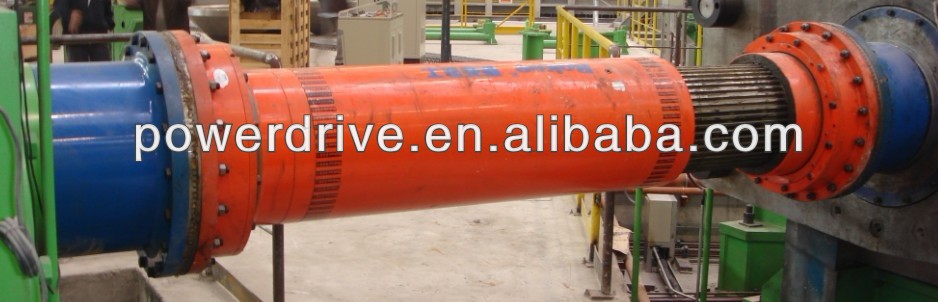

High Quality GSL-F Model Long Shaft Through Type Drum Gear Coupling for Rolling Mill Long Telescopic Drum Gear Coupling

GSL long telescopic drum gear coupling Type Nominal torque Tn Angle Dimensions mm KN*m β L1 L2 L3 L4 L5 Lmin D1 D2 D3 D4 D5 D6 S d1 l1 l1 d2×H1 (h8) (f8) GSL-F200 31.5 ≤1.5o 90 250 50 80 190 960 200 200 170 88 200 90 500 40 200 345 M20×35 GSL-F250 50

Send Inquiry

Product Description

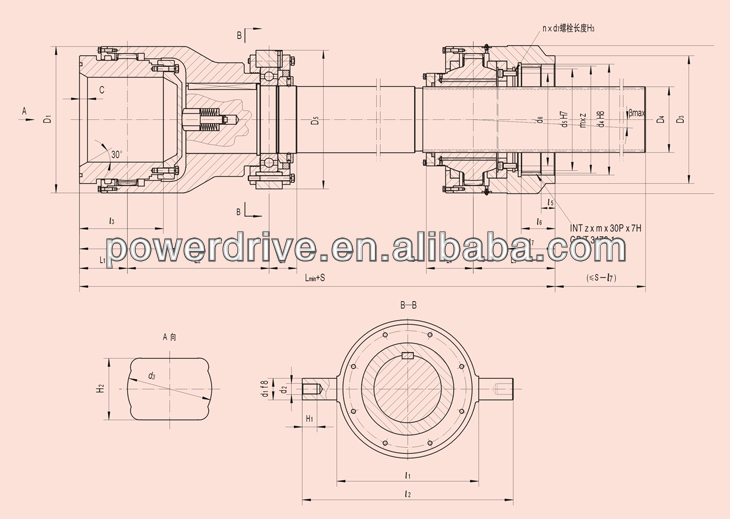

GSL long telescopic drum gear coupling

Type	Nominal torque Tn	Angle		Dimensions mm
	KN*m	β	L1	L2	L3	L4	L5	Lmin	D1	D2	D3	D4	D5	D6	S	d1	l1	l1	d2×H1
			L1	L2	L3	L4	L5	Lmin	D1	(h8)	D3	D4	D5	D6	S	(f8)	l1	l1	d2×H1
GSL-F200	31.5	≤1.5o	90	250	50	80	190	960	200	200	170	88	200	90	500	40	200	345	M20×35
GSL-F250	50		105	280	60	90	195	1050	250	258	220	105	250	107		45	270	425	M20×35
GSL-F285	80		115	315	60	105	205	1140	285	270	245	120	270	122		50	278	442	M20×40
GSL-F300	100		115	315	62	108	205	1165	300	280	250	124	280	126	600	50	292	481	M24×45
GSL-F335	140		130	360	65	135	235	1315	335	330	280	150	300	152		55	293	488	M24×45
GSL-F355	180		130	360	75	145	245	1360	355	350	310	174	330	176		55	312	505	M24×45
GSL-F390	224		140	390	80	155	255	1450	390	380	335	180	360	182		60	360	570	M24×50
GSL-F405	250		140	390	80	155	255	1450	405	400	340	194	390	196		60	390	580	M24×50
GSL-F440	315		150	430	85	165	260	1540	440	440	375	208	410	210		65	420	650	M24×50
GSL-F475	400		155	460	85	165	265	1600	475	480	415	220	450	222		70	460	684	M36×70
GSL-F510	500		160	490	90	180	310	1750	510	520	430	245	480	247	700	80	500	770	M36×70
GSL-F550	630		160	510	95	180	310	1770	550	550	470	252	510	254		85	520	800	M36×70
GSL-F580	750		165	515	98	185	320	1790	580	560	485	258	525	260		90	540	850	M42×80
GSL-F610	840		225	580	105	210	360	2060	610	610	520	280	580	282		100	600	940	M42×80
GSL-F660	1050		245	640	115	230	390	2230	660	660	540	295	630	297		100	650	990	M42×80
GSL-F710	1300		265	680	125	250	410	2380	710	710	580	315	680	317		110	700	1070	M42×80
GSL-F760	1600		290	730	135	260	430	2540	760	760	620	340	740	342		120	750	1150	M42×80

PACKING	Inner Packing: Carton, Standard export packing or According to customer's requirement Outer packing: wooden cases or According to customer's requirement
SAMPLE TIME	5--15 days
PRODUCTION TIME	7--35 days or According to customer's requirement
DELIVERY CLAUSE	FOB Shanghai, CFR, CIF, Express delivery
PAYMENT CURRENCY	USD
PAYMENT METHODS	T/T (30% deposit 70%against bl copy) MoneyGram Other payment terms we can negotiate
