General Shaft Connection Cast Iron Flexible Jaw Coupling

General Shaft Connection Cast Iron Flexible Jaw Coupling

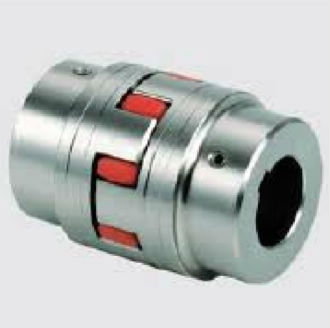

Jaw Couplings are designed as three piece combination, including two hubs and one elastomer made of polyurethane. The curved jaw fits onto the spider, which minimizes shock to the motor and other sensitive equipment.  Jaw Coupling grooving type is backlash free, using screws after slotting to eliminate the clearance. This grooving type coupling is suitable for power transmission on main shaft, elevating platform and machine tool.

Features:

Ø  Widely used in various mechanical and hydraulic fields

Ø  High precision in transmission and high rotating speed.

Ø  Suitable for wide range of environment, with the highest temperature 280 degree

Ø  Good elasticity, high strength, corrosion resistant, wearable

Ø  No need to lubricate, quiet operation

Ø  Quick and easy mounting and disassembly

Availability:

Ø  Material: Aluminum, Carbon Steel, Cast Iron

Ø  Finish: Natural, Anodizing, Black Oxidizing, Phosphating

Ø  Size Range: 19 to 75

Ø  Finished bore: according to ISO fit H7

Ø  Keyway width: according to DIN 6885/1

Ø  The Tolerance of keyway is Js9
