YL/YCL Series Two-Capacitor Single-Phase Asynchronous Motor

YL/YCL Series Two-Capacitor Single-Phase Asynchronous Motor YL/YCL Series two-value capacitor single-phase asynchronous motors are run by capacitor. Main features. small size high capacity strong startingtorque, high power factor and efficiency. safe

Send Inquiry

Product Description

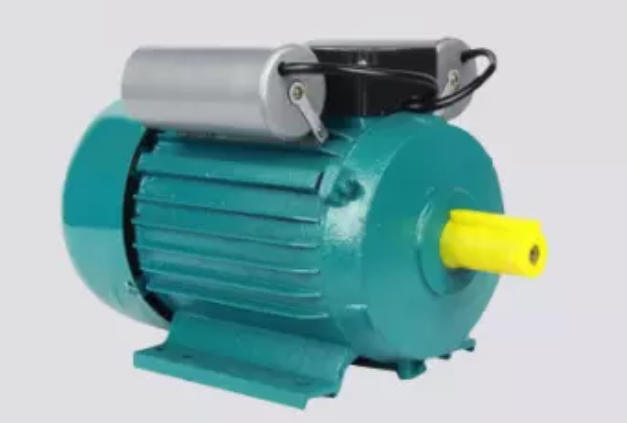

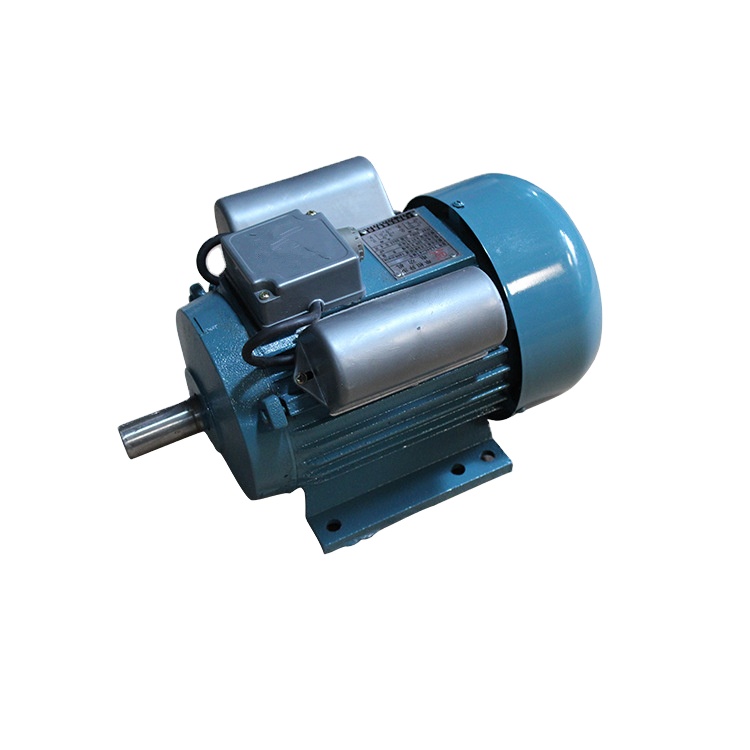

YL/YCL Series Two-Capacitor Single-Phase Asynchronous Motor

YL/YCL Series two-value capacitor single-phase asynchronous motors are run by capacitor. Main features. small size high capacity strong starting torque, high power factor and efficiency. safety and reliability in running, simple construction and easy main tenance, it possess frame No. and capacity as three-phase asynchronous motors. This series motors is totally enclosed fan-cooling structure, YL/YCL series motors is suitable for

machines and equipments such as full load start.

YL/YCL Series Two-Capacitor Single-Phase Asynchronous Motor

Operating Conditions:

Ambient temperature: -15℃< 0<40℃

Altitude: not exceeding 1000m

Rated voltage: 220V/110V

Rated fre quency: 50Hz/60Hz

Protection class: IP44/IP54

Insulation class: Class B/F

Duty: S1 (continuous)

Cooling method: IC411

YY series single phase permant split capacitor asynchronous motor

YY 5012

YY5022

YY5014

YY5024

YY5612

YY5622

YY5614

YY5624

YY6312

YY6322

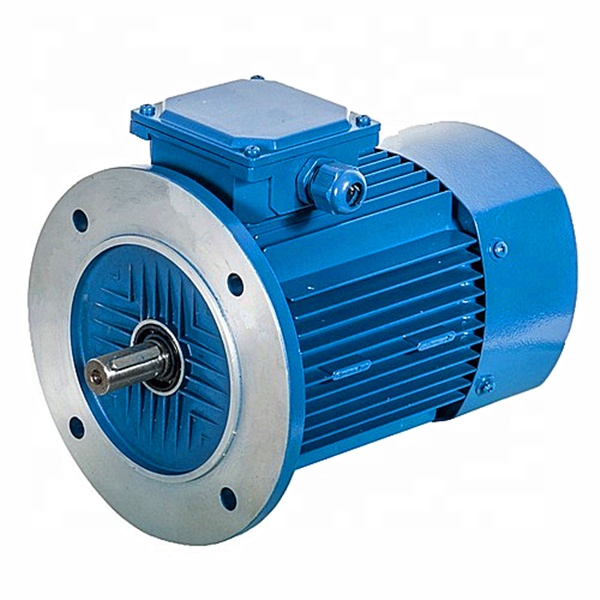

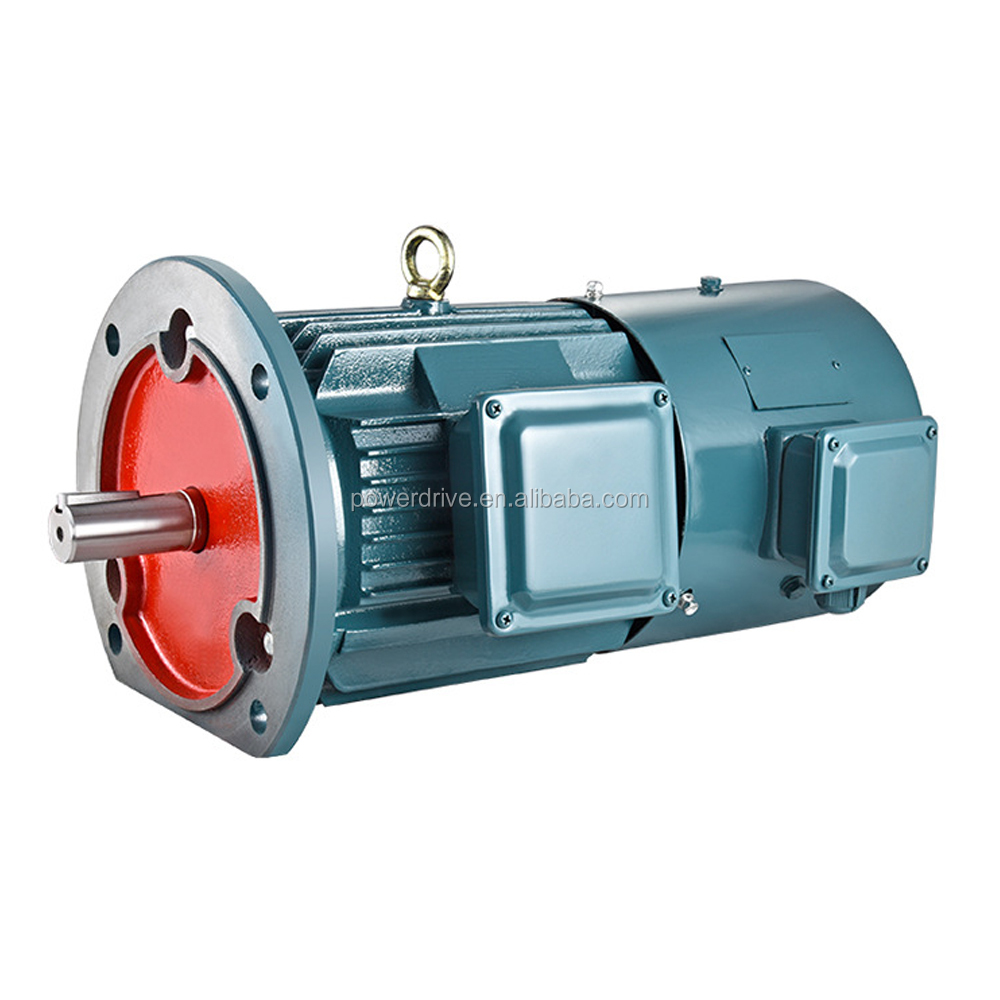

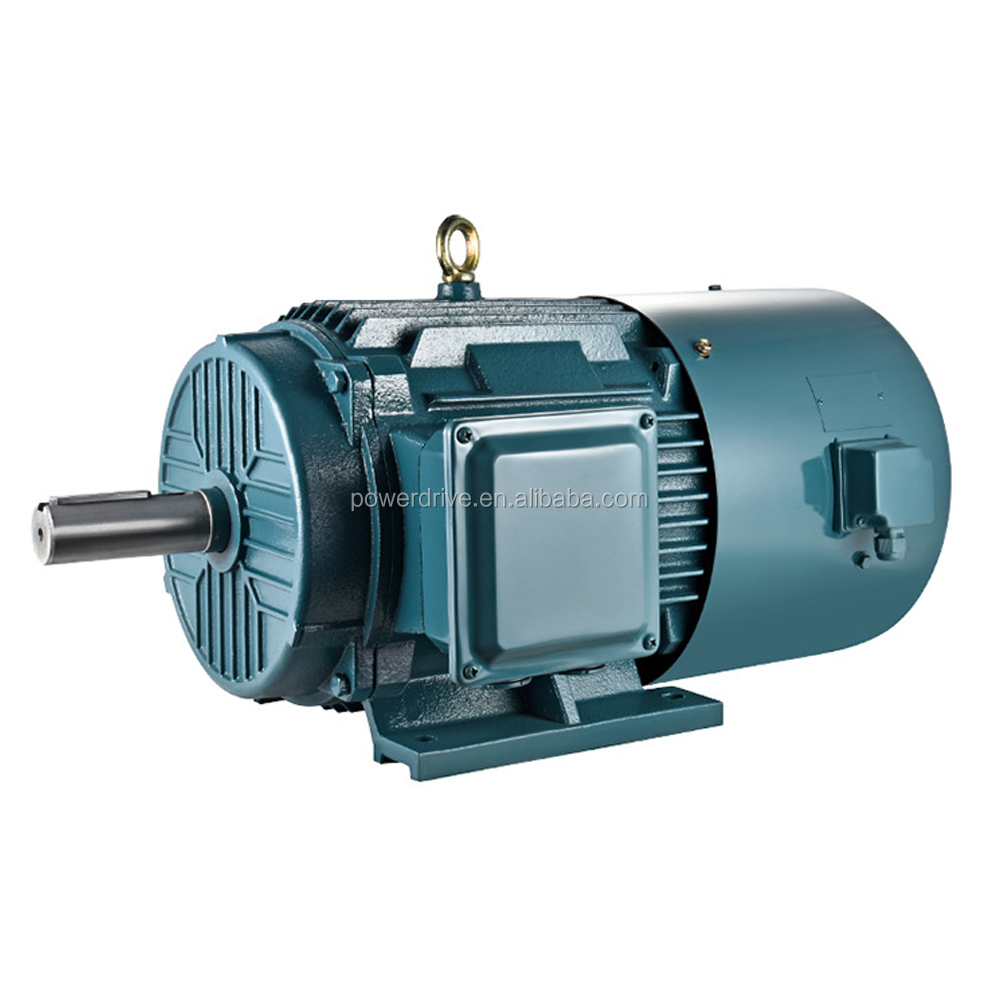

three-phase asynchronous motor with aluminium shell meets the relevant regulations of IEC of National Electrotechnical Association. It adopts high-quality raw materials for the latest overall design. It has good performance, low noise and low vibration.

Product Name	three-phase asynchronous motor
Material	Iron Housing
Color	Blue
Power	22KW
Feature	High efficiency
Application	Centrifugal fan, Pump etc
Noise	Low Noise
Packing	Wooden Packing

YL/YCL Series Two-Capacitor Single-Phase Asynchronous Motor
