Product Description

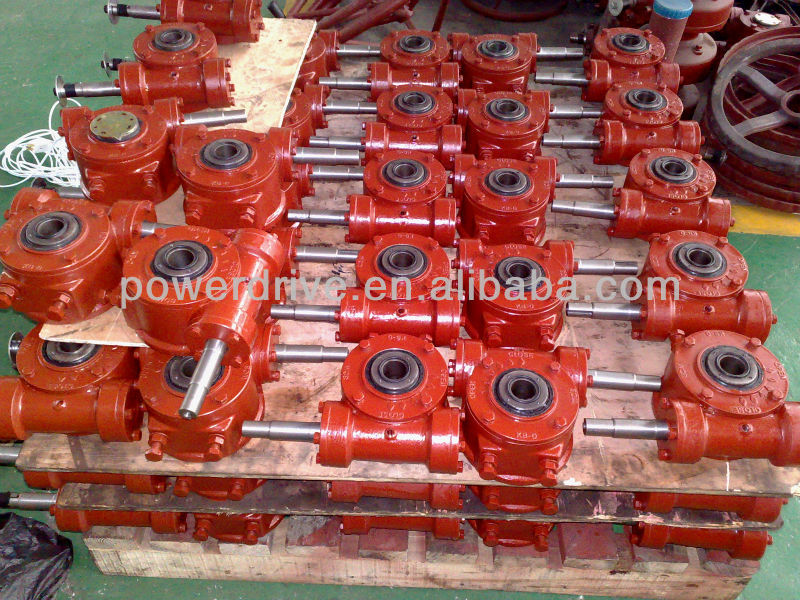

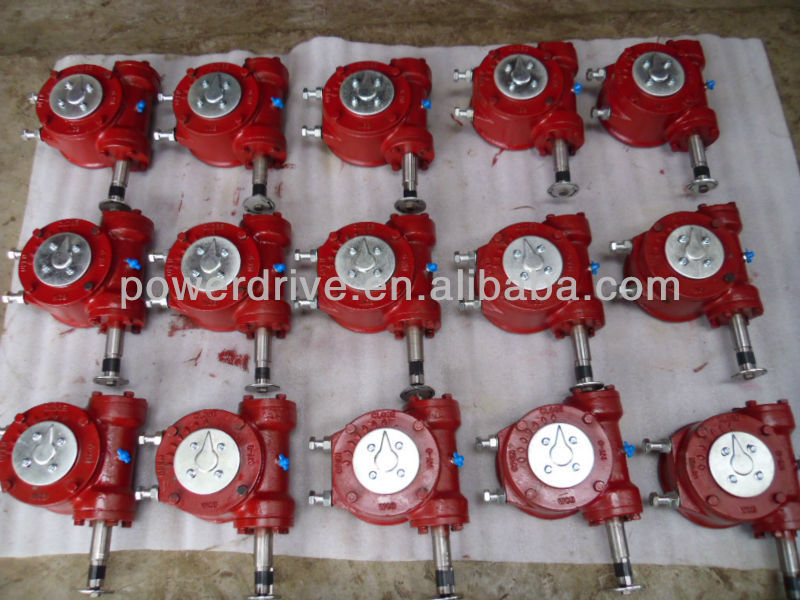

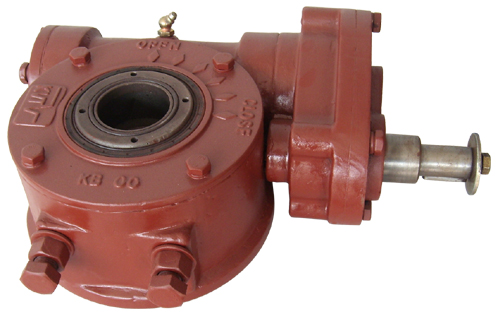

worm gear operator/valve actuator/gear box

1. Worm gearbox adapts to I.S.O standard so that ia can change parts easily..

2. Housing of worm gear box made by casting,moreover.it bears up against thrust due to superior quality and sophisticated design.
3. Regarding gear,It makes the gear box relax from noise under optimum heat treatment & precise grinding.
4. Stem nut(bush) is not uni-body but separated so that isolable type enable bush to be convenient,efficient and so on.
5. Protection Grade Can be IP65.

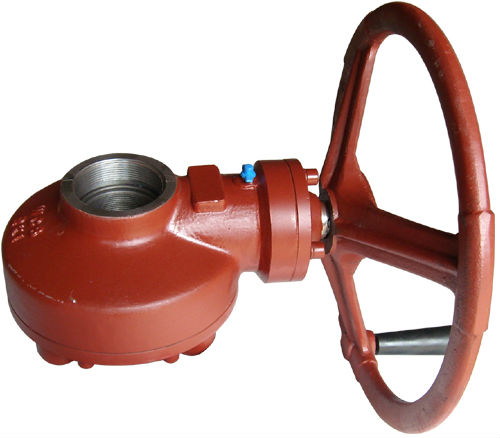

6. Hand wheel is optional index.

SIZE MODEL	Gear Ratio	Max Stem Diameter	Mounting Standard	Max Output Torque		M.A.	Weight
SIZE MODEL	Gear Ratio	Max Stem Diameter	Mounting Standard	N.m	Kgf.m	±10%	Kg
SBWG-00	33:1	28(8X7)	F-10	500	51	10	6
SBWG-0	39:1	35(10X8)	F-12	980	100	11.7	10
SBWG-01	46:1	45(14X9)	F-14	1400	143	13.8	13
SBWG-02	49:1	55(18X11)	F-16	2500	255	17.1	22

SBWG-03	60:1	65(20X12)	(F-20)	4000	478	19	31
SBWG-04	68:1	80(22X14)	F-25	6050	617	20	50
SBWG-05	59:1	105(28X16)	F-30	7000	714	17.5	80
SBWG-06	67:1	115(32X18)	F-35	8500	867	20	90

Worm Gear Box Operator Valve Actuator Gear Operator

SIZE MODEL	Gear Ratio	Max Stem Diameter(mm)	Mounting Standard	Max Output Torque		M.A.	Weight
SIZE MODEL	Gear Ratio	Max Stem Diameter(mm)	Mounting Standard	N.m	Kgf.m	±10%	Kg
SBWG-0-1S	72:1	35(12X8)	F-12	1000	102	19.4	13
SBWG-01-1S	85:1	45(14X9)	F-14	1850	188	22.1	16
SBWG-02-1S	77:1	55(18X11)	F-16	3000	306	21.5	33

SBWG-03-1S	94:1	65(20X12)	(F-20)	4680	408	25.3	41
SBWG-04-1S	107:1	80(22X14)	F-25	6500	663	26.7	60
SBWG-05-1S	106:1	105(28X16)	F-30	10000	1020	26.5	100
SBWG-06-1S	118:1	115(32X18)	F-35	15000	1531	29.5	120

Worm Gear Box Operator Valve Actuator Gear Operator

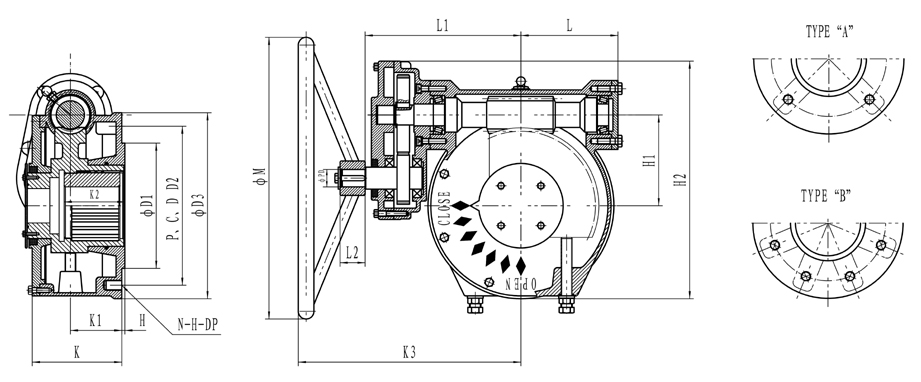

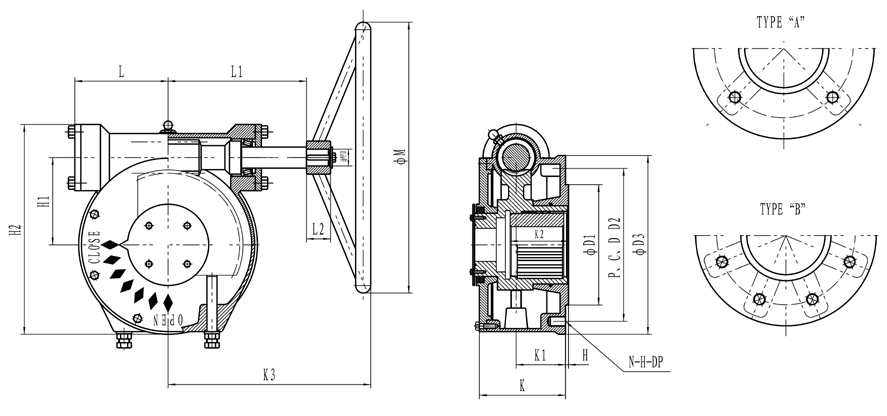

DIN MODEL	BASE PART							EXTERNAL PART								INPUT SHAFT PART			HAND WHEEL
	TYPE	FLANGE SIZE	ΦD1	P.C.D		ΦD3	H	H1	H2	K	K1	K2	K3	L	L1	INPUT SHAFT PART			HAND WHEEL
	TYPE	FLANGE SIZE	ΦD1	D2	N-H-DP	ΦD3	H	H1	H2	K	K1	K2	K3	L	L1	L2	ΦPD	KEY	ΦM
SBWG-0-1S	A	F-12	85	125	4-M12-18	150	3	66	196	89	47	47	230	83	161	30	21	6	300
SBWG-01-1S		F-14	100	140	4-M16-24	175	4	75	221	89	45	58	285	92	170	35	21	6	350
SBWG-02-1S		F-16	130	165	4-M20-30	210	5	92	283	108	63	62	330	113	198	35	21	6	450

SBWG-03-1S	B	(F-20)	140	205	8-M16-24	250	5	111	322	110	57	60	360	125	211	40	28	8	500
SBWG-04-1S		F-25	200	254	8-M16-24	300		145	388	140	80	100	455	155	260	40	28	8	600
SBWG-05-1S		F-30	230	298	8-M20-30	350		160	404	140	70	102	515	197	294	50	28	8	650
SBWG-06-1S		F-35	260	356	8-M30-45	415		200	510	179	90	112	534	230	338	50	28	8	700
