Cast Iron Wafer-type butterfly Valves Worm Operators Bevel Gear Operators

Worm Bevel Gear Operators Good quality with reasonable price, timely delivery and great customer service. pls feel free to contact with us if you have any problem Worm gear tourque operator Manual hard/soft seated wafer butterfly valve with spindle O

Send Inquiry

Product Description

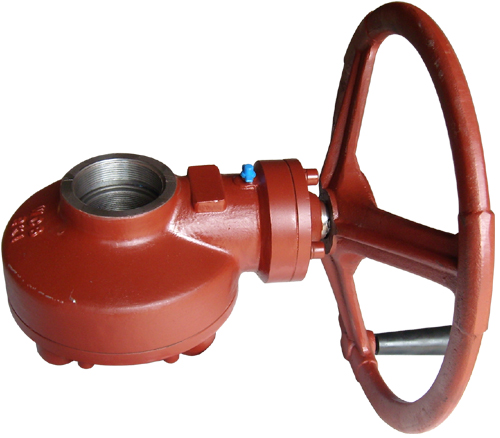

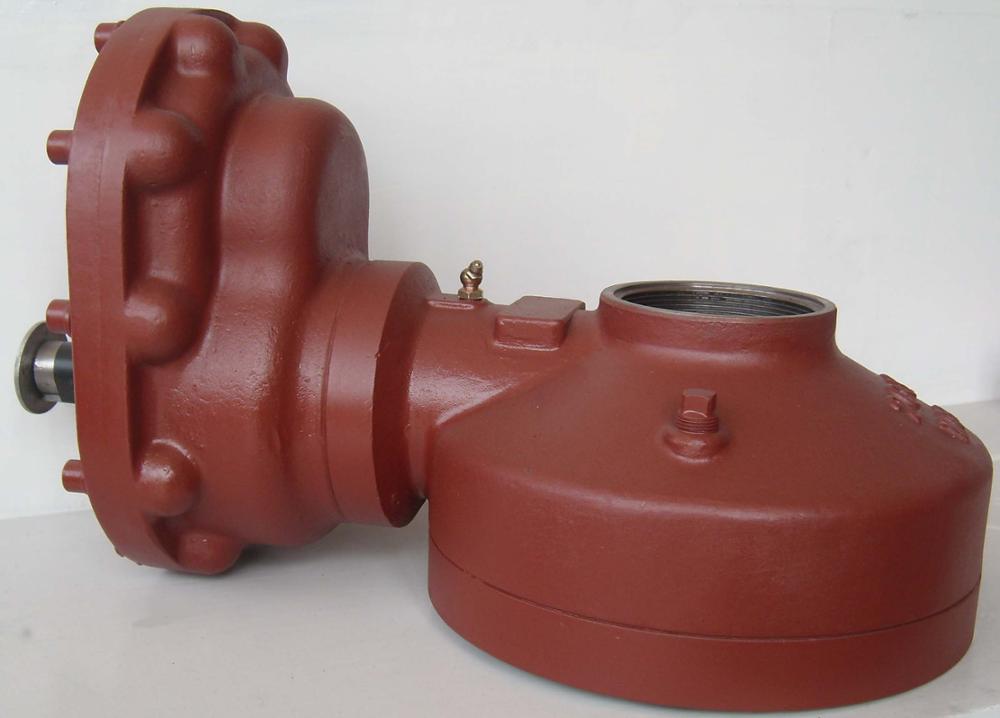

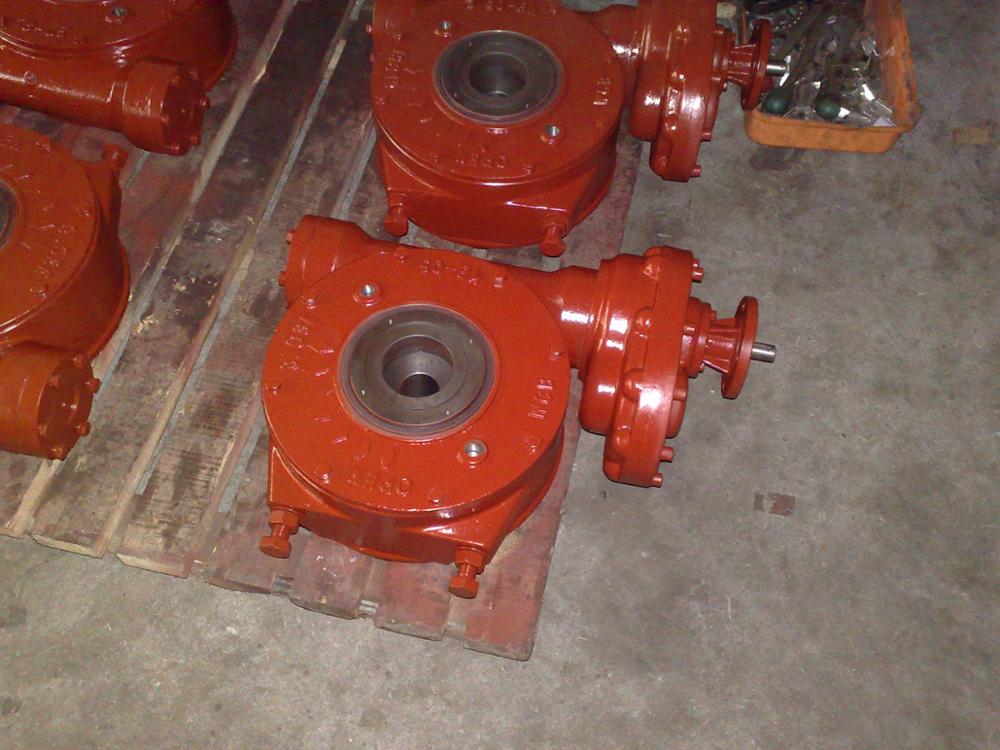

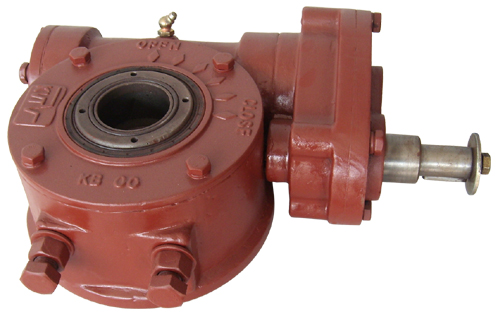

Worm & Bevel Gear Operators

Good quality with reasonable price, timely delivery and great customer service.

pls feel free to contact with us if you have any problem

Worm gear tourque operator Manual hard/soft seated wafer butterfly valve with spindle

Our Product:

Worm gear tourque operator Manual hard/soft seated wafer butterfly valve with spindle

Feature:

Size:Various

Medium:Water,steam,oil,strong base and so on

Suppplier: Factory Direct

Application: used in large diameter (LV) air,gas pipes road and water routes

Advantage:

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you

Our Capacity:

1)Date of foundation:more than 15years

2)Total Revenue:Above $100 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Europeaa and other Overseas markets

5)Main Products: Gate Valves, Ball Valves, Check Valves, Butterfly Valves, Globe Valves, and Y Straine.

Materials List
Item	Part Name	Materials
1	Body	Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M; Carbon Steel: ASTM A216 WCB
2	Stem	Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420, ASTM A582 Type 416;
3	Taper Pin	Stainless Steel: ASTM A276 Type 304, Type 316, EN 1.4501;
4	Seat	NBR, EPDM, Neoprene, PTFE, Viton;
5	Disc	Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M, EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400;
6	O-Ring	NBR, EPDM, Neoprene, Viton;
7	Bushing	PTFE, Nylon, Lubricated Bronze;
8	Key	Carbon Steel
This buyer can select material as per materials list. The customer may mark the material and temperature used, Our company may select instead. When the medium and temperature is special, please consult with our company.

Cast Iron Wafer-type butterfly Valves Worm Operators Bevel Gear Operators
