Rotex Couplings

 Rotex Couplings

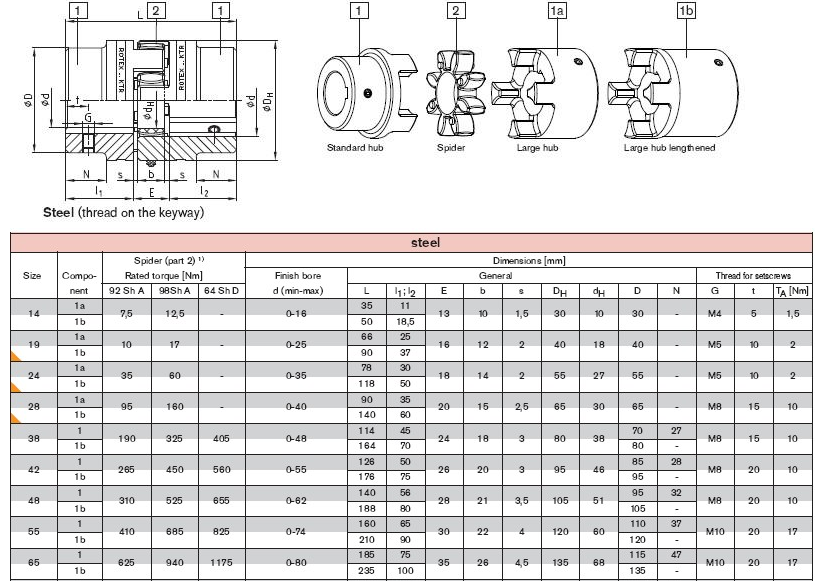

  A. Rotex Coupling(steeliness)

  1. Hubs from steel, specifically suitable for drive elements subject tohigh loads, e. g. steel mills, elevator drives, spline hubs, etc.)

  2. Torsionally flexible, maintenance-free, vibration-damping

  3. Axial plug-in, fail-safe

  4. Allover machining - good dynamic properties

  5. Compact design/small flywheel effect

  6. Finish bore according to ISO fit H7,feather keyway according to DIN 6885 ( JS9)

  7. Approved according to EC Standard 94/9/EC

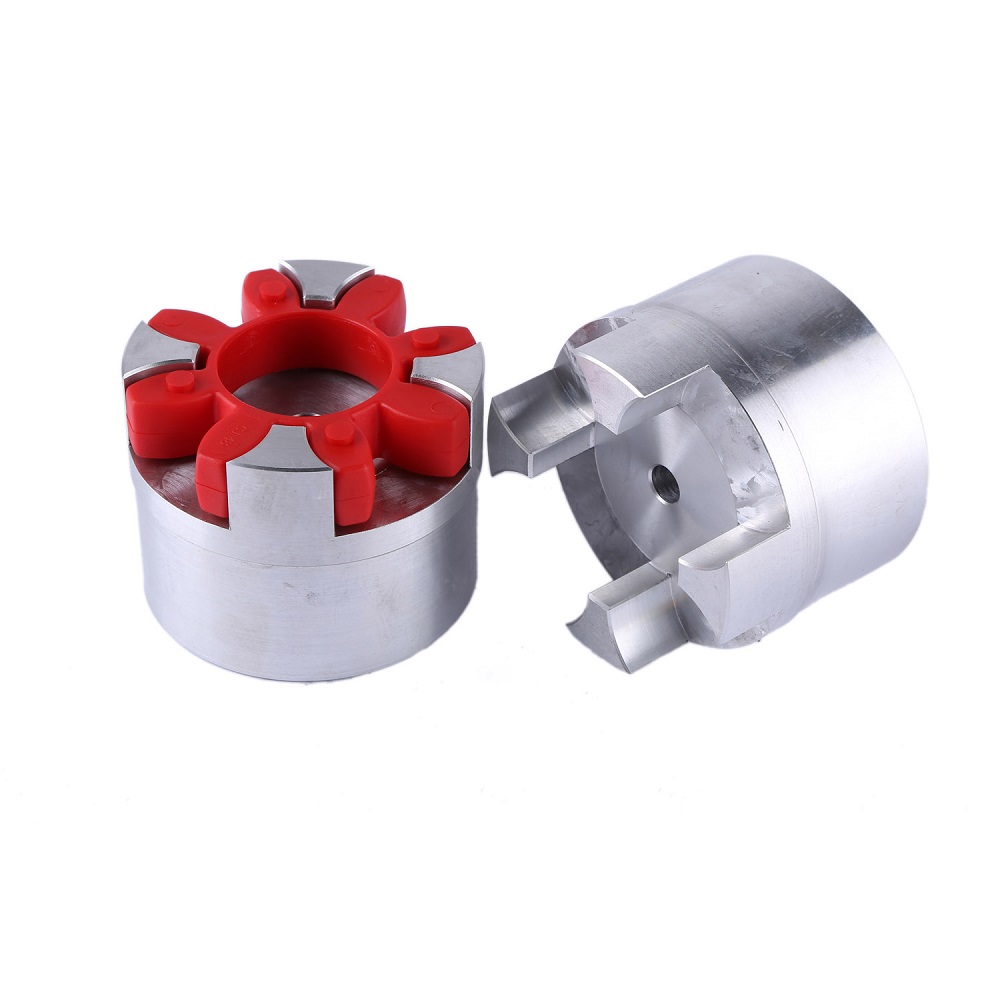

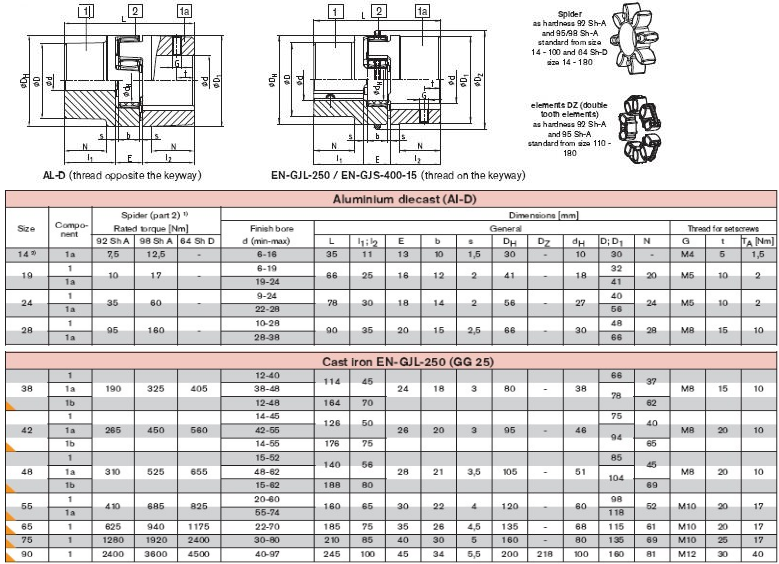

B. Rotex Coupling(cast material)

  1. Torsionally flexible, maintenance-free

  2. Damping vibrations

  3. Axial plug-in, fail-safe

  4. Allover machining – good dynamic properties

  5. Compact design/small flywheel effect

  6. Finish bore according to ISO fit H7,feather keyway according to DIN 6885 ( JS9)

  7. Approved according to EC Standard 94/9/EC(without aluminium AL-D

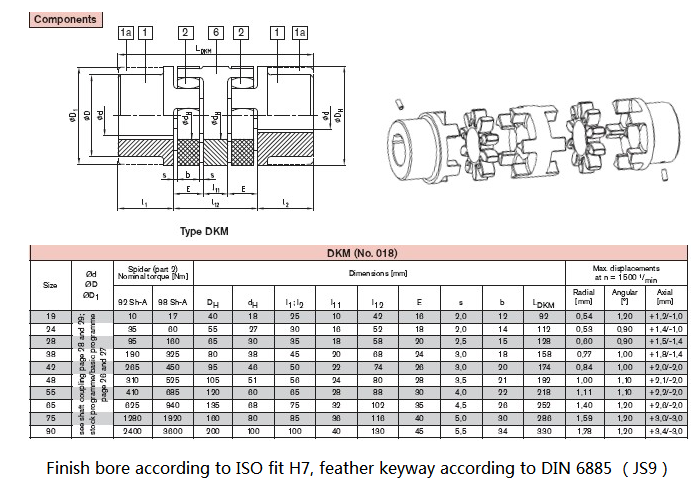

  C. Double cardanic type DKM

  1. For high shaft displacements

  2. 3-part double-cardanic

  3. Reduced vibration and noise

  4. The restoring forces resulting from displacements are very low

  5. Increase of the total lifetime of all adjacent components (bearings,seals etc.)

  6. Approved according to EC Standard 94/9/EC(Explosion Certificate ATEX 95)

  7. Double-cardanic design without the need for bearing support or external guarding

  8. Finish bore according to ISO fit H7, feather keyway according to DIN 6885 (JS9)
