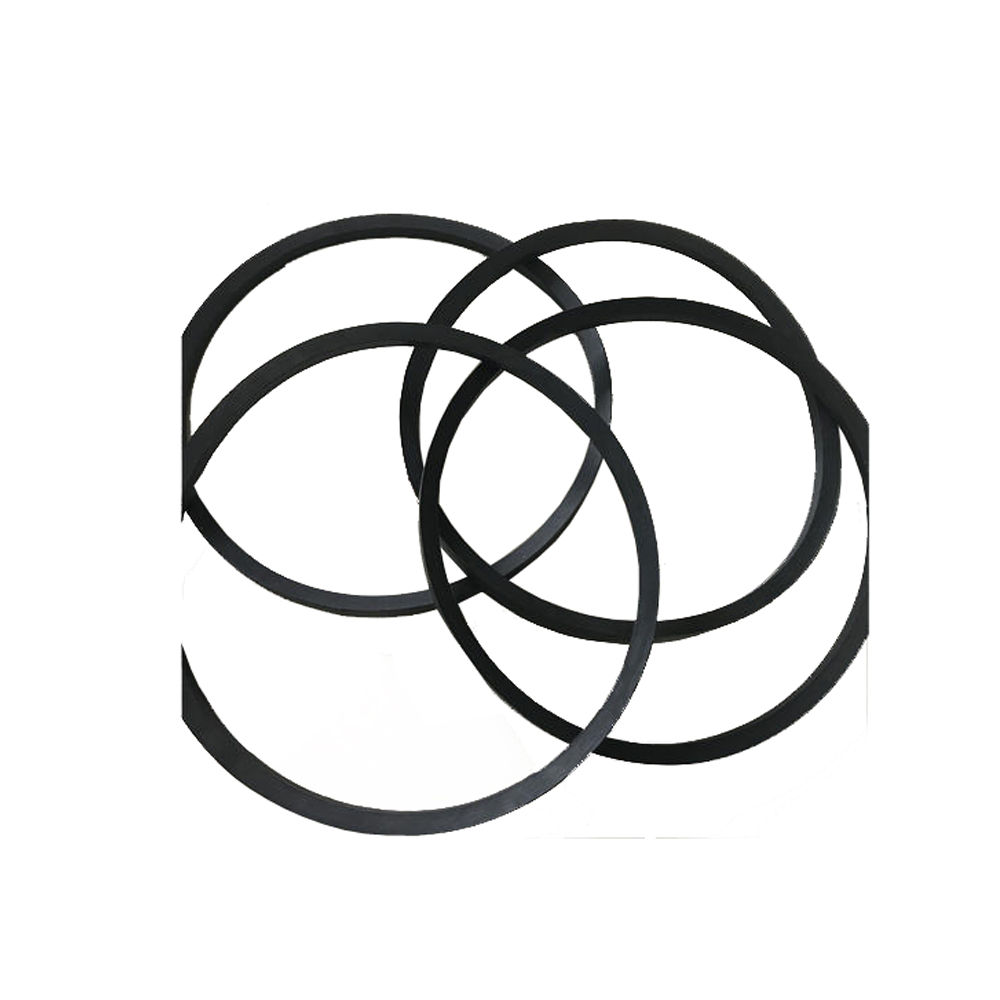

Classical V belt:
Applications:
Suitable for all industrial applications.
Features:
Heat resistance.
Oil resistance.
Less stretch.
Type and Dimensions:
| Type | Top width | Pitch width | Height | Length range | Angle | |
| mm | mm | mm | inch | mm | ||
| Y | 6 | 5.3 | 4 | 15-32 | 360-800 | 40° |
| K | 8 | 7 | 6 | 15-32 | 360-800 | 40° |
| M(Z) | 10 | 8.5 | 6 | 15-80 | 360-2007 | 40° |
| A | 13 | 11 | 8 | 14-236 | 356-6000 | 40° |
| B | 17 | 14 | 11 | 21-512 | 533-13000 | 40° |
| C | 22 | 19 | 14 | 31.5-590 | 800-15000 | 40° |
| D | 32 | 27 | 19 | 71-590 | 1800-15000 | 40° |
| E | 38 | 32 | 23 | 110-590 | 2794-15000 | 40° |

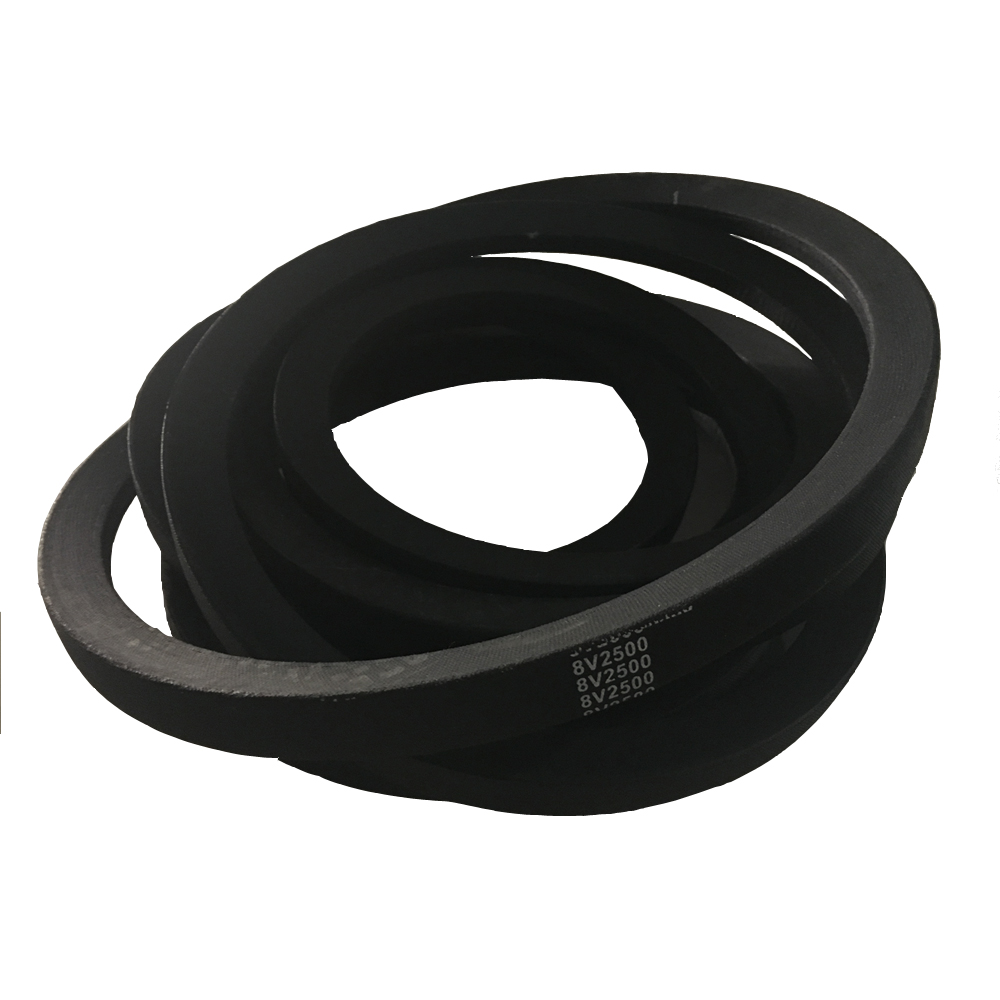

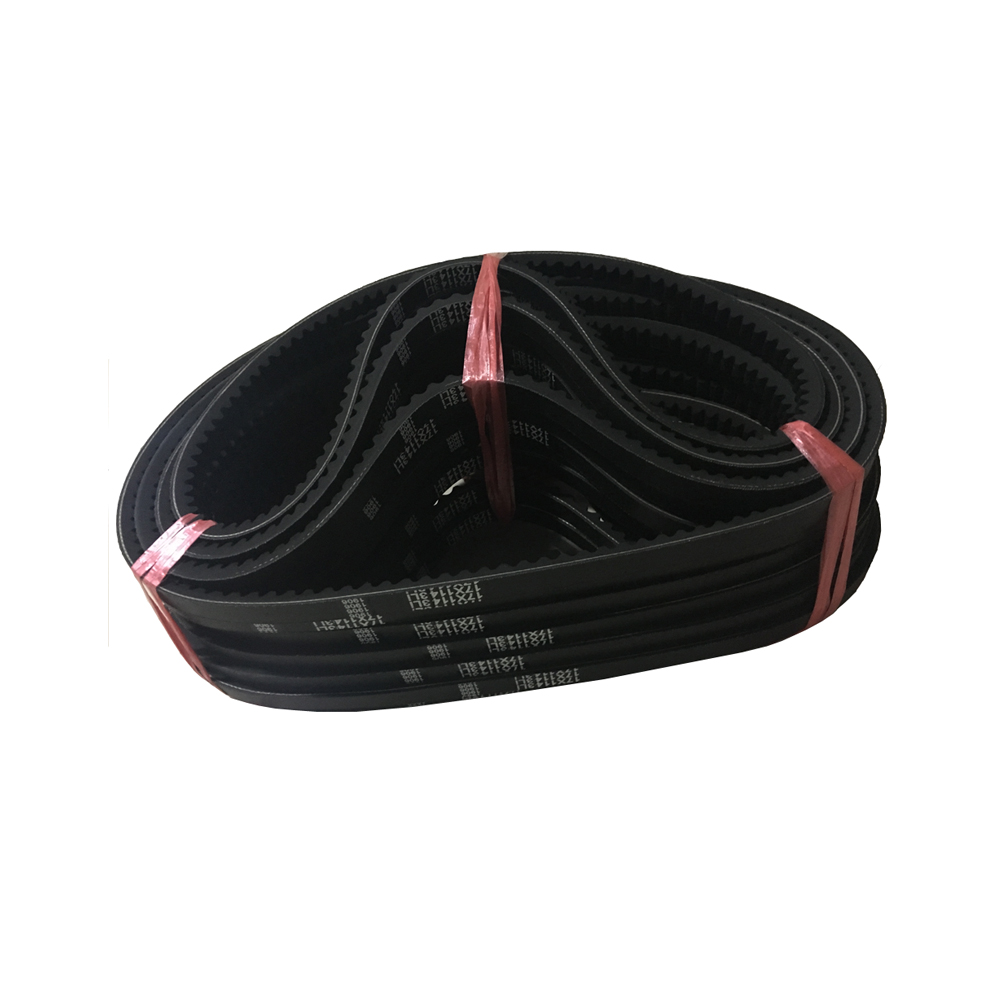

Narrow V-Belts(SPZ,SPA,SPB, SPC,3V,5V,8V), Rawedge Narrow V-Belts(3VR, 5VR), Narrow Cogged V-Belts(XPZ,XPA,XPB,XPC,3VX,5VX)
Applications:
Suitable for all industrial applications. Particularly where space, weight and horsepower capacity are critical.
Features:
High horsepower rating requires about 1/3 of the space needed by Classical V-Belts.
Long service life
Heat and oil resistance.
Less stretch.
Type and Dimensions:
| Type | Top width | Pitch width | Height | Angle |
| mm | mm | mm | ||
| SPZ/XPZ | 10 | 8 | 8 | 40° |
| SPA/XPA | 13 | 11 | 10 | 40° |
| SPB/XPB | 17 | 14 | 14 | 40° |
| SPC/XPC | 22 | 19 | 18 | 40° |
| 3V/3VX/3VR | 5 | 8 | 40° | |
| 5V/5VX/5VR | 16.5 | 13.5 | 40° | |
| 8V | 25.5 | 23 | 40° |
Rang of Sizes of Narrow V-Belts
| Type | Length range | Type | Length range | ||
| inch | mm | inch | mm | ||
| SPZ | 14-150 | 360-800 | 3V | 14-150 | 350-3810 |
| SPA | 25-394 | 360-800 | 5V | 40-394 | 1016-10000 |
| SPB | 40-394 | 360-2007 | 8V | 100-560 | 2540-14224 |
| SPC | 100-560 | 356-6000 | |||
Rang of Sizes of Rawedge Narrow and Narrow Cogged V-Belts
| Type | Length range | Type | Length range | ||
| inch | mm | inch | mm | ||
| XPZ | 25-100 | 635-2540 | 3VX/3VR | 25-100 | 625-2540 |
| XPA | 25-100 | 625-2540 | 5VX/5VR | 50-100 | 1270-2540 |
| XPB | 50-100 | 1270-2540 | |||
Lead TIme:
| Quantity(Pieces) | 1 - 100 | 101 - 1000 | >1000 |
| Est. Time(days) | 10 | 15 | To be negotiated |
