Industrial Synchronous Rubber Timing Belt
rubber timing belt,timing belt,industrial belt:we make rubber timing belt,timing belt,industrial belt with good quality
Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.
They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material:
Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Type:
There are two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt and double-sided tooth industrial rubber synchronous belt.
There are two kinds of single-sided tooth industrial rubber synchronous belt: T tooth industrial rubber synchronous belt and Arc tooth industrial rubber synchronous belt.
There are two kinds of double sided tooth timing belt DA and DB.
The Dimension and Profile:
T tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT20 | 20 | 5.00 | 8.00 | 50 |
Arc tooth industrial rubber synchronous belt
H ARC TOOTH S ARC TOOTH R ARC TOOTH
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
|
HTD |
2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
|
STPD/STS |
S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
|
RPP/HPPD |
2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |

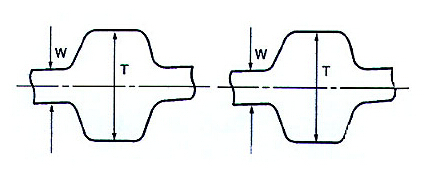

DA-duplex synchronous belt

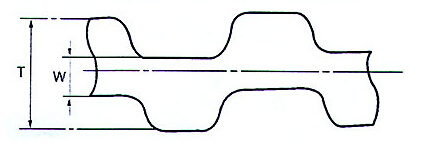

DB-duplex synchronous belt
|
Type |
W |
T |
Size |
Pitch Length(mm) |
Teeth No. |
|
D-XL |
0.508 |
3.05 |
196XL-1970XL |
497.84-5003.8 |
98-985 |
|
D-L |
0.762 |
4.58 |
203L-1988L |
514.35-5048.25 |
54-530 |
|
D-H |
1.372 |
5.95 |
670H-2500H |
1701.8-6350 |
124-500 |
|
D-XH |
2.794 |
15.49 |
700XH-2275XH |
1778.00-5778.5 |
80-260 |
|
D-XXH |
3.048 |
22.11 |
700XXH-2625XXH |
1778.00-6667.5 |
56-210 |
|
D-T2.5 |
0.60 |
2.00 |
T2.5x500-T2.5x5000 |
500.00-5000.00 |
200-2000 |
|
D-T5 |
1.00 |
3.40 |
T5x500-T5x7000 |
500.00-7000.00 |
100-1400 |
|
D-T10 |
2.00 |
7.00 |
T10x500-T10x7050 |
500.00-7050.00 |
50-705 |
|
D-T20 |
3.00 |
13.00 |
T20x1700-T20x7000 |
1700.00-7000.00 |
85-350 |
|
D-AT10 |
2.00 |
7.00 |
AT10x500-AT10x7000 |
500.00-7000.00 |
50-700 |
|
DA-HTD-3M |
0.760 |
3.10 |
501-3M-5010-3M |
501.00-5010.00 |
167-1670 |
|
DA-HTD-5M
|
1.143 |
5.26 |
500-5M-7000-5M |
500.00-7000.00 |
50-1400 |
|
DA-HTD-8M
|
1.372 |
8.17 |
512-8M-6880-8M |
512-6880 |
64-860 |
|
DA-HTD-14M
|
2.80 |
14.84 |
1750-14M-6860-14M |
1750-6860 |
125-490 |
|
DA-STS-8M |
1.372 |
7.48 |
S8M-512-S8M-6880 |
512-6880 |
64-860 |
The representation of above types
|
Application |
|
Transmission Belt and Roller cover rubber |
|
Features |
Hardness,shore A |
Range 40~90 |
|
Rubber color |
Black,White,Green,Blue,Yellow,Pink,Red and Any Color |
|
|
Temperature |
-70 ~ +200 |
|
|
Main polymerr |
NR,BR,SBR,NBR,CR,EPDM,HNBR,CSM,IIR,NBR+PVC,TPR |
|
|
Character |
Heat reisitance,Cold resistance,High abrasion resistance |
|
|
Oil resistance,Anti-Swelling,Water resistance,Weathering resistance |
||
|
Ozone resistance,Antistatic,Meganetic,Anti flexing cracking |
