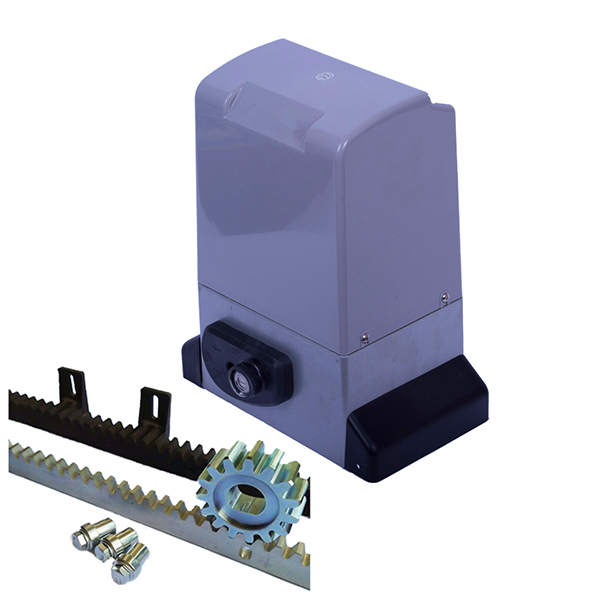

Raydafon Automatic Sliding Gate Opener Motor Competitive Sliding Door Motor

Heavy duty AC motor 220V gate opener automatic door operator / sliding gate motor 1) Integrated mechanical and eletrical,all functions on one controller2) Radio controller or linesto control open,close and stop functions3) Magenetic limit switch,the

Heavy duty AC motor 220V gate opener automatic door operator / sliding gate motor



1) Integrated mechanical and eletrical,all functions on one controller
2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key-stroke.
9) Movement indication-the indicator lights up when the door is moving.
10) Optional line control or remote control

Raydafon Automatic Sliding Gate Opener Motor Competitive Sliding Door Motor

Model KMP201 KMP202
Voltage 220V±10% 110V±10% 220V±10% 110V±10%
Frequency 50HZ 60HZ 50HZ 60HZ
Current 2A 4.5A 2.7A 5.8A
Motor voltage AC220V / 110V
Capacitor 18μf 60μf 20μf 60μf+14μf
Output Power 250W 350W
Absorbed power 440W 495W 594W 638W
Torque 22.5nm 35nm
Mode number M=4
Motor speed 1350rpm 1620rpm 1350rpm 1620rpm
Reduction ratio 23:1
Gear speed 58.5rpm 70.2rpm 58.5rpm 70.2rpm
Travel speed 11m/min 13.2m/min 11m/min 13.2m/min
Working temperature -40°C∼+55°C
Overload protection temperature 130°C
Motor making technique Die casting aluminum alloy
Manual Release Yes
Product weight(approx) 9.13kg 9.18kg 10.19kg 10.25kg
Max.weight of gate 1000kg 1800kg
