Made in China Superior Quality HCH1 Steel Hubs for Split Taper Bushings

Product Description HCH1 H open cone sleeve steel hub The HCH1 steel hub used for installing split conical sleeves is a type of hub used for installing split conical sleeves. They are made of steel and have a 1.621 inch hole suitable for H-shaped ope

Send Inquiry

Product Description

Product Description

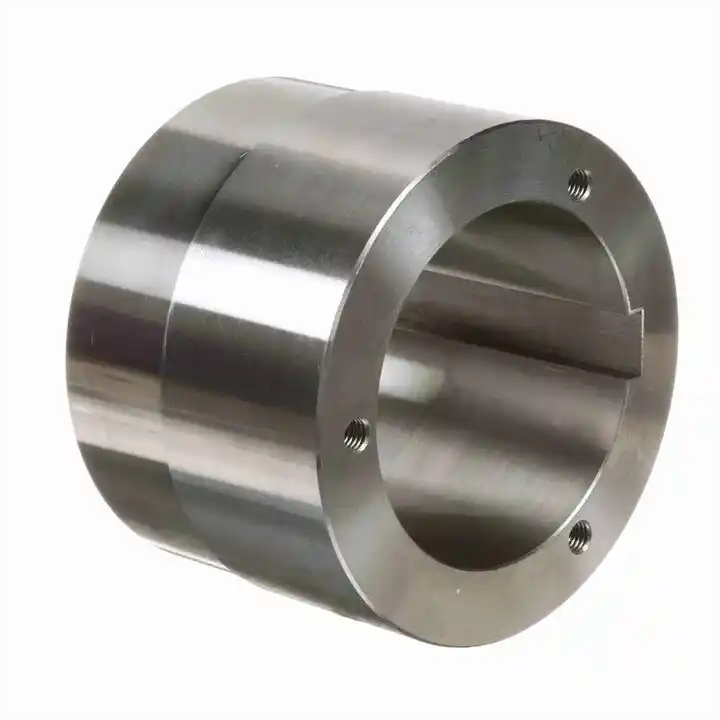

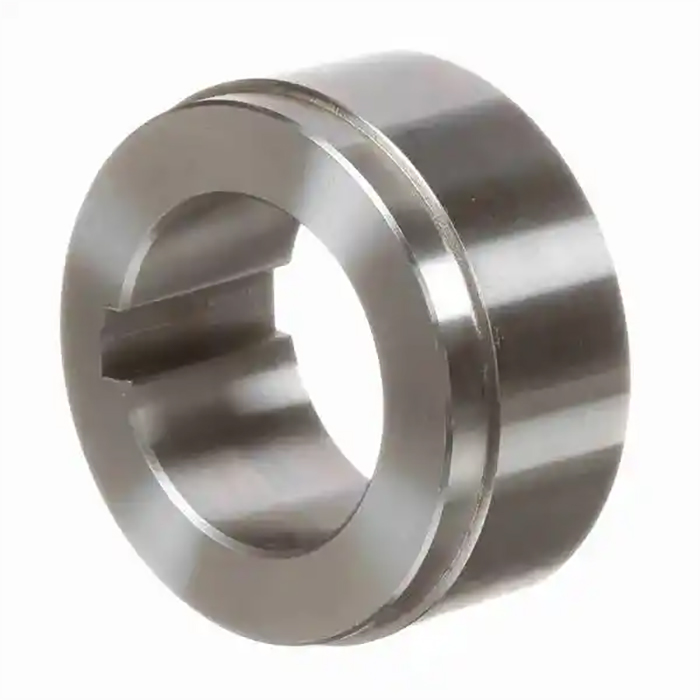

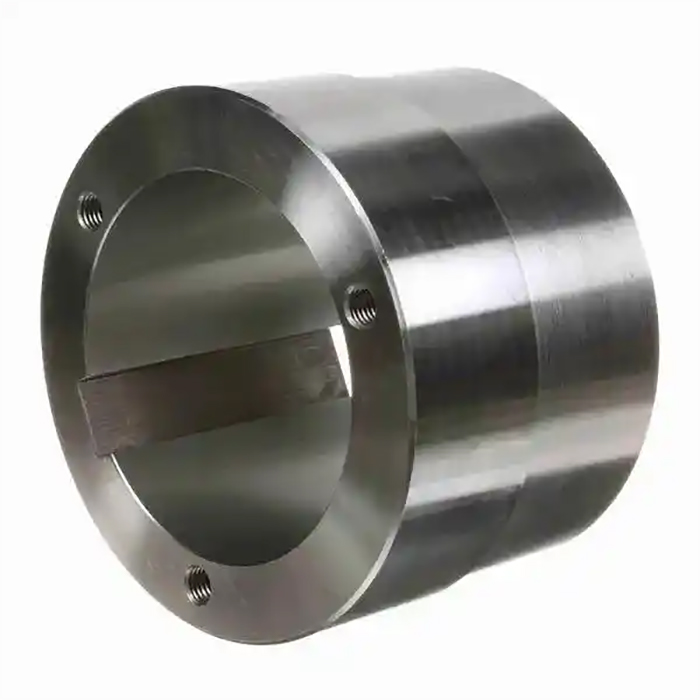

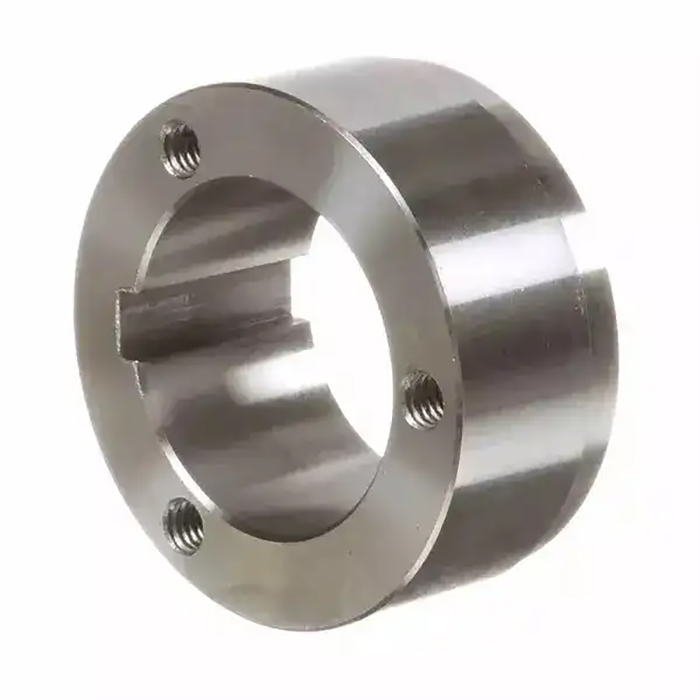

HCH1 H open cone sleeve steel hub

The HCH1 steel hub used for installing split conical sleeves is a type of hub used for installing split conical sleeves. They are made of steel and have a 1.621 inch hole suitable for H-shaped open tapered bushings. The HCH1 steel hub adopts traditional installation methods and has four 1/4-20 threaded holes. They come in various other sizes and materials, including sintered steel, malleable iron, and ductile iron. The open tapered bushing is the hub of the pulley, sprocket, gear, and pulley. They are usually made of bronze or steel and have a tapered hole for installing a matching tapered shaft. The split design of the bushing makes it easy to install and disassemble, and the tapered hole provides a secure fit that helps prevent shaft rotation. The HCH1 steel wheel hub used for split tapered bushings is a multifunctional and durable wheel hub suitable for various applications. For applications that require secure and reliable installation, they are a good choice.

HCH1 Steel Hubs Dimensions:

Part No.		HCH1 Steel Hubs
For Bushing		H Split Taper Bushings
Dimensions	O.D.	2 1/2"
	A	0.625"
	B	1.621"
	C	2.375"
	K	-
	V	2"
	W	-
	X	7/8"
	a	-
Tapped Holes	d	7/8"
	No.	2
	Size	1/4-20
Wt. Lbs.		0.7

What is the purpose of HCH1 steel wheel hub?

HCH1 steel wheels are typically used in applications that require high strength, durability, wear resistance, and fatigue resistance. Some common applications of HCH1 steel wheels include:

1. Open cone bushing: As mentioned earlier, HCH1 steel wheels are usually used for open cone bushings to install pulleys, sprockets, and other components onto industrial machinery shafts.

2. Power transmission: HCH1 steel wheels are used for various power transmission applications, including gearboxes, couplings, and torque limiters. Their design objective is to provide high torque transmission capability as well as wear and fatigue resistance.

3. Heavy machinery: HCH1 steel wheels are often used for heavy machinery such as construction equipment, mining machinery, and cranes. They can withstand heavy loads and high stresses, and provide long-lasting performance in harsh environments.

4. Ships and Offshore: HCH1 steel wheels are used for ships and offshore applications, such as transmission shafts, rudder stock, and winches. They have excellent corrosion resistance and durability in saline environments.

5. Oil and Natural Gas: HCH1 steel wheels are used in the oil and gas pipeline industry, for applications such as drilling equipment, pumps, and compressors. They provide high strength and durability, which are crucial for the harsh conditions encountered in these applications.

Overall, HCH1 steel wheels are essential in many industries that require high-performance, reliable, and durable components. Their design objective is to provide high strength, wear resistance, fatigue resistance, as well as good corrosion resistance, making them an ideal choice for many demanding applications.

Company Information

Are you seeking high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushes, QD bushes, open conical bushes, FHPK bushes, steel wheels for usable conical bushes, XH wheels, QD welded wheels, and welded wheels for conical bushes will meet all your typical application needs, including sprocket, pulley, and pulley applications. The main purpose of the bushing is to connect the components to the shaft. Regardless of space, time, or size limitations, our bushings can meet your needs. Due to these reasons, we usually use bushings based on size instead of drilling wheels. In addition, with our extensive aperture inventory, including many standard inch and metric aperture sleeves, you can trust that we will provide suitable sleeves for your application. Various materials, such as stainless steel, aluminum, and copper, can be used for steel wheels with split conical bushings. If you want a range of competitive high-quality products, Raydafon's steel wheels are the perfect choice. The steel wheels used in the Raydafon split conical liner have been carefully crafted to meet or exceed industry standards. We can provide alternatives such as Dodge wheels, Browning wheels, Martin wheels, etc. The steel hub of the split conical sleeve is made of C45 steel and is suitable for various industrial applications.

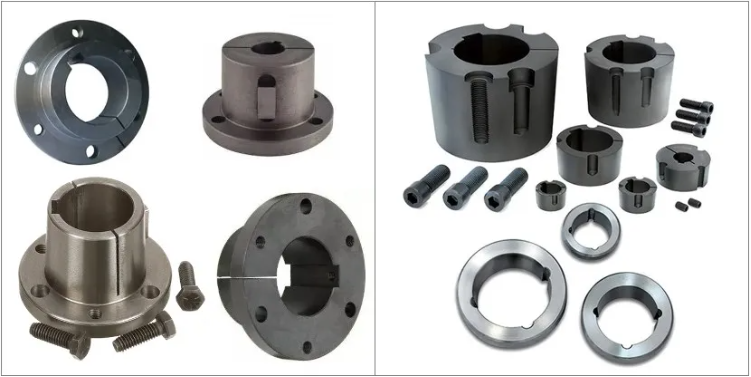

Our company can provide our customers with the taper bush in the following table.

Made in China Superior Quality HCH1 Steel Hubs for Split Taper Bushings

Packaging & Shipping

Made in China Superior Quality HCH1 Steel Hubs for Split Taper Bushings

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
