Industrial Rubber Belt Power Transmission V-Belt
Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.
They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material: Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Type:
Two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt and double-sided tooth industrial rubber synchronous belt.
Two kinds of single-sided tooth industrial rubber synchronous belt: T tooth industrial rubber synchronous belt and Arc tooth industrial rubber synchronous belt.
Two kinds of double sided tooth timing belt DA and DB.
The Dimension and Profile:
T tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5.00 | 8.00 | 40 |
| AT5 | 5 | 1.20 | 2.70 | 50 |
| AT10 | 10 | 2.50 | 5.00 | 50 |
| AT20 | 20 | 5.00 | 8.00 | 50 |
Arc tooth industrial rubber synchronous belt
H ARC TOOTH S ARC TOOTH R ARC TOOTH
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
|
HTD |
2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
|
STPD/STS |
S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
|
RPP/HPPD |
2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |
DA/DB-duplex synchronous belt
|
Type |
W |
T |
Size |
Pitch Length(mm) |
Teeth No. |
|
D-XL |
0.508 |
3.05 |
196XL-1970XL |
497.84-5003.8 |
98-985 |
|
D-L |
0.762 |
4.58 |
203L-1988L |
514.35-5048.25 |
54-530 |
|
D-H |
1.372 |
5.95 |
670H-2500H |
1701.8-6350 |
124-500 |
|
D-XH |
2.794 |
15.49 |
700XH-2275XH |
1778.00-5778.5 |
80-260 |
|
D-XXH |
3.048 |
22.11 |
700XXH-2625XXH |
1778.00-6667.5 |
56-210 |
|
D-T2.5 |
0.60 |
2.00 |
T2.5x500-T2.5x5000 |
500.00-5000.00 |
200-2000 |
|
D-T5 |
1.00 |
3.40 |
T5x500-T5x7000 |
500.00-7000.00 |
100-1400 |
|
D-T10 |
2.00 |
7.00 |
T10x500-T10x7050 |
500.00-7050.00 |
50-705 |
|
D-T20 |
3.00 |
13.00 |
T20x1700-T20x7000 |
1700.00-7000.00 |
85-350 |
|
D-AT10 |
2.00 |
7.00 |
AT10x500-AT10x7000 |
500.00-7000.00 |
50-700 |
|
DA-HTD-3M |
0.760 |
3.10 |
501-3M-5010-3M |
501.00-5010.00 |
167-1670 |
|
DA-HTD-5M |
1.143 |
5.26 |
500-5M-7000-5M |
500.00-7000.00 |
50-1400 |
|
DA-HTD-8M |
1.372 |
8.17 |
512-8M-6880-8M |
512-6880 |
64-860 |
|
DA-HTD-14M |
2.80 |
14.84 |
1750-14M-6860-14M |
1750-6860 |
125-490 |
|
DA-STS-8M |
1.372 |
7.48 |
S8M-512-S8M-6880 |
512-6880 |
64-860 |
Size Information
If you can not find the same type from we showed here, please contact with us directly.

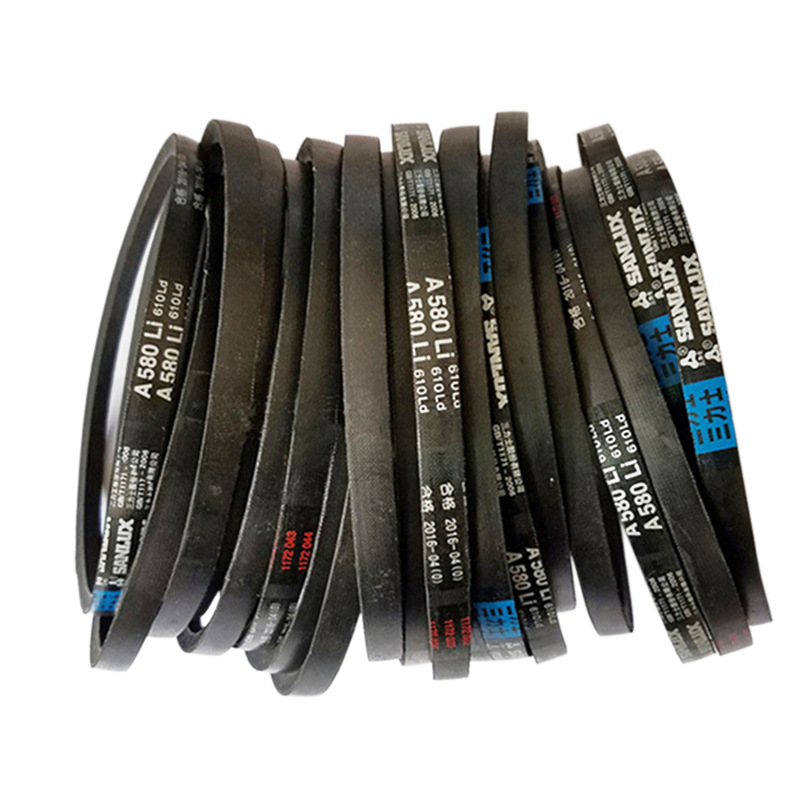

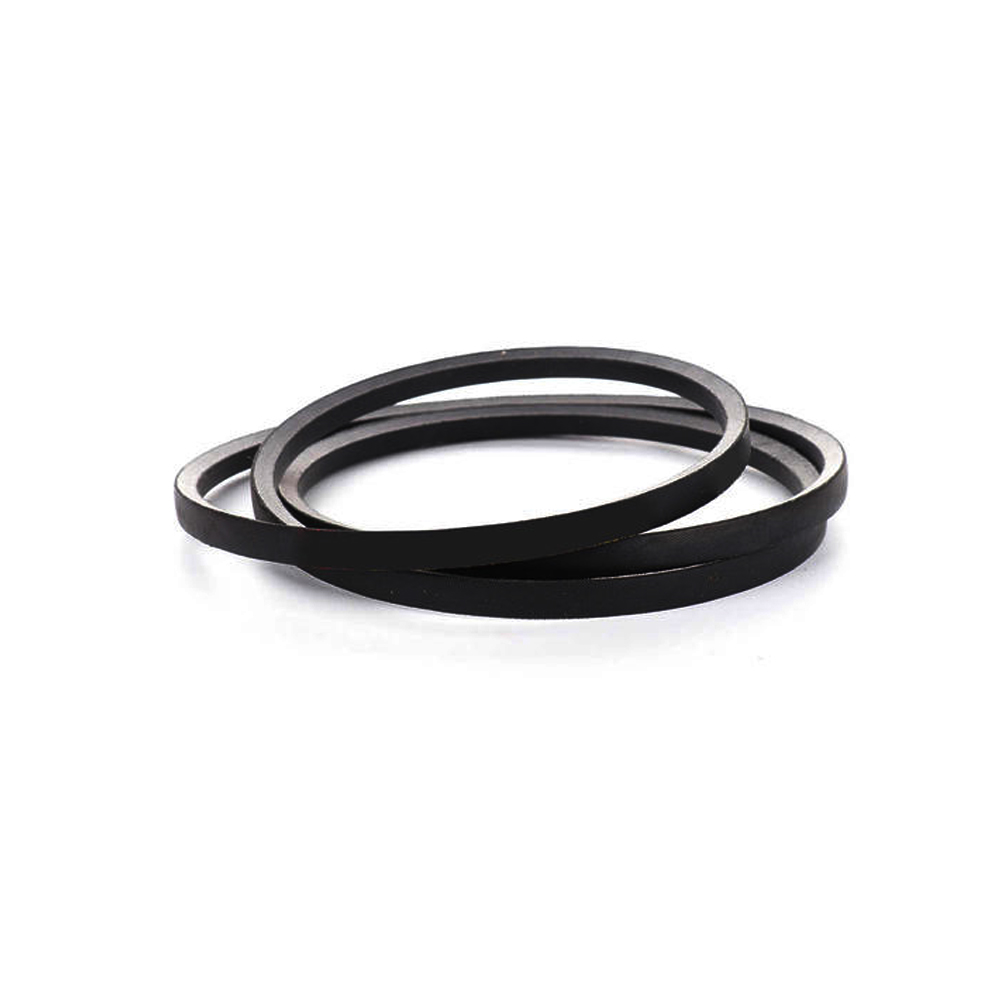

| Classical V-belt | Y, K, M(Z), A, B, C, D, E |

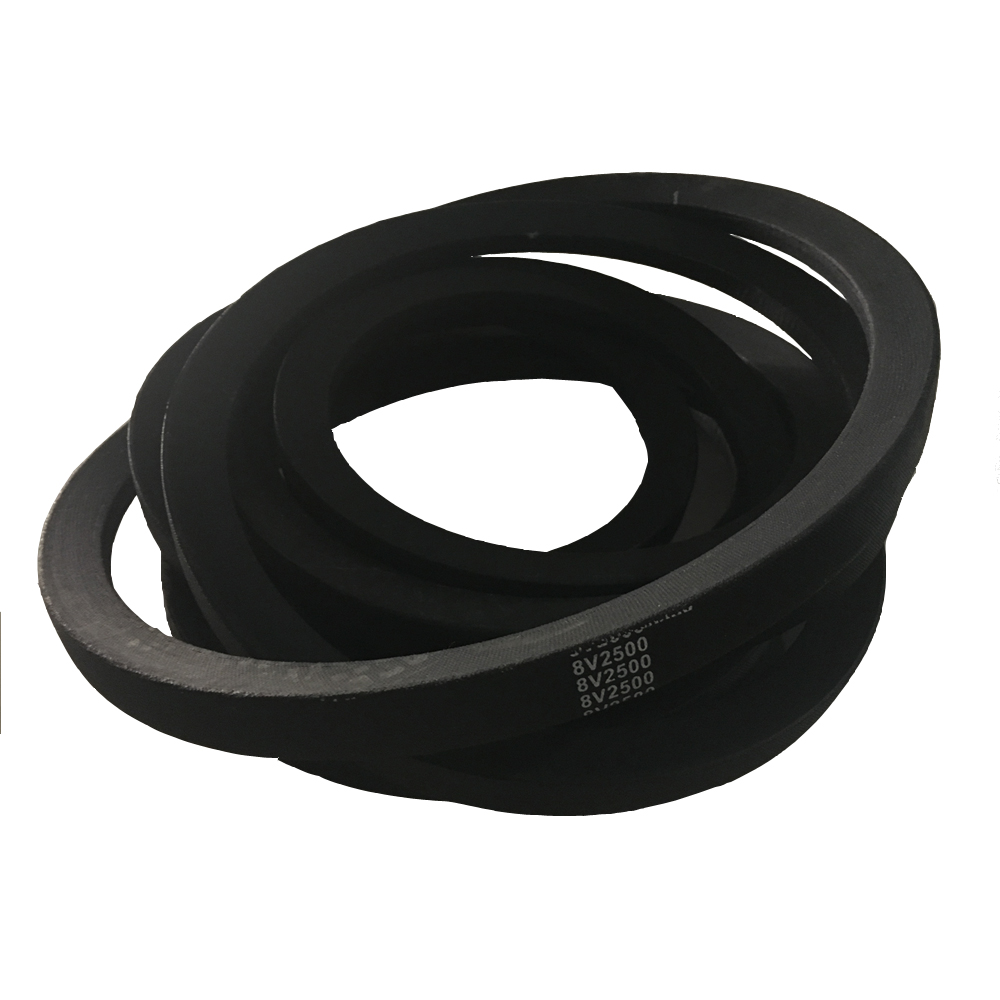

| Narrow V-Belts | SPZ, SPA, SPB, SPC, 3V, 5V, 8V |
| Raw edge Narrow V-Belts | XPZ, XPA, XPB, XPC, 3VR, 5VR |

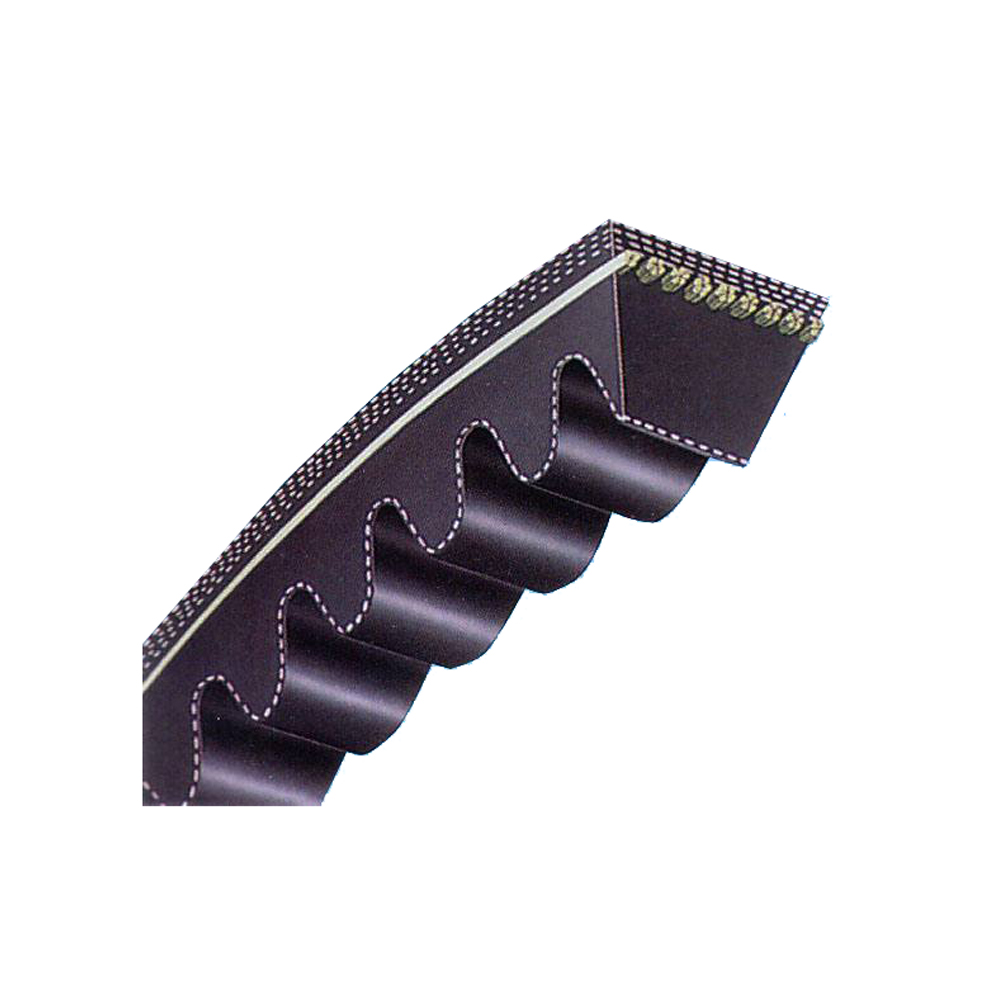

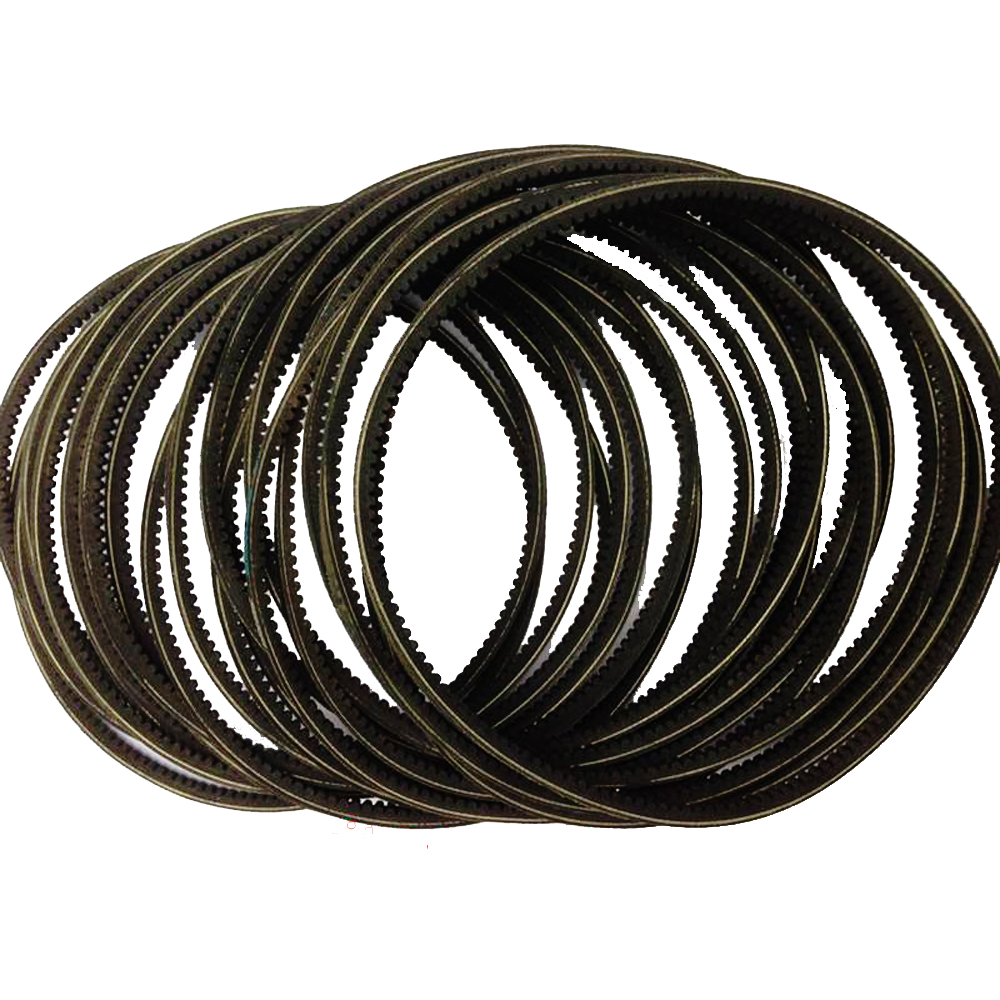

| Narrow Cogged V-Belts | XPZ, XPA, XPB, XPC, 3VX, 5VX |
| Raw edge Cogged V-Belts | AV10/FM, AV13/AX., AV22/CX |
| Banded V-Belts | A, B, C, D, 3V, 5V, 8V |
| Banded Cogged V-Belts | AX, BX, CX, 3VX, 5VX |
| Agricultural V-Belt | HI, HJ, HK, HL, HM |
| Variable Speed Belts | v |
| Double V-Belts | AA, BB, CC |
| V Ribbed Belts | PH, PJ, PK, PL, PM |
| Synchronous Belts/Timing Belts | MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD, STPD/STS, RPP/HPPD |
1, All specification and types of timing belt can be produced; so do other specification and types of timing belt not listed in this table
2, For particular specification belt, we can make according to the clients' supplying drawing or sample after negotiation.
3, Timing belts' width can be adjusted as clients' request.
4, Offer desigh for choosing timing belt specification & types or drip in to provide technrvices as per customers' technical requirements.
