Features:

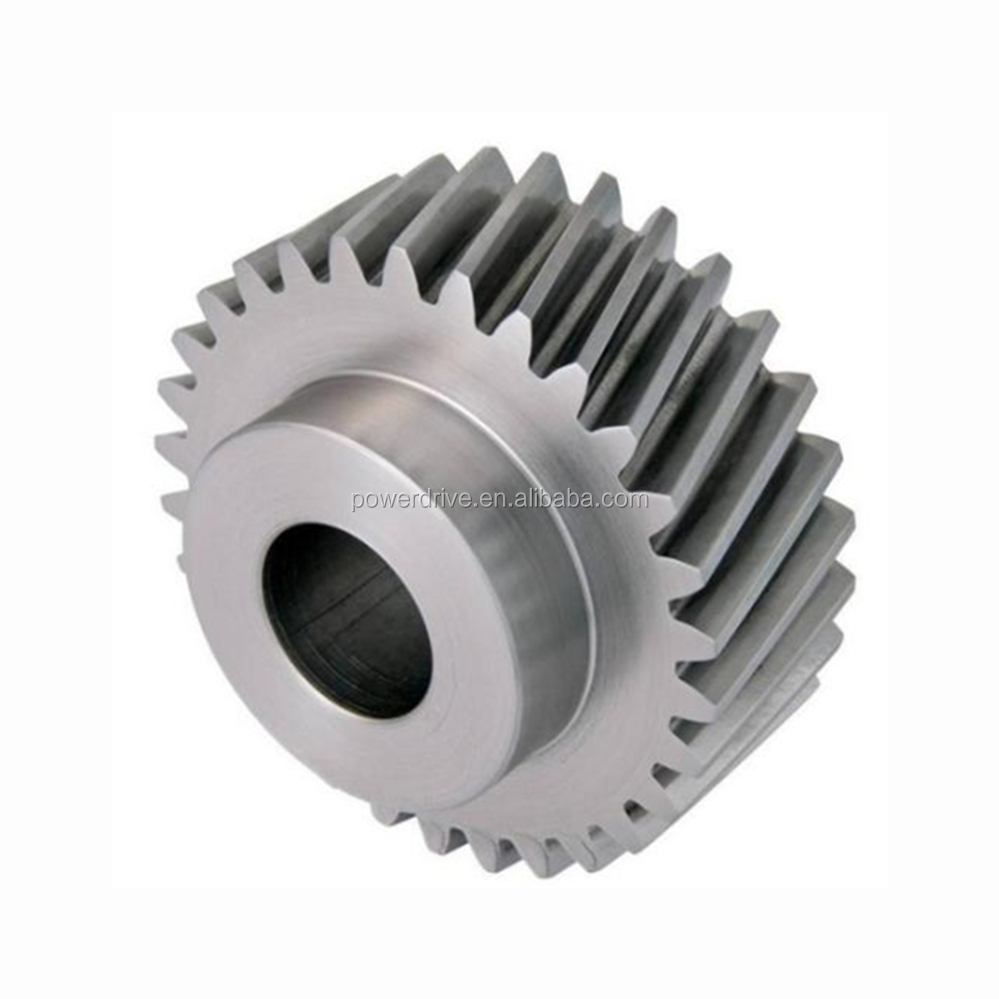

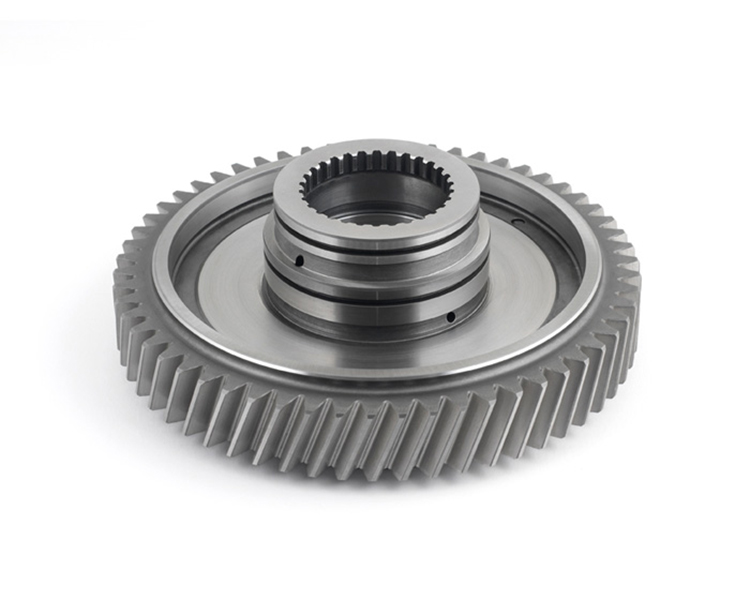

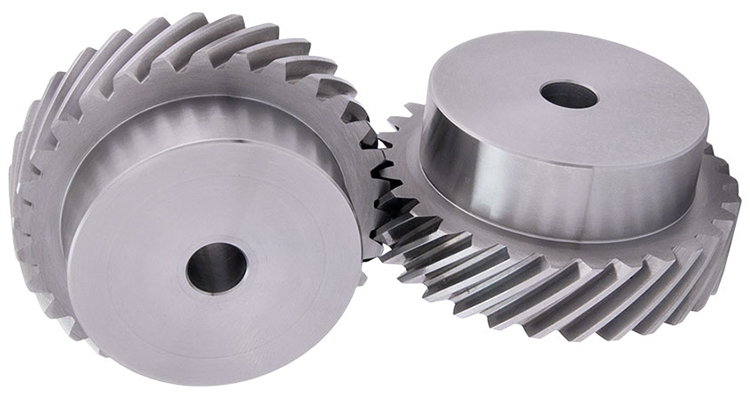

Spur gears:
a) Models: Mod. 1, Mod. 1.5, Mod. 2, Mod. 2.5, Mod. 3, Mod. 4, Mod. 5, Mod. 6
b) Pressure angle: 20¡ãC
c) Tooth width: "A", "B" d) Z = 12 - 1272)

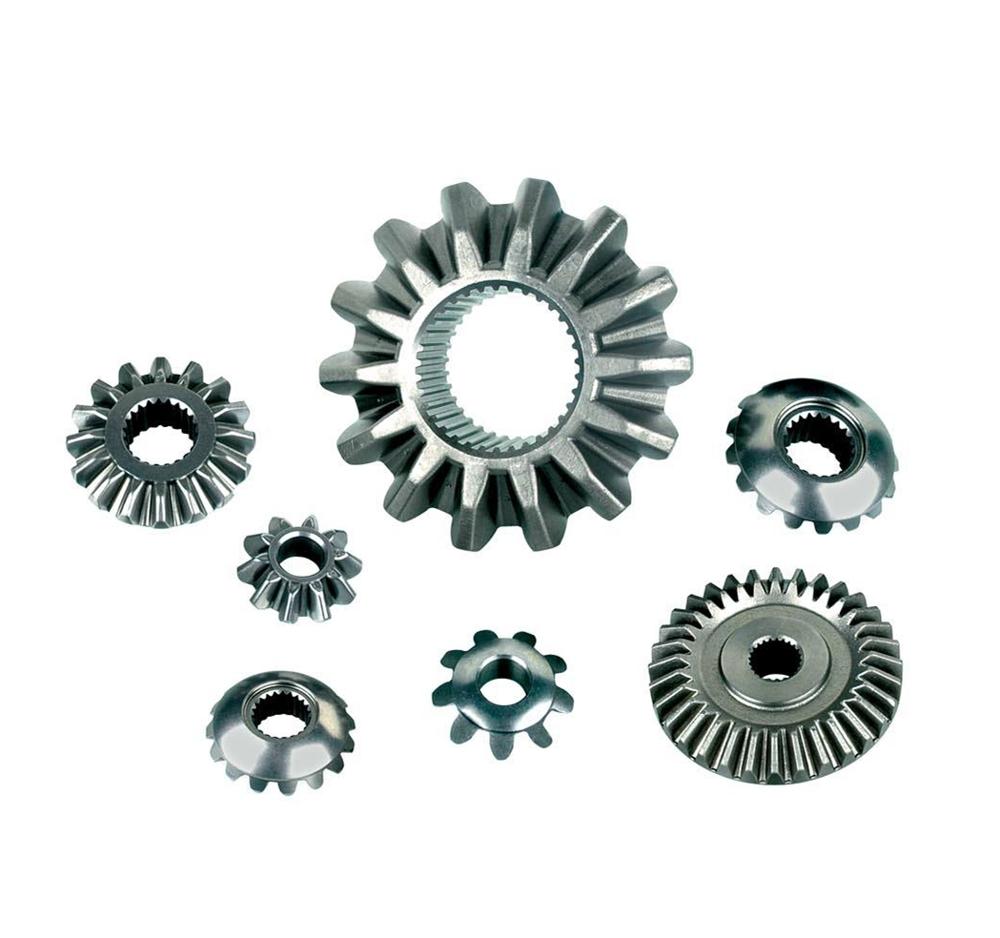

Bevel gears:
a) Type A:
i) Pressure angle: 20¡ãC
ii) Ratio: 1:1, 1:2, 1:3, 1:4
iii) M = 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5
b) Type B:
i) Pressure angle: 20¡ãC
ii) Ratio: 1:1, 1:2, 1:3, 1:4
iii) M=1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5
Racks:
a) According to DIN782
b) Pressure angle: 20¡ãC
c) M = 1, 1.5, 2, 2.5, 3, 4, 5, 6
d) Length: 500, 1,000, 2,000, 15 x 15 - 60 x 60
Pls feel free to contact with us if you have any problem.We'll try our best to satisfy you.
| Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples. |
