CNC Machining Custom Stainless Steel XTB30 Bushings

Product Description XTB30 conveyor pulley XTB30 bushing is a type of bushing used for conveyor pulleys to provide a safe and reliable connection between the pulley and shaft. These bushings are usually made of steel and designed to fit tightly around

Send Inquiry

Product Description

Product Description

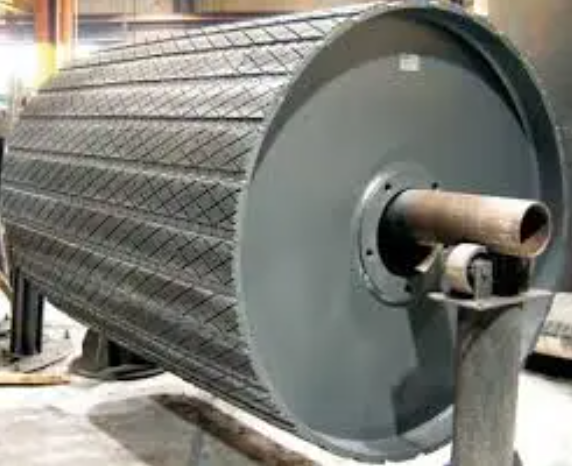

XTB30 conveyor pulley XTB30 bushing is a type of bushing used for conveyor pulleys to provide a safe and reliable connection between the pulley and shaft. These bushings are usually made of steel and designed to fit tightly around the shaft of the conveyor pulley. XTB30 bushing is a special type of bushing designed for installing shafts with a diameter of 2 inches. The "XTB" in the name represents the "XTREME torque bushing", which refers to its ability to handle high torque loads. One of the main characteristics of XTB30 casing is its ability to quickly and conveniently install and disassemble. They are designed with a split barrel that can be compressed and expanded, tightly installed around the shaft without the need for additional tools or equipment. XTB30 casing is typically used in heavy-duty conveyor applications with high torque loads, such as mining, aggregate, and bulk material handling operations. They aim to provide reliable and long-lasting performance, even in harsh operating environments.

XTB30 Bushings Specifications:

Bushing Part No.		XTB30 Bushings
Dimensions	L	2 1/16"
	U	1 1/16"
	H	5 5/16"
	S	9/32"
Cap Screws	No	4
Cap Screws	Size	7/16" X 1 1/2"
Wt lbs		4.2

XTB30 Bushings Stock:

Bushing Part No.	Stock Bores	Keyseat	Key Supplied
XTB30 Bushing	1 7/16", 1 1/2", 1 11/16" 1 15/16",2 3/16", 2 7/16", 2 11/16" 2 15/16"	3/8" X 3/16" 1/2" X 1/4" 5/8" X 5/16" 3/4" X 3/16"	none none none 3 3/4" x 9/16" x 2"

The following are some general applications of commonly used casings:

1.Machinery and equipment: Bushing is widely used for machinery and equipment in industries such as manufacturing, construction, mining, and agriculture. They are applied to conveyors, pumps, motors, gearboxes, fans, and various types of rotating machinery.

2.Automotive industry: Bushing can be used for various purposes in vehicles. They are used in suspension systems to provide vibration isolation and reduce noise. Bushing also plays a role in engine mounts, steering links, and other components that require effective shock absorption and damping.

3.Power transmission: Bushing is used for power transmission systems, such as belt and chain drives, to connect rotating shafts and transmit torque. They help align the shaft, reduce vibration, and provide support for rotating components.

4.HVAC system: HVAC systems use sleeves in fans, blowers, and motors. They help reduce noise and vibration, and contribute to the smooth operation of HVAC equipment.

5.Electrical appliances: Sleeves are used for various electrical appliances, such as electric motors, generators, and household appliances. They provide support and alignment for rotating components while minimizing noise and vibration.

It should be noted that the specific application of XTB30 casing may vary depending on its design, specifications, and any unique features associated with it. I suggest contacting the manufacturer or supplier directly for accurate and comprehensive information on the application of XTB30 casing. They will have necessary details about the expected use and specific application of XTB30 casing.

Company Information

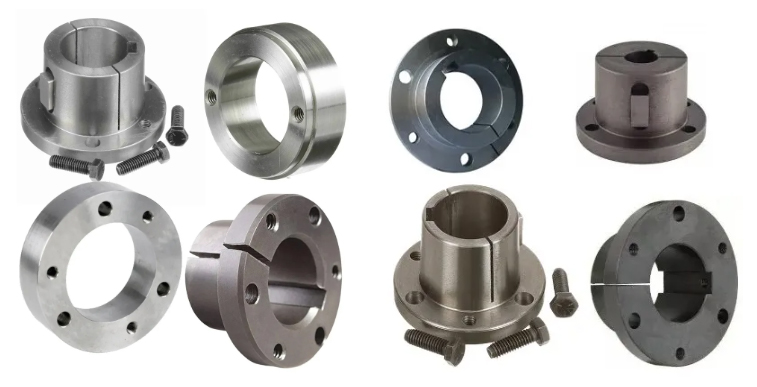

Are you looking for high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushings, QD bushings, open conical bushings, FHPK bushings, XT bushings, steel wheels for open conical bushings, XH wheels, QD welded wheels, and welded wheels for conical bushings will be suitable for all your typical application needs, including sprocket, pulley, and pulley applications. The basic purpose of the bushing is to connect the components to the shaft. Whether you are facing space, time, or size limitations, our bushings can meet your needs, and due to these reasons, we usually use bushings instead of drilled wheels according to size. In addition, with our extensive inventory of bore diameters, including a large number of standard inch and metric bore bushings, you can be confident that we will provide suitable bushings for your application.

CNC Machining Custom Stainless Steel XTB30 Bushings

Our company can provide our customers with the taper bush in the following table.

CNC Machining Custom Stainless Steel XTB30 Bushings

Packaging & Shipping

CNC Machining Custom Stainless Steel XTB30 Bushings

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
