Widely Used HG1 Steel Hubs for Split Taper Bushings

Product Description HG1 split cone sleeve steel wheel hub The HG1 steel hub used for split tapered bushings is a component used in the power transmission system and requires a safe and reliable connection between the shaft and the installed component

Send Inquiry

Product Description

Product Description

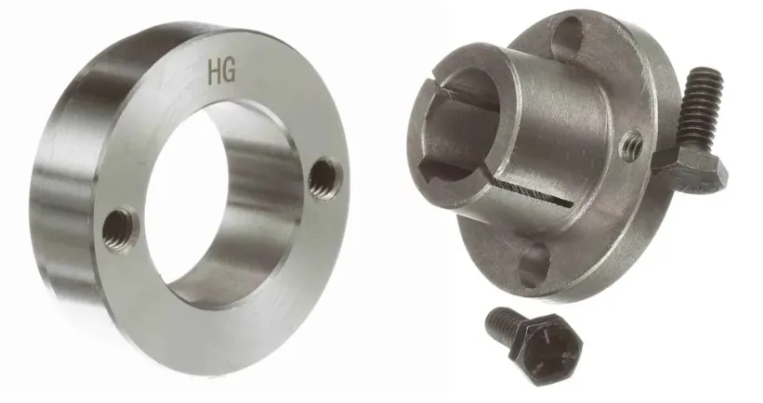

HG1 split cone sleeve steel wheel hub

The HG1 steel hub used for split tapered bushings is a component used in the power transmission system and requires a safe and reliable connection between the shaft and the installed components (such as pulleys or sprockets). These HG1 steel wheels are designed to use open tapered bushings that are inserted into the tapered holes of the wheel hub and tightened to the shaft with a set of screws or bolts. The HG1 steel hub used for the open tapered bushing is made of high-quality steel, precision machined to ensure accurate size and tight fit with the open tapered bushing.

HG1 Steel Hubs Dimensions:

Part No.		HG1 Steel Hubs
For Bushing		G Split Taper Bushings
Dimensions	O.D.	2"
	A	0.174"
	B	1.168"
	C	1.875"
	K	-
	V	1 9/16"
	W	-
	X	5/8"
	a	-
Tapped Holes	d	5/8"
	No.	2
	Size	1/4-20
Wt. Lbs.		0.4

Application of HG1 steel wheel hub in conical sleeve:

HG1 steel wheels are usually used together with open tapered bushings to form a safe and reliable shaft hub connection. The following are some key applications of HG1 steel wheels in split tapered bushings:

(1) Power transmission: HG1 steel wheels are commonly used in power transmission applications, where safe hub connections are crucial. These applications can include conveying systems, pumps, compressors, and other heavy machinery.

(2) Automotive: HG1 steel wheels are also used in automotive applications that require a strong connection between the axle and wheel hub. This may include applications such as engine components, drive shafts, and transmissions.

(3) Construction: HG1 steel wheels are used for construction machinery such as cranes, excavators, and bulldozers. These machines require sturdy and reliable hub connections to handle heavy loads and rough terrain.

(4) Manufacturing: HG1 steel wheels are commonly used for manufacturing lathes, milling machines, and press machines. These machines require precise and reliable hub connections to ensure precise and consistent performance.

Company Information

Are you seeking high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushes, QD bushes, open conical bushes, FHPK bushes, steel wheels for usable conical bushes, XH wheels, QD welded wheels, and welded wheels for conical bushes will meet all your typical application needs, including sprocket, pulley, and pulley applications. The main purpose of the bushing is to connect the components to the shaft. Regardless of space, time, or size limitations, our bushings can meet your needs. Due to these reasons, we usually use bushings based on size instead of drilling wheels. In addition, with our extensive aperture inventory, including many standard inch and metric aperture sleeves, you can trust that we will provide suitable sleeves for your application. Various materials, such as stainless steel, aluminum, and copper, can be used for steel wheels with split conical bushings. If you want a range of competitive high-quality products, Raydafon's steel wheels are the perfect choice. The steel wheels used in the Raydafon split conical liner have been carefully crafted to meet or exceed industry standards. We can provide alternatives such as Dodge wheels, Browning wheels, Martin wheels, etc. The steel hub of the split conical sleeve is made of C45 steel and is suitable for various industrial applications.

Our company can provide our customers with the taper bush in the following table.

Widely Used HG1 Steel Hubs for Split Taper Bushings

Packaging & Shipping

Widely Used HG1 Steel Hubs for Split Taper Bushings

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
