Product Description

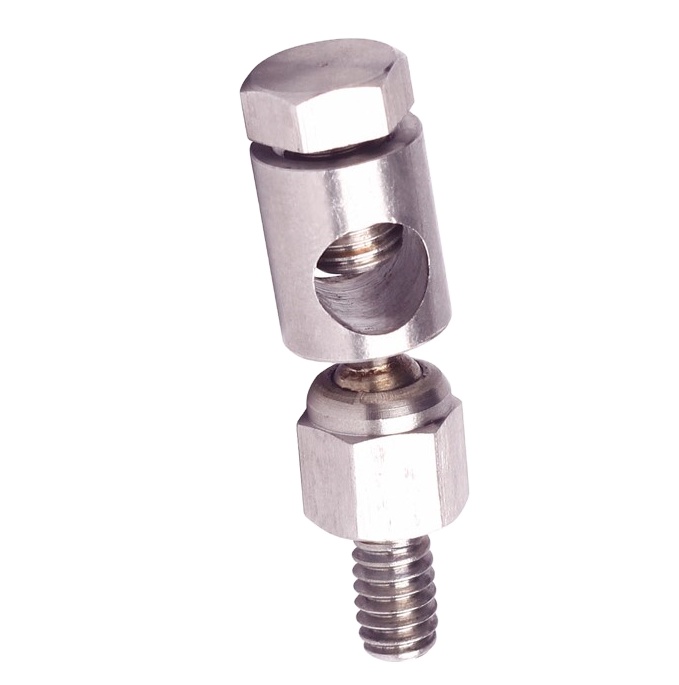

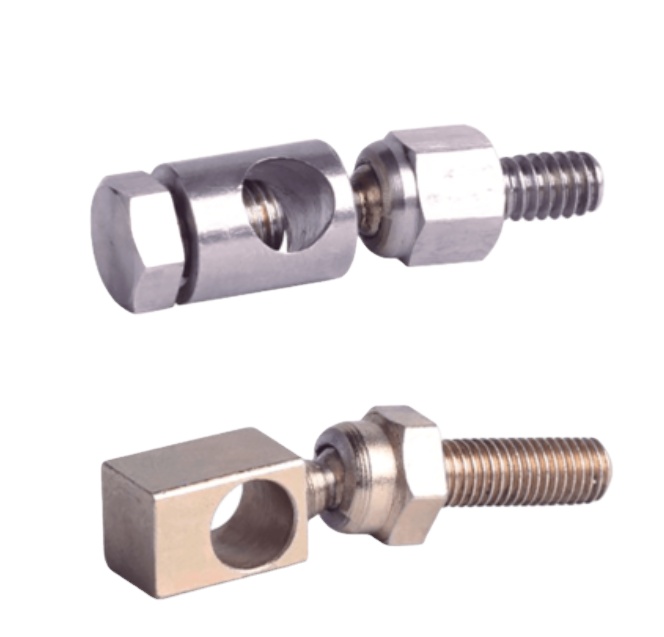

Ball Joints DC/DH series

Detail specification.

1) Filled with lubricant so as to circle swing agilely without any block.

2) Unless otherwise specified, all dimensions in inches.

Material and surface treatments:

1) Ball socket & ball stud: low carbon steel Q235A,Zinc plating.Alternative stainless steel 304, stainless steel 303 or stainless steel 316 with surface passivation.

2) Rubber disc: Buna-N.

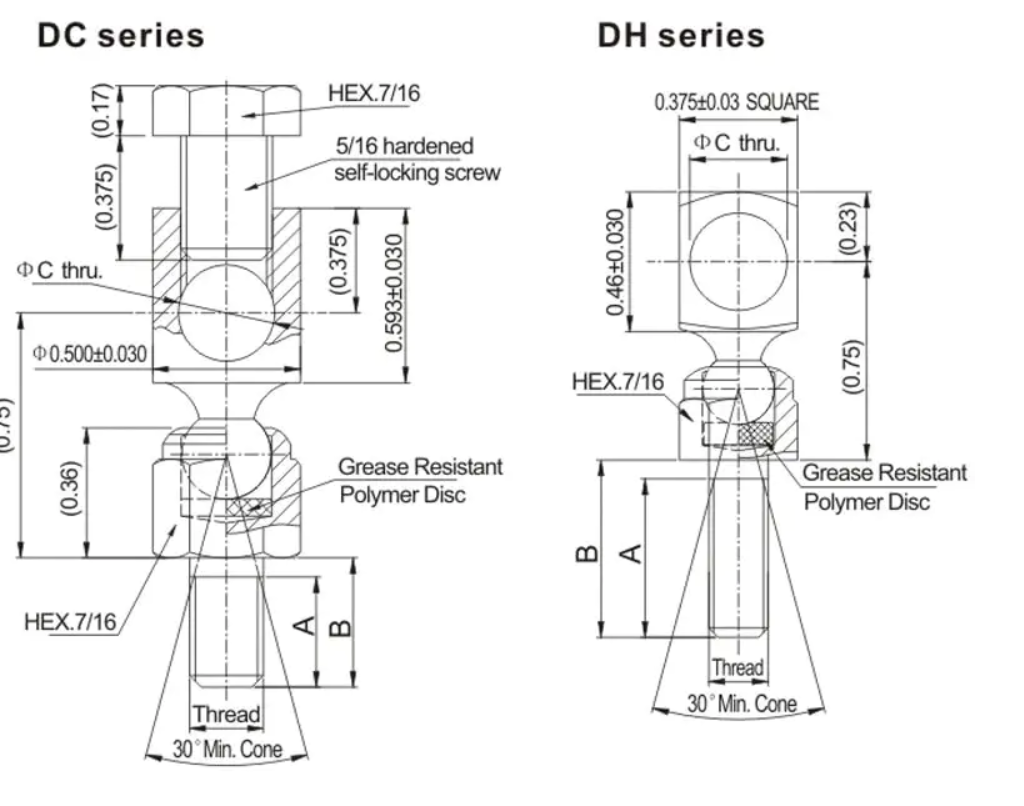

Detail dimensions:

Part No.	Dimension				Min Pull Test(lb)
	THREAD	A	B	C
DC-3F-312-320	10-32-2B	0.25	0.312	0.32	250
DC-4F-437-320	1/4-28-2B	0.328	0.437	0.32	250
DC-4F-562-320	1/4-28-2B	0.5	0.562	0.32	250
DC-4C-437-320	1/4-20-2B	0.328	0.437	0.32	250
DC-4C-562-320	1/4-20-2B	0.453	0.562	0.32	250
DC-5F-625-320	5/16-24-2B	0.516	0.625	0.32	250
DC-5F-750-320	5/16-24-2B	0.641	0.75	0.32	250
DH-4F-562-257	1/4-28-2B	0.5	0.562	0.257	250
DH-4C-437-257	1/4-20-2B	0.328	0.437	0.257	250
