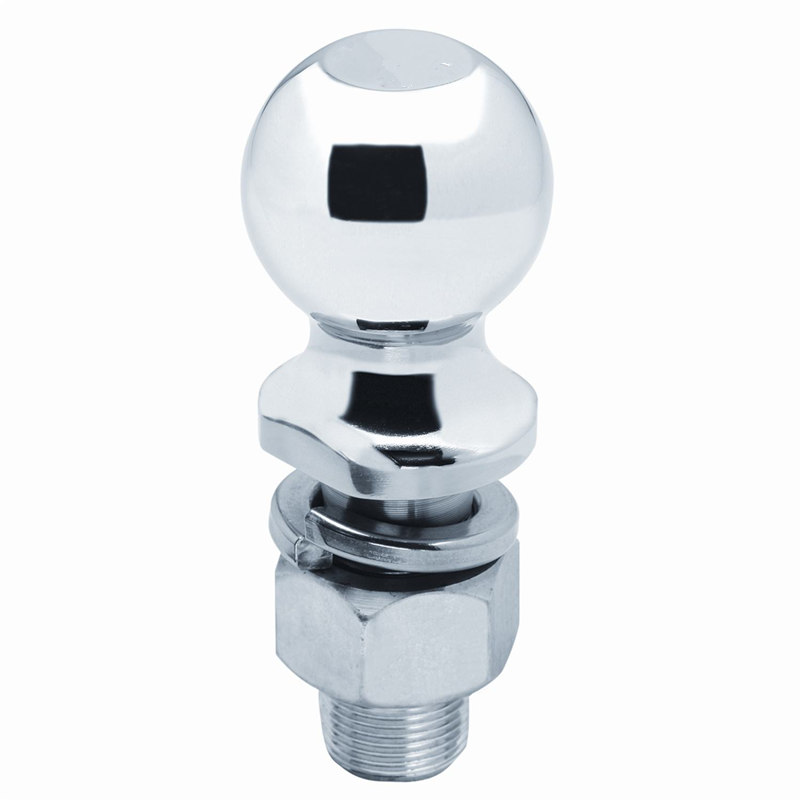

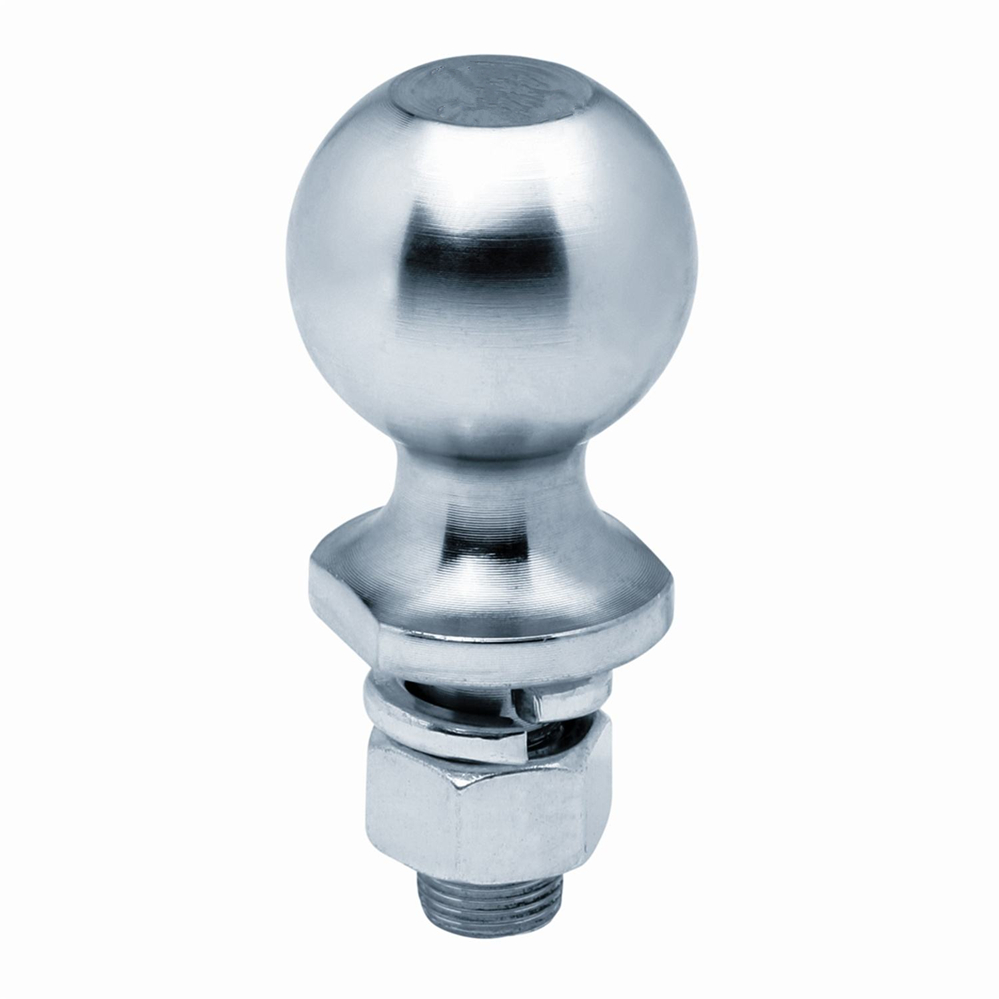

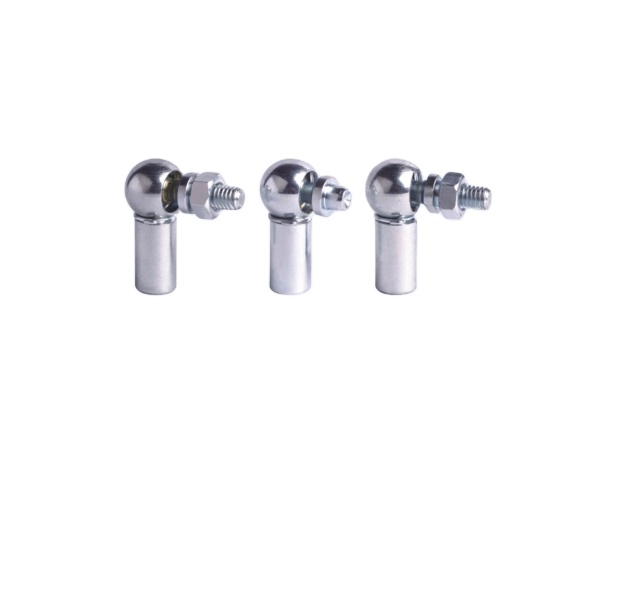

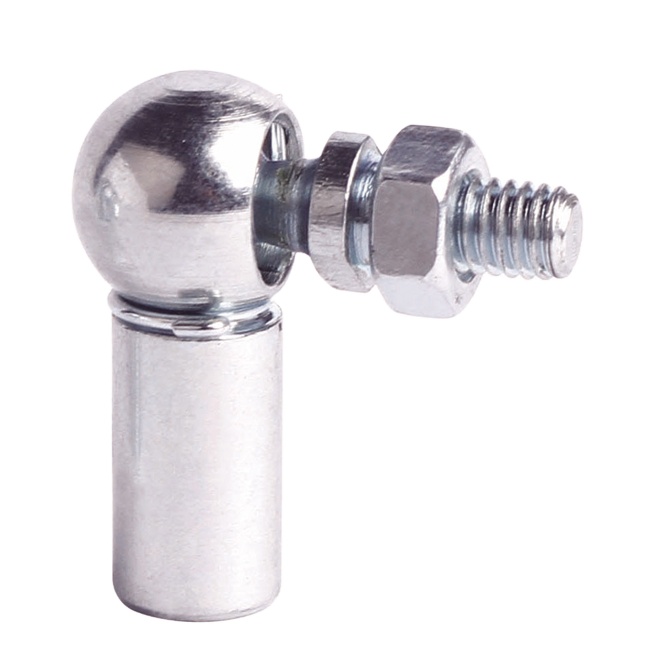

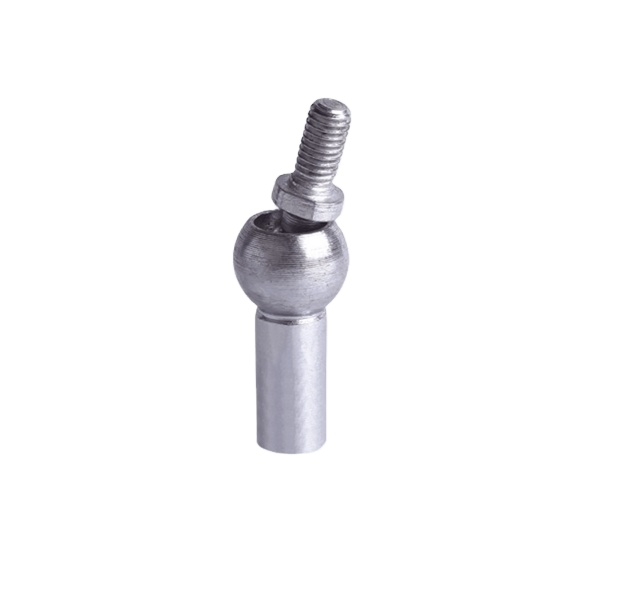

1) Alternative left-hand thread for the ball socket.
2) Ball socket with or without spanner surface or hexagon surface as required.
3) With or without sealing cap as required.
4) With or without cap as required.
Material and surface treatments:
2)Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation.
Detail dimensions:
|
Part No.
|
Dimensions | Extraction force F in N | Weight | |||||
| d1 | d2 | a | la | l3 | e | Kg per piece | ||
| h9 | ||||||||
| AX-C8M5 | 8 | M 5 | 22 | 19.2 | 9 | 10.2 | 30 | 0.0152 |
| AX-C10M6 | 10 | M 6 | 25 | 23.5 | 11 | 11.5 | 40 | 0.0252 |
| AX-C13M8 | 13 | M 8 | 30 | 29.5 | 13 | 14 | 60 | 0.0531 |
| AX-C16M10 | 16 | M 10 | 35 | 36 | 16 | 15.5 | 80 | 0.1038 |
| AX-C19M14x1.5 | 19 | M 14X1.5 | 45 | 48 | 20 | 21.5 | 100 | 0.2209 |
