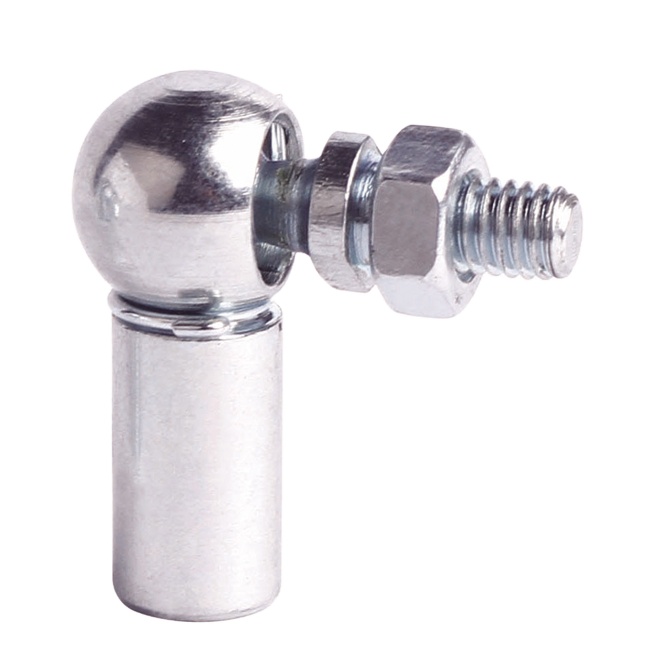

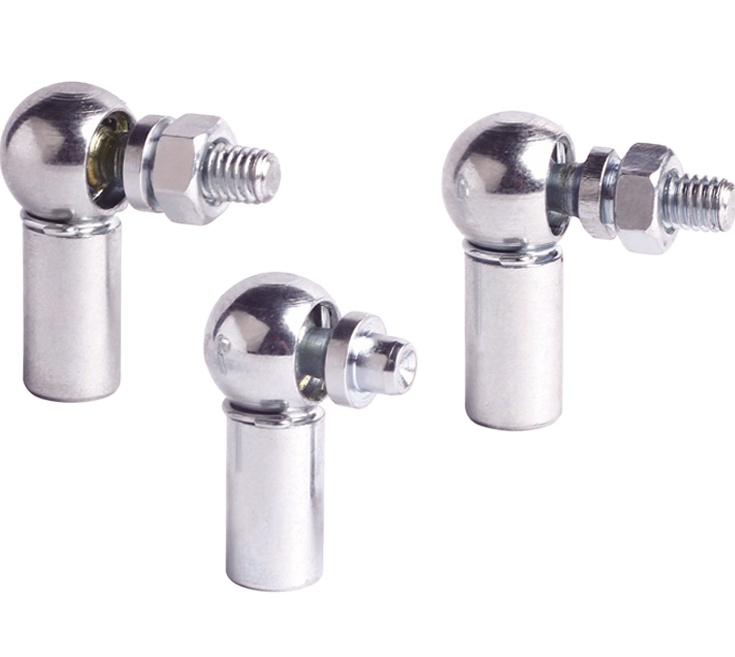

Raydafon OEM Competitive Quality China Factory Direct Sale Axial Joints Similar to DIN71802 Ball Joints

1) Alternative left-hand thread for the ball socket. 2) Ball socket with or without spanner surface or hexagon surface as required. 3) With or without sealing cap as required. 4) With or without cap as required. Material and surface treatments: 1)Bal

Send Inquiry

Product Description

1) Alternative left-hand thread for the ball socket.

2) Ball socket with or without spanner surface or hexagon surface as required.

3) With or without sealing cap as required.

4) With or without cap as required.

Material and surface treatments:

1)Ball stud: medium carbon steel 45;Ball socket: low carbon steel Q235A;Snap ring and safety clip: spring steel.zinc plating.

2)Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation.

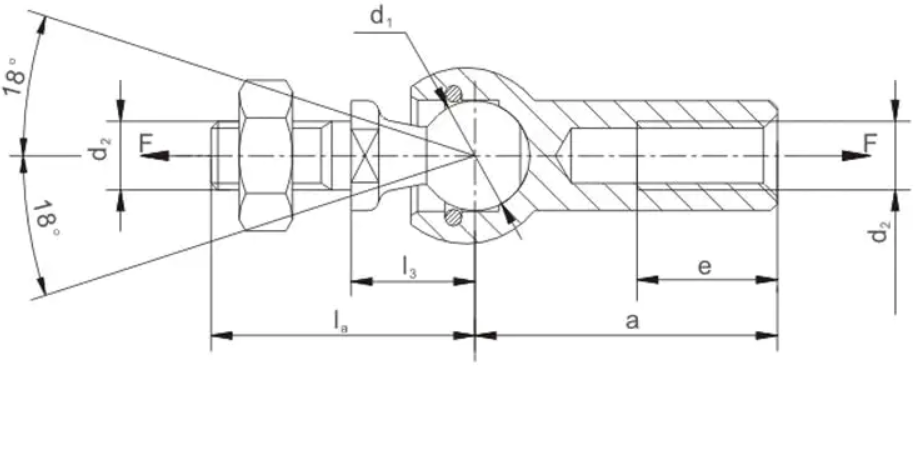

Detail dimensions:

Part No.	Dimensions						Extraction force F in N	Weight
	d₁	d₂	a	l_a	l₃	e		Kg per piece
	h₉	d₂	a	l_a	l₃	e		Kg per piece
AX-C8M5	8	M 5	22	19.2	9	10.2	30	0.0152
AX-C10M6	10	M 6	25	23.5	11	11.5	40	0.0252
AX-C13M8	13	M 8	30	29.5	13	14	60	0.0531
AX-C16M10	16	M 10	35	36	16	15.5	80	0.1038
AX-C19M14x1.5	19	M 14X1.5	45	48	20	21.5	100	0.2209
