QD Type Weld On Hubs
high quality and low price
pls feel free to contact with us if you have any problem
"QD"
Weld-On Hubs
D weld-on hubs are suitable for use in
many applications,such as welding to plate
steel sprockets
Weld-on hubs are made of steel,drill tapped
and taper bored for QD bushings

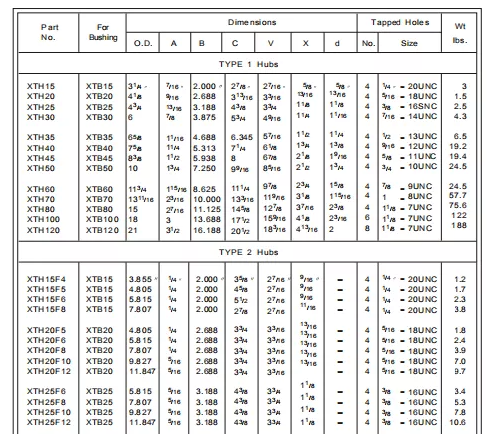

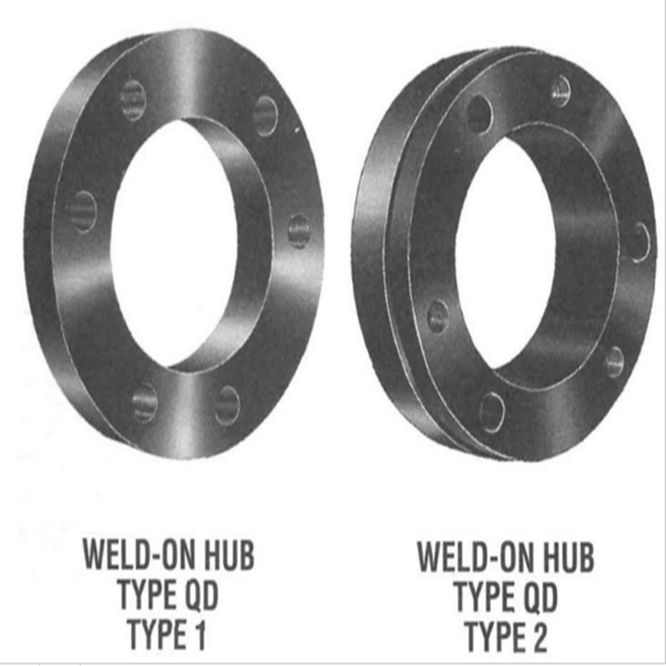

QD Type 1 and Type 2 Weld-On Hubs
|
Catalog |
Dimensions-lnches |
Type |
Weight |
Mounting |
||||||
|
D* |
L |
B |
P |
L1 |
BC |
|||||
|
JA-A |
2.250 |
9/16 |
1.375 |
- |
- |
121/32 |
1 |
.4 |
STD or |
|
|
SH-A |
3.000 |
13/16 |
1.871 |
- |
- |
21/4 |
1 |
1 |
Reverse |
|
|
SDS-A |
3.500 |
3/4 |
2.188 |
- |
- |
211/16 |
1 |
|
Mount |
|
|
SK-A |
4.375 |
11/4 |
2.813 |
- |
|
35/16 |
1 |
3 |
|
|
|
SF-A |
5.000 |
|
3.125 |
- |
- |
37/8 |
1 |
4 |
|
|
|
E-A |
6.250 |
|
3.832 |
- |
- |
|
1 |
9 |
|
|
|
N-A |
10.500 |
53/16 |
6.990 |
10.250 |
|
77/8 |
2 |
75 |
|
|
|
P-A |
13.000 |
61/4 |
8.240 |
- |
|
81/2 |
2 |
155 |
STD |
|
|
W-A |
15.500 |
71/4 |
10.437 |
- |
- |
10 |
2 |
300 |
Mount |
|
|
S-A |
19.500 |
9 |
12.125 |
18.75 |
7.5 |
123/4 |
9 |
|
Only |
|
|
|
|
12 |
|
|
|
15 |
|
|
|
|
*Tolerance of D Dimension, JA-AThru J-A=(+.000-.002) M-A Thru S-A=(=.000-.003)
