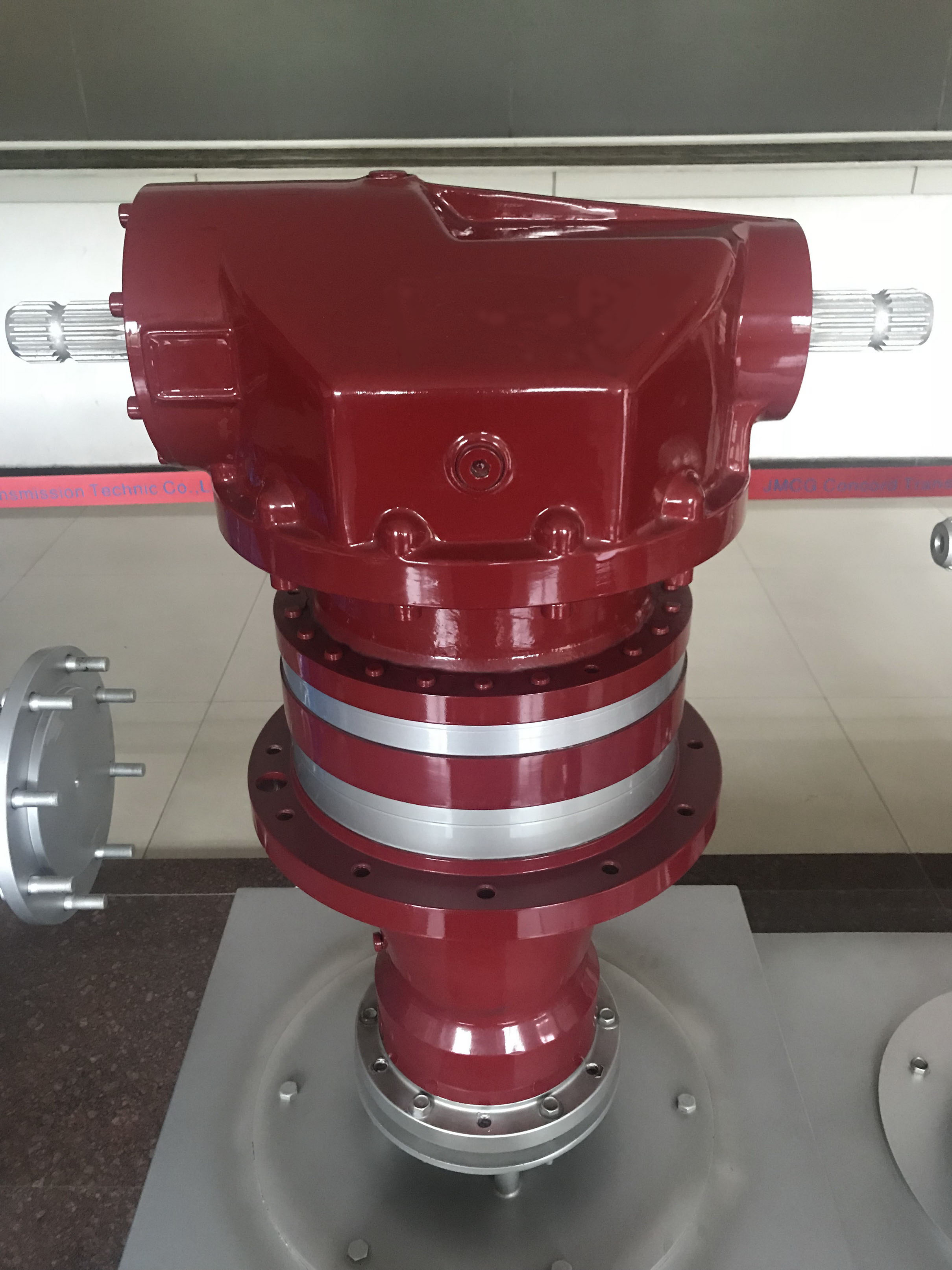

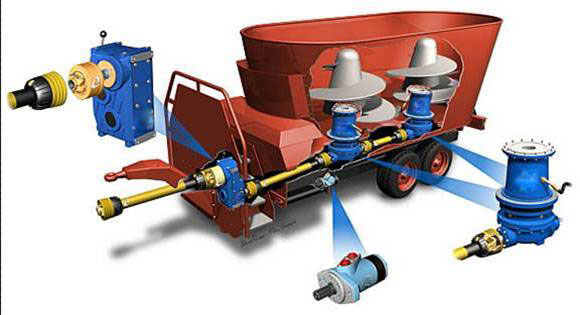

PGA Feed Mixer Planetary Gearbox Agricultural

Product Name PGA planetary gearbox for feed mixer TMR Material Cast Iron.20CrMnTi Color RAD Standard DIN GB ISO JIS BA ANSI Output toruqe 30000N.m (max) Gear Ratio 1:13.4 / 1:24.18 Input speed 1000RPM (Max) Input shaft Single / Double input spline sh

Send Inquiry

Product Description

Product Name	PGA planetary gearbox for feed mixer TMR
Material	Cast Iron.20CrMnTi
Color	RAD
Standard	DIN GB ISO JIS BA ANSI
Output toruqe	30000N.m (max)
Gear Ratio	1:13.4 / 1:24.18
Input speed	1000RPM (Max)
Input shaft	Single / Double input spline shaft
Weight	250KG

NO	Type	Rario	Power(KW)	Output torque(Nm)	input speed(r.p.m)	weight(Kg)
1	5717.000.8537	14.60	591.78	16000	540	256
2	5717.000.8538	18.20	445.05	15000	540	256
3	5717.000.8539	28.27	565.97	16000	1000	290
4	5717.000.8541	16.13	525.60	15700	540	256
5	5717.000.8542	18.20	400.55	13500	540	256
6	5717.000.8543	21.10	307.36	12010	540	256
7	5717.000.8546	13.40	726.18	18020	540	256
8	5717.000.8547	28.27	583.66	16500	1000	330
9	5717.000.8549	25.89	696.02	18020	1000	290
10	5717.000.8550	13.40	644.78	16000	540	256
11	5717.000.8554	25.89	333.72	16000	540	290
12	5717.000.8555	13.40	644.78	16000	540	256
13	5717.000.8562	18.20	400.55	13500	540	256
14	5717.000.8563	21.10	307.11	12000	540	256
15	5717.000.8565	25.80	698.45	18020	1000	290
16	5717.000.8566	13.38	727.26	18020	540	256

• HangZhou Raydafon Machinery Co., Ltd is specialized manufacturer of agricultural gearbox and farm machinery parts in China.

• Date of Establishment : 1985

• Plant area:27,000 square meter

Employees:250 persons

• R&D department:20 persons

• Market:30% European, 40% USA, 30% other area

• To give customers total satisfactory

• Pay particular attention to customers' needs, listening to the specific requirements of each customer.We will always keeping investing on research & development for new products to meet every customer' needs.

• It's a group of factories providing one-stop solution of agricultural

• Products:

• Gearbox: planetary gearbox, worm gearbox, helical gearbox...

• Chain drives: chain and Sprocket

• Coupling: rigid coupling, flexible coupling

• Components for the OEM.

• Another:PTO shaft,hydraulic motor,cylinder,valve box

Vertical Planetary Reduction Gearbox is a new type vertical planetary reduction gearbox self-developed by our company. With its characteristics of big torque, low noise, high efficiency, stable transmission and long service life, it can be used in various of agitator power transmission machinery.

This series gearbox has already achieved national patent.

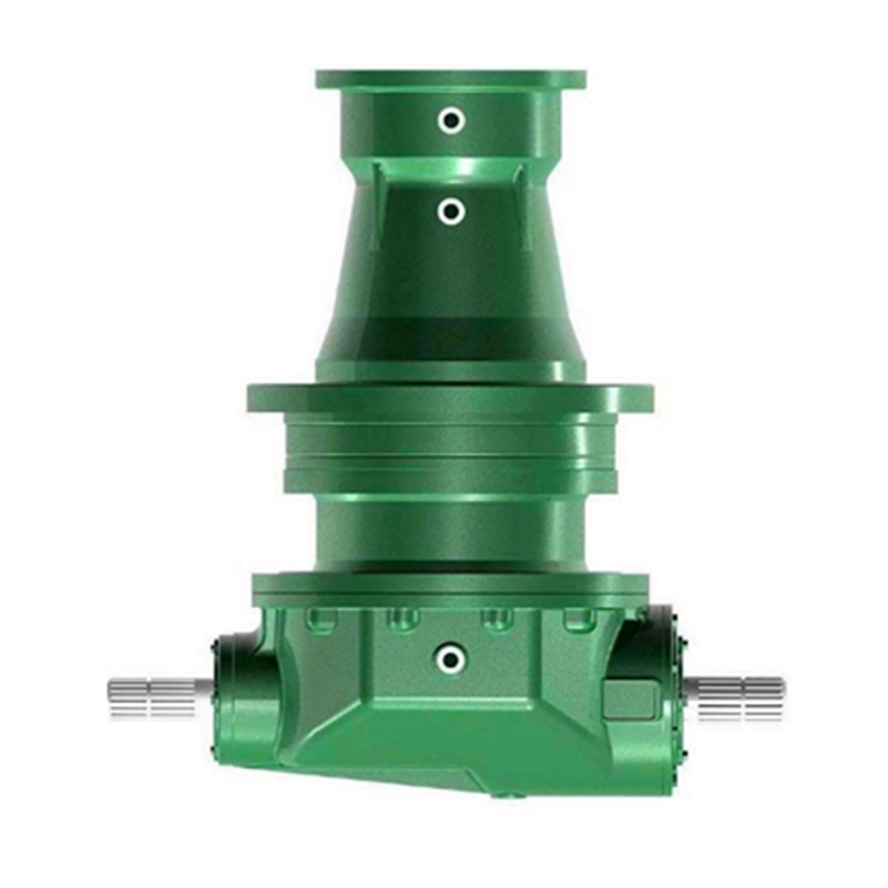

Vertical Planetary Reduction Gearbox

PGA Feed Mixer Planetary Gearbox Agricultural

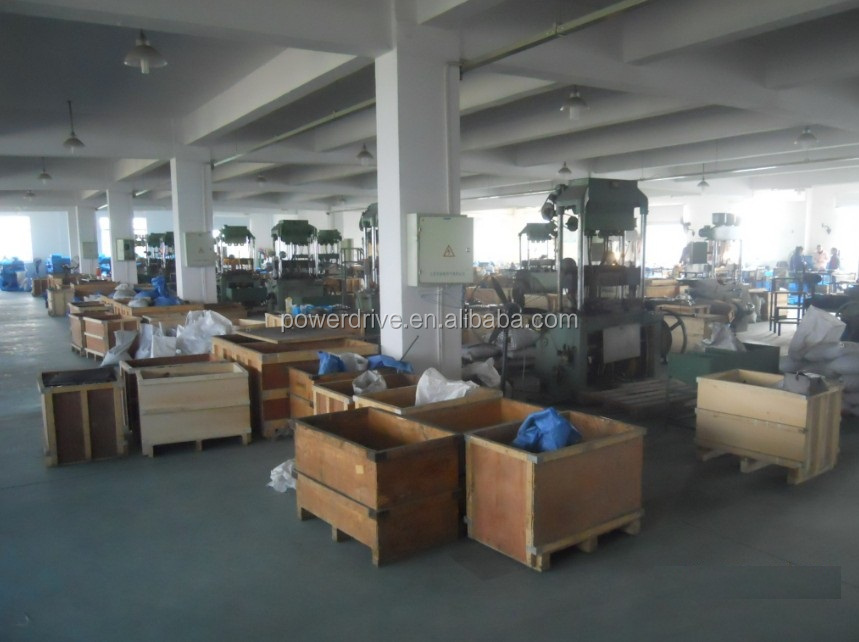

Manufacturing Capability

PGA Feed Mixer Planetary Gearbox Agricultural

Heat Treatment

PGA Feed Mixer Planetary Gearbox Agricultural

the advanced Ipson heat treatment multi-furnace is used here. For carbonization process, we adopt patent technology from IPSON which is called “super carbonization” process. It can complete carbonize, general permeation together with carbon and nitrogen, lucencyquenching, cleaning, tempering and etc. It’s specialized in high permeating speed, atmosphere adjustment, which guarantee quality of the products.

The company possesses first-class test equipments and has

completed testing system which includes fine test room, CMM room, metallographic room and gear testing centers. These equipments ensure:

perfect capability of testing cylindrical straight gear, cylindrical helical gear and straight bevel gear;good ability of testing precision components and cutting-tools (Zeiss all purpose microscope); perfect capability of testing casting internal space (Zeiss G2 10166 Coordinate Measuring Machine); perfect capability of testing hot-treatment (HR, brinellhardness, MHV, metallographic structure); high precision of on-line test capability of machining (0.001 mm pneumatic measuring apparatus ); perfect gearbox running test capability which can 100% test the gearbox.
