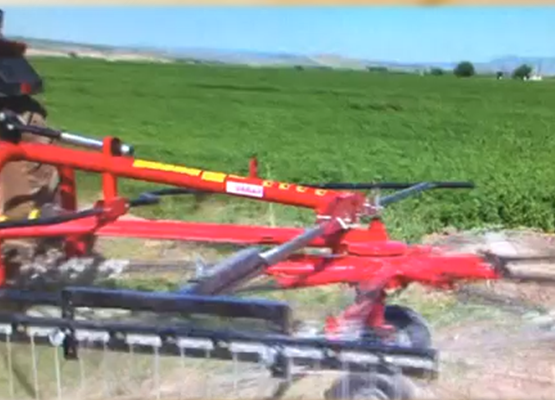

Side-Delivery Rake Gearbox

Gearbox For Rotary Rakes S90, with 2 gearbox of 9 Arms, suitable for machine with 6-7 metersof work area S11, with 2 gearbox of 11 arms, suitablefor machine with 8-9 meters of work area Side-Delivery Rake Gearbox Product Name PC Planetary gearbox for

Send Inquiry

Product Description

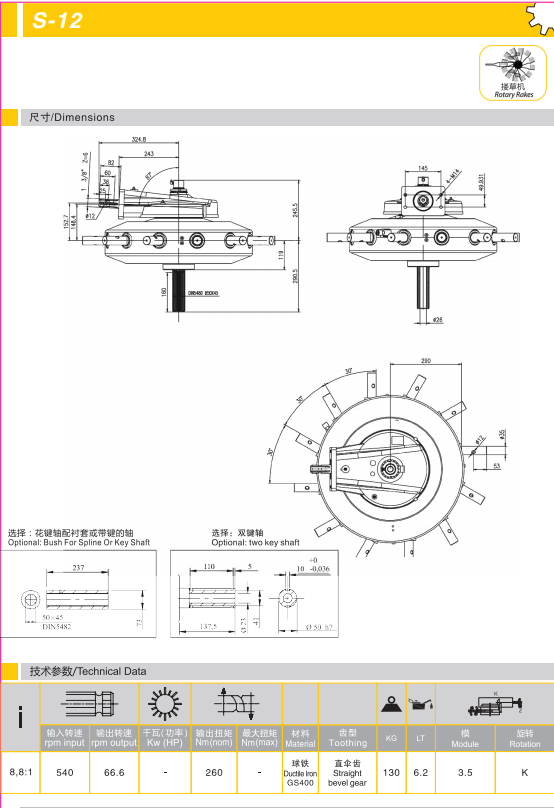

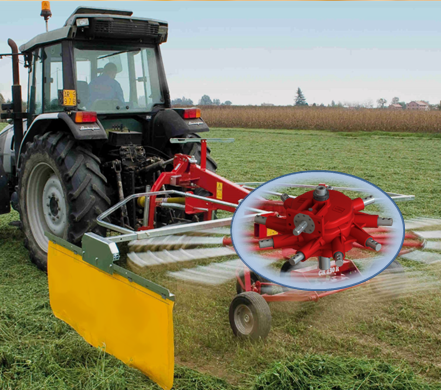

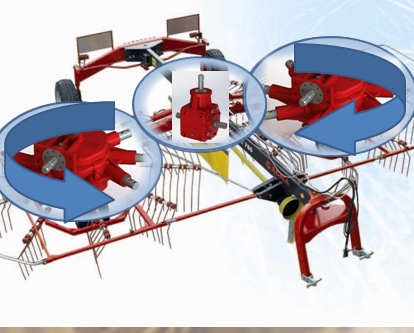

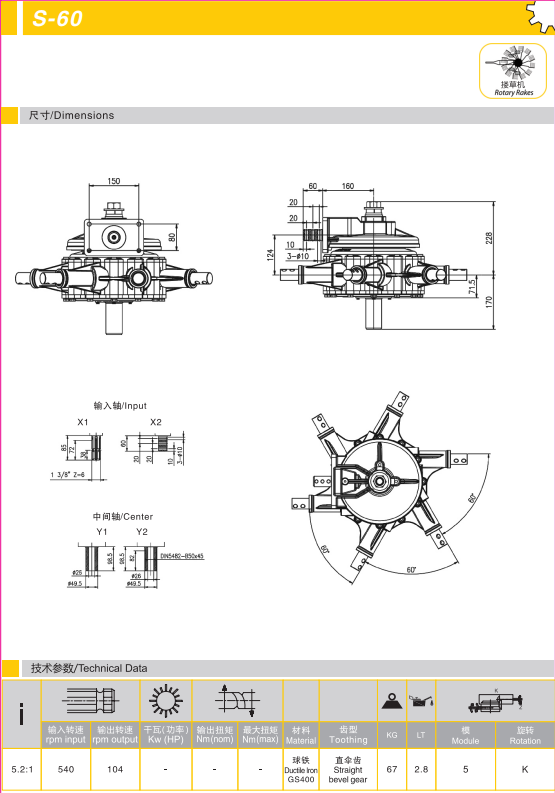

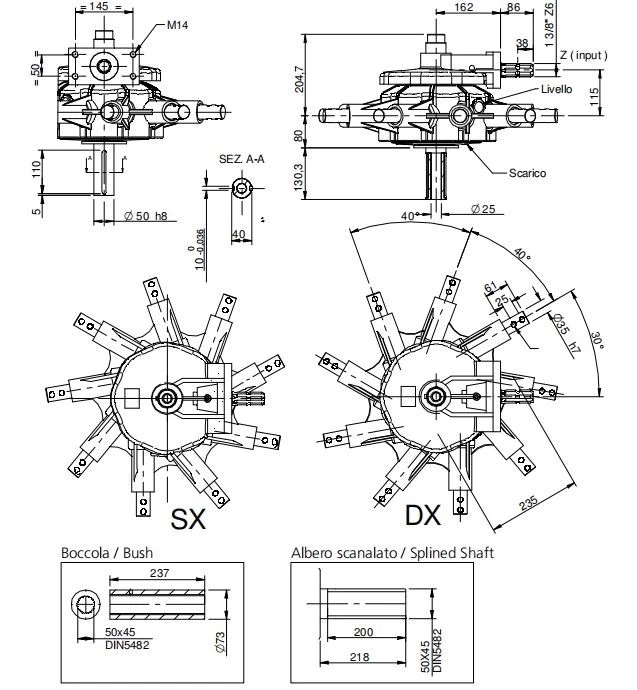

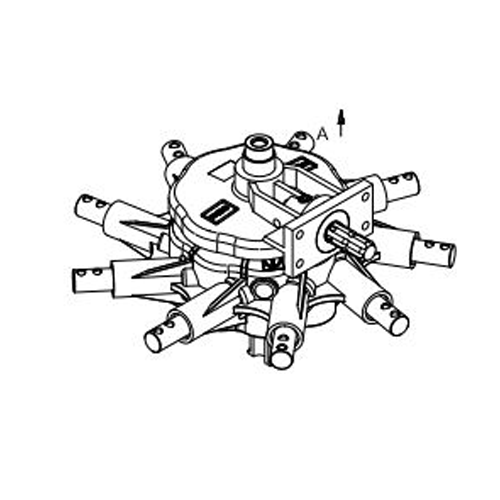

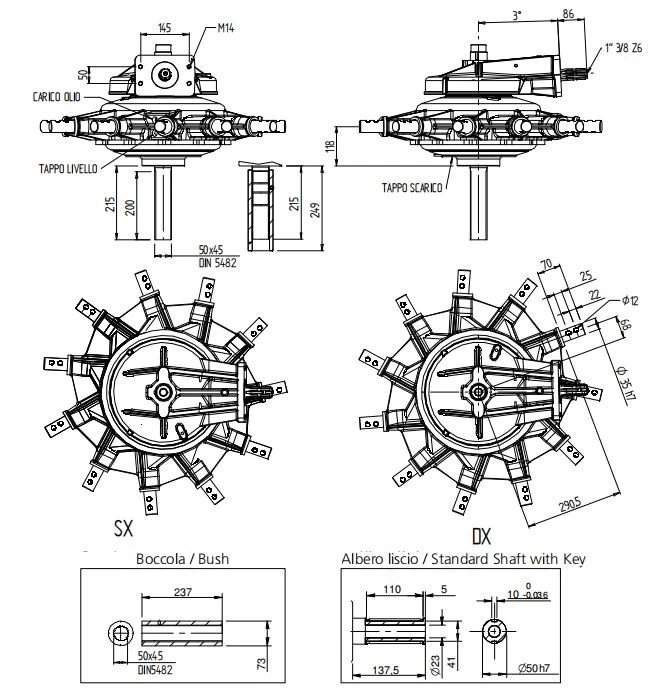

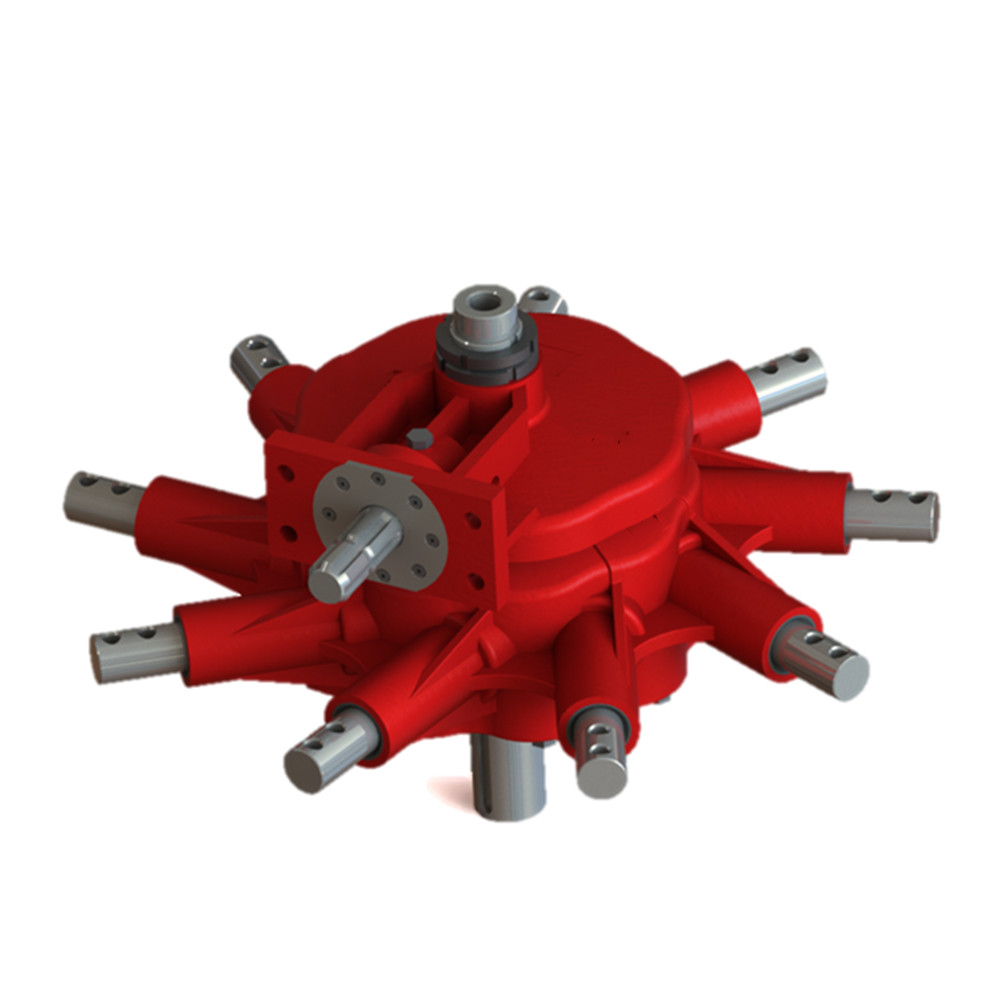

Gearbox For Rotary Rakes

S90, with 2 gearbox of 9 Arms, suitable for machine with 6-7 metersof work area

S11, with 2 gearbox of 11 arms, suitablefor machine with 8-9 meters of work area

Side-Delivery Rake Gearbox

Side-Delivery Rake Gearbox

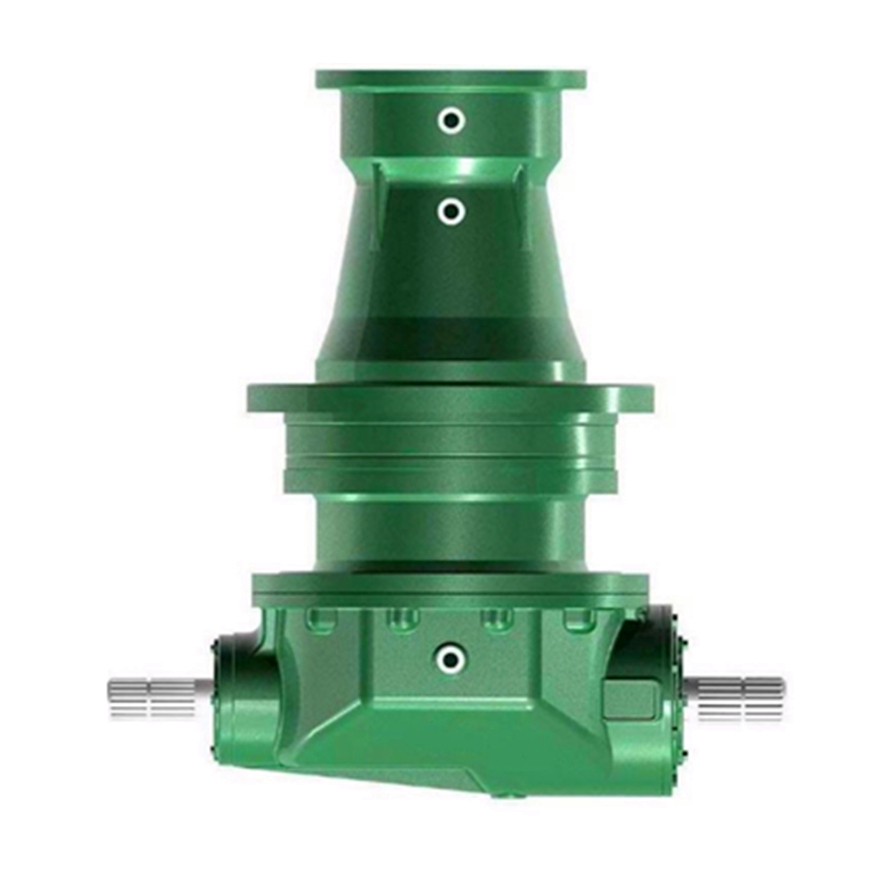

Product Name	PC Planetary gearbox for Fodder Mixer
Material	stainless steel ,Cast Iron
Color	RAL
Standard	DIN GB ISO JIS BA ANSI
Output toruqe	30000N.m (max)

Model	Capacity	Screw Diameter	Main Power	Feeding Power	Cutting Power
P40	30-40kg/h	40mm	5.5kw	0.4kw	0.4kw
P50	60-80kg/h	50mm	11kw	0.4kw	0.4kw
P135	700-800kg/h	133mm	75kw	0.4kw	2.2kw
...	...	...	...	...	...
P200	1800-2000kg/h	195mm	132kw	1.5kw	3.0-4.0kw

Side-Delivery Rake Gearbox

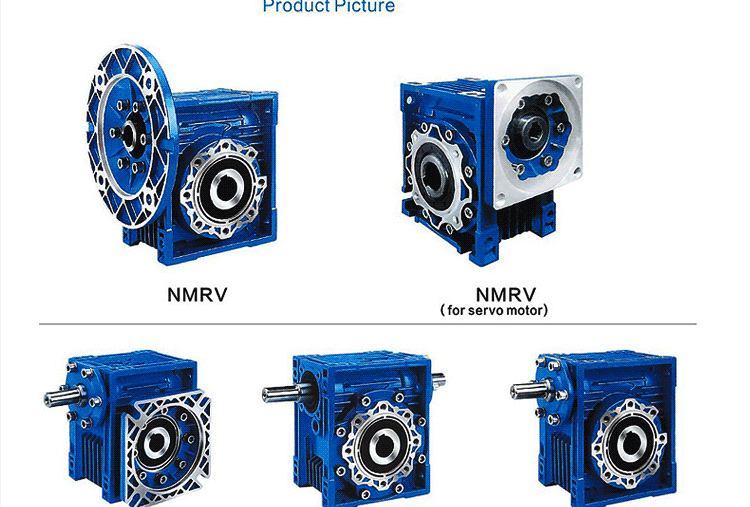

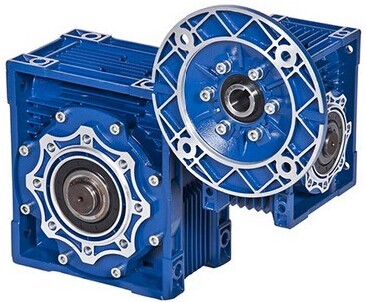

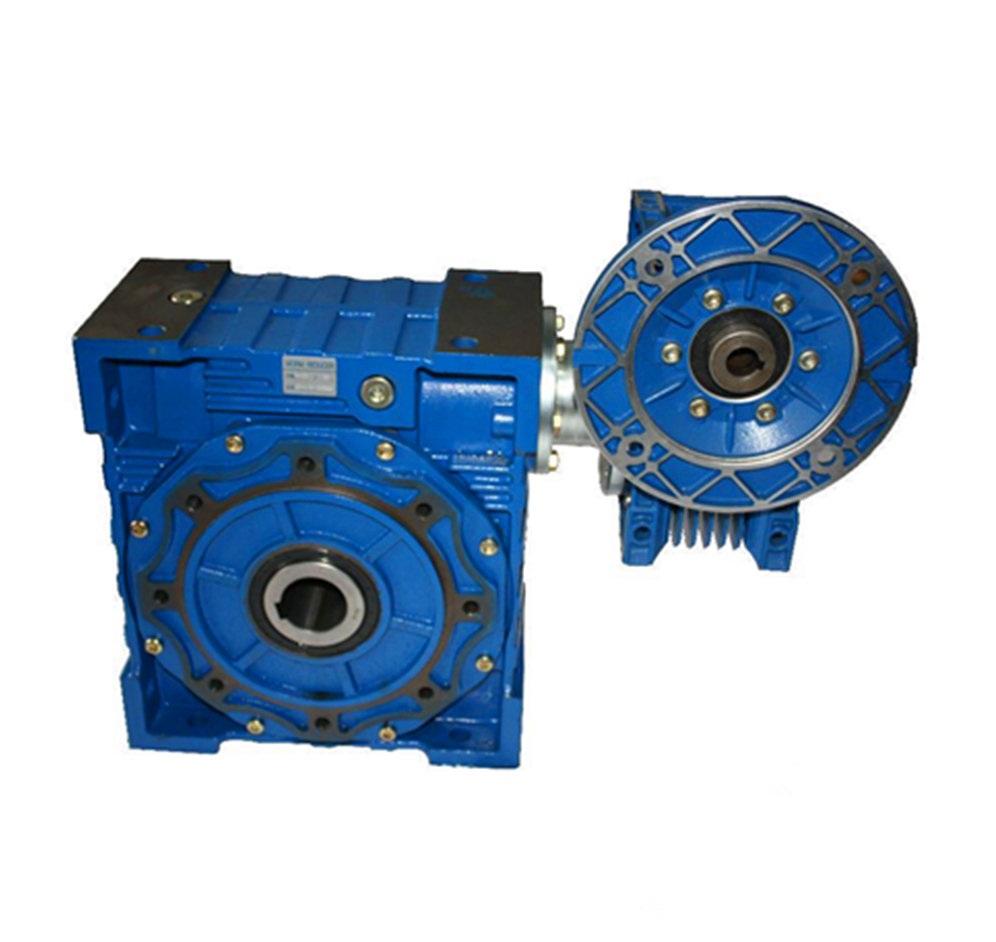

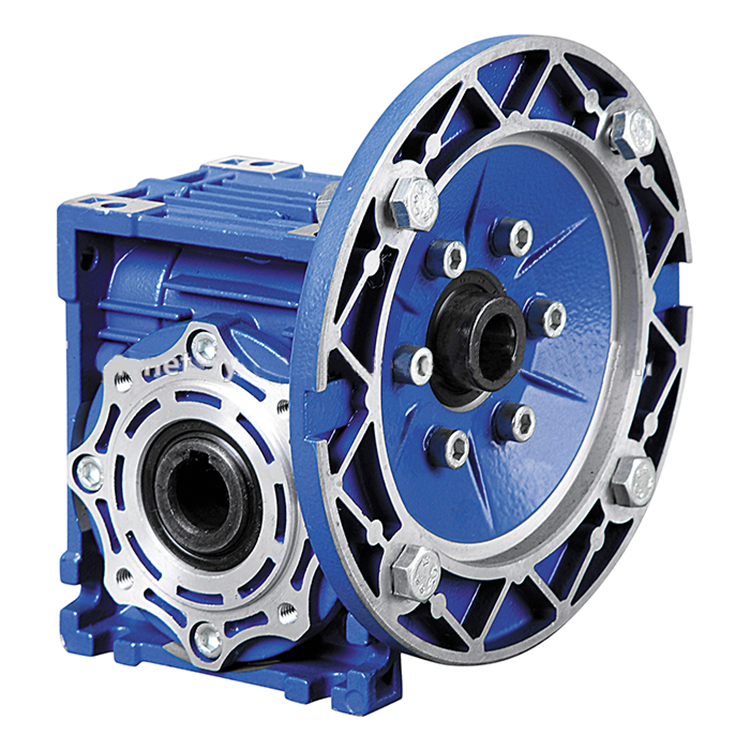

NMRV mixer gearbox specification:

Type:	Aluminium Worm reducer
Model:	Center Distance:25,30,40,50,63,75,90,110,130
Ratio:	5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver White
Material:	Aluminium Alloy
	Worm Gear- Cooper-10-3
	Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC
	Shaft-chromium steel-45
Packing:	Carton box/per set(With foam board inside)
Bearing:	Brand "NSK" Bearing,etc
Seal:	NAK Seal from TAIWAN,etc
Warranty:	1 year
Input Power:	0.1kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw
Usages:	In industrial machine: widely used in packing, printing,textile machine,as well as woodworking,glass and plastics,food stuff,ceramics,chemical,etc.
IEC Flange:	B5,B14
Lubricant:	Synthetic & Mineral
