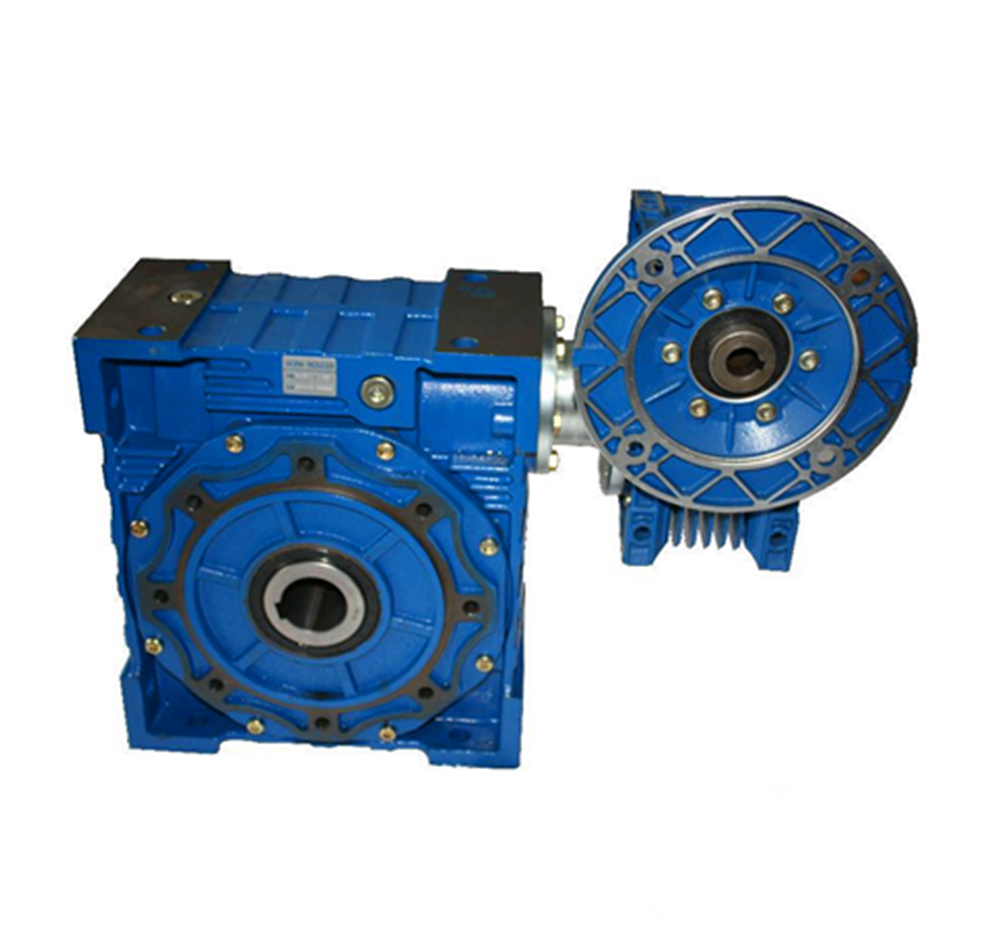

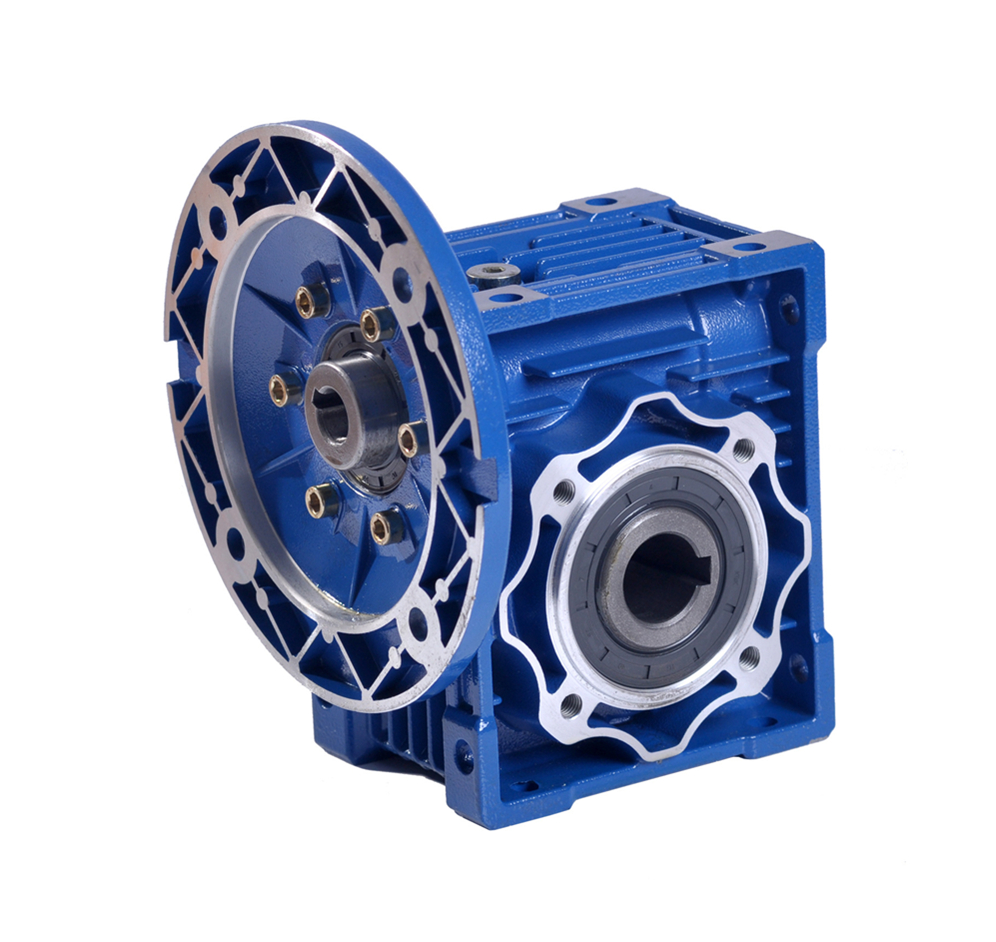

NMRV Series NMRV50 NMRV030 NMRV040 NMRV060 Worm Reduction Gearbox

NMRV series NMRV50 NMRV030 NMRV040 NMRV060 Worm Reduction Gearbox

NMRV030,NMRV040,NMRV050,NMRV060,

NMRV/NRY Series Worm and Gear Motor

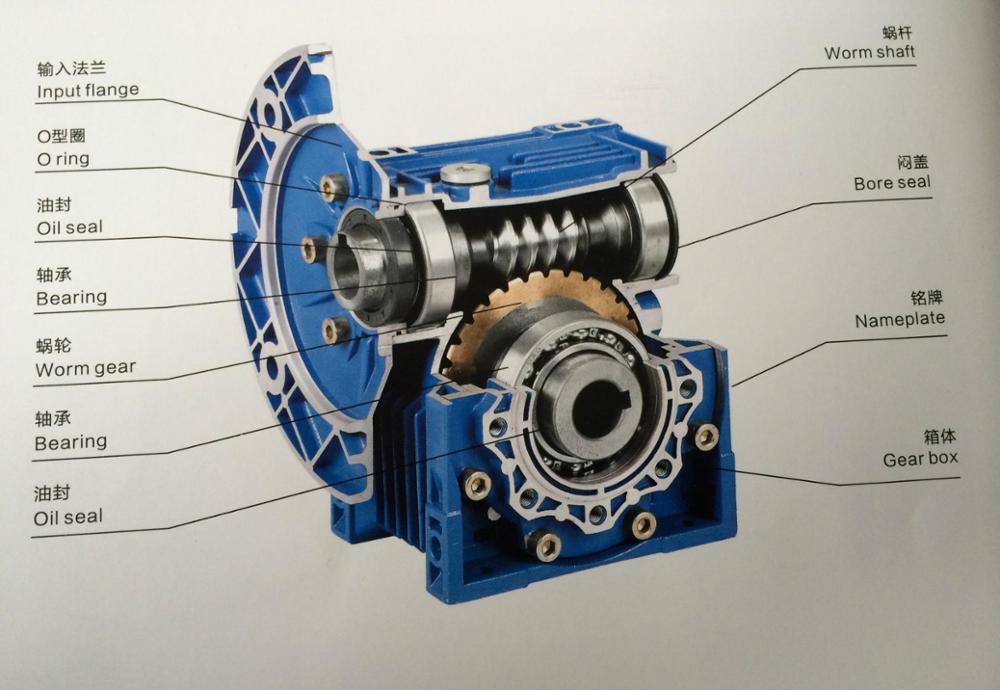

NMRV Series Worm Gear Motor contains worm gear reducer and motor(Including three phrese AC motor,single AC motor,DC servo motor and DC PM motor).The square aluminum gearbox is manufactured based on GB1055588 cylindrical gear parameter.During the process, many advanced technologies are adopted.So it has compact structure, good appearance and excellent heatsink when runing.

This series motor has the following characteristics:smooth running, low noise, large transmission ratio and strange loadcapacity  and it may match with different kinds of motors for realizing speed adjustment.

Working principle:

Gear box is used to transfer rotation and torque from motor to working machine,the function is to decrease speed by gears and increase torque.

Design characteristics:
1:Use low-carbon Aluminium Alloy cementation processing completely.
2:High precision on gear and gear shaft.
3:Small volume with big torque.

Maintenance:

1:After 300-hours operation, please change the oil, and flush the gear uint with suitable detergents.
2: Please do not mix the mineral oil and synthetic oil.

 3.No more than 4000m above sea level.

 4.Ambient temperature:-25~40degree.

 53.Relative humidity ≤95%(at +25degree).

 4.The followed temperature rise: no more than 75K(when 1000m above sea level)degree

NMRV mixer gearbox  specification:
