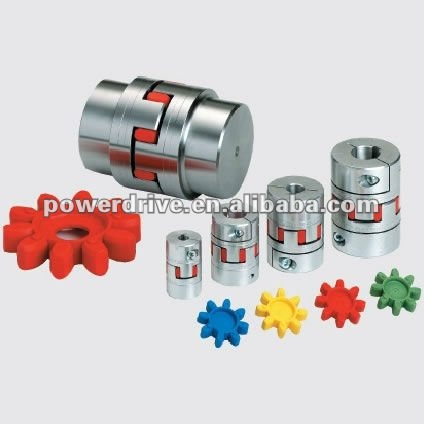

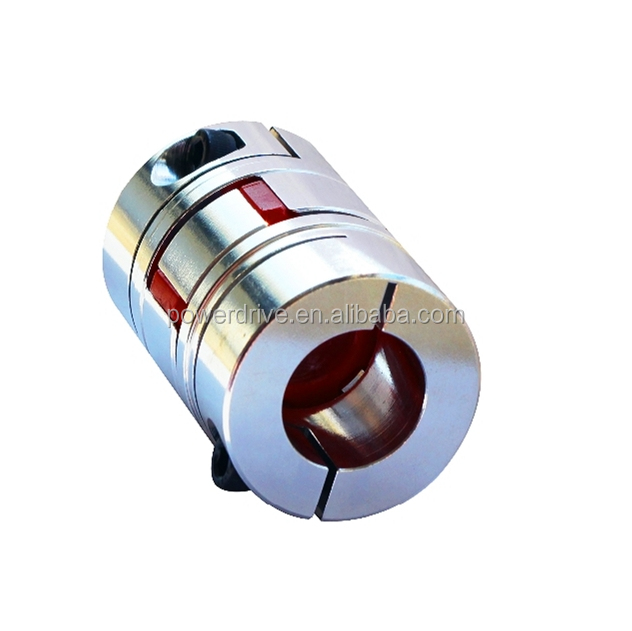

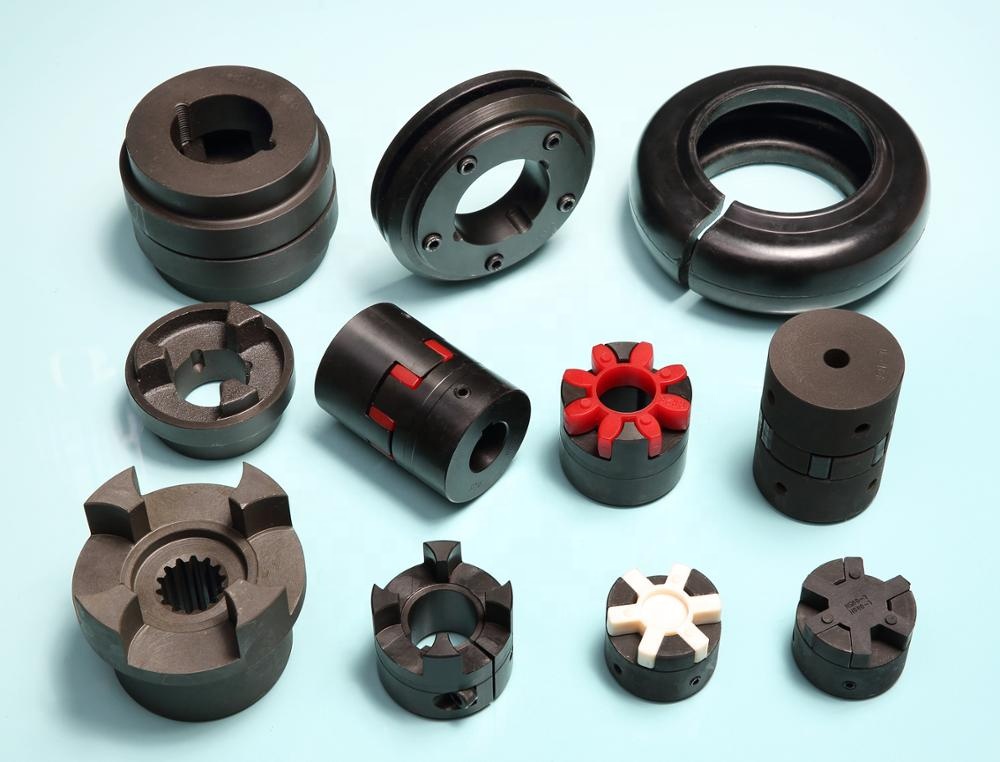

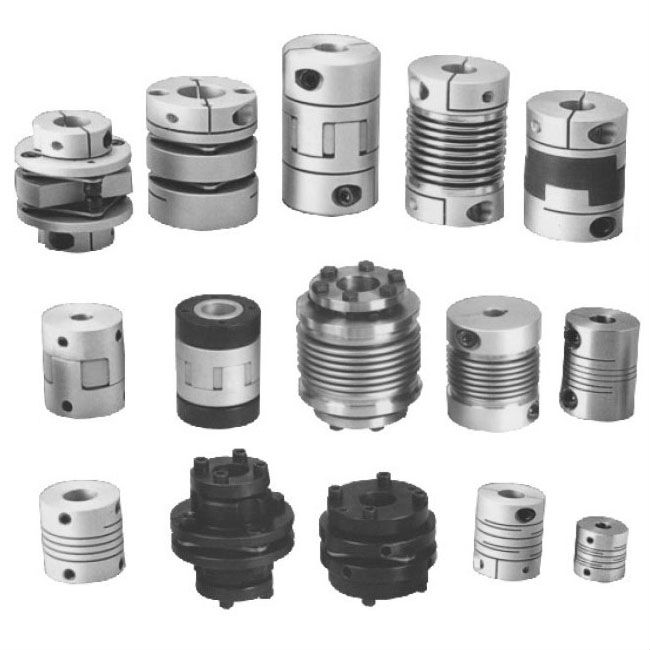

Standard Coupling
1.Material:steel, cast iron, nylon
2.KC, L, FL,FLS,EL.ELS,GL, EP, EE,GF,GE,GEM,GEL,HTKL, GRL,GSL, RM,GWL coupling
| TYPE | MATERIAL | OD | HARDNESS | colour | THICKNESS |
| GR-10 | CAST IRON/PU | 20 | SHORE A 98 | Red/Blue/Yellow | 8 |
| GR-14 | CAST IRON/PU | 30 | SHORE A 98 | Red/Blue/Yellow | 10 |
| GR-19 | CAST IRON/PU | 40 | 90(A)-64(D) | Red/Blue/Yellow | 12 |
| GR-24 | CAST IRON/PU | 54 | 90(A)-64(D) | Red/Blue/Yellow | 14 |
| GR-28 | CAST IRON/PU | 65 | 90(A)-64(D) | Red/Blue/Yellow | 15 |
| GR-38 | CAST IRON/PU | 80 | 90(A)-64(D) | Red/Blue/Yellow | 18 |
| GR-42 | CAST IRON/PU | 95 | 90(A)-64(D) | Red/Blue/Yellow | 20 |
| GR-48 | CAST IRON/PU | 104 | 90(A)-64(D) | Red/Blue/Yellow | 20.5 |
| GR-55 | CAST IRON/PU | 120 | 90(A)-64(D) | Red/Blue/Yellow | 22 |
| GR-65 | CAST IRON/PU | 135 | 90(A)-64(D) | Red/Blue/Yellow | 26 |
| GR-75 | CAST IRON/PU | 161 | 90(A)-64(D) | Red/Blue/Yellow | 30 |
| GR-90 | CAST IRON/PU | 200 | 90(A)-64(D) | Red/Blue/Yellow | 34 |
| GR-100 | CAST IRON/PU | 224 | 90(A)-64(D) | Red/Blue/Yellow | 38 |
| GR-110 | CAST IRON/PU | 255 | 90(A)-64(D) | Red/Blue/Yellow | 38 |
| GR-125 | CAST IRON/PU | 292 | 90(A)-64(D) | Red/Blue/Yellow | 46 |
Hangzhou Raydafon Technology Group Co.,Limited has been engaged in power transmission parts manufacturing since establishment in 1992.
Raydafon Technology Group Co.,Limited is a group of manufacturing facilities, offering one-stop solution for mechanical power transmission products in China. We can supply a full-range of power transmission products, such as chains, sprockets and plate wheels, pulleys, gearboxes, motors, couplings, gears and racks. Our product range also covers locking assemblies (clamping elements/locking device), taper bushes, QD bushes, bolt-on hubs, torque limiters, shaft collars, motor bases and motor slides, chain detachers, chain guides, universal joint, rod ends and yokes. Our products are used in many different industry sector, like in automation engineering, drive engineering, conveyor technology, assembly and handling technology, packaging industries, the beverage, food and medical engineering, pharmaceutical production, and laboratory equipment.
Thanks to decades of production expertise, today, Raydafon is able to offer custom, cost-optimized solutions in accordance with customer drawings - such as ready-to-install machine parts and profiles - in addition to our standard products. Our internal Application Technology department and field staff are happy to provide free advice on custom solutions.
With over 20 years experience in mechanical line, Raydafon Technology Group Co.,Limited has been outstanding us from other suppliers in China by our advantages in unbeatable price-quality ratio, punctual delivery, fast responses, on-hand engineering support and good after-sales services. Additionally, all Raydafon production procedures are in compliance with ISO9002 Quality Management System, ISO9001 Quality Management System, API certificate, ISO/TS16949:2002 and ISO10012 measurement management system.
We hereby promise: Pay particular attention to customers' needs, listening to the specific requirements of each customer and guaranteeing total satisfaction. Raydafon will always keeping investing on research & development for new products to meet every customer' needs.
