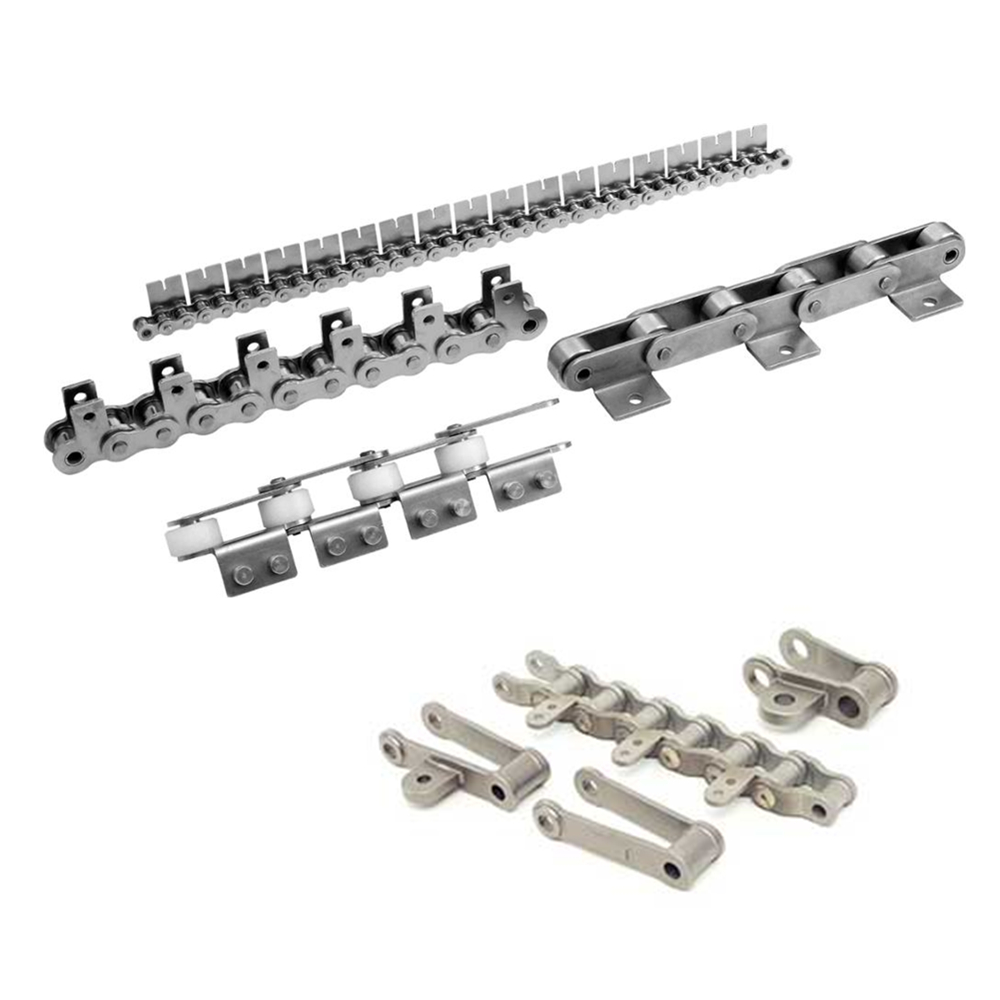

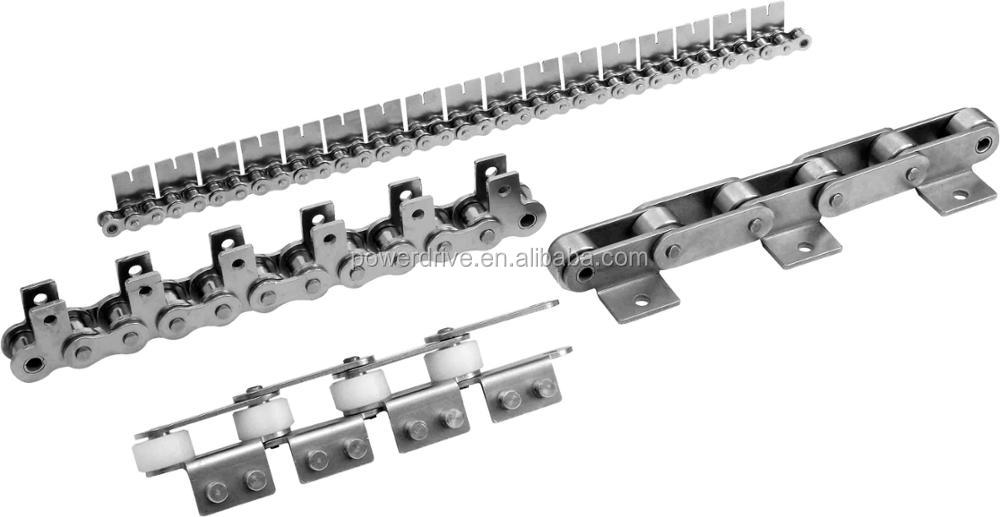

DIN 8187 Standard 40Mn Industrial Transmission Chain Roller

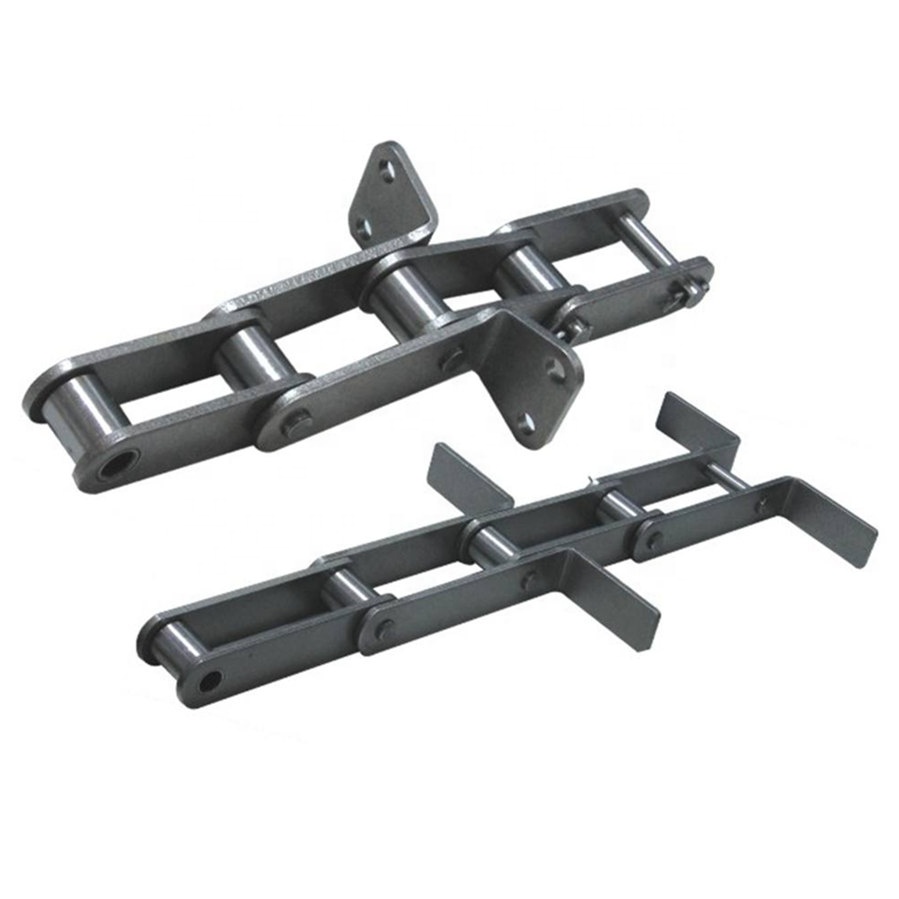

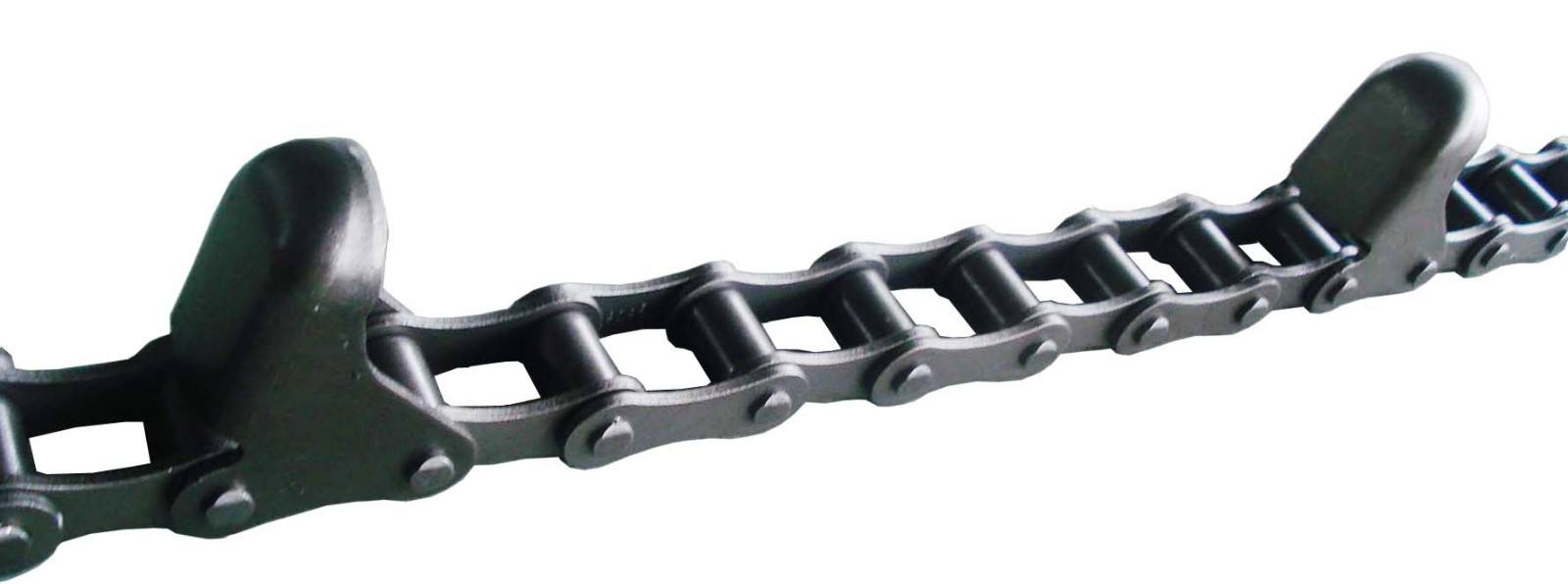

Roller Chain,transmission roller chain,conveyor chain :We make Roller Chain,transmission roller chain,conveyor chain with good quality
|
DIN/ISO Chain NO. |
Pitch |
Roller diameter |
Width Between Innerplates |
Pin diameter |
Pin length |
Plate Thick-ness |
Ultimate Tensile strength |
| p |
d1 max |
b1 min |
d2 max |
L/Lc max |
t/T max |
Q min |
|
| 04B-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80/ 7.8 |
0.60 | 3.0/682 |
| 05B-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20/ 8.9 |
0.80 | 5.0/1136 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15/ 14.1 | 1.30 | 9.0/2045 |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70/ 18.2 | 1.60 | 18.0/4091 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50/ 20.9 |
1.70 | 22.4/5091 |
| 12B-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50/ 24.2 |
1.85 | 29.0/6591 |
| 16B-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10/ 37.4 |
4.15/3.1 | 60.0/13636 |
| 24B-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40/ 57.8 |
6.0/4.8 | 160.0/36364 |
| 28B-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10/ 69.5 |
7.5/6.0 | 200.0/45455 |
| 32B-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00/ 71.0 |
7.0/6.0 | 250.0/56818 |
| 48B-1 | 76.200 | 48.26 | 45.72 | 29.24 | 99.10/ 107.0 |
12.0/10.0 | 560.0/127272 |
| 56B-1 | 88.900 | 53.98 | 53.34 | 34.32 | 114.6/ 123.0 |
13.5/12.0 | 850.0/193180 |
| 64B-1 | 101.60 | 63.50 | 60.96 | 39.40 | 130.0/ 138.5 |
15.0/13.0 | 112.0/254544 |
| 72B-1 | 114.30 | 72.39 | 68.58 | 44.48 | 147.4/ 156.4 |
17.0/15.0 | 1400.0/318180 |
