Product Details:

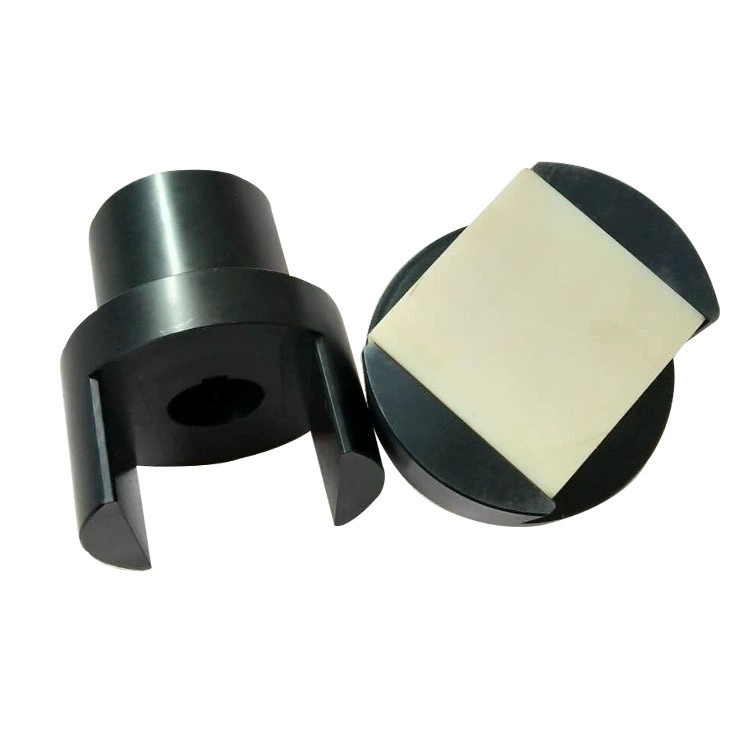

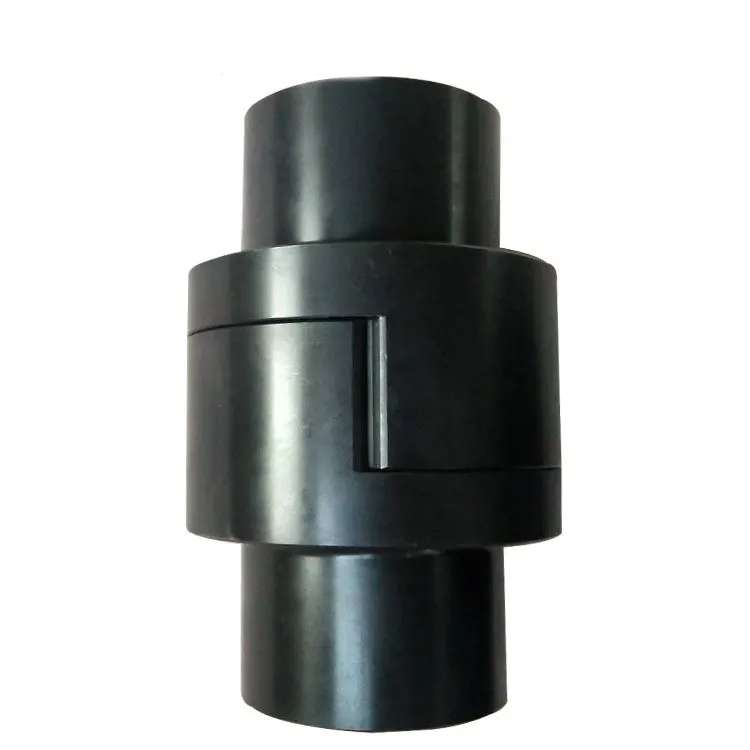

Structure Oldham
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Steel
Brand Name Raydafon
Place of Origin zhejiang,China(Mainland)
Model Number TS16
Type Screw or clamping

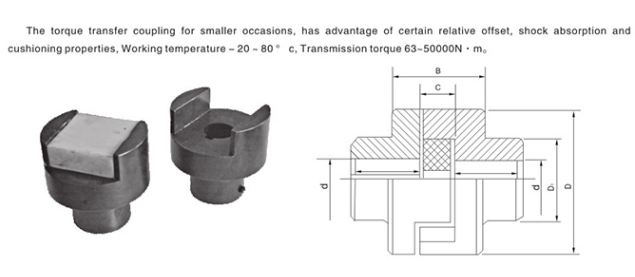

Type Tn(N.M) [n]r/min d D D L H S (kg.m 2 ) (kg)
SL70 120 250 1518 70 32 42 14 0.5 0.002 1.5
SL90 250 250 2030 90 45 52 14 0.5 0.008 2.6
SL100 500 250 3640 100 60 70 19 0.5 0.026 5.5
SL130 800 250 4550 130 80 90 19 0.5 0.07 10
SL150 1250 250 5560 150 95 112 19 0.5 0.14 15.5
SL170 2000 250 6570 170 105 125 24 0.5 0.25 22.4
SL190 3200 250 7580 190 110 140 29 0.5 0.5 31.5
SL210 5000 250 8590 210 130 160 33 1.0 0.9 45
SL240 8000 250 95100 240 140 180 33 1.0 1.6 59.5
SL260 9000 250 100110 260 160 190 33 1.0 2 76
SL280 10000 100 110120 280 170 200 33 1.0 3 94.3
SL300 13000 100 120130 300 180 210 43 1.0 4.3 111
SL320 16000 100 130140 320 190 220 43 1.0 5.7 129
SL340 20000 100 150 340 210 250 48 1.0 8.4 162
SL360 32500 100 160 360 240 280 48 1.0 19.2 258
SL400 38700 80 170 400 260 300 48 1.0 26.1 305
SL460 63000 70 200 460 300 350 48 1.0 62.9 560
| Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples. |
