2GT 3GT T2.5 T5 T10 AT5 AT10 Xl Aluminum Bore 5mm Fit Timing Belt Pulley

T2.5,T5,T10,AT5,AT10 xl timing belt pulley timing pulley,timing belt,belt,L,H,3M,5M,8M,14M,T2.5,T5,T10,AT5,AT10XL,L,H,XH Product Description Product Name GT2 Timing Pulley 16 teeth Alumium Bore 5mm fit for GT2 timing belt Width 10mm Material Aluminum

Send Inquiry

Product Description

T2.5,T5,T10,AT5,AT10 xl timing belt pulley

timing pulley,timing belt,belt,
L,H,3M,5M,8M,14M,
T2.5,T5,T10,AT5,AT10
XL,L,H,XH

Product Description

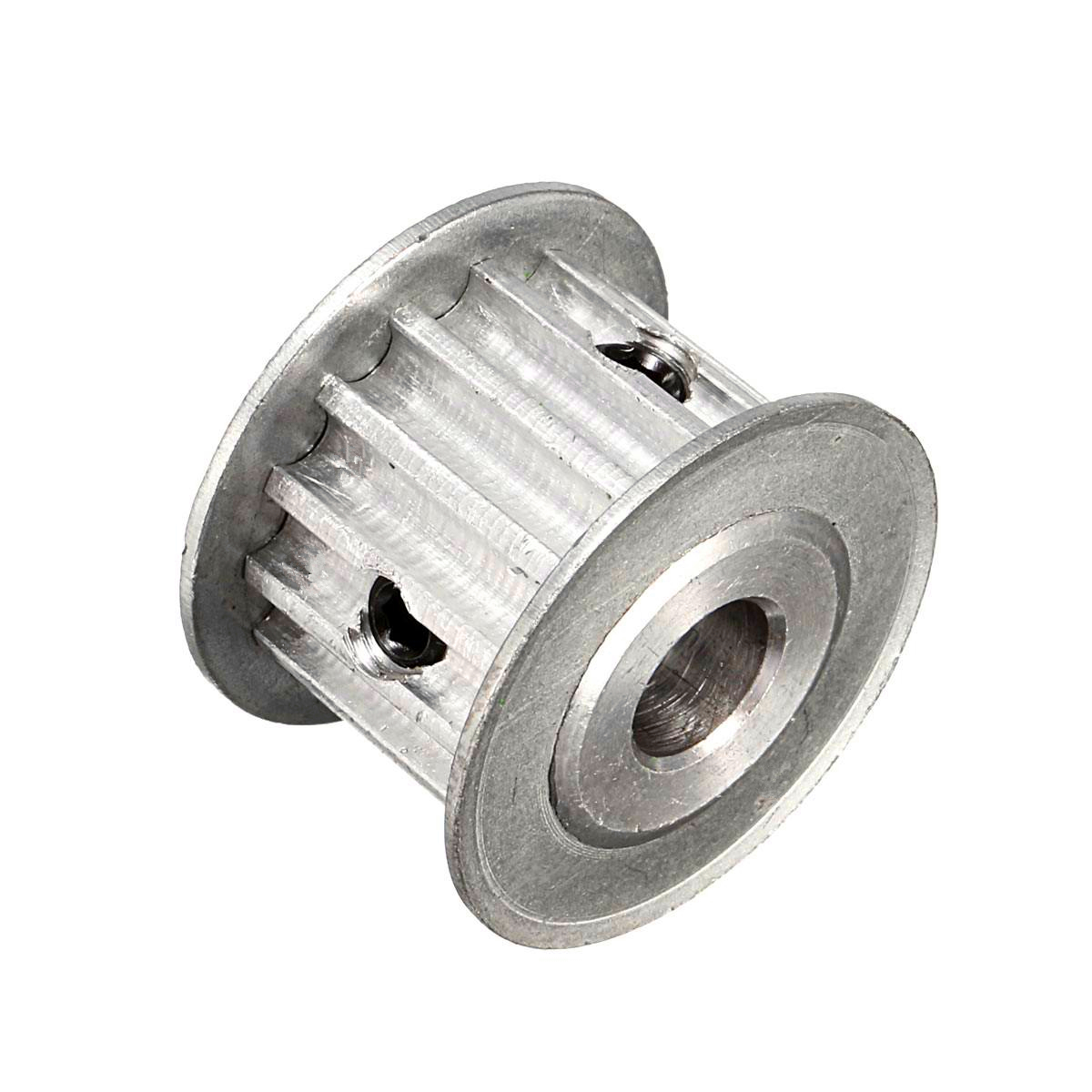

Product Name	GT2 Timing Pulley 16 teeth Alumium Bore 5mm fit for GT2 timing belt Width 10mm
Material	Aluminum
Model	GT2
Teeth	16 teeth,20 teeth
Bore	5mm,8mm
Belt width	6mm
Stock	Yes
Used	industrial

2GT 3GT T2.5 T5 T10 AT5 AT10 Xl Aluminum Bore 5mm Fit Timing Belt Pulley

GT2Pitch:2mm

Teeth Number :15T/16T/17T/20T/28T/36T

Material :Aluminium Alloy

Flange: double

Fixed mode: two Screw hole M3

Bore of Timing pulley:5mm

Width of timing belt: 6mm

Size of 2GT Timing Pulley
Type	Pitch	R1	R2	R3	b	H	h	i	PLD
2GT	2	0.15	1.00	0.555	0.40	1.38	0.75	0.63	0.254
3GT	3	0.25	1.52	0.85	0.61	2.40	1.14	1.26	0.381
Features: circular arc tooth profile, tooth space is small, suitable for straight line driving.
