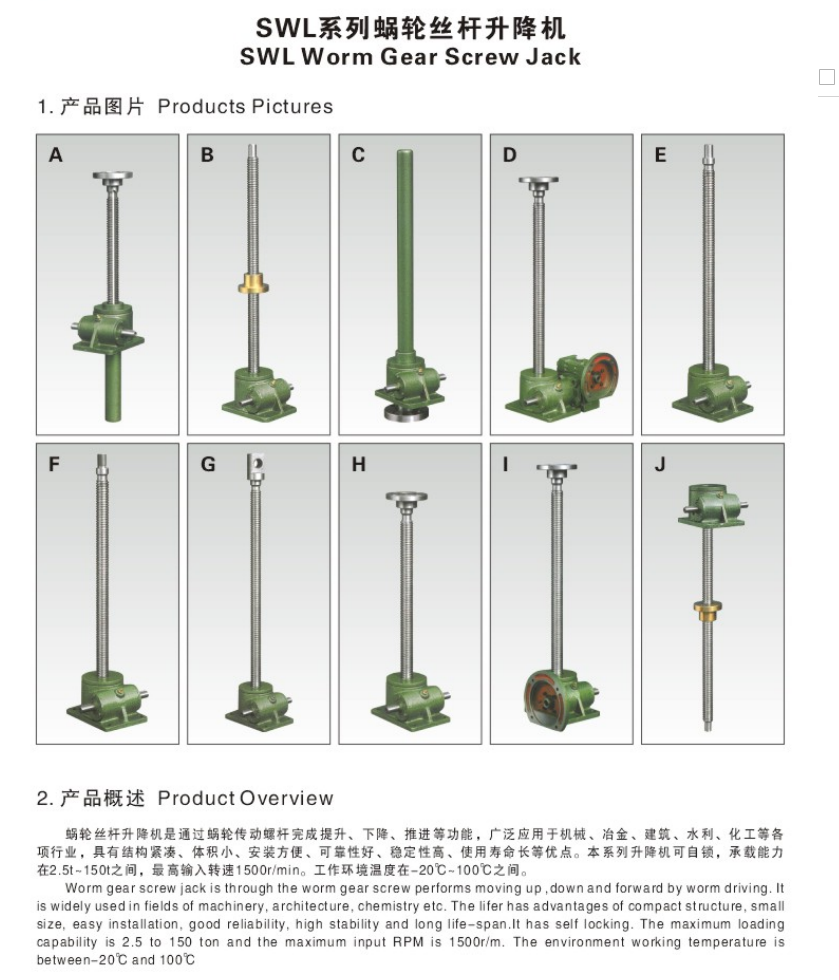

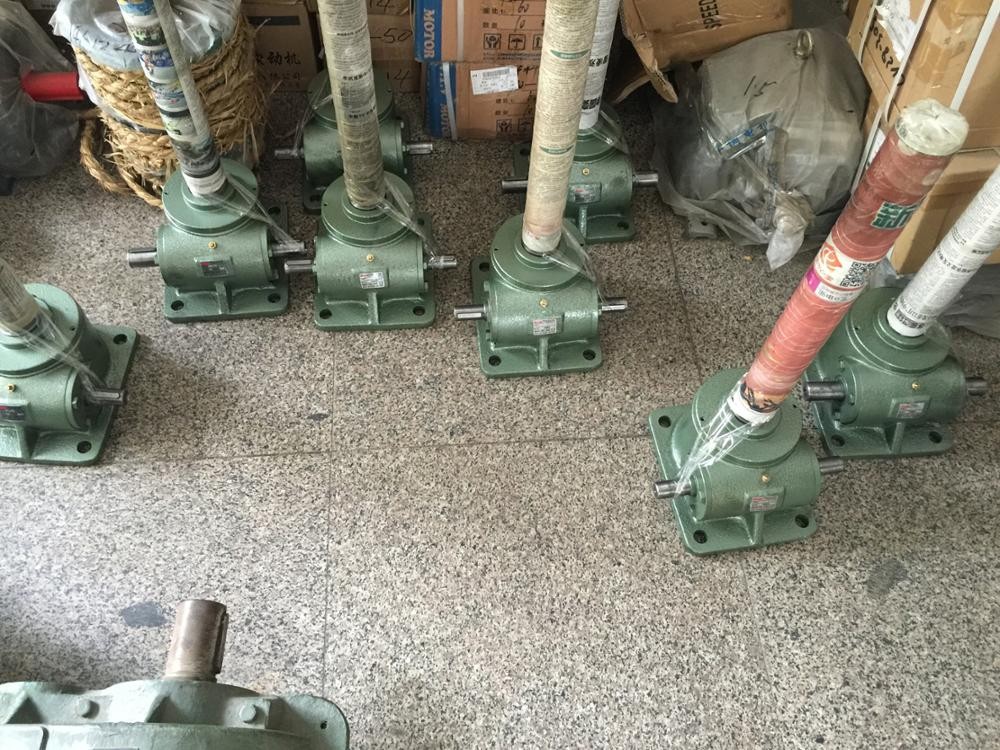

SWL1.0 Motorized Worm Gear Screw Jack

SWL1.0 worm srew jack comsists of worm unit and echeion bolt for firing up moving down, compecf in structure,light and portable,flexible, refiable ,long in service life ,easy to installation, and self-locking while stopping. Product Description SWL s

Send Inquiry

Product Description

SWL series worm screw jack with high quality

1.Convenient to adjust
2.Wide range of ratio
3.Easy to install
4.high torque

Application Industries:
Our SWL series screw jacks are widely used in the industries such as metallurgy,mining,hoisting and transportation, electrical power,energy source,constrction and building material,light industry and traffice industry

Type	Model	Screw thread size	Max lifting strength kN	Max pull force kN	Weight without stroke kg	Screw weight per 100mm
SWL Screw jack	SWL2.5	Tr30*6	25	25	7.3	0.45
	SWL5	Tr40*7	50	50	16.2	0.82
	SWL10/15	Tr58*12	100/150	99	25	1.67
	SWL20	Tr65*12	200	166	36	2.15
	SWL25	Tr90*16	250	250	70.5	4.15
	SWL35	Tr100*18	350	350	87	5.20
	SWL50	Tr120*20	500	500	420	7.45
	SWL100	Tr160*23	1000	1000	1010	13.6
	SWL120	Tr180*25	1200	1200	1350	17.3
