Supply the Regular Overhead Roller Chain Conveyor X678 Drop Forged Side Link Pusher Dog Drop Forged Side Link Pusher Dog

X678 Drop Forged Side Link Pusher Dog SPECIFICATIONS FORCHAIN CONVEYORSupply the regular Overhead roller chain conveyor Chain X348 X458 X678 Separation of suspension T=76.2mm T=100mm T=160mm Chain's catastrophic pull force 110KN 220KN 400KN Carriage
Send Inquiry
Product Description

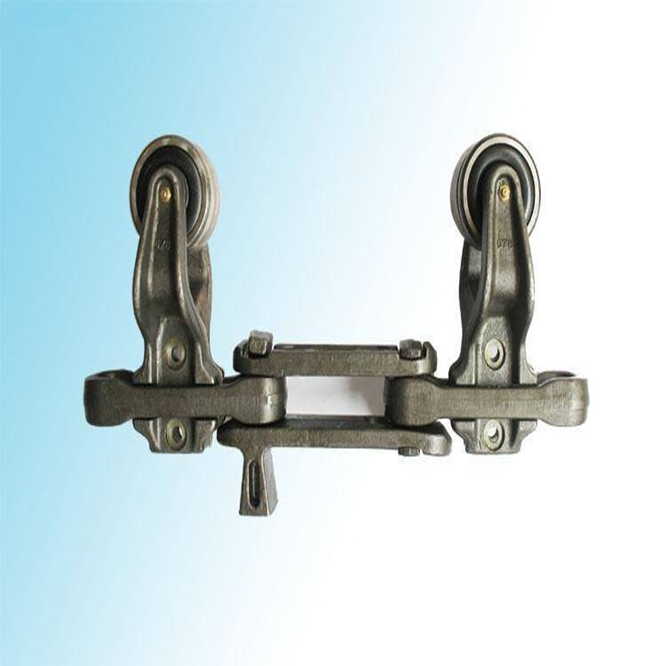

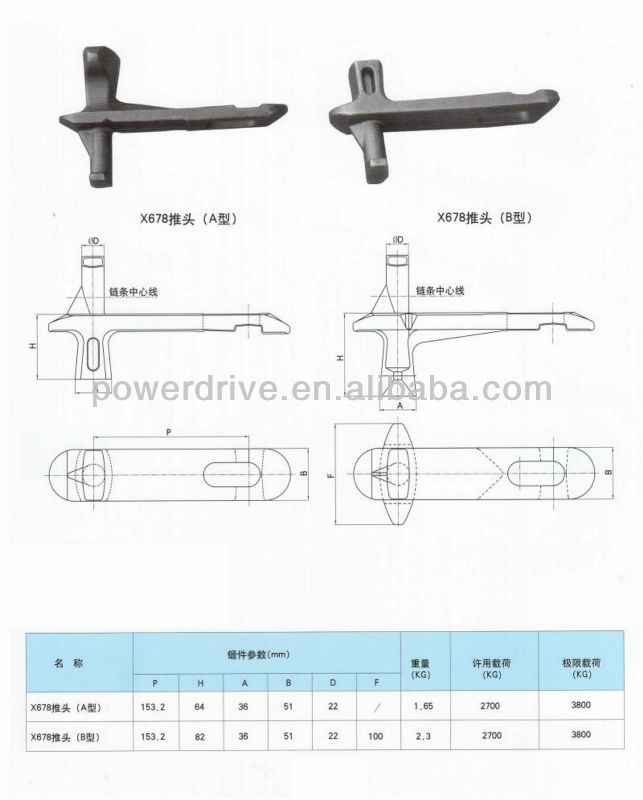

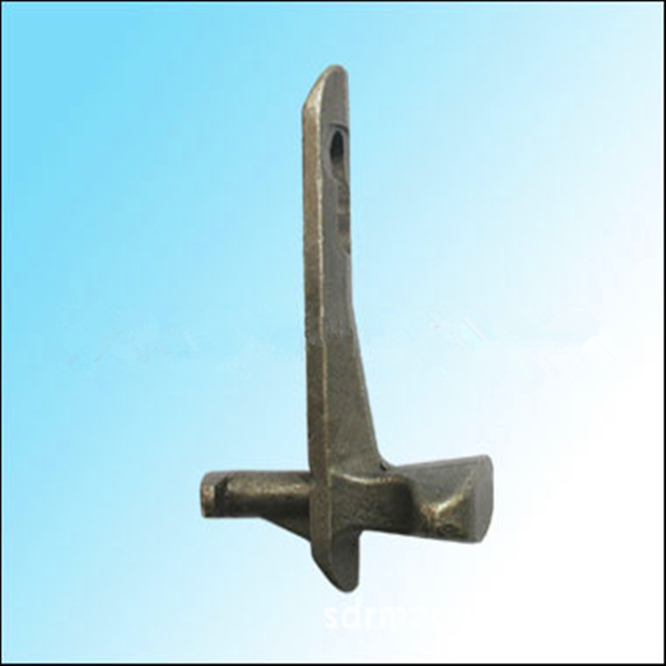

X678 Drop Forged Side Link Pusher Dog



Supply the Regular Overhead Roller Chain Conveyor X678 Drop Forged Side Link Pusher Dog Drop Forged Side Link Pusher Dog

SPECIFICATIONS FOR CHAIN CONVEYORSupply the regular Overhead roller chain conveyor
Chain
X348
X458
X678
Separation of suspension
T=76.2mm
T=100mm
T=160mm
Chain's catastrophic pull force
110KN
220KN
400KN
Carriage Limit load
300kg
500kg
800kg
Carriage Allowable load
150kg
250kg
300kg
Track
I10 or I12
I12 or I14
I14 or I16
Minimum Horizontal radius of gyration
R305
R317
R404
Minimum Vertical bending radius
R1500
R2000
R3150
Hot Tags: Supply The Regular Overhead Roller Chain Conveyor X678 Drop Forged Side Link Pusher Dog Drop Forged Side Link Pusher Dog - Buy Pusher Dog x678 Pusher Dog x678 Product on Raydafon
