1. Good hardness and strength
2. Good anticorrosive capability
3. Custom-made are available
4. Reasonable price
V belt pulley specification:

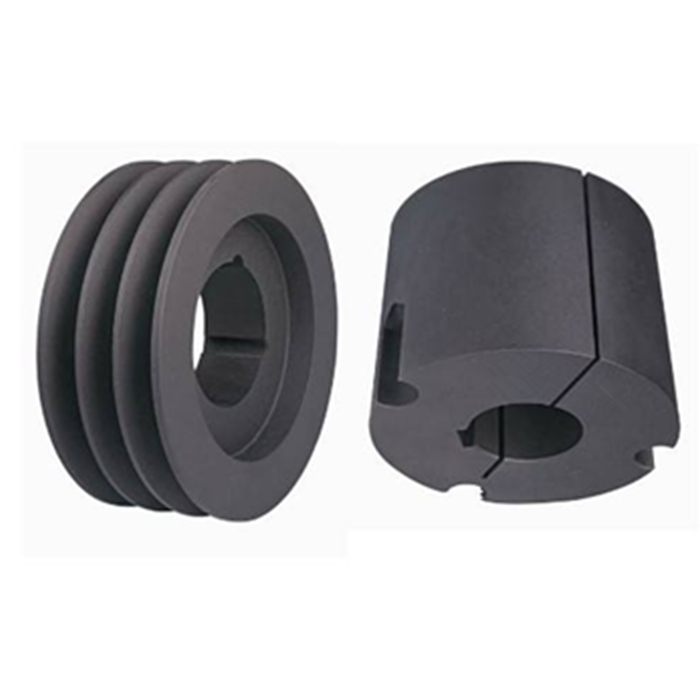

1) European standards : a) V-belt pulley for taper bushing: SPZ, SPA, SPB, SPC; up to 10 grooves b) Adjustable speed V-belt pulleys and variable speed pulley c) Flat belt pulleys and conveyor belt pulleys

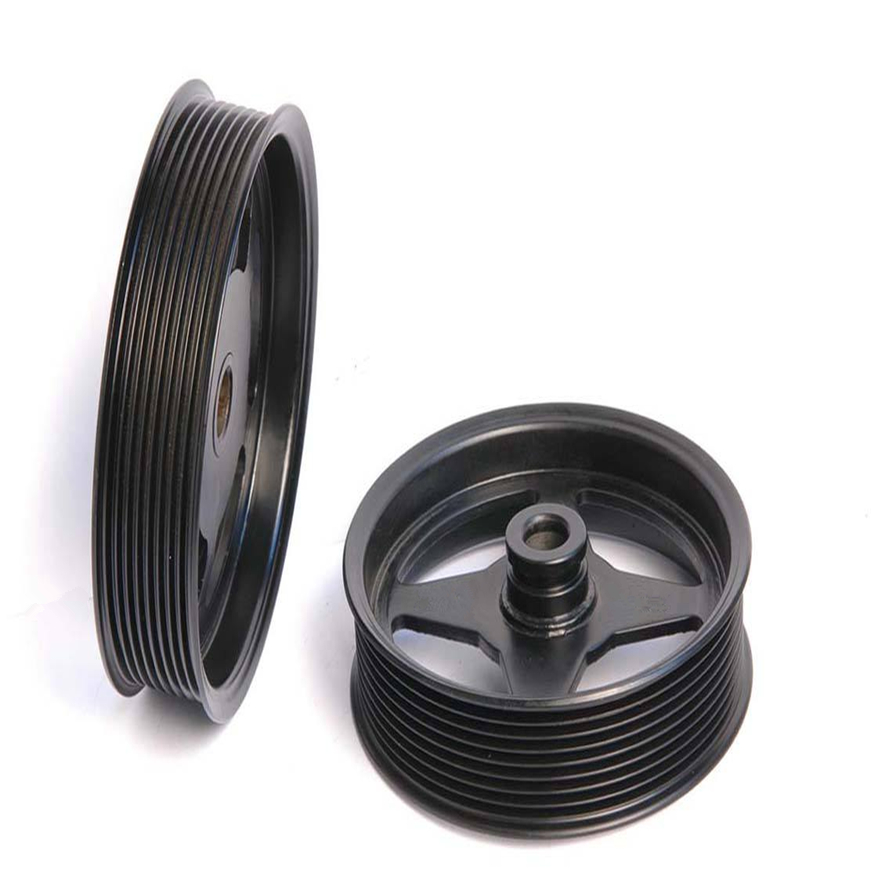

2) American standards: a) Sheaves for taper bushing: 3V, 5V, 8V b) Sheaves for QD bushings: 3V, 5V, 8V c) Sheaves for split taper bushing: 3V, 5V, 8V d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH, 2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK e) Adjustable sheave: poly V-pulley, multi-pitch H, L, J, K and M
3) Bore: pilot bore, finish bore, taper bore, bore for QD bushing
4) Surface finish: paint, phosphate, zinc plate
5) Material: cast iron, ductile iron, nylon, aluminum
6) Made according to drawings and/or samples,OEM inquiries welcomed

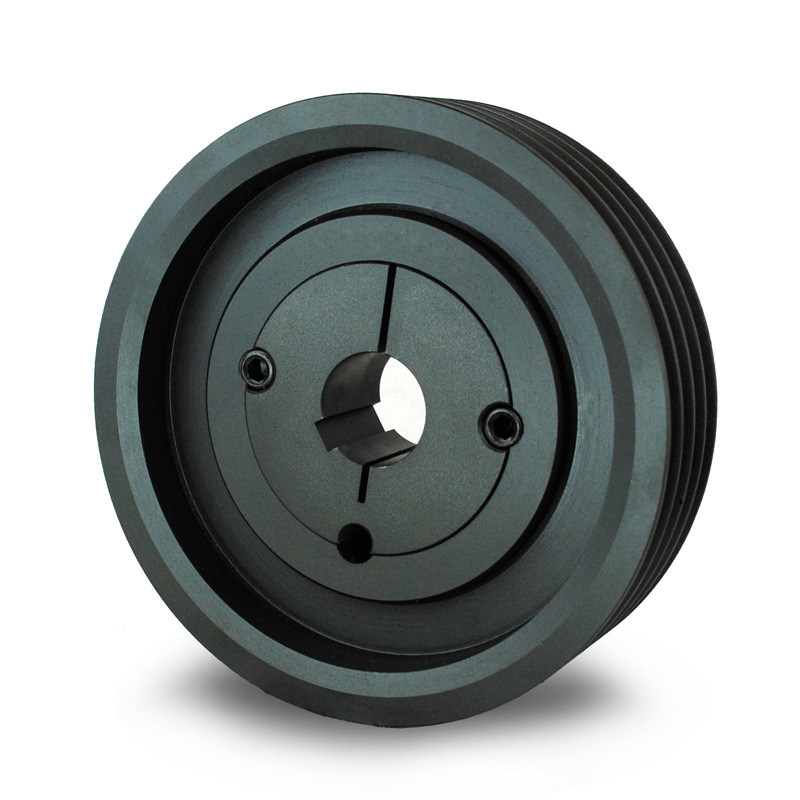

These SPB Section V Pulleys are available in 1 Groove, ,2 Groove, 3 Groove, 4 Groove, 5 Groove and 6 Groove.
These SPB Pulleys will run with a SPB V Belt.
| SPB-1 | ||||||
| PULLEY MODEL | TAPER BUSH | WEIGHT | F | R | L | P |
| SPB100-1 | 1610 | 0.9 | 25 | 25 | ||
| SPB106-1 | 1610 | 1.1 | 25 | 25 | ||
| SPB112-1 | 1610 | 1.2 | 25 | 25 | ||
| SPB118-1 | 1610 | 1.3 | 25 | 25 | ||
| SPB125-1 | 1610 | 1.5 | 25 | 25 | ||
| SPB132-1 | 1610 | 1.7 | 25 | 25 | ||
| SPB140-1 | 1610 | 1.8 | 25 | 25 | ||
| SPB150-1 | 1610 | 2.1 | 25 | 25 | ||
| SPB160-1 | 1610 | 2.5 | 25 | 25 | ||
| SPB170-1 | 1610 | 2.9 | 25 | 25 | ||
| SPB180-1 | 1610 | 3.2 | 25 | 25 | ||
| SPB190-1 | 2012 | 3.8 | 25 | 32 | 3.5 | |
| SPB200-1 | 2012 | 4.2 | 25 | 32 | 3.5 | |
| SPB212-1 | 2012 | 4.3 | 25 | 32 | 3.5 | |
| SPB224-1 | 2012 | 4.7 | 25 | 32 | 3.5 | |
| SPB236-1 | 2012 | 5.1 | 25 | 32 | 3.5 | |
| SPB250-1 | 2012 | 5.7 | 25 | 32 | 3.5 | |
| SPB280-1 | 2012 | 6 | 25 | 32 | 3.5 | |
| SPB300-1 | 2012 | 7.1 | 25 | 32 | 7 | |
| SPB315-1 | 2012 | 7.5 | 25 | 32 | 3.5 |
|
